2014 Status I
0 Bewertungen

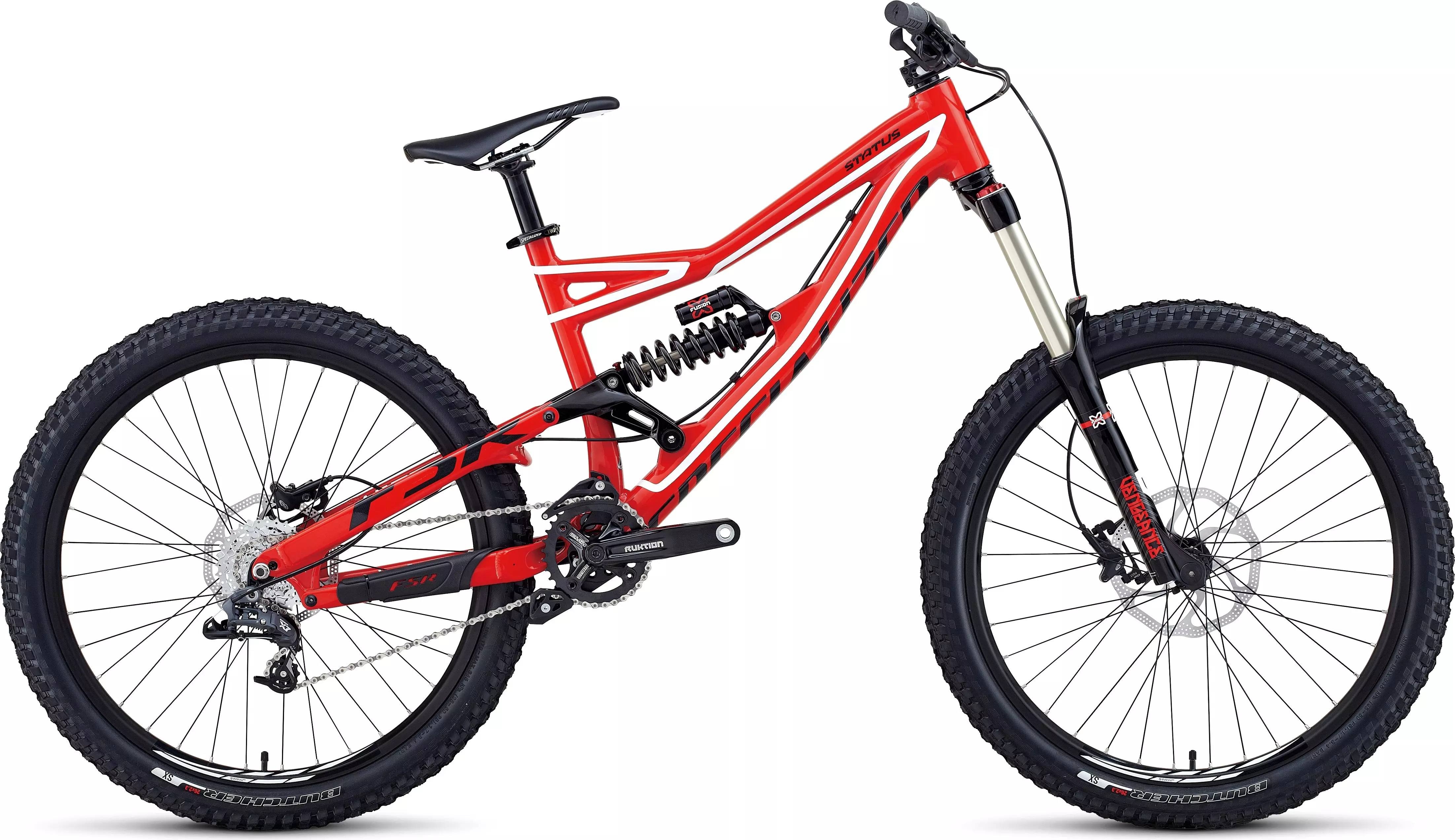

Das Status I Park Bike mit 200 mm FSR X-Fusion Vector R Dämpfung und der X-Fusion…
Farbe:
Gloss Red/White/Black
Was ist meine Größe?
Wähle eine Größe
Nicht verfügbar
Dieser Artikel ist in deiner Nähe nicht verfügbar
Produktdetails
Das Status I Park Bike mit 200 mm FSR X-Fusion Vector R Dämpfung und der X-Fusion Vengeance Gabel mit 170 mm Federweg ausgestattet.
X-Fusion Vengeance coil-sprung fork with tapered alloy steerer tube, 170mm of travel, adjustable rebound control and 20mm thru-axle makes for a plush fork that tracks through technical terrain
Custom X-Fusion Vector R coil rear shock with adjustable rebound works with the bike's FSR design to keep the rear wheel planted for aggressive riding
M4 alloy, 200mm-travel FSR frame with 1.5" head tube, full-cartridge bearing pivots and ISCG mounts makes the Status ready to handle the most technical descents
Specialized Butcher SX 2.3" dual compound tires for premium traction on challenging terrain
The 750mm-wide Specialized DH low-rise handlebar is super wide to control the toughest conditions
P.Disc rim is 32mm-wide and lace to Specialized Hi Lo disc hubs with 36 stainless spokes to a 20mm thru-axle in the front, robust to handle technical downhill terrain
Technische Spezifikationen
FRAMESET
FRAME
M4 hydroformed tubing, 1.5"" forged headtube, ISCG mounts, 135mm rear spacing, full-cartridge bearing pivots, 200mm travel
HEADSET
Semi-integrated alloy cups for 1-1/2"" headtube and 1-1/8"" steerer, cartridge bearings
SEAT BINDER
Specialized 7050 hard anodized alloy, w/ QR, 34.9mm, black
SUSPENSION
REAR SHOCK
Custom X-Fusion Vector R, coil over w/ piggy back, adj. rebound, 8.5x2.5"", spring rate XS: 350, S: 400, M: 450, L: 500
FORK
X-Fusion Vengeance R, coil spring, tapered alloy steerer, reb adj., 20mm thru-axle, 170mm travel
WHEELS
RIMS
P.Disc, 32mm wide, 36h
FRONT HUB
Specialized Hi Lo disc, sealed cartridge bearings, 20mm thru-axle, 32h
REAR HUB
Specialized disc, bolt-on 135mm, 36h
SPOKES
Stainless, 14g
FRONT TIRE
Specialized Butcher SX, 2Bliss Ready, 26x2.3"", foldable aramid bead, dual compound, 60TPI
REAR TIRE
Specialized Butcher SX, 2Bliss Ready, 26x2.3"", aramid bead, dual compound, 60 TPI
INNER TUBES
Standard Schrader valve
DRIVETRAIN
REAR DERAILLEUR
SRAM X7, 9-speed, short cage
SHIFT LEVERS
SRAM X4, 8-speed, trigger
CASSETTE
SRAM PG-830, 8-speed, 11-32
CHAIN
KMC X-8, 8-speed, reusable Missing Link
CRANKSET
Truvativ Ruktion, 165mm, w/ Status guide
CHAINRINGS
34T steel, 4-bolt, compact 104mm pattern
BOTTOM BRACKET
Truvativ Howitzer XR, oversize sealed outboard cartridge bearings, 73mm shell
COCKPIT
SADDLE
Specialized DH, 8mm steel rails
SEATPOST
Specialized 6061 alloy, 2-bolt micro-adjust, no offset, 30.9mm, 300mm
STEM
Specialized P.Series MTB, forged alloy, 4-bolt, 40mm length, 31.8mm clamp
HANDLEBARS
Specialized DH, low-rise, 6061 alloy, 780mm wide, 9-degree backsweep, 6-degree upsweep, 31.8mm
GRIPS
Specialized Sip Grip, light lock-on, half-waffle aramid-infused, S/M: regular, Others: XL thickness
BRAKES
FRONT BRAKE
Avid Elixir 1, metallic pad, 200mm rotor
REAR BRAKE
Avid Elixir 1, metallic pad, 180mm rotor
BRAKE LEVERS
Avid Elixir 1 R, hydraulic disc, tool-less reach adj.
ACCESSORIES
PEDALS
Alloy platform, 9/16""
*Gewichte basieren auf der Produktion lackierter Rahmen, wie abgebildet. Tatsächliche Gewichte variieren je nach Farbgebung, Rahmengröße und Komponentenvariation. Spezifikationen können ohne Vorankündigung geändert werden.
Geometrie
| XS | S | M | L | |
|---|---|---|---|---|
| Sitzrohrlänge, Tretlager - Oberkante | 394mm | 394mm | 419mm | 458mm |
| Top Tube Length, Actual | 510mm | 531mm | 553mm | 574mm |
| Tretlager-Absenkung | -14.5mm | -14.5mm | -14.5mm | -14.5mm |
| Tretlagerhöhe | 355mm | 355mm | 355mm | 355mm |
| Sitzrohrwinkel, tatsächlich | 71° | 71° | 71° | 71° |
| Sitzrohrwinkel, effektiv | 75° | 75° | 75° | 75° |
| Radstand | 1164mm | 1164mm | 1189mm | 1214mm |
| Überstandshöhe | 746mm | 746mm | 743mm | 759mm |
| Stack | 646mm | 646mm | 646mm | 646mm |
| Reach | 375mm | 420mm | 425mm | 450mm |
| Steuerrohrlänge | 120mm | 120mm | 120mm | 120mm |
| Steuerrohrwinkel | 64.5° | 64.5° | 64.5° | 64.5° |
| Mitte Tretlager - Mitte V.-Achse | 739mm | 739mm | 764mm | 789mm |
| Kettenstreben-Länge | 426mm | 426mm | 426mm | 426mm |
| Oberrohrlänge, horizontal | 533mm | 558mm | 583mm | 608mm |
| Kurbellänge | 165mm | 165mm | 165mm | 165mm |
| Lenkerbreite | 780mm | 780mm | 780mm | 780mm |
| Vorbaulänge | 45mm | 45mm | 45mm | 45mm |
| Länge Sattelstütze | 300mm | 300mm | 300mm | 300mm |
