2014 Work 3
$349.000
0 Reseñas
The high-value, no-nonsense Work is perfect for the commuter who wants a light weight…
Color:
Satin Charcoal / Gloss Cyan
¿Cuál es mi talla?
Seleccione un Tamaño
Detalles del producto

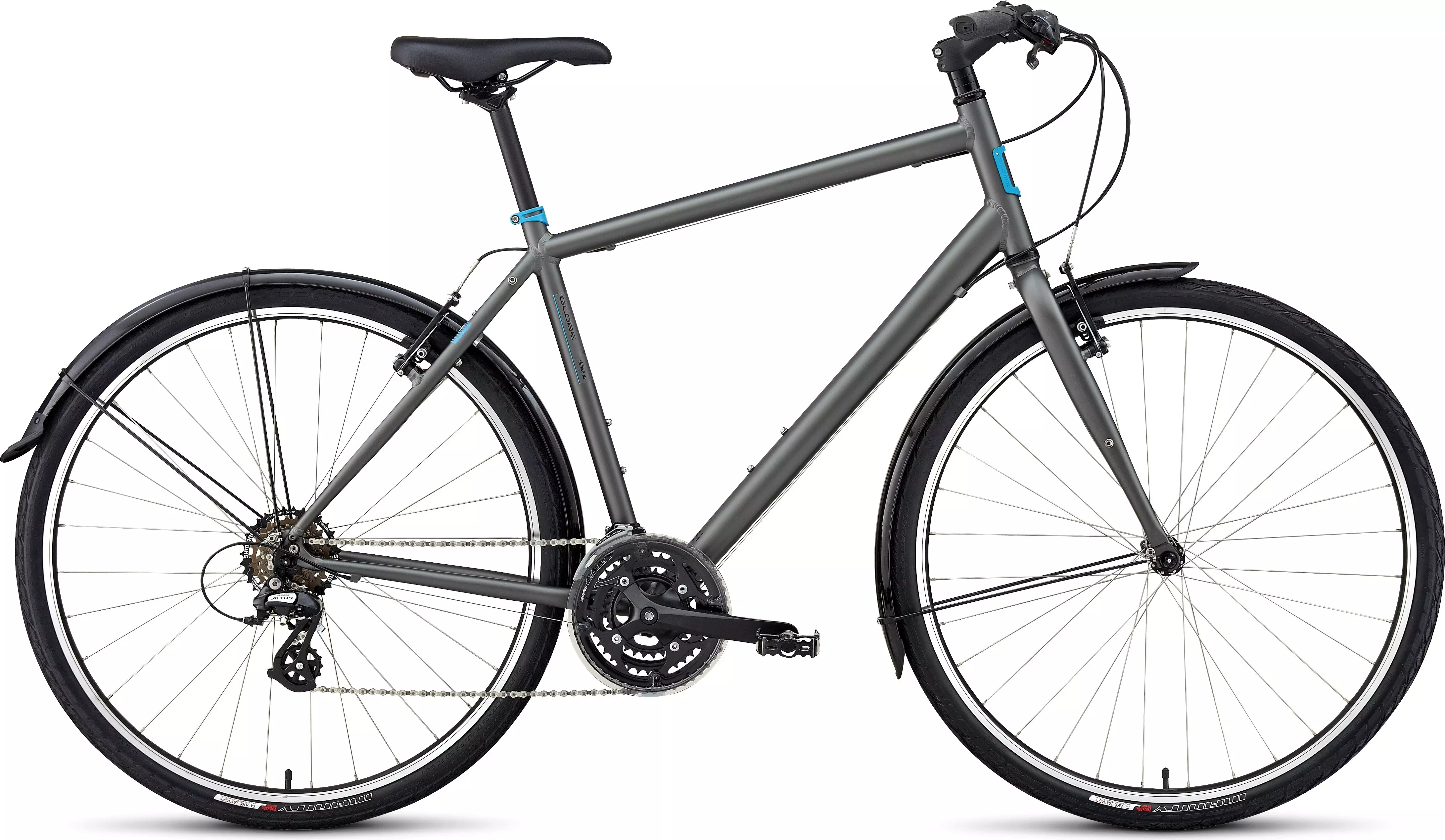

The high-value, no-nonsense Work is perfect for the commuter who wants a light weight bike with an upright position, predictable handling, and rack/fender mounts for added versatility
City tough and light, this A1 Premium Aluminum frame with heads-up position has all the mounts for urban accessories and an integrated kickstand plate
Alloy, double-wall, 24mm rims are light and strong, with CNC machined sidewalls for sure braking
Front and rear hubs feature steel axles and loose-ball, double-sealed bearings for durability
Classic design Hi-Ten steel fork decreases road vibration while keeping weight low.
Especificaciones técnicas
FRAMESET
FRAME
Globe A1 Premium Aluminum, forged dropouts, w/ dual fender/rack eyelets, integrated kickstand mount
FORK
Globe steel, straight blade, w/ Globe accessory mounting eyelets
HEADSET
1-1/8"" Ahead, loose ball, cold-forged Cr-Mo cups
SEAT BINDER
Globe, forged alloy, stainless bolt, 29.8mm
WHEELS
RIMS
Alloy double-wall, CNC machined sidewalls, 32h
FRONT HUB
Double-sealed, loose ball, ground race, dual-lock nuts, steel axle, QR, 32h
REAR HUB
Double-sealed, loose ball, dual-lock nuts, steel axle, QR, 32h
SPOKES
Stainless, 14g
FRONT TIRE
Specialized Infinity, 30TPI, wire bead, Flak Jacket protection, 700x38c
REAR TIRE
Specialized Infinity, 30TPI, wire bead, Flak Jacket protection, 700x38c
INNER TUBES
Standard Schrader valve
DRIVETRAIN
SHIFT LEVERS
Shimano EF-51, EZ Fire, 7-speed
FRONT DERAILLEUR
Shimano, top-swing, dual-pull
REAR DERAILLEUR
Shimano Altus
CASSETTE
Shimano, 7-speed, 12-32
CRANKSET
SR Suntour CW13-NEX-T208
CHAINRINGS
48/38/28, w/ chainguard
BOTTOM BRACKET
Square taper, cartridge bearings, 68mm shell
CHAIN
KMC Z7
COCKPIT
HANDLEBARS
Globe French bend bar, 25.4mm
STEM
Alloy, 20-degree rise, custom cap, 25.4mm
TAPE
Globe, lock-on grip w/ Body Geometry forming, closed end
SADDLE
Globe Work, steel rails, 175mm
SEATPOST
Alloy, 2-bolt, micro-adjust, 12.5mm offset, 27.2mm
BRAKES
FRONT BRAKE
Die-cast, alloy V-brake, 60mm, 1 pc. pad, linear pull
REAR BRAKE
Die-cast, alloy V-brake, 60mm, 1 pc. pad, linear pull
BRAKE LEVERS
Shimano EF-51
ACCESSORIES
PEDALS
Alloy, 1 pc. body and cage, w/ reflectors, 9/16""
* Pesos basados en cuadros pintados de producción como se muestra en la imagen. Los pesos reales variarán en función del color, tamaño del cuadro y variación de componentes. Las especificaciones están sujetas a cambios sin previo aviso.
Geometría
| XS | S | M | L | XL | |
|---|---|---|---|---|---|
| Ángulo de tubo de asiento | 73.5° | 73.5° | 73.5° | 73° | 73° |
| Largo de tubo de dirección | 140mm | 160mm | 175mm | 200mm | 235mm |
| Largo de poste de asiento | 300mm | 350mm | 350mm | 350mm | 350mm |
| Ángulo de tubo de dirección | 70° | 70.5° | 71° | 71.5° | 71.5° |
| Largo de tubo superior, Horizontal | 560mm | 575mm | 585mm | 605mm | 630mm |
| Front-Center | 632mm | 643mm | 648mm | 657mm | 683mm |
| Ancho de manubrio | 640mm | 640mm | 640mm | 640mm | 640mm |
| Chain-Stay Length (Horizontal) | 455mm | 455mm | 455mm | 455mm | 455mm |
| Altura de standover | 728mm | 737mm | 796mm | 832mm | 868mm |
| Tubo de asiento, Centro de caja pedalera | 395mm | 440mm | 485mm | 530mm | 570mm |
| Rake de horquilla | 51mm | 51mm | 51mm | 51mm | 51mm |
| Caída de caja pedalera | 70mm | 70mm | 70mm | 70mm | 70mm |
| Trail | 75mm | 72mm | 68mm | 65mm | 65mm |
| Distancia entre ejes | 1083mm | 1094mm | 1100mm | 1109mm | 1135mm |
| Largo de biela | 170mm | 170mm | 175mm | 175mm | 175mm |
| Largo de avance | 75mm | 75mm | 75mm | 90mm | 90mm |
Descargas manuales
Para las advertencias de seguridad, consulte la documentación en la sección Descargas de Manuales de esta página.
