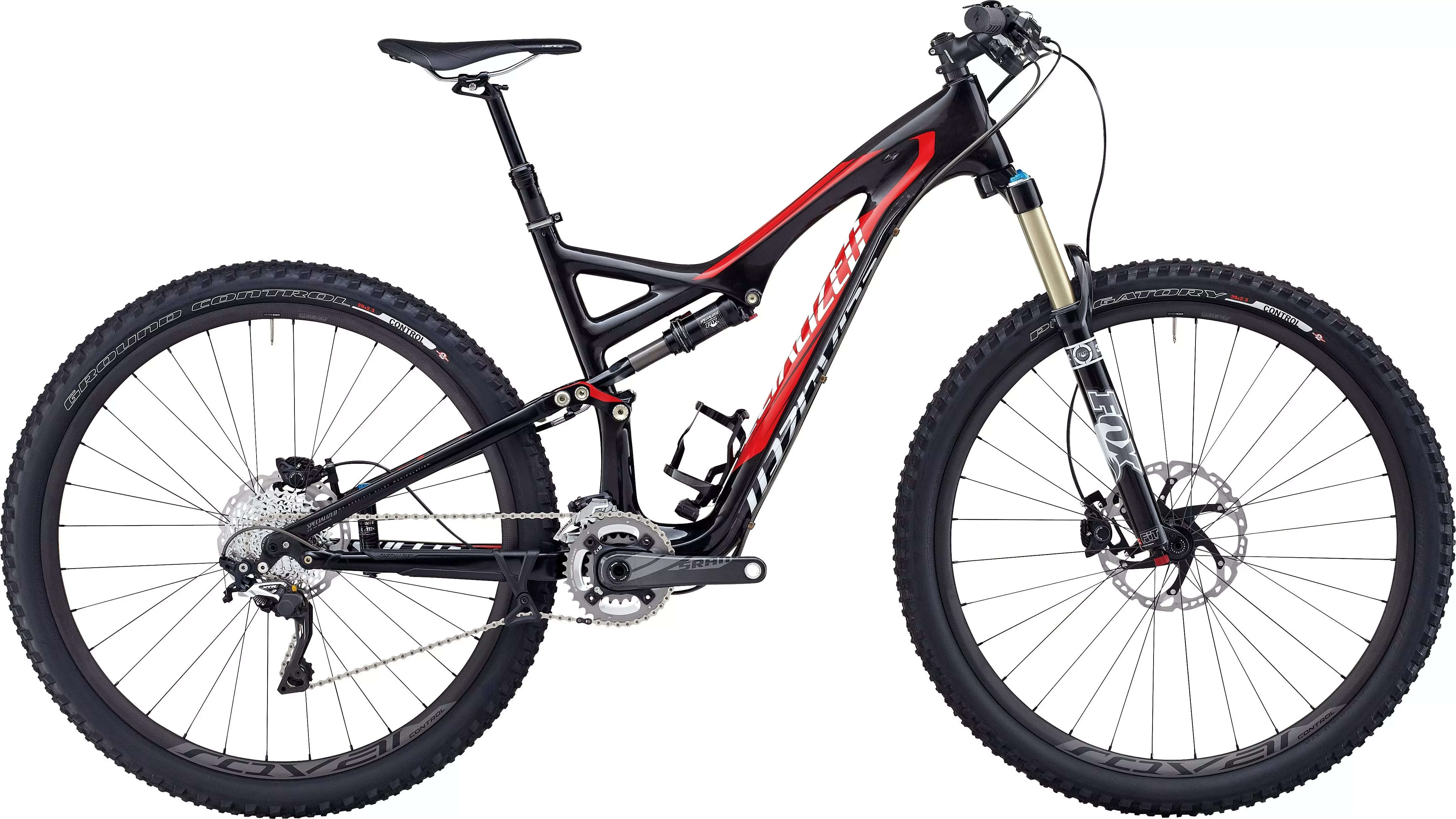

2014 Stumpjumper FSR Expert Carbon 29
$4.199.000
The 130mm FACT carbon fiber frame with 29er Trail Geometry, plus a Fox/Specialized…
Color:
Gloss Black/Red
¿Cuál es mi talla?
Seleccione un Tamaño
Detalles del producto
The 130mm FACT carbon fiber frame with 29er Trail Geometry, plus a Fox/Specialized remote Brain shock with AUTOSAG, Fox Float CTD Performance 29 series fork, Shimano XT hydraulic disc brakes and a 142+ wheelset makes the Stumpjumper FSR Expert Carbon 29 one of the fiercest bikes on the trail.
Roval Control Carbon 29 142+ hookless carbon wheelset with durable DT Swiss internals, 15mm thru-axle, and stainless DT Swiss spokes brings carbon wheels to a whole new realm of fun
Shifting is handled by Shimano's 10-speed Shadow Plus design to keep the XTR derailleur tucked out of harms way
Custom SRAM S-2200 carbon Trail double crankset with 36/22 gearing is built for strong, lightweight performance
All-new, Specialized Command Post IR uses a remote lever to adjust saddle height on-the-fly to maximize climbing and descending performance
Hot, new asymmetrical graphic on the FACT 9m carbon FSR frame with dedicated 29 geometry, 130mm of travel, full-cartridge bearing pivots, PF30 BB, and 142mm dropouts makes it the most versatile trail 29er out there
FOX/Specialized Brain shock with ground-breaking AUTOSAG feature and micro-reservoir, Trail Tune inertia valve damping, Brain Fade, and adjustable rebound lets riders dial in the perfect combination of pedaling efficiency and bump compliance
FOX Float CTD Performance 29 series fork has an adjustable air spring with 130mm of travel, rebound adjust and lockout, 15mm thru-axle and a tapered steerer tube for precise and plush performance
Shimano XT brakes are lighter and more powerful than ever, staying cooler and more consistent with the help of Ice Tech rotors and Cooling Fins
Especificaciones técnicas
FRAMESET
FRAME
FACT 9m carbon front triangle, 29"" geometry, FACT IS construction, M5 alloy rear triangle, tapered headtube, carbon PF30 BB, ISCG ’05, internal Command Post IR routing, 142mm dropouts, sealed cartridge bearing pivots, replaceable derailleur hanger, 130mm travel
SWAT
Bottle cage, EMT Tool, and Top Cap Chain Tool w/ SWAT Technology
HEADSET
1-1/8 and 1-1/2"" threadless, Campy style upper with 1-1/2"" lower, cartridge bearings
SEAT BINDER
7050 hard anodized alloy, single bolt, 34.9mm
WHEELS
RIMS
Roval Control Carbon 29, carbon disc, hookless bead, 22mm internal width, 32h
FRONT HUB
Roval Control Carbon 29, 15mm thru-axle, 32h
REAR HUB
Roval Control Carbon 29 142+, DT Swiss Star Ratchet, 12mm thru-axle, 32h
SPOKES
DT Swiss Revolution, 2.0/1.5/2.0mm stainless
FRONT TIRE
Specialized Purgatory Control, 2Bliss Ready, 29x2.3"", foldable aramid bead, dual-compound, 60TPI
REAR TIRE
Specialized Ground Control, 2Bliss Ready, 29x2.3"", foldable aramid bead, 60 TPI
SUSPENSION
REAR SHOCK
FOX/Specialized remote Brain w/ AUTOSAG, smaller Brain reservoir, inertia valve w/ Trail Tune, BrainFade adjust, 195x48mm
FORK
FOX Float CTD Performance 29, FIT damper, air spring, tapered steerer, comp, lockout, and reb adj., 15mm thru-axle, 130mm travel
DRIVETRAIN
FRONT DERAILLEUR
SRAM X7, 10-speed, S3 direct mount for DMD, bottom pull
REAR DERAILLEUR
Shimano XTR Shadow Plus, 10-speed, SGS long cage
SHIFT LEVERS
Shimano SLX, 10-speed, trigger
CASSETTE
SRAM PG-1050, 10-speed, 11-36
CHAIN
SRAM PC 1051, 10-speed, PowerLink
CRANKSET
Custom SRAM carbon S-2200, 10-speed Trail double w/ carbon guard, PF30 spindle, removable spider, S: 170mm, Others: 175mm
CHAINRINGS
36/22, w/ carbon guard
BOTTOM BRACKET
SRAM PF30, OS press-in bearings, sealed cartridge
COCKPIT
SADDLE
Body Geometry Henge Comp, hollow Cr-Mo rails, 143mm
SEATPOST
Specialized Command Post IR, 3-position, internally routed adjustable height w/ air spring, remote operated, single bolt head, 30.9mm, S:100mm, Others: 125mm travel
STEM
Specialized Trail, 6061 alloy, 4-bolt, 6-degree rise, 31.8mm clamp
HANDLEBARS
Specialized XC Mini-Riser, 7050 butted alloy, 720mm wide, 10mm rise, 8-degree backsweep, 6-degree upsweep, 31.8mm
GRIPS
Specialized Sip Grip, light lock-on, half-waffle aramid-infused, S/M: regular, Others: XL thickness
BRAKES
FRONT BRAKE
Shimano XT, hydraulic disc, Ice Tech metal pad, S/M: 180mm, Others: 200mm rotor
REAR BRAKE
Shimano XT, hydraulic disc, Ice Tech metal pad, S/M: 160mm rotor, Others: 180mm rotor
BRAKE LEVERS
Shimano XT, hydraulic
* Pesos basados en cuadros pintados de producción como se muestra en la imagen. Los pesos reales variarán en función del color, tamaño del cuadro y variación de componentes. Las especificaciones están sujetas a cambios sin previo aviso.
Geometría
| S | M | L | XL | |
|---|---|---|---|---|
| Largo de tubo de asiento, Centro a parte superior | 396mm | 430mm | 468mm | 523mm |
| Largo de tubo superior, Real | 576mm | 603mm | 632mm | 660mm |
| Bottom Bracket Drop | 34mm | 34mm | 34mm | 34mm |
| Altura de caja pedalera | 338mm | 338mm | 338mm | 338mm |
| Ángulo de tubo de asiento, Real | 69° | 69.4° | 69.8° | 70.3° |
| Ángulo de tubo de asiento, Efectivo | 74.5° | 74.5° | 74.5° | 74.5° |
| Distancia entre ejes | 1117mm | 1147mm | 1175mm | 1203mm |
| Altura de standover | 750mm | 741mm | 750mm | 764mm |
| Stack | 605mm | 614mm | 638mm | 656mm |
| Alcance | 399mm | 427mm | 445mm | 466mm |
| Largo de tubo de dirección | 90mm | 100mm | 125mm | 145mm |
| Ángulo de tubo de dirección | 69° | 69° | 69° | 69° |
| Largo de vaina inferior | 450mm | 450mm | 450mm | 450mm |
| Largo de tubo superior, Horizontal | 567mm | 596mm | 622mm | 648mm |
| Largo de biela | 170mm | 175mm | 175mm | 175mm |
| Ancho de manubrio | 720mm | 720mm | 720mm | 720mm |
| Largo de avance | 60mm | 75mm | 90mm | 90mm |
| Largo de poste de asiento | 380mm | 425mm | 425mm | 425mm |
