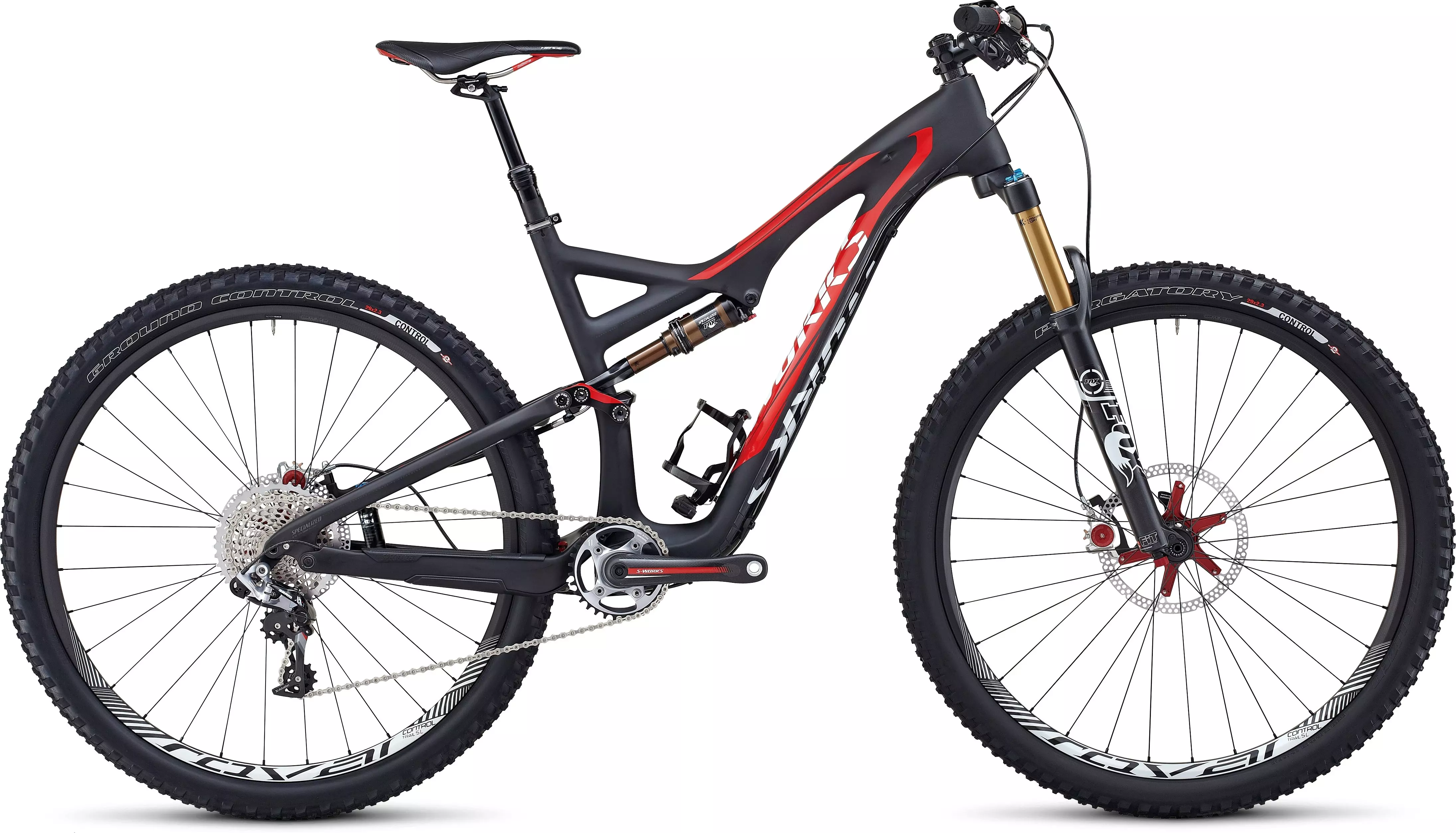

2014 S-Works Stumpjumper FSR 29
$5.999.000
0 Reseñas
The world's most capable 29er, the full-FACT carbon S-Works Stumpjumper FSR Carbon…
Color:
Satin/Gloss Carbon/Red/White
¿Cuál es mi talla?
Seleccione un Tamaño
Detalles del producto
The world's most capable 29er, the full-FACT carbon S-Works Stumpjumper FSR Carbon 29 has 130mm of plush and efficient FSR suspension, a Fox/Specialized remote Brain shock with AUTOSAG and Kashima coating, FOX Float CTD Factory 29 series fork with Kashima coating and rebound adjust and carbon Roval Control Trail SL 29 142+ wheelset.
FOX Float CTD Factory 29 series fork has an adjustable air spring with 130mm of travel, Kashima coating, rebound adjust and lockout, 15mm thru-axle and a tapered steerer tube for precise and plush performance
FOX/Specialized Brain shock with ground-breaking AUTOSAG feature and micro-reservoir, buttery-smooth Kashima coating, Trail Tune inertia valve damping, Brain Fade, and adjustable rebound lets riders dial in the perfect combination of pedaling efficiency and bump compliance
SRAM's XX1 11-speed rear derailleur, shifter and cassette offer the pinnacle in high-performance shifting. The 1x11 design eliminates the front derailleur and shifter, saving additional weight while maintaining a huge gear range
S-Works carbon crankset single chainring setup works with SRAM XX1 10-42 cassette for premium shifting and a huge gear range
Hot, new asymmetrical graphic on the FACT 11m full carbon FSR frame with dedicated 29er geometry, 130mm of travel, full-cartridge bearing pivots, PF30 BB, and 142mm dropouts makes the finest trail 29er on the mountain
All-new, Specialized Command Post IR uses a remote lever to adjust saddle height on-the-fly to maximize climbing and descending performance
Carbon Roval Control Trail SL 29 142+ wheelset with butted DT Swiss spokes, DT Star Ratchet rear hub, and 12mm thru-axle for lightweight toughness
Especificaciones técnicas
FRAMESET
FRAME
FACT 11m carbon front triangle, 29"" geometry, FACT IS construction, full FACT rear triangle, tapered headtube, carbon PF30 BB, ISCG ’05, Internal Command Post IR routing, 142mm dropouts, sealed cartridge bearing pivots, replaceable derailleur hanger, 130mm travel
SWAT
Bottle cage, EMT Tool, and Top Cap Chain Tool w/ SWAT Technology
HEADSET
1-1/8 and 1-1/2"" threadless, Campy style upper with 1-1/2"" lower, cartridge bearings
SEAT BINDER
7050 hard anodized alloy, single bolt, 34.9mm
WHEELS
RIMS
Roval Control Trail SL 29, carbon disc, 21mm internal width, 32h
FRONT HUB
Roval Control Trail SL 29, 15mm thru-axle end caps, 32h
REAR HUB
Roval Control SL 29 142+, DT Star Ratchet, XX1 driver body, 12mm thru-axle, 32h
SPOKES
DT Swiss Super Comp, 2.0/1.65/1.8 stainless
FRONT TIRE
Specialized Purgatory Control, 2Bliss Ready, 29x2.3"", foldable aramid bead, dual-compound, 60TPI
REAR TIRE
Specialized Ground Control, 2Bliss Ready, 29x2.3"", foldable aramid bead, 60 TPI
SUSPENSION
REAR SHOCK
FOX/Specialized remote Brain w/ AUTOSAG, smaller Brain reservoir, Kashima coating, inertia valve w/ Trail Tune, BrainFade adjust, 195x48mm
FORK
FOX 34 CTD Factory 29, Kashima coating, air spring, tapered alloy steerer, Climb, Trail, Descend settings w/ Trail and reb adj., 15mm thru-axle, 130mm travel
DRIVETRAIN
REAR DERAILLEUR
SRAM XX1 Type 2, 11-speed, mid cage
SHIFT LEVERS
SRAM XX1, 11-speed, carbon/aluminum trigger, w/ MatchMaker clamp
CASSETTE
SRAM XX1, 11-speed, 10-42
CHAIN
SRAM XX1, 11-speed, hollow plates/pins, PowerLink
CRANKSET
S-Works OS carbon, custom SRAM XX1 chainring, S: 170mm, Others: 175mm
CHAINRINGS
32T
BOTTOM BRACKET
PF30, OS press-in bearings, sealed cartridge
COCKPIT
SADDLE
Body Geometry Henge Expert, Ti rails, 143mm
SEATPOST
Specialized Command Post IR, 3-position, internally routed adjustable height w/ air spring, remote operated, single bolt head, 30.9mm, S:100mm, Others: 125mm travel
STEM
Syntace F109, 6-degree rise, 31.8mm clamp
HANDLEBARS
Specialized XC Mini-Riser, carbon, 720mm wide, 10mm rise, 10-backsweep, 6-upsweep, 31.8mm
GRIPS
Specialized Sip Grip, light lock-on, half-waffle aramid-infused, S/M: regular, Others: XL thickness
BRAKES
FRONT BRAKE
Custom Formula T1 Racing, metallic pad, S/M: 180mm, Others: 200mm rotor
REAR BRAKE
Custom Formula T1 Racing, metallic pad, S/M: 160mm, Others: 180mm rotor
BRAKE LEVERS
Custom Formula T1 Racing, hydraulic disc, carbon lever, tool-less pad contact (FCS) and reach adj., SRAM compatible MiXmaster shifter mounts
* Pesos basados en cuadros pintados de producción como se muestra en la imagen. Los pesos reales variarán en función del color, tamaño del cuadro y variación de componentes. Las especificaciones están sujetas a cambios sin previo aviso.
Geometría
| S | M | L | XL | |
|---|---|---|---|---|
| Largo de tubo de asiento, Centro a parte superior | 396mm | 430mm | 468mm | 523mm |
| Largo de tubo superior, Real | 576mm | 603mm | 632mm | 660mm |
| Bottom Bracket Drop | 34mm | 34mm | 34mm | 34mm |
| Altura de caja pedalera | 338mm | 338mm | 338mm | 338mm |
| Ángulo de tubo de asiento, Real | 69° | 69.4° | 69.8° | 70.3° |
| Ángulo de tubo de asiento, Efectivo | 74.5° | 74.5° | 74.5° | 74.5° |
| Distancia entre ejes | 1117mm | 1147mm | 1175mm | 1203mm |
| Altura de standover | 750mm | 741mm | 750mm | 764mm |
| Stack | 605mm | 614mm | 638mm | 656mm |
| Alcance | 399mm | 427mm | 445mm | 466mm |
| Largo de tubo de dirección | 90mm | 100mm | 125mm | 145mm |
| Ángulo de tubo de dirección | 69° | 69° | 69° | 69° |
| Largo de vaina inferior | 450mm | 450mm | 450mm | 450mm |
| Largo de tubo superior, Horizontal | 567mm | 596mm | 622mm | 648mm |
| Largo de biela | 170mm | 175mm | 175mm | 175mm |
| Ancho de manubrio | 720mm | 720mm | 720mm | 720mm |
| Largo de avance | 60mm | 75mm | 90mm | 90mm |
| Largo de poste de asiento | 380mm | 425mm | 425mm | 425mm |
Descargas manuales
Para las advertencias de seguridad, consulte la documentación en la sección Descargas de Manuales de esta página.
