2014 S-Works Stumpjumper 29 Frameset
$2.199.000
0 Reseñas

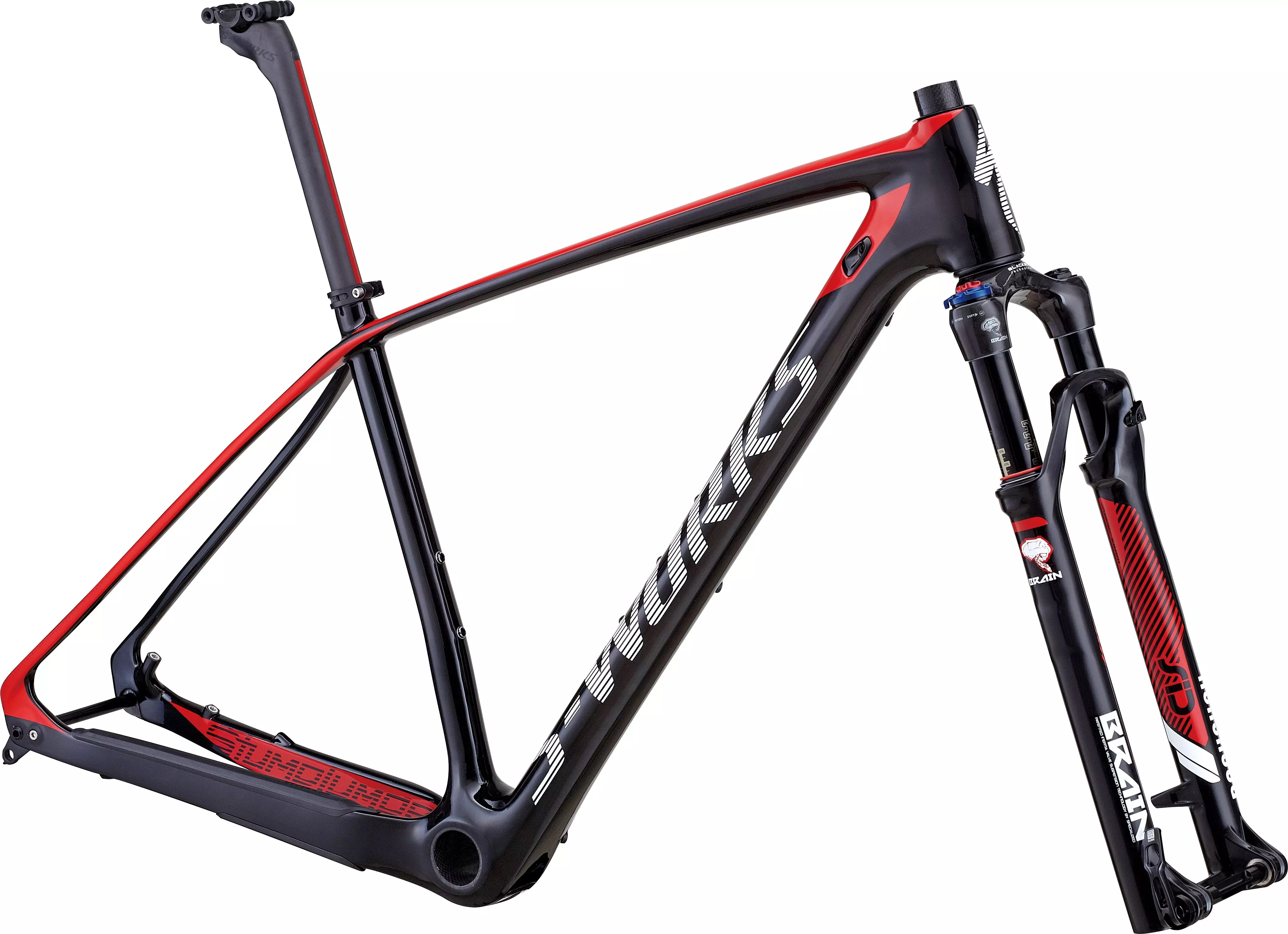

A carbon fiber S-Works Stumpjumper 29 hardtail frame ready for a custom build.
Color:
Gloss Carbon/White/Red
¿Cuál es mi talla?
Seleccione un Tamaño
Detalles del producto
A carbon fiber S-Works Stumpjumper 29 hardtail frame ready for a custom build.
S-Works carbon two-bolt head 27.2mm seatpost is ultra-lightweight and adds compliance without sacrificing strength
All-new FACT IS 11m carbon frame with dedicated 29er geometry and full SWAT technology kit, internal cable routing, PF30 BB, and 142mm dropouts for the lightest race-ready design
Custom RockShox SID World Cup 29 fork with Specialized Brain inertia-valve damping has 90mm of air-sprung travel, a carbon steerer tube, and 15mm thru-axle to create the most efficient and supple cross-country fork available
Especificaciones técnicas
FRAMESET
FRAME
FACT 11m carbon, 29"" geometry, FACT IS construction, tapered headtube, carbon PF30 BB, full internal shift/brake routing, 142+ dropouts, PM 160 rear brake, replaceable alloy rear derailleur hanger
SWAT
Bottle cage w/ SWAT Technology compatible (not included)
HEADSET
1-1/8 and 1-1/2"" threadless, Campy style upper with 1-1/2"" lower, cartridge bearings
SEAT BINDER
Specialized 7050 hard anodized alloy, single bolt, 31.8mm
COCKPIT
SEATPOST
Specialized carbon, single bolt, 27.2mm, S: 350mm, Others: 400mm
DRIVETRAIN
BOTTOM BRACKET
PF30, OS press-in bearings, sealed cartridge
SUSPENSION
FORK
Custom RockShox SID World Cup 29 Brain, inertia valve damper, Solo Air spring, tapered carbon crown/steerer, top-mount Brain Fade and rebound adj., 15mm thru-axle, S: 80mm, Others: 90mm travel
* Pesos basados en cuadros pintados de producción como se muestra en la imagen. Los pesos reales variarán en función del color, tamaño del cuadro y variación de componentes. Las especificaciones están sujetas a cambios sin previo aviso.
Geometría
| S | M | L | XL | |
|---|---|---|---|---|
| Ground-Top | 902mm | 920mm | 935mm | 949mm |
| Largo de tubo superior (Horizontal) | 565mm | 593mm | 620mm | 643mm |
| Ángulo de tubo de asiento (Efectivo) | 73.5° | 73.5° | 73.5° | 73.5° |
| Altura de tubo de dirección | 90mm | 100mm | 115mm | 130mm |
| Largo de tubo superior (Real) | 551mm | 574mm | 598mm | 622mm |
| Largo de tubo de asiento - Centro a parte superior | 394mm | 434mm | 470mm | 505mm |
| Bottom Bracket Drop | 61mm | 61mm | 61mm | 61mm |
| Altura de caja pedalera | 310mm | 310mm | 310mm | 310mm |
| Distancia entre ejes | 1047mm | 1078mm | 1105mm | 1131mm |
| Altura de standover | 760mm | 799mm | 826mm | 849mm |
| Stack | 592mm | 610mm | 625mm | 639mm |
| Alcance | 390mm | 414mm | 437mm | 458mm |
| Ángulo de tubo de dirección | 71° | 71° | 71° | 71° |
| Largo de vaina inferior | 430mm | 430mm | 430mm | 430mm |
| Largo de biela | 170mm | 175mm | 175mm | 175mm |
| Ancho de manubrio | 700mm | 700mm | 700mm | 700mm |
| Largo de avance | 75mm | 90mm | 105mm | 105mm |
Descargas manuales
Para las advertencias de seguridad, consulte la documentación en la sección Descargas de Manuales de esta página.
