S-Works Enduro 650b

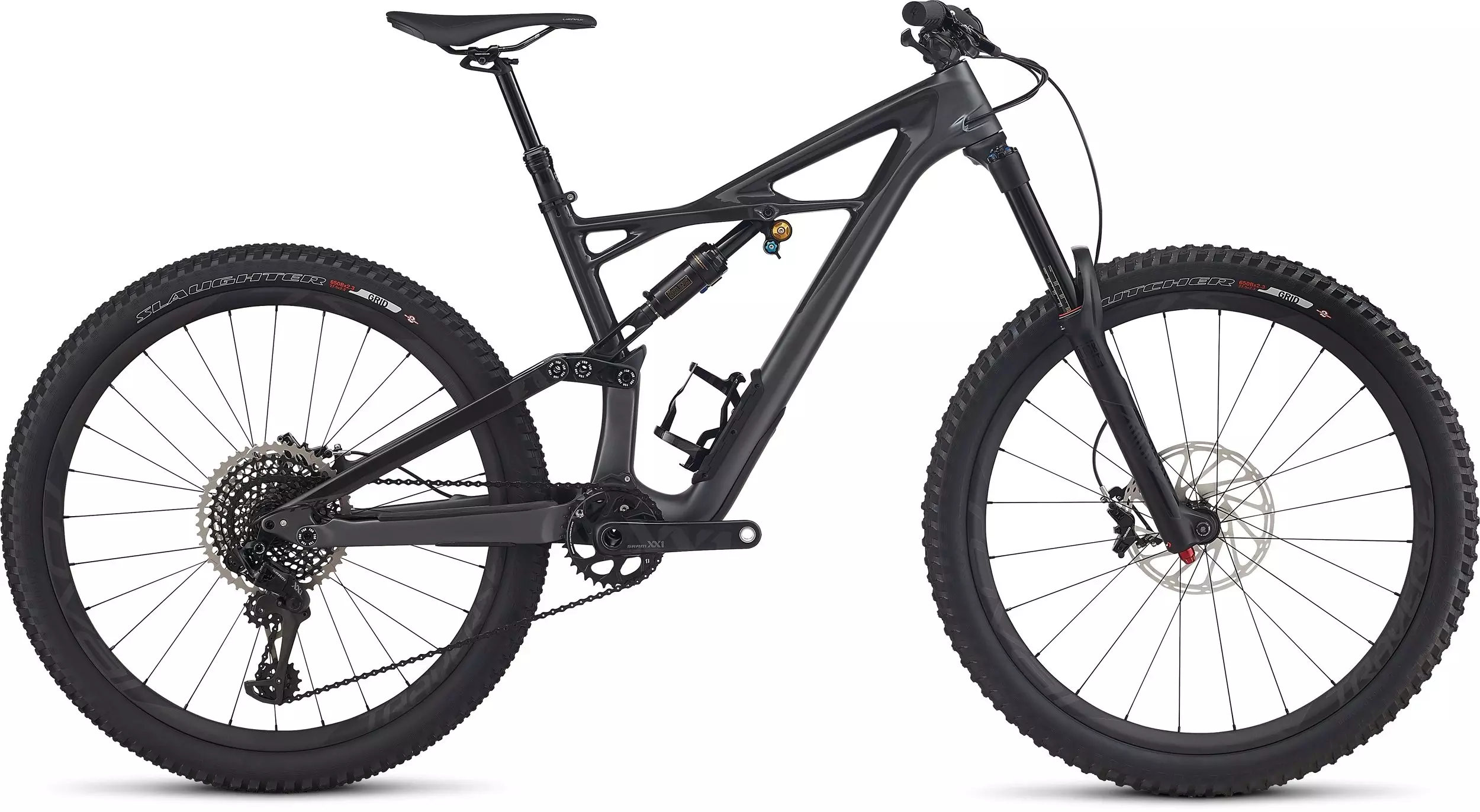

2017 S-Works Enduro 650b

If your aim is having fun, riding fast, and hitting every tight corner and jump in sight, you can't do any better than our all-new S-Works Enduro 650b. We gave it a whole new geometry, with a slacker front end, a longer top tube, even shorter chainstays, and a lower bottom bracket. All of this together makes the bike truly feel glued to the ground, and the platform is more responsive and capable then ever. We even added some brand new bits, like integrated storage with a SWAT™ Door at the down tube, and made ''old'' new again by making a triumphant return to a threaded bottom bracket. To keep the weight down, the frame is constructed from our top-tier FACT IS-X 11m carbon fiber. And to ensure top-level performance on the descents, this material choice is greeted by 170mm of plush travel at both the front and rear. And handling suspension duties out back is the revolutionary Öhlins single tube rear shock. For the build, this Enduro spares no expense at hitting the pinnacle of performance, with a full SRAM XX1 Eagle 12-speed groupset, powerful Guide RS Carbon brakes, hand-built carbon Roval wheels, and our Command Post IRcc dropper post. Make the mountain bend to you.

Especificaciones técnicas

FRAMESET

FRAME

FACT 11m, X-Wing layout, full carbon chassis and rear end, All-Mountain Geometry, SWAT™ Door integration, threaded BB, fully enclosed internal cable routing, ManFu link, oversized pivot bearings, 12x148mm dropouts, replaceable derailleur hanger, 170mm of travel

SEAT BINDER

Alloy, 36.6mm

WHEELS

FRONT HUB

Roval Traverse, sealed cartridge bearings, 15mm thru-axle, 110mm spacing, 24h

RIMS

Roval Traverse SL 650, hookless carbon, 30mm inner width, 24/28h, tubeless ready

SPOKES

DT Swiss Revolution

REAR HUB

Roval Traverse SL, DT Swiss Star Ratchet, 54t engagement, SRAM XD driver body, 12mm thru-axle, 148mm spacing, 28h

FRONT TIRE

Butcher, GRID casing, 650x2.3"", 60TPI, Aramid folding bead, 2Bliss Ready

INNER TUBES

650bx1.75/2.4mm, 40mm Presta valve

REAR TIRE

Slaughter, GRID casing, 650x2.3"", 60TPI, Aramid folding bead, 2Bliss Ready

SUSPENSION

FORK

RockShox Lyrik RCT3 27.5, Solo Air, compression and rebound and threshold adjust, tapered steerer, 15x110mm Maxle Stealth thru-axle, 46mm offset, 170mm travel

REAR SHOCK

Custom Öhlins STX, Single Tube design, Rx All-Mountain Tune, 3rd Chamber air spring technology, AUTOSAG, adjustable compression & rebound damping, 216x57mm

DRIVETRAIN

CASSETTE

SRAM XG-1295, 12-speed, 10-50t

SHIFT LEVERS

SRAM XX1 Eagle, 12-speed, trigger

REAR DERAILLEUR

SRAM XX1 Eagle, 12-speed

BOTTOM BRACKET

SRAM GXP XR, 73mm

CRANKSET

SRAM XX1 Eagle, carbon, 24mm spindle, 52mm chainline, 32T

CHAIN

SRAM XX1 Eagle, black, 12-speed w/PowerLink

COCKPIT

STEM

Syntace MegaForce 2, 6-degree, 31.8mm bar clamp

SADDLE

Body Geometry Henge Expert, hollow titanium rails, 143mm

GRIPS

Specialized Sip Grip, half-waffle, S/M: regular thickness, L/XL: XL thickness

HANDLEBARS

Specialized DH, FACT carbon, 6-degree upsweep, 8-degree backsweep, 27mm rise, 780mm, 31.8mm

SEATPOST

Command Post IRcc, 12 position micro-height adjustable, alien head design, bottom mount cable routing, remote adjust SRL lever, 30.9mm, S: 100mm, M/L/XL: 125mm travel

BRAKES

REAR BRAKE

SRAM Guide RS carbon, hydraulic disc, organic pads, carbon lever, Guide S4 4-piston caliper, 180mm rotor

FRONT BRAKE

SRAM Guide RS carbon, hydraulic disc, organic pads, carbon lever, Guide S4 4-piston caliper, 200mm rotor

ACCESSORIES

PEDALS

Resin Test Ride w/toe clips

* Pesos basados en cuadros pintados de producción como se muestra en la imagen. Los pesos reales variarán en función del color, tamaño del cuadro y variación de componentes. Las especificaciones están sujetas a cambios sin previo aviso.

Geometría

SMLXL
Largo de biela170mm170mm170mm170mm
Ancho de manubrio780mm780mm780mm780mm
Largo de avance40mm40mm60mm60mm
Saddle Width143mm143mm143mm143mm
Largo de poste de asiento390mm430mm430mm430mm
Ángulo de tubo de asiento76.5°76°76°75°
Largo de tubo de dirección95mm100mm115mm125mm
Ángulo de tubo de dirección65.5°65.5°65.5°65.5°
Largo de vaina inferior425mm425mm425mm425mm
Front-Center728mm750mm776mm801mm
Caída de caja pedalera10.5mm10.5mm10.5mm10.5mm
Bike Stand-Over Height761mm771mm782mm796mm
Fork Length (full)559mm559mm559mm559mm
Top-Tube Length (horizontal)551mm576mm604mm632mm
Seat-Tube Length396mm430mm467mm521mm
B-B Height (650x2.3)345mm345mm345mm345mm
B-B Height (650x2.6)350mm350mm350mm350mm
Stack585mm590mm604mm613mm
Alcance410mm430mm450mm470mm
Trail106mm106mm106mm106mm
Fork Rake/Offset51mm51mm51mm51mm
Distancia entre ejes1153mm1175mm1201mm1225mm
Geometría
