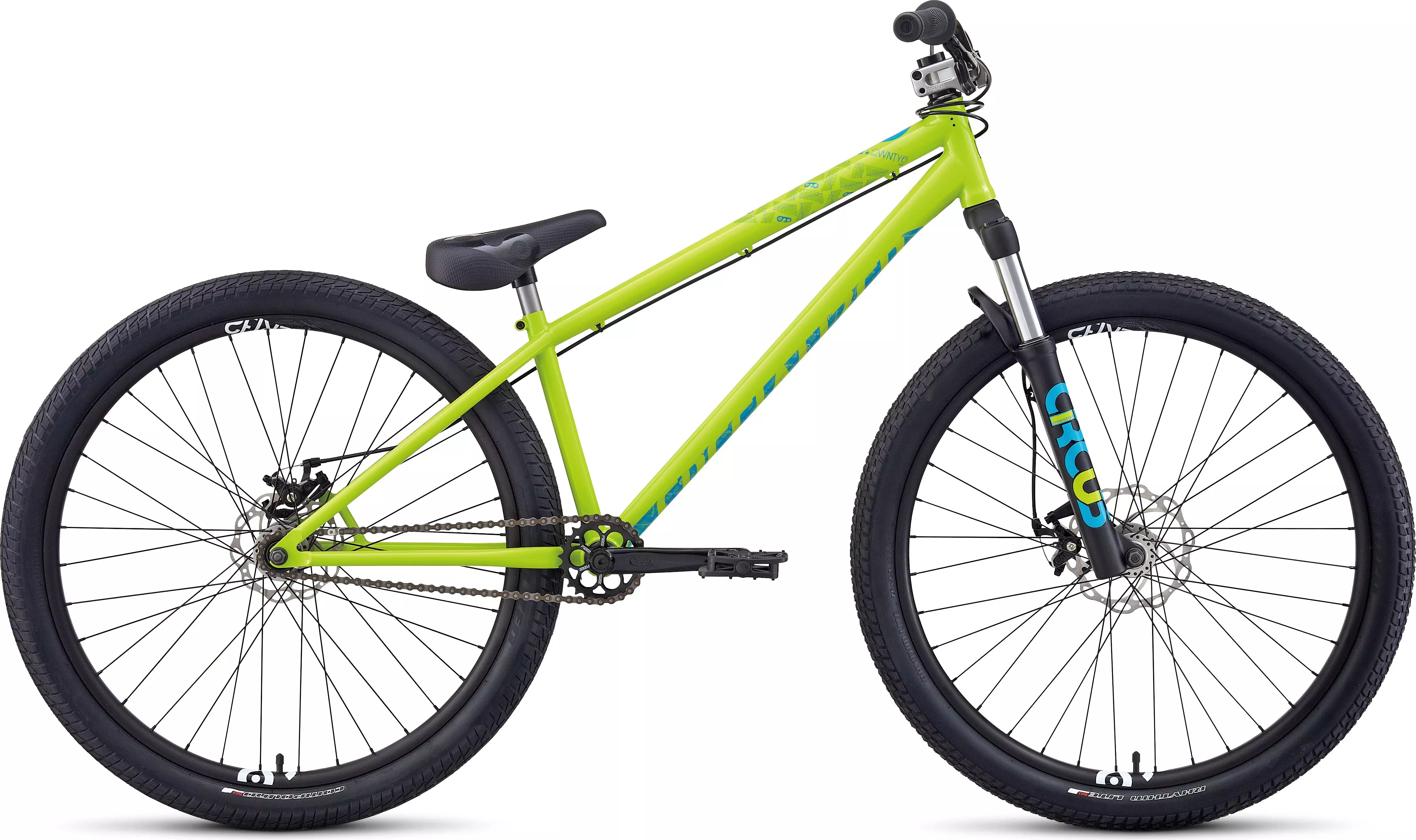

2014 P.26 AM
Part No.: 81914-4122
$549.000
0 Reseñas
The P.26 AM won't back down when you've been trying the same trick all day, it'll…
Color:
Gloss Hyp/Cyn/Grn
Tamaño:
22.5'' TT
Detalles del producto
The P.26 AM won't back down when you've been trying the same trick all day, it'll keep giving you everything it's got with a simple singlespeed drivetrain and strong, steel frame.
Coil-sprung Manitou Circus Comp fork is purpose-built for the punishment from dirt jumping and street riding with hydraulic damping and preload adjustments
36-spoke, double-wall, 26" singlespeed wheelset is built to withstand endless abuse
The Cr-Mo P.Series MTB Street handlebar is 735mm wide for more leverage and precise handling
Butted, singlespeed-specific, 26" Reynolds 520 Cr-Mo frame with integrated headset, MID BB, and 3D-forged horizontal dropouts has perfectly dialed geos for dirt, park, or street
BMX-style, 3-piece tubular Cr-Mo crankset with cartridge-bearing MID BB is strong and light to go big with confidence, singlespeed 25T chainring resists bending and delivers the clearance you need
Especificaciones técnicas
FRAMESET
FRAME
Double-butted Reynolds 520 Cr-Mo, singlespeed-specific, integrated headset, MID BB shell, hydra-formed chainstays, 3D forged horizontal dropouts w/ intl std disc mount
HEADSET
Integrated 1-1/8"" threadless, Campy style, full cartridge bearings
SEAT BINDER
Integrated Cr-Mo bolt w/ nylock nut
WHEELS
RIMS
P.Disc 26"", alloy double-wall, triple void, 32mm, 36h
FRONT HUB
P.Series disc, alloy, loose ball, solid axle, 36h
REAR HUB
P.Series Dirt Jump disc, alloy, sealed cartridge bearings, solid axle w/ track nut, 36h
SPOKES
Stainless, 14g (2.0mm)
FRONT TIRE
Specialized Rhythm Lite Sport, 60TPI, wire bead, 26x2.3""
REAR TIRE
Specialized Compound Sport, 60TPI, wire bead, 26x2.2""
INNER TUBES
Standard Schrader valve
SUSPENSION
FORK
Manitou Circus Sport, coil spring, 1-1/8"" steel steerer, hydraulic damping w/ preload adjustment.,9mm axle dropouts, mag post mount lower, 32mm steel stanchions, 80mm travel
DRIVETRAIN
CASSETTE
Singlespeed, Cr-Mo, 12T
CHAIN
KMC Z-510H
CRANKSET
P.Crank, 3pc. Cr-Mo, tubular arms, 48-spline,165mm, 170mm, 175mm
CHAINRINGS
P.Spline sprocket, 25T
BOTTOM BRACKET
MID BB, 2x sealed cartridge bearings w/ 19mm, 48-spline Cr-Mo spindle,
COCKPIT
SADDLE
P.Seat SL, 1pc. w/ co-molded alloy 25.4mm seatpost, padded
SEATPOST
Alloy, 25.4mm, integrated w/ saddle
STEM
Specialized P.Series BMX, forged alloy, top load, 52mm, 22.2mm clamp
HANDLEBARS
Specialized P.Series MTB Street, heat-treated butted Cr-Mo, 735mm wide, 11-degree backsweep, 2-degree upsweep, 75mm rise
GRIPS
P.Grip BMX, w/ flange, Pruven, end plugs, 150mm
BRAKES
REAR BRAKE
Tektro Novela, mechanical disc, dual pad angle adjustment, 140mm rotor
BRAKE LEVERS
Tektro, alloy lever
ACCESSORIES
PEDALS
Nylon platform w/ molded pins, loose ball, 9/16""
* Pesos basados en cuadros pintados de producción como se muestra en la imagen. Los pesos reales variarán en función del color, tamaño del cuadro y variación de componentes. Las especificaciones están sujetas a cambios sin previo aviso.
Geometría
| L | |
|---|---|
| Largo de horquilla | 458mm |
| Largo de tubo superior (Real) | 561mm |
| Ángulo de tubo de asiento (Real) | 74° |
| Inclinación de horquilla | 40mm |
| Largo de tubo de asiento, Centro a parte superior | 305mm |
| Bottom Bracket Drop | 7mm |
| Altura de caja pedalera | 329mm |
| Distancia entre ejes | 1045mm |
| Stack | 545mm |
| Alcance | 413mm |
| Largo de tubo de dirección | 128mm |
| Ángulo de tubo de dirección | 70.5° |
| Largo de vaina inferior | 383mm |
| Largo de biela | 170mm |
| Ancho de manubrio | 735mm |
| Largo de avance | 40mm |
| Largo de poste de asiento | 200mm |
Descargas manuales
Para las advertencias de seguridad, consulte la documentación en la sección Descargas de Manuales de esta página.
