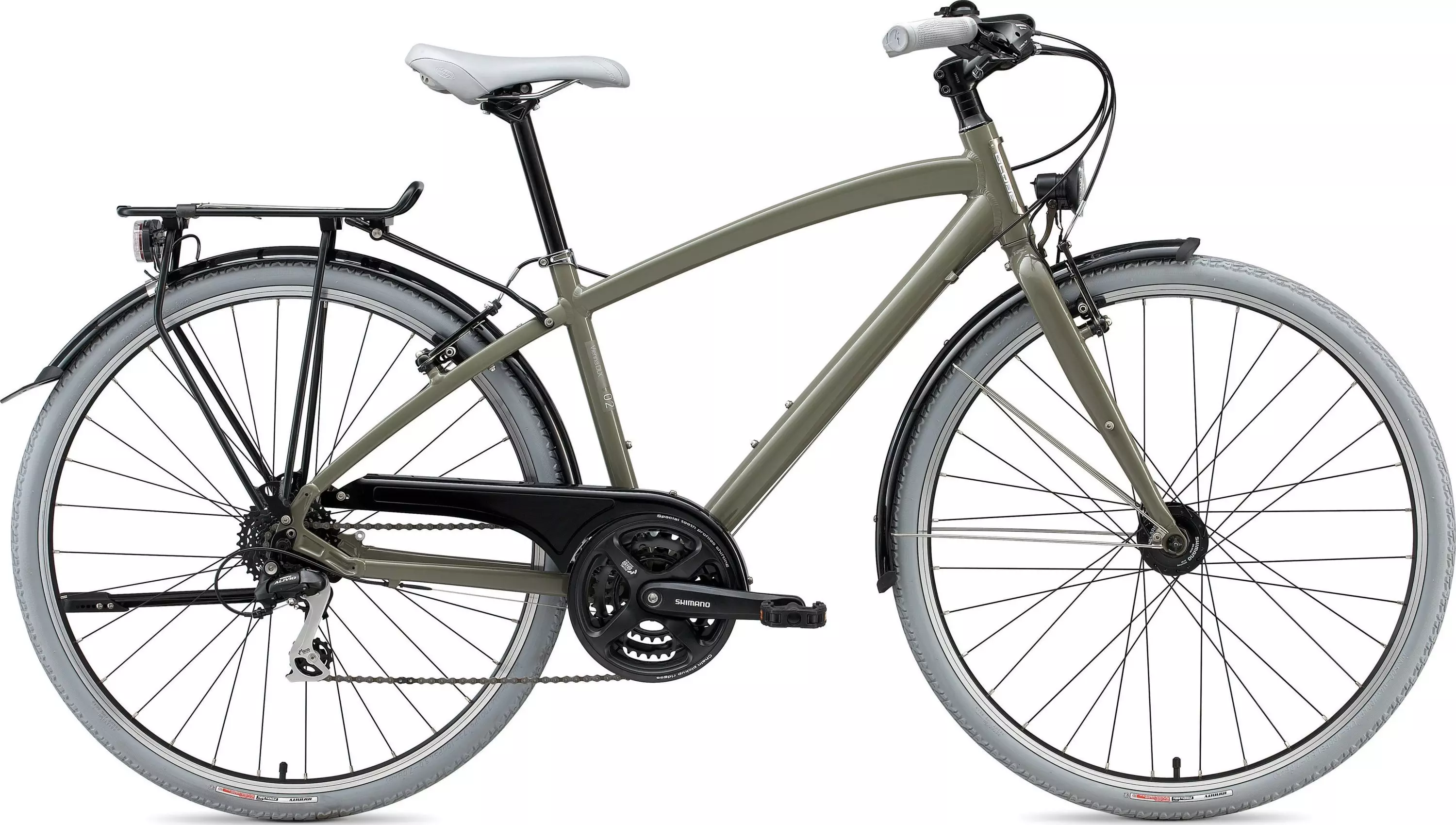

2010 Vienna Deluxe 2

0 Bewertungen

Fortbewegung & Fitness Das Vienna will Ihr ständiger Begleiter in der Stadt sein.…

Farbe:

Grey Brown

Grösse:

One Size

Produktdetails

Fortbewegung & Fitness Das Vienna will Ihr ständiger Begleiter in der Stadt sein. Es wurde entwickelt für Radfahrer, die ein einfaches und funktionales Rad für ihren Alltagseinsatz suchen.

Steel fork is simple and durable
Ride safely day or night with an integrated headlight and taillight
Body Geometry Comfort grips alleviate hand pain and tingling fingers
Shimano Alivio 8-speed rear derailleur provides crisp shifts every time
Slim and effective color-matched alloy chainguard and fenders keep your duds clean
Body Geometry Sonoma saddle uses a V-groove design and vibration dampers for comfort and support, even on dodgy roads
Globe A1 Premium Aluminum trekking frame with fender/rack braze-ons and kickstand mount is all about versatility and efficiency
Superlight and compact alloy RackTime rear carrier uses Snapit technology for modular use of various aftermarket accessories - 25kg maximum
Long-wearing Specialized Infinity 700c tires use a deep, recessed tread and Flak Jacket puncture protection to navigate water and debris with ease

Technische Spezifikationen

FRAMESET

FRAME

Globe A1 Premium Aluminum trekking design, fully manipulated tubing w/ fender and rack braze-ons, integrated kickstand mount

FORK

Globe Vienna straight-blade steel fork

HEADSET

1-1/8"" threadless, integrated, semi-cartridge campy style bearings

SEAT BINDER

Globe Chevron forged alloy, chrome plated

WHEELS

REAR HUB

Forged alloy, double sealed, ground race, cassette, QR, 32h

SPOKES

1.8mm (15g) stainless

FRONT TIRE

Specialized Infinity 700x38c, 60TPI, w/ Flak Jacket protection

REAR TIRE

Specialized Infinity 700x38c, 60TPI, w/ Flak Jacket protection

INNER TUBES

Schraeder valve

RIMS

Globe 700c, double wall, 32h w/CNC side wall

FRONT HUB

Shimano HD-3N30-QR super low resistance dynamo hub, 32H

DRIVETRAIN

FRONT DERAILLEUR

Shimano FD-C051, 31.8mm clamp, top swing, dual pull

REAR DERAILLEUR

Shimano Alivio, 8-speed

SHIFT LEVERS

Shimano, ST-EF-50, 8-speed, EZ fire plus

CASSETTE

SRAM PG-820, 8-speed, 11-32t

CHAIN

KMC Z8 w/ reusable Missing Link

CRANKSET

Shimano FC-M191, w/ chainguard

CHAINRINGS

48 x 38 x 28t w/ chainguard

BOTTOM BRACKET

Cartridge bearing, square spindle with crank stop right side and capless bolts

COCKPIT

STEM

Forged alloy, 2-bolt, 15 degree rise, 25.4mm clamp

HANDLEBARS

Alloy low rise, 25.4mm, 650mm wide, 31 degree front, 24 degree back sweep

TAPE

Body Geometry Comfort w/ integrated bell, closed end, 132/126mm

SADDLE

Specialized BG Sonoma, 155mm width

SEATPOST

Alloy, 2-bolt forged head, 12.5mm offset, 27.2mm

BRAKES

FRONT BRAKE

Alloy linear pull, 1pc. pad

REAR BRAKE

Alloy linear pull, 1pc. pad

BRAKE LEVERS

V-Brake, linear pull

ACCESSORIES

PEDALS

Globe City, Body Geometry, composite w/rubber top, 1.5mm varus wedge

*Gewichte basieren auf der Produktion lackierter Rahmen, wie abgebildet. Tatsächliche Gewichte variieren je nach Farbgebung, Rahmengrösse und Komponentenvariation. Spezifikationen können ohne Vorankündigung geändert werden.

Geometrie

	SM	MD	LG	XL	XXL
Sitzrohrwinkel	74.5°	74°	73.5°	72°	73°
Steuerrohrlänge	126mm	146mm	166mm	186mm	206mm
Seat-Post Length	0mm	0mm	0mm	0mm	0mm
Steuerrohrwinkel	69.5°	69.5°	70°	70.5°	71°
Kettenstreben-Länge	455mm	455mm	455mm	455mm	455mm
Oberrohrlänge horizontal	550mm	565mm	580mm	595mm	620mm
Mitte Tretlager - Mitte V.-Achse	637mm	648mm	654mm	659mm	667mm
Überstandshöhe	719mm	755mm	792mm	829mm	859mm
Sitzrohrlänge	385mm	435mm	485mm	535mm	575mm
Gabelversatz	51mm	51mm	51mm	51mm	51mm
Tretlagerabsenkung	65mm	65mm	65mm	65mm	65mm
Nachlauf	78mm	78mm	74mm	68mm	71mm
Radstand	1084mm	1095mm	1101mm	1106mm	1114mm
