2014 Vita Sport Step Through
0 Commentaires
The Vita Sport Step Through offers the speed of a road bike with the comfort and…
Coloris:
Gloss Metallic Silver/White
Taille:
One Size
Indisponible
Cet article est indisponible via Trouver en magasin
Caractéristiques du produit

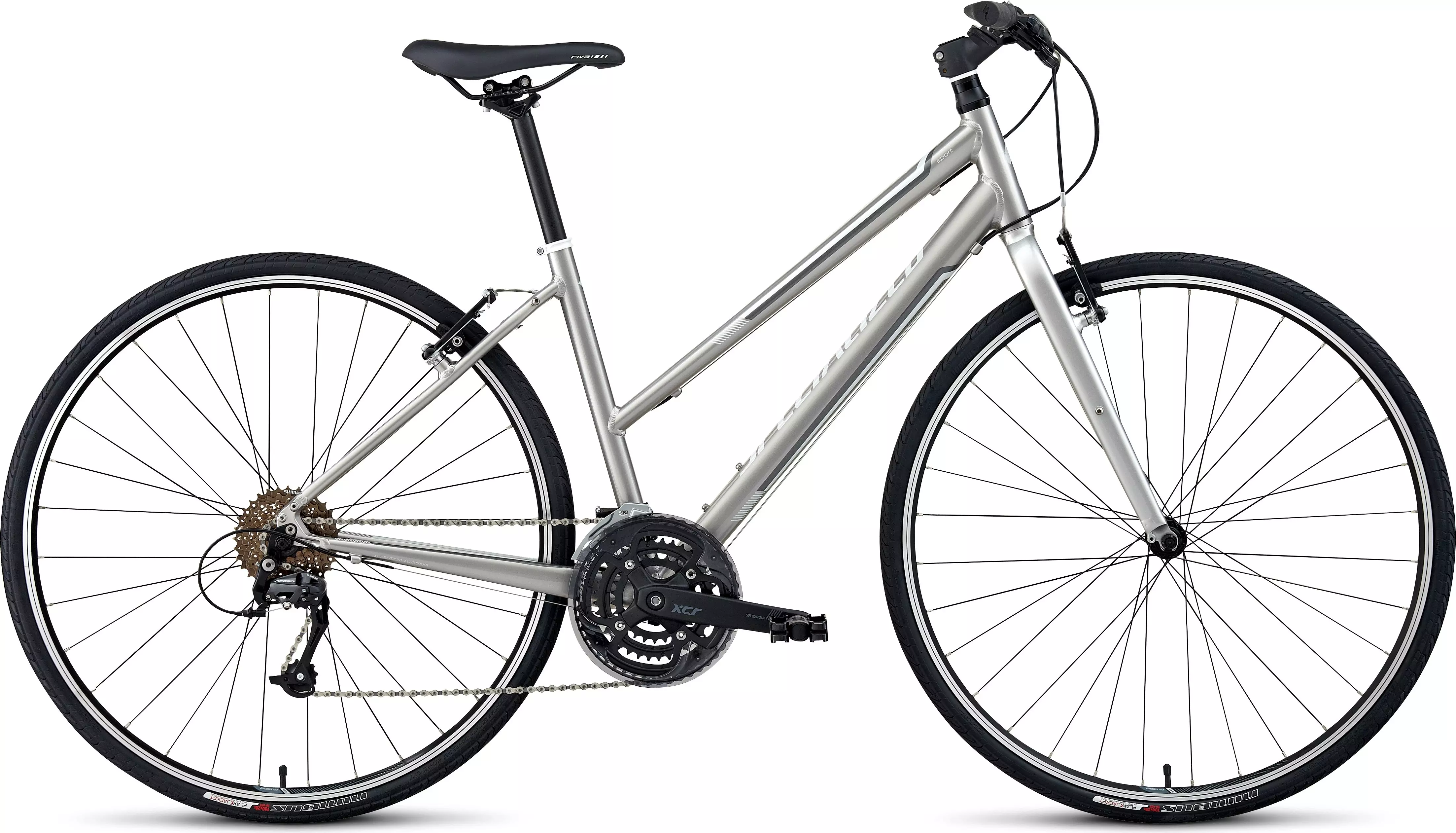

The Vita Sport Step Through offers the speed of a road bike with the comfort and confidence that comes from a step-through frame and flat bar, for exercising, commuting, or hitting the open road. The 9-speed Shimano triple drivetrain delivers smooth, reliable shifting and offers a wide range of gearing.
Women's A1 Premium Aluminum step-through frame with Fitness Geometry and integrated headset offers a great ride and versatility with rack/fender mounts, and wide tire clearance
Straight blade alloy fork with fender mounts saves weight and adds durability to manage potholes and rough roads
Flak Jacket protection and a grooved tread make the Specialized Nimbus tires perfect for city or open road use
SR Suntour crankset, Shimano Acera front and 9-speed rear derailleur for wide-range gearing and spot-on shifting, plus chainguard for peace of mind
Body Geometry Riva Road Women's saddle features generous padding for all-day performance and comfort
Spécifications techniques
FRAMESET
FRAME
Specialized A1 Premium Aluminum Step Through, Women's Fitness Geometry and fully manipulated tubesets, integrated headset, fender/rack eyelets
FORK
A1 Premium Aluminum, Cr-Mo steerer, fender/rack eyelets
HEADSET
1-1/8"" FSA Campy style, integrated lower, external sealed upper bearings, 15mm cone spacer
SEAT BINDER
Alloy, 31.8mm
WHEELS
RIMS
Alloy double-wall, pin joint, 32h
FRONT HUB
Double-sealed, ground race, dual-lock nuts, 5mm QR
REAR HUB
Double-sealed, loose ball, dual-lock nuts, 5mm QR
SPOKES
Stainless, 14g (2.0mm)
FRONT TIRE
Specialized Nimbus, 26TPI, wire bead, Flak Jacket protection, 700x28c
REAR TIRE
Specialized Nimbus, 26TPI, wire bead, Flak Jacket protection, 700x28c
INNER TUBES
Standard presta valve
DRIVETRAIN
SHIFT LEVERS
Shimano ST-EF51, EZ Fire
FRONT DERAILLEUR
Shimano Acera, top-swing, dual-pull
REAR DERAILLEUR
Shimano Acera, 9-speed
CASSETTE
Shimano HG-20, 9-speed, 11-32
CRANKSET
SR Suntour XCR, 9-speed, square spindle, w/ chainguard
CHAINRINGS
48/36/26, w/ chainguard
BOTTOM BRACKET
Cartridge bearings, square spindle, capless bolts
CHAIN
KMC X9
COCKPIT
HANDLEBARS
Specialized flat bar, alloy, 6-degree backsweep, 25.4mm
STEM
Melt-forged alloy, 4-bolt, 20-degree rise, 25.4mm clamp
TAPE
Specialized Body Geometry Women's Contour, lock-on
SADDLE
Specialized Body Geometry Riva Women's, steel rails, 155mm
SEATPOST
Alloy, 2-bolt, micro-adjust, 12.5mm offset, 27.2mm
BRAKES
FRONT BRAKE
Die-cast, alloy V-brake, 60mm 1pc. pad, linear pull
REAR BRAKE
Die-cast, alloy V-brake, 60mm 1pc. pad, linear pull
BRAKE LEVERS
Shimano EF-51
ACCESSORIES
PEDALS
Nylon body, alloy cage, 1.5 varus angle
Consultez les avertissements de sécurité dans la documentation disponible sur cette page dans la section « Téléchargements manuels ».
Géométries
| SM | MD | LG | |
|---|---|---|---|
| Angle tube de selle | 74.5° | 74° | 73° |
| Hauteur de douille de direction | 130mm | 150mm | 165mm |
| Longueur tube de selle - centre à sommet | 300mm | 350mm | 350mm |
| Angle de direction | 70° | 71° | 71° |
| Longueur bases | 445mm | 445mm | 445mm |
| Longueur tube horizontal | 535mm | 550mm | 565mm |
| Boîte de pédalier – axe roue avant | 616mm | 617mm | 622mm |
| Largeur de cintre | 580mm | 580mm | 580mm |
| Hauteur cadre à l’entrejambe | 619mm | 628mm | 628mm |
| Longueur tube de selle - centre boîte de pédalier à sommet | 395mm | 440mm | 475mm |
| Déport de fourche | 51mm | 51mm | 51mm |
| B-B Drop | 70mm | 70mm | 70mm |
| Chasse | 73mm | 67mm | 67mm |
| Empattement | 1052mm | 1053mm | 1057mm |
| Longueur manivelles | 170mm | 170mm | 170mm |
| Longueur de potence | 75mm | 90mm | 100mm |
