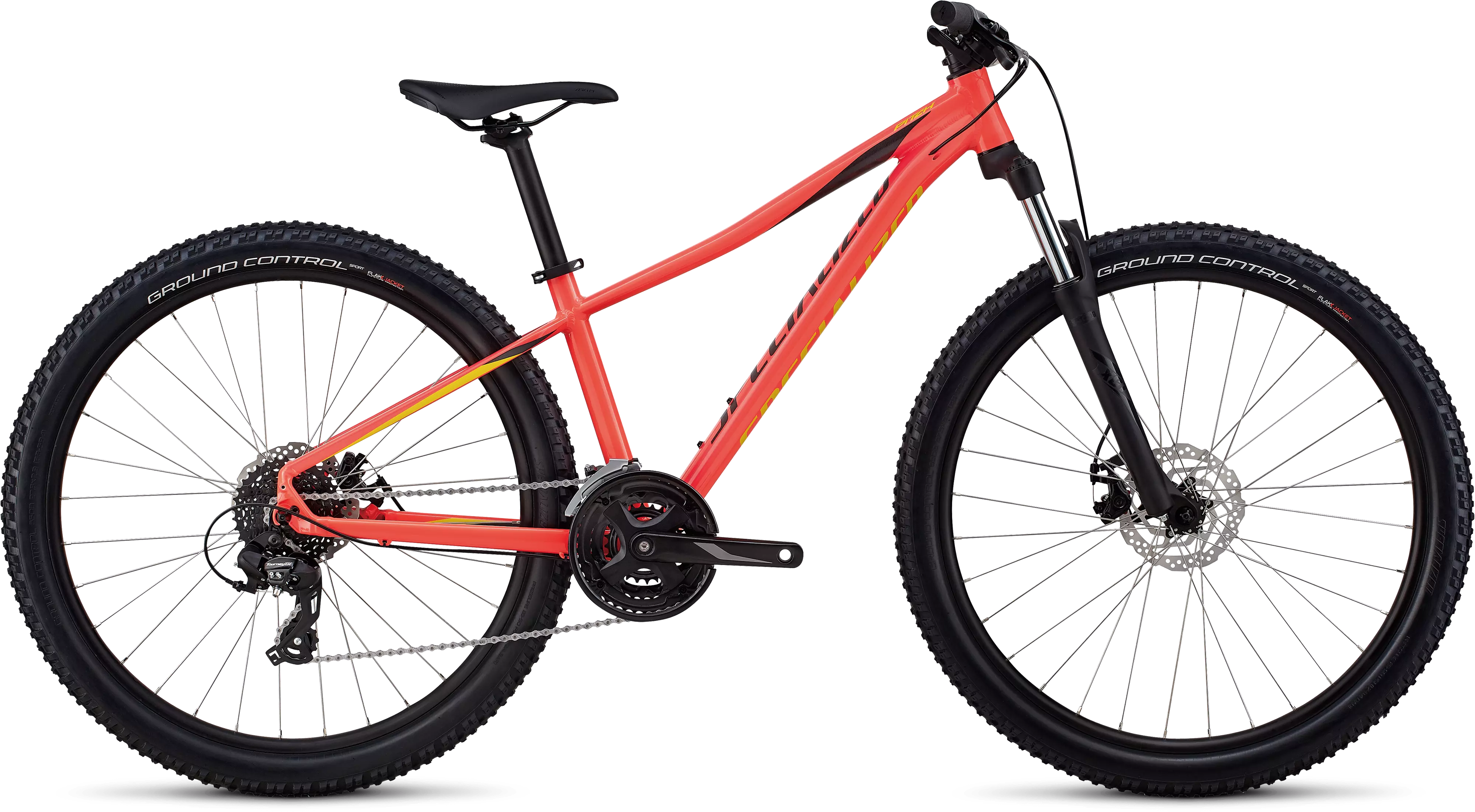

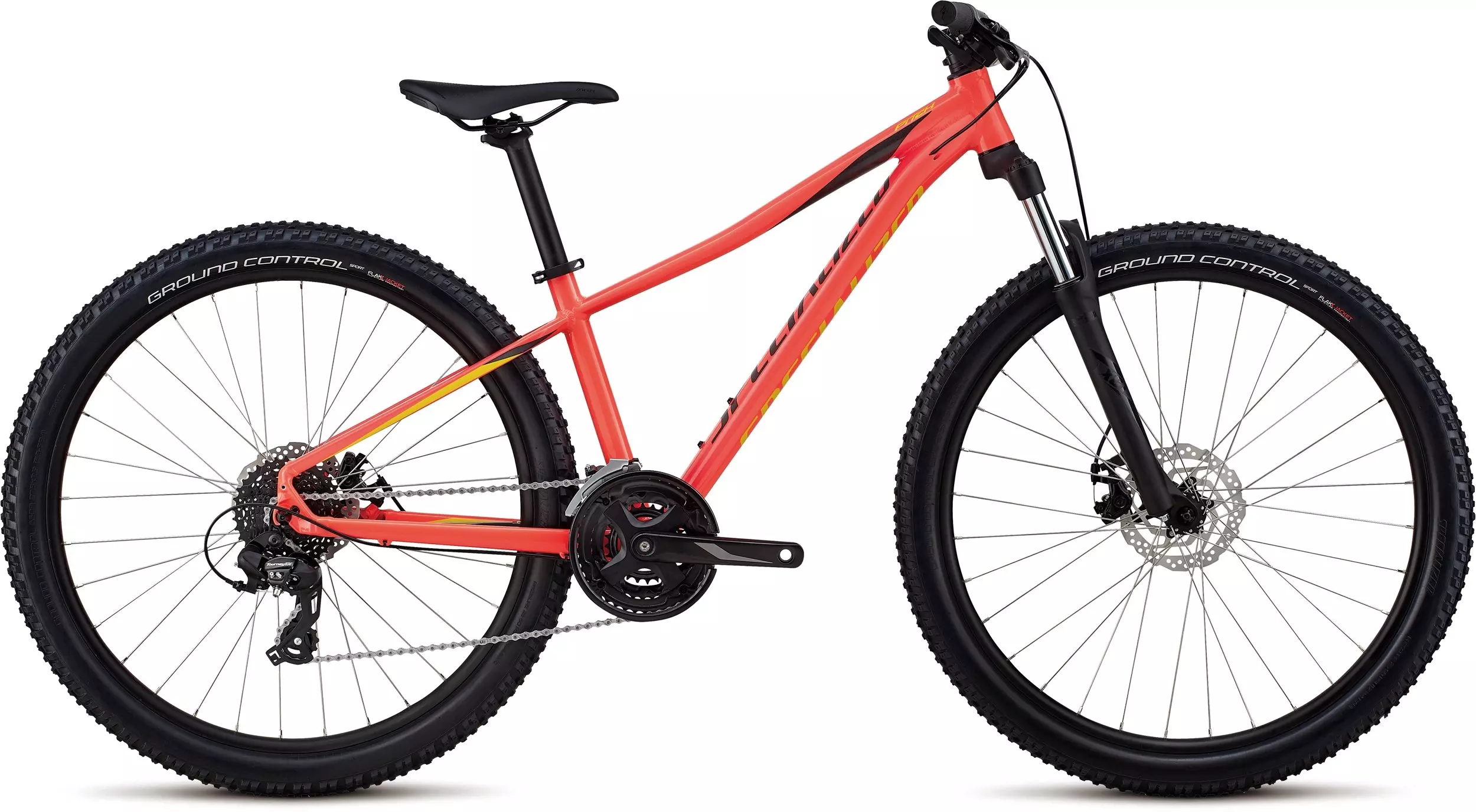

2018 Women's Pitch 650b
$600.00
5
1 Reviews
We've all felt the compulsion to break free from our day-to-day routine, especially…
Colour:
Gloss Acid Red/Limon/Black Reflective
What's my size?
Select a Size
Unavailable
This item is not available for Find Nearby
Product Details
We've all felt the compulsion to break free from our day-to-day routine, especially when it comes to riding. Sure, laps around town are fun, but compared to the freedom of getting out in the woods or on country roads, life on the pavement starts to look pretty mundane. Lucky for you, our Women's Pitch 650b unlocks the potential of your ride. With a light aluminium frame and our Women's Sport Trail 650b Geometry, you'll be feeling comfortable and confident regardless of the terrain. And with corrosion-resistant hardware and kickstand compatibility, this Pitch provides the long-term durability and ease-of-use that every bike should strive for. Question is—where will you take it?
The frame is constructed from lightweight A1 Premium Aluminium in order to provide a compliant, durable platform to support our acclaimed Women's Sport Trail 650b Geometry. Combined, you get a bike that's extremely versatile, making it equally capable on the climbs and descents.
Custom SR Suntour XCT fork features 80/100mm (size-specific) of coil-sprung suspension travel that swings well above its weight class.
A Shimano TX800 rear derailleur is built to with durability in mind, so you can rest assured that you'll have a reliable shifting partner for the long trails ahead.
Technical Specifications
FRAMESET
FRAME
A1 Premium Aluminum, Women's Sport Trail 27.5 Geometry, zero-stack head tube, internal cable routing, 135x9mm forged dropouts, chainstay-mounted disc brake, replaceable alloy derailleur hanger
SEAT BINDER
Alloy, QR clamp, 34.9mm
SUSPENSION
FORK
SR Suntour XCT 27.5, Women's Rx Tune, coil spring, 80/100mm travel (size-specific)
WHEELS
RIMS
Stout Trail 27.5, alloy, disc only, double-wall, 25mm inner width, 32h
FRONT HUB
Shimano Center Lock, disc, 100x9mm QR, 32h
REAR HUB
Shimano Center Lock, disc, 135x9mm QR, 32h
SPOKES
Stainless, 14g
FRONT TIRE
Ground Control Sport, Flak Jacket flat protection, wire bead, 27.5 x 2.3"
REAR TIRE
Ground Control Sport, Flak Jacket flat protection, wire bead, 27.5 x 2.3"
DRIVETRAIN
FRONT DERAILLEUR
Shimano TX800, 34.9mm clamp, top-swing
REAR DERAILLEUR
Shimano TX800 8-speed
SHIFT LEVERS
Shimano TX800, Ez-Fire Plus, 3x8
CASSETTE
Sunrace, 8-speed, 11-34t
CHAIN
KMC X8EPT, 8-speed, anti-corrosion coating w/ reusable Missing Link™
CRANKSET
Forged alloy, square taper spindle w/chainguard
CHAINRINGS
42/34/24T
BOTTOM BRACKET
Square taper, 73mm, internal bearings
COCKPIT
STEM
Stout 3D-forged alloy, 31.8mm, 6-degree rise
HANDLEBARS
Stout double-butted alloy, 18mm rise, 8-degree backsweep, 4-degree upsweep, 740mm width, 31.8mm
GRIPS
Specialized MTB Grip, lock-on
SADDLE
Myth Sport, steel rails, 155mm
SEATPOST
Alloy, 12mm offset, 2-bolt clamp, 30.9mm
BRAKES
REAR BRAKE
Radius CX7, mechanical disc, resin pads, 160mm rotor
FRONT BRAKE
Radius CX7, mechanical disc, resin pads, 160mm rotor
ACCESSORIES
PEDALS
Specialized Dirt
* Weights based on production painted frames as pictured. Actual weights will vary based on colourway, frame size, and component variation. Specifications are subject to change without notice.
Geometry
| XS | S | M | L | |
|---|---|---|---|---|
| Crank Length | 165mm | 170mm | 170mm | 175mm |
| Handlebar Width | 680mm | 700mm | 700mm | 700mm |
| Stem Length | 35mm | 35mm | 45mm | 45mm |
| Seatpost Length | 350mm | 400mm | 400mm | 400mm |
| Stack | 562mm | 562mm | 585mm | 604mm |
| Reach | 380mm | 400mm | 420mm | 440mm |
| Head Tube Length | 100mm | 120mm | 95mm | 95mm |
| Head Tube Angle | 68.5° | 68.5° | 68.5° | 68.5° |
| BB Height | 310mm | 310mm | 310mm | 310mm |
| BB Drop | 43mm | 43mm | 43mm | 43mm |
| Trail | 94mm | 94mm | 94mm | 94mm |
| Fork Length, Full | 475mm | 475mm | 495mm | 495mm |
| Fork Rake/Offset | 42mm | 42mm | 42mm | 42mm |
| Front Centre | 631mm | 651mm | 680mm | 708mm |
| Chainstay Length | 435mm | 435mm | 435mm | 435mm |
| Wheelbase | 1063mm | 1083mm | 1112mm | 1139mm |
| Top Tube Length, Horizontal | 542mm | 572mm | 599mm | 625mm |
| Bike Standover Height | 660mm | 690mm | 739mm | 766mm |
| Seat Tube Length | 310mm | 360mm | 415mm | 450mm |
| Seat Tube Angle | 73° | 73° | 73° | 74° |
Manual Downloads
For safety warning please refer to the documentation in the Manual Downloads section of this page.
