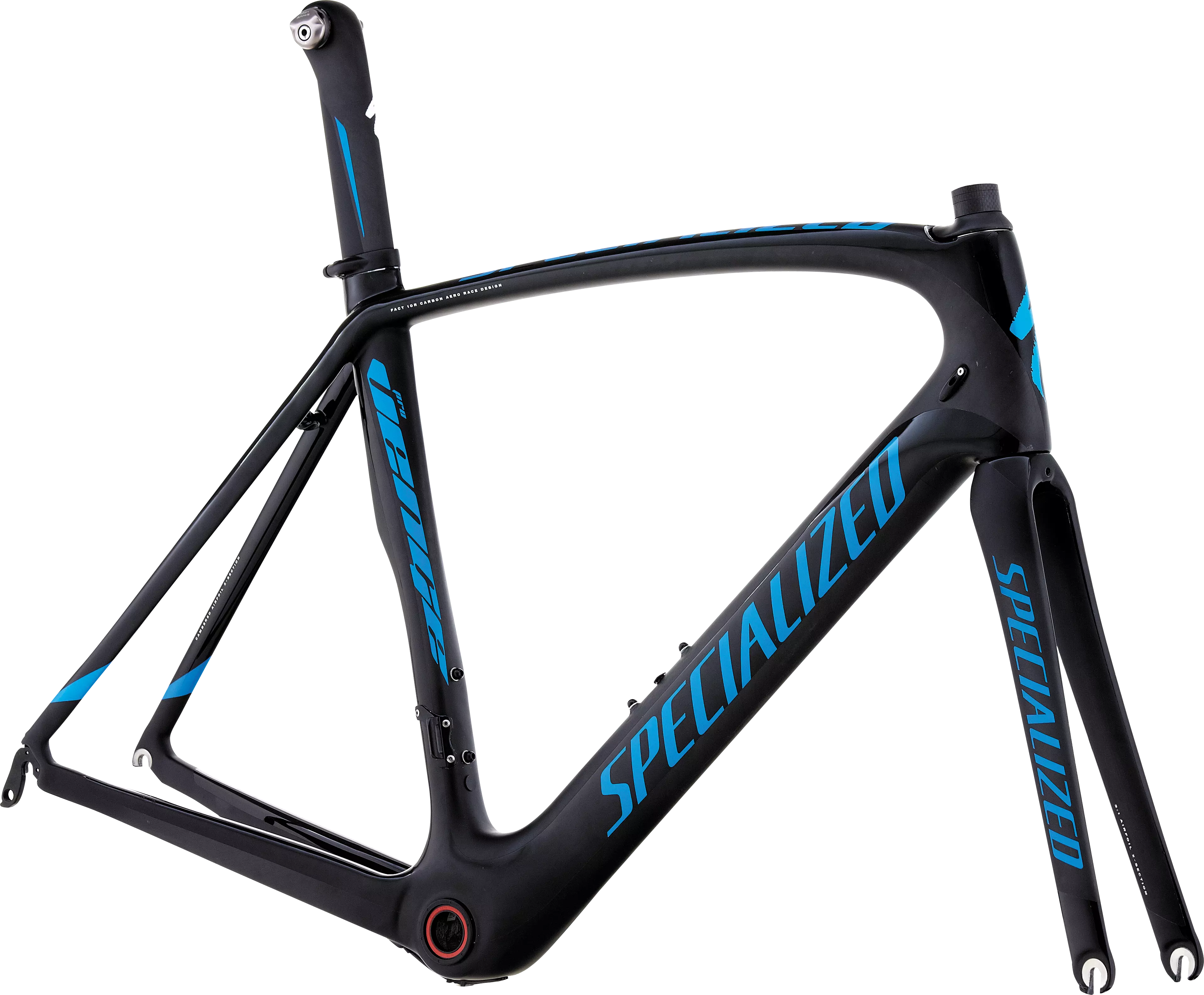

2012 Venge Pro OSBB Frameset

0 Reviews

Colour:

Gloss Black/ Neon Blue

What's my size?

Imperial

Metric

Enter your height and we'll calculate your size.

Height:

For a more accurate result, include your shin length.

Select a Size

Choose the colour and size you're looking for to search nearby store inventory.

Shipping to -----

Unavailable

This item is not available for Find Nearby

Product Details

The Venge Pro's competition-crushing combo of Tarmac-inspired stiffness and light weight with Shiv-inspired aerodynamics makes this pure race machine truly more bike than aero. Customize this OSBB frameset with the spec of your choice. More Bike Than Aero

UCI-legal, FACT IS 10r Aero Race Design, carbon frame with one piece carbon OSBB/chainstay, internal cable routing, and tapered head tube provides the complete performance formula for weight, stiffness, and aerodynamics
UCI-legal, carbon fork with 3:1 airfoil shaping and straight profile for best combination of aerodynamics and stiffness
Stiff, light, UCI-legal, bladed carbon seatpost flips between 20mm and 0mm setback, also wide range of vertical adjustability

Technical Specifications

FRAMESET

FRAME

FACT 10r carbon, FACT IS construction, aero tube shape, compact race design, tapered 1-1/8"" to 1-3/8"" head tube, internal cable routing, carbon OSBB

FORK

Venge Pro FACT carbon, full monocoque, OS race for 1-3/8"" bearing

HEADSET

1-1/8"" upper and 1-3/8"" lower Cr-Mo cartridge bearings, w/ custom Venge top cap

SEAT BINDER

Venge seat clamp assembly

DRIVETRAIN

BOTTOM BRACKET

OS integrated, sealed bearings

COCKPIT

SEATPOST

Venge Aero, FACT carbon, flippable 20/0mm offset

* Weights based on production painted frames as pictured. Actual weights will vary based on colourway, frame size, and component variation. Specifications are subject to change without notice.

Geometry

	49.0	52.0	54.0	56.0	58.0	61.0
Seat-Tube Angle	75.5°	74°	73.5°	73.25°	73°	72.5°
Head-Tube Length	100mm	120mm	140mm	160mm	190mm	210mm
Seat-Post Length	300mm	300mm	300mm	350mm	350mm	350mm
Head-Tube Angle	72.25°	73°	73°	73.5°	73.5°	74°
Chain-Stay Length	405mm	405mm	405mm	405mm	407mm	410mm
Top-Tube Length, Horizontal	518mm	537mm	548mm	565mm	582mm	600mm
Front-Centre	576mm	576mm	583mm	590mm	605mm	612mm
Handle-Bar Width	400mm	420mm	420mm	420mm	440mm	440mm
Stand-Over Height	741mm	766mm	789mm	809mm	834mm	860mm
Seat-Tube Length, B-B Centre to Top	467mm	487mm	507mm	527mm	547mm	577mm
Fork Rake	45mm	45mm	45mm	43mm	43mm	43mm
B-B Drop	71.5mm	71.5mm	69mm	69mm	67.5mm	67.5mm
Stack	506mm	528mm	544mm	566mm	593mm	614mm
Reach	385mm	385mm	386mm	395mm	401mm	407mm
Trail	62mm	57mm	57mm	56mm	56mm	53mm
Wheelbase	970mm	970mm	978mm	986mm	1003mm	1013mm
Crank Length	170mm	170mm	172.5mm	172.5mm	175mm	175mm
Stem Length	75mm	90mm	100mm	100mm	110mm	110mm
