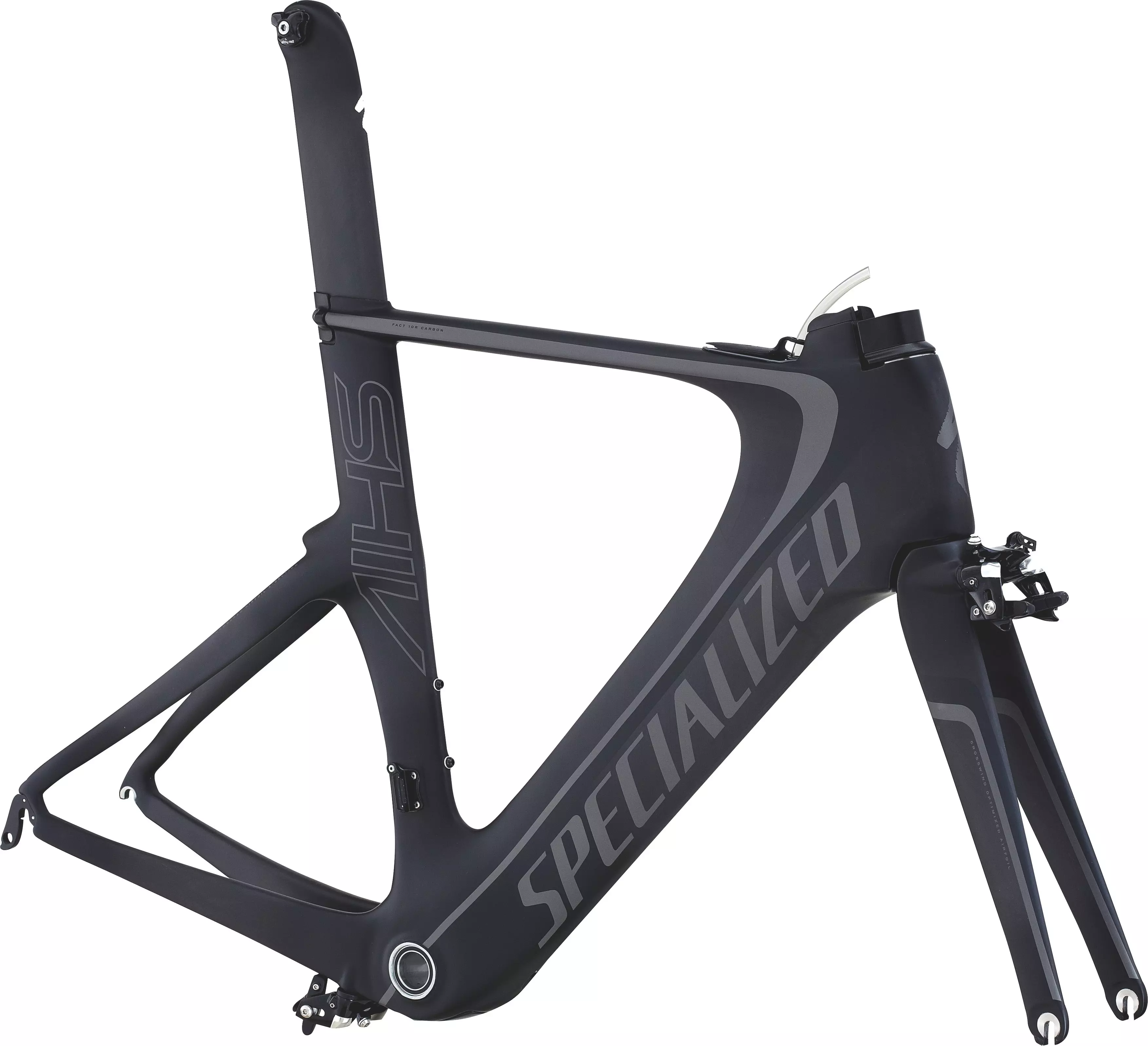

2015 Shiv Pro Frameset

0 Reviews

The Shiv Pro frameset is a wind-cheating weapon, delivering the perfect blend of…

Colour:

Satin Carbon/Black/Charcoal

What's my size?

Imperial

Metric

Enter your height and we'll calculate your size.

Height:

For a more accurate result, include your shin length.

Select a Size

Choose the colour and size you're looking for to search nearby store inventory.

Unavailable

This item is not available for Find Nearby

Product Details

The Shiv Pro frameset is a wind-cheating weapon, delivering the perfect blend of stealthy power, drag-defying aerodynamics, and tailored fit options. Build your custom dream machine with one of the fastest frames around.

Shiv Aero, FACT carbon seatpost w/ 12.5mm and 37.5mm offset options for aero efficiency
Shiv Aero, FACT carbon seatpost w/ 12.5mm and 37.5mm offset options for aero efficiency
FACT 10r carbon IS frame w/ OSBB optimised for crosswinds and all-out speed
FACT 10r carbon IS frame w/ OSBB optimised for crosswinds and all-out speed

Technical Specifications

FRAMESET

FRAME

Specialized FACT 10r carbon, FACT IS construction, crosswind-optimised airfoils, 1-1/8" lower bearing, OSBB, Control Tower Fit System, Fuelselage Integrated Hydration System

FORK

Specialized FACT Aero carbon

HEADSET

1-1/8"" upper/lower, stainless steel cartridge bearings

SUSPENSION

REAR SHOCK

DRIVETRAIN

BOTTOM BRACKET

Hope, BB30

COCKPIT

SEATPOST

Shiv Aero, FACT Carbon, +/-12.5mm and +/-37.5mm setback

BRAKES

FRONT BRAKE

Specialized Aero, side pull

REAR BRAKE

Specialized Aero, side pull

* Weights based on production painted frames as pictured. Actual weights will vary based on colourway, frame size, and component variation. Specifications are subject to change without notice.

Geometry

	XS	S	M	L	XL
Seat-Tube Angle	77°	77°	77°	77°	77°
Head-Tube Length	99mm	115mm	139mm	163mm	189mm
Seat-Post Length	350mm	350mm	350mm	350mm	350mm
Seat Post Setback	12.5mm	12.5mm	12.5mm	12.5mm	12.5mm
Head-Tube Angle	70.25°	71.5°	72°	72.5°	72.5°
Chain-Stay Length	395mm	395mm	395mm	395mm	395mm
Top-Tube Length, Horizontal	481mm	504mm	530mm	557mm	582mm
Front-Centre	573mm	589mm	608mm	631mm	659mm
Stand-Over Height	752mm	772mm	797mm	822mm	847mm
Seat-Tube Length, B-B Centre to Top	505mm	525mm	551mm	577mm	603mm
Fork Rake	50mm	50mm	45mm	45mm	45mm
B-B Drop	72mm	72mm	72mm	72mm	72mm
Stack	495mm	515mm	540mm	565mm	590mm
Reach	365mm	385mm	405mm	425mm	445mm
Trail	69mm	61mm	63mm	60mm	60mm
Wheelbase	957mm	973mm	992mm	1016mm	1043mm
Crank Length	167.5mm	170mm	172.5mm	172.5mm	175mm
Stem Length	90mm	90mm	90mm	90mm	90mm
