With its unmatched combination of lightweight, ride quality, and supernatural amplification,…
Colour:
Charcoal Tint
Unavailable
This item is not available for Find Nearby

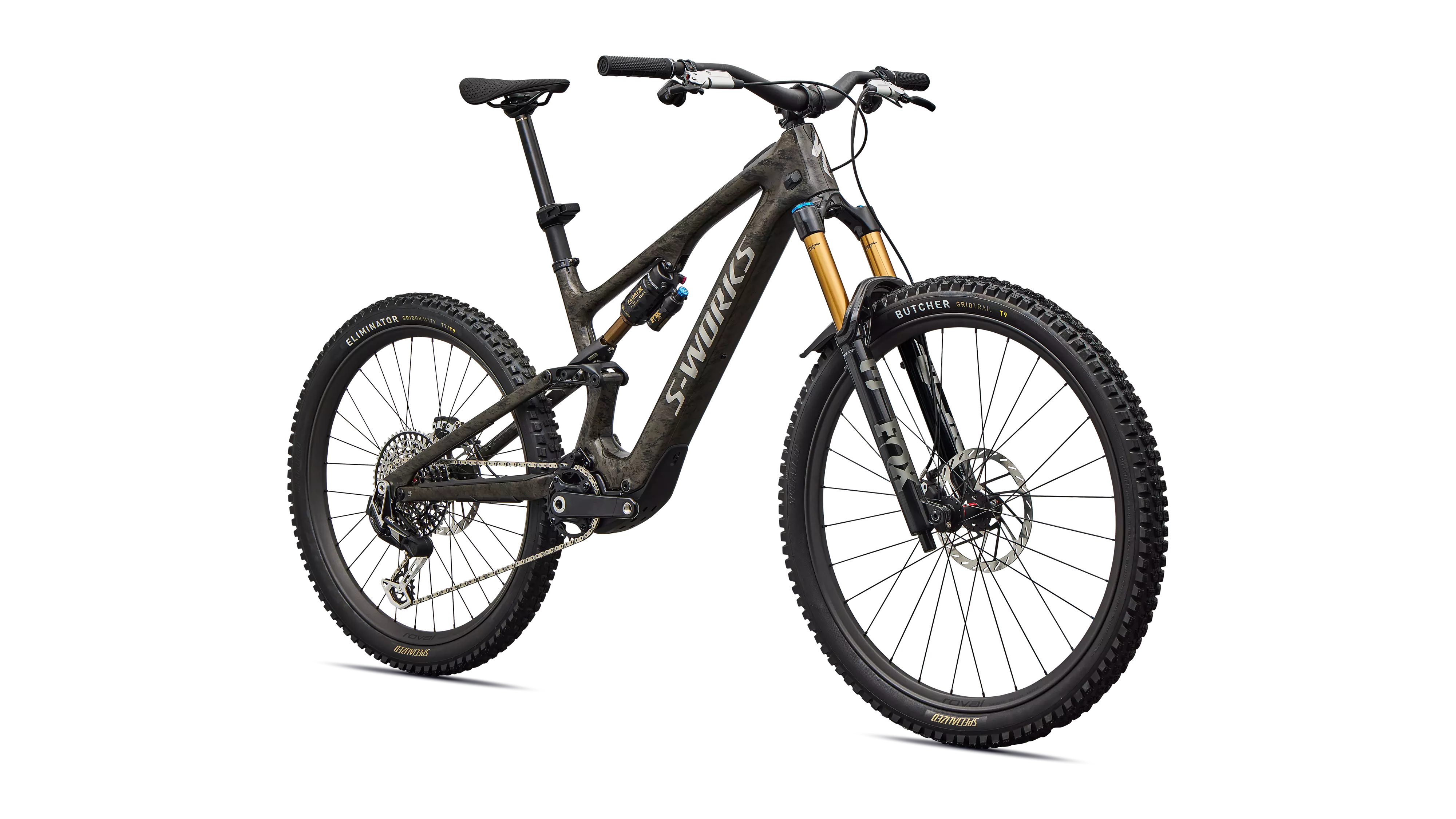

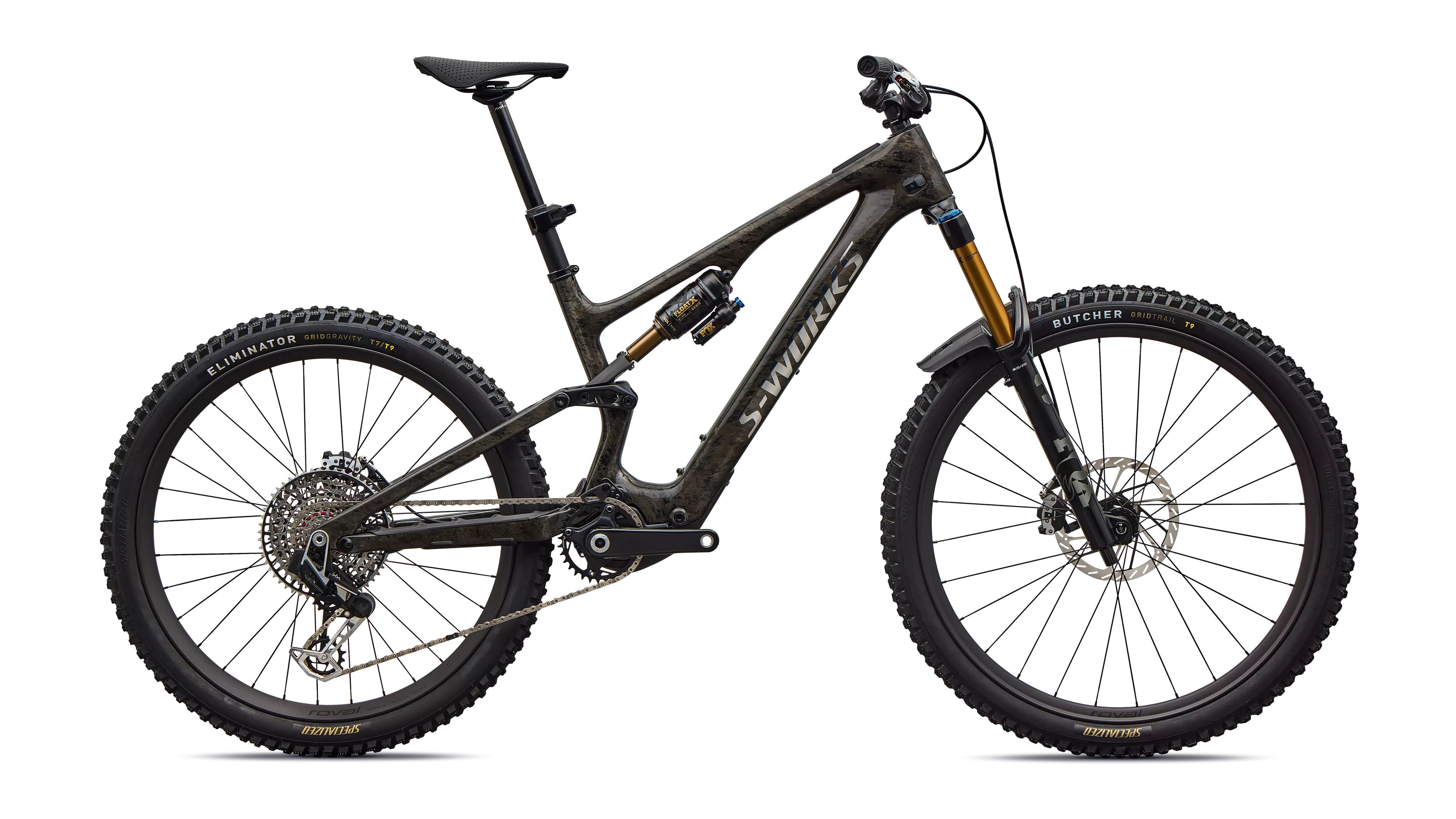

With its unmatched combination of lightweight, ride quality, and supernatural amplification, the Levo SL delivers the best ride, amplified. Compare it to anything out there, with a motor or without, and we think you’ll agree—Levo SL is The Ultimate Trail Bike.
IT’S ALL ABOUT THE RIDE: When everything works just right, a bike disappears beneath you. We stripped away the mass to keep the Levo SL lean and responsive. It’s tough enough to withstand heavy abuse, but light enough to flick through a rock garden. Its dialed geometry, kinematics, and shock tuning work together as one to deliver control, confidence and precision beyond compare.
THE MAGIC CARPET RIDE: GENIE Our patent-pending GENIE technology is the ultimate air spring. It combines the control-enhancing linear spring rate of a coil spring through the “bump zone” with the progressive spring rate of an air spring at the end of the stroke to avoid bottom-outs.
GEOMETRY OF CONTROL: The Levo SL geometry delivers an exceptional ride right out of the box, combining big-bike capability with a nimble feel in tight sections. A refined reach centers you on the bike for optimal traction and cornering, while the low bottom bracket, slack head angle, and optimized fork offset ensure stability on rough terrain. Riders who want to can easily personalize the six-way adjustable geometry to match their style and terrain.
MIXED WHEEL: A 29” front wheel helps ensure stability and surefooted performance in the most hectic terrain, while a 27.5” rear wheel allows for a short chainstay and super responsive behavior. If you prefer the rolling and traction benefits of a 29” rear wheel, just flip the pivot link chip and mount the big wheel.
TURBO OPERATING SYSTEM: Our seamlessly integrated operating system delivers unmatched performance across torque, range, ride feel, ride quality, power, reliability, and rider experience. It’s the invisible hand that enables you to do more, know more, go farther, feel stronger, and have more fun.

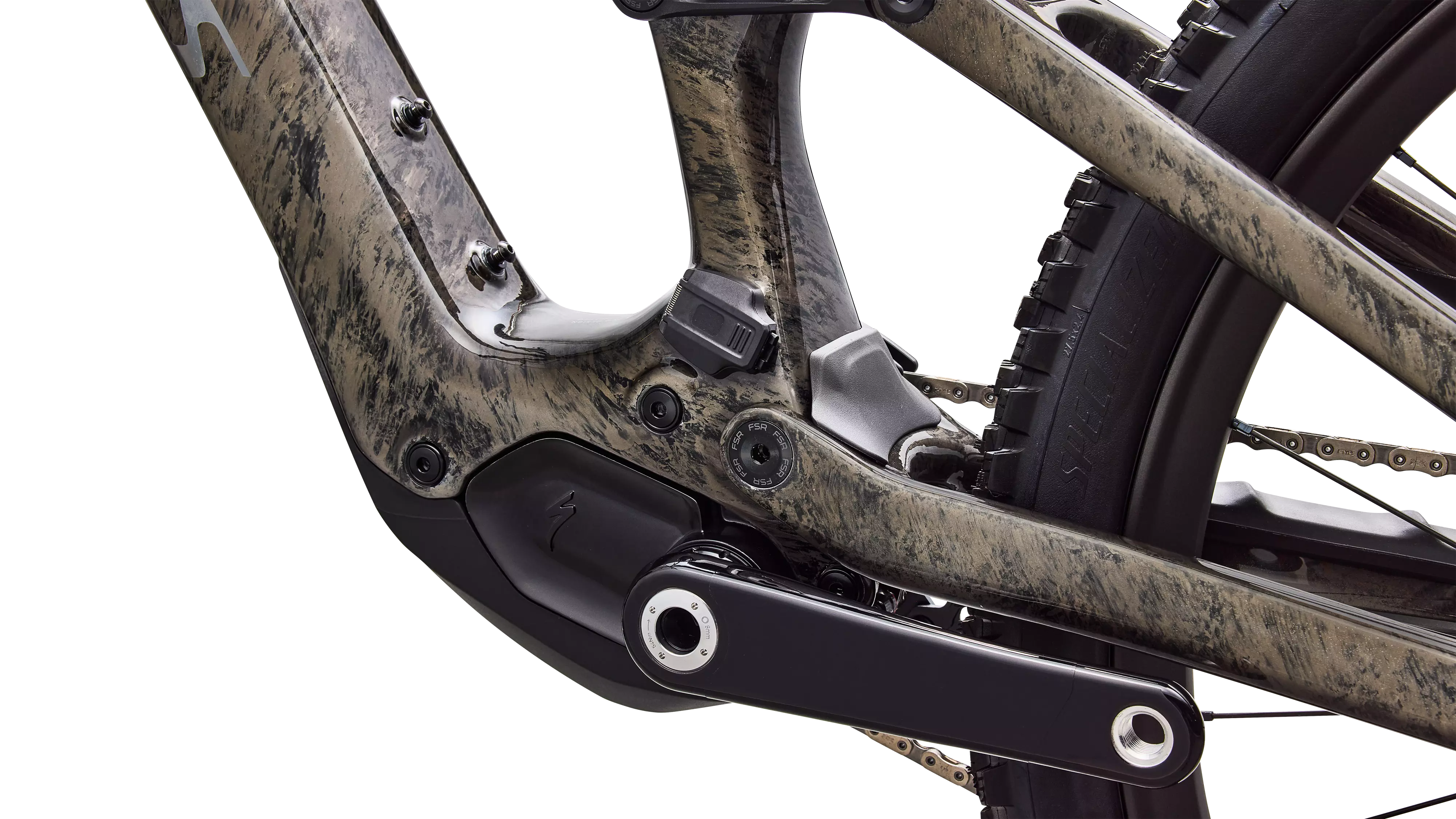

SPECIALIZED SL 1.2 MOTOR: Meet the Specialized SL 1.2 motor: it delivers 43% more torque (50Nm) and 33% more power (320 Watts) than its predecessor. Thanks to its unmatched efficiency, nothing beats its range-to-weight ratio. Paired with a seamless 320Wh battery pack, the Levo SL ensures supernatural amplification for up to 5 hours in Eco Mode. Extend your ride with our 160Wh Range Extender (sold separately), fitting snugly into your bottle cage for an extra 50% range.

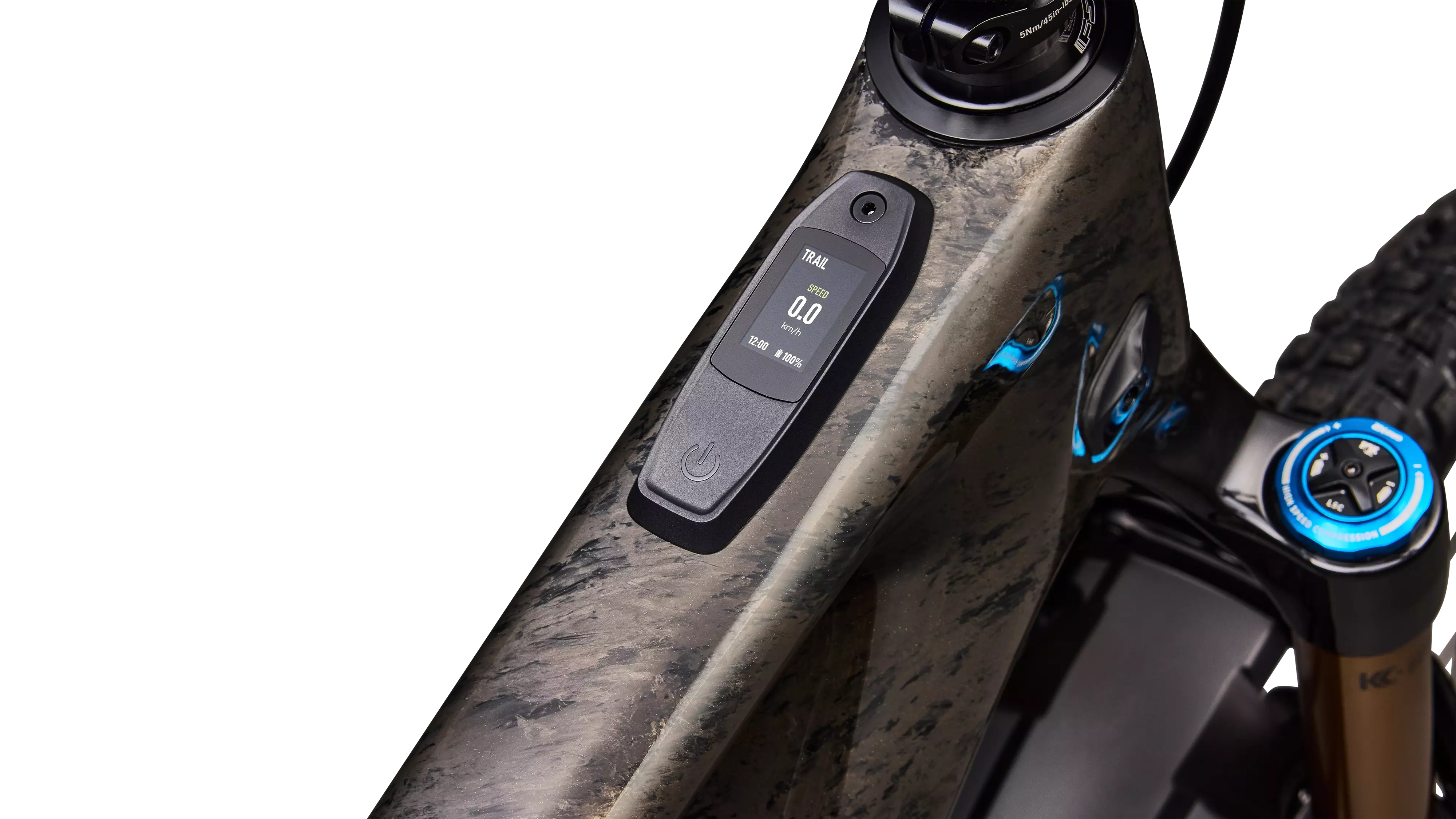

IT’S ALL CONNECTED: MasterMind TCU, our advanced e-bike control unit, seamlessly connects with Turbo OS and the Specialized App. Adjust power levels with MicroTune. Over-the-air updates ensure that your bike gets better over time. The Levo SL integrates fully with the Specialized App, offering personalized motor settings and advanced security features like Smart Control and Turbo System Lock.
Traverse HD Wheels - The strongest, best riding carbon wheelset on the mountain
FOX 36 FLOAT Factory Fork - The most tunable, smoothest, descent-focused damper created by FOX, Kashima coated
SRAM Maven Ultimate with HS2 Rotor - The highest performance in braking power and heat dissipation, Ti hardware
SRAM XX Eagle Transmission - SRAM’s lightest weight and robust wireless groupset
RockShox Reverb AXS - Wirelessly activated, personalizable dropper post
Motor
Specialized SL 1.2 Custom Rx Trail Tuned Motor
Battery
Specialized SL1-320, fully integrated, 320Wh
UI/Remote
Specialized MasterMind TCU, percentage of remaining charge, 120 possible display configurations, MicroTune assist adjustment, over-the-air updates, ANT+/Bluetooth®, w/Handlebar remote
Charger
Custom charger, 48V System w/ SL system charger plug
Wiring Harness
Custom Specialized wiring harness
Frame
Levo SL Carbon Frame, Fact 11m Carbon, Carbon shock extension, 150mm travel, adjustable head angle, BB height, and compatible with 27.5 or 29" wheels.
Seat Binder
Alloy, 38.6mm
Rear Shock

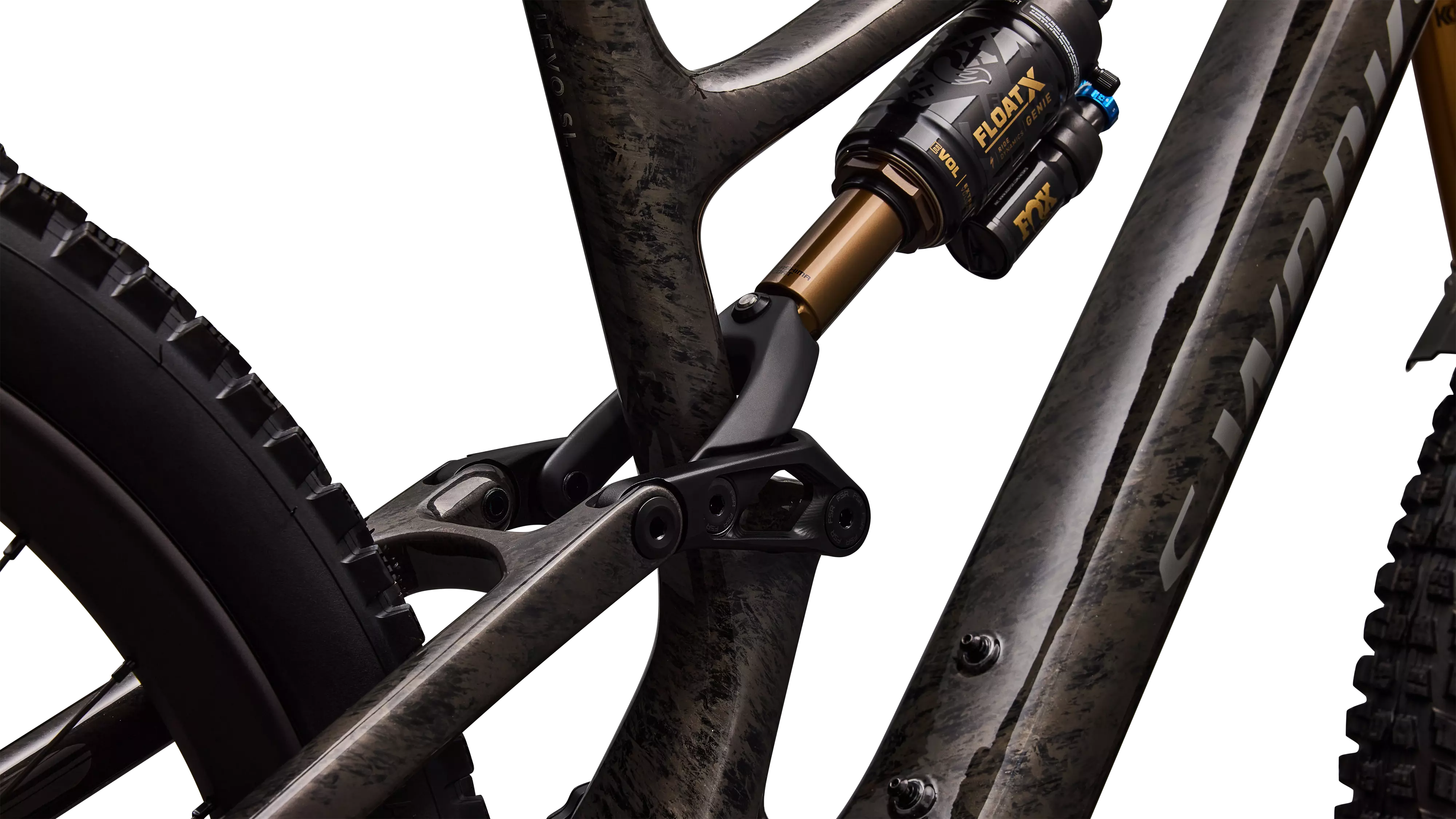

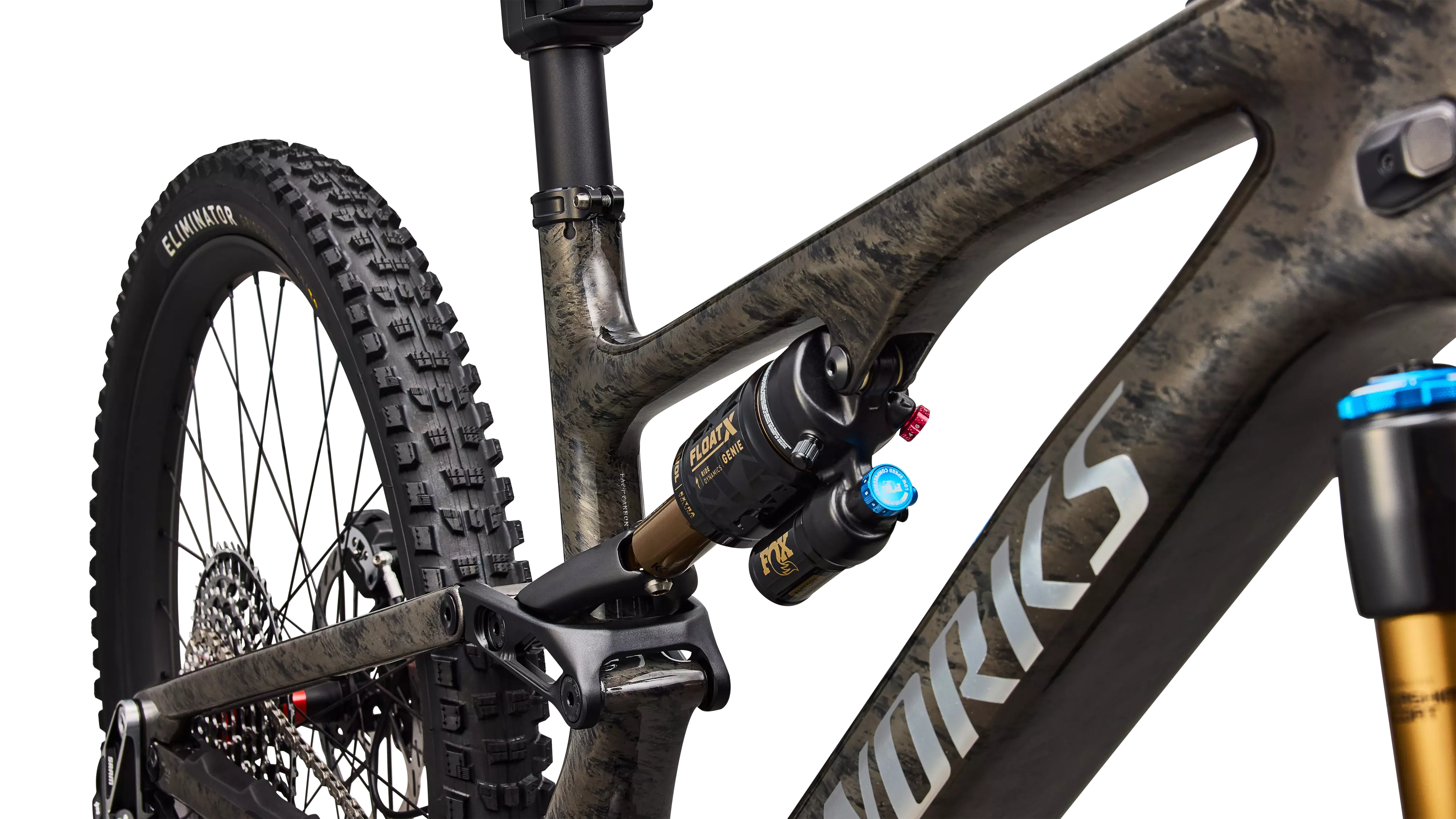

FOX FLOAT X Factory with Specialized GENIE Shock Tech, Ride Dynamics Trail Tune, 2-position lever w/3 setting Open mode tuning range, LSR adjustment, S2-S6:210x55mm, S1: FOX FLOAT Factory 210x52.5mm
Fork
FOX FLOAT 36 Factory, GRIP X2 damper, HS and LS rebound and compression adjustment, 15x110mm QR axle, 44mm offset
Front Brake
SRAM Maven Ultimate, 4-piston caliper, hydraulic disc
Rear Brake
SRAM Maven Ultimate, 4-piston caliper, hydraulic disc
Shift Levers
SRAM AXS POD ULTIMATE with DISCRETE CLAMP
Rear Derailleur
SRAM XX Eagle Transmission Derailleur
Cassette
SRAM XS 1297 T-TYPE 10-52
Chain
SRAM XX, T-TYPE
Crankset
SRAM Carbon crankset, 165mm, Dub interface
Chainrings
SRAM T-type ring, 32t, alloy
Front Tire
Butcher, GRID TRAIL casing, Gripton T9 compound, 29X2.4
Front Wheel
Roval Traverse HD 29", hookless carbon, 30mm inner width, tubeless ready, DT Swiss 240 Hub, 12x148mm, 28h
Rear Tire
Eliminator, GRID GRAVITY casing, Gripton T7/T9 compound, 27.5X2.4
Rear Wheel
Roval Traverse HD carbon 29", hookless carbon, 30mm inner width, tubeless ready, DT Swiss 240 DEG Hub, 12x148mm, 32h
Inner Tubes
Standard, Presta Valve
Stem
Race Face Turbine R,35mm clamp,40mm length

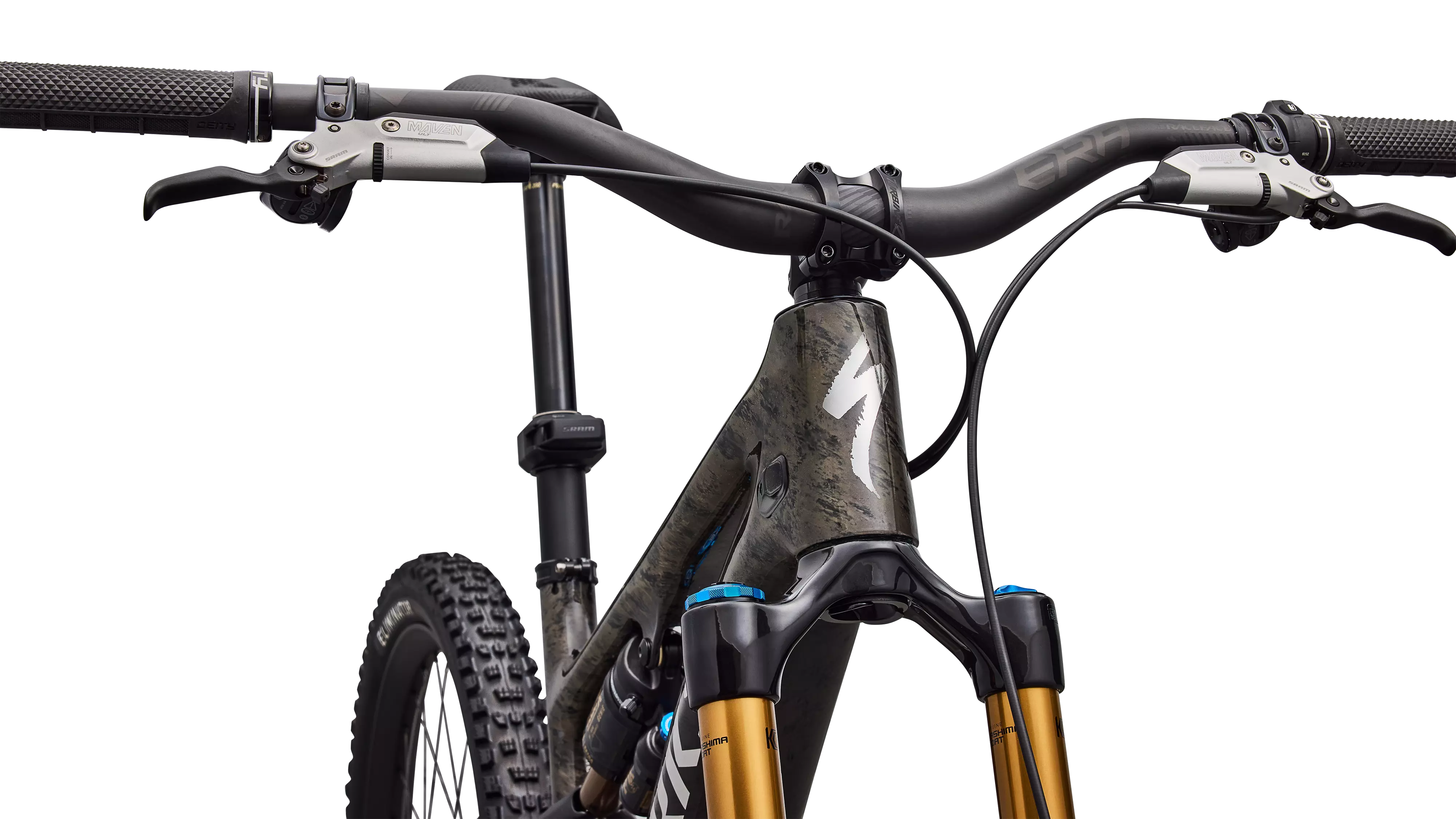

Handlebars
Race Face Era Carbon Handlebars, 35mm clamp, back-sweep 8-degrees, up-sweep 5 degrees, 800mm width, S1/S2: 40mm rise, S3-S6: 55mm rise
Grips
Deity Lockjaw Grips
Saddle
Specialized S-Works Power Mirror, Ti Rails, 143mm/155mm
SeatPost
Rockshox REVERB AXS 34.9MM S1:100mm, S2:125mm, S3:150mm, S4:200mm, S5/S6: 225MM
SWAT
SWAT CC steerer tube integrated tool with chain tool and link
Product ID
291511
Compliance Certification
As applicable, certified to UL 2849 (e-system) and/or UL 2271 (battery) by UL Solutions and/or SGS.
For information on lithium-ion battery standards and regulations in New York City, visit: www.nyc.gov/fdny/batteries
* Weights based on production painted frames as pictured. Actual weights will vary based on colourway, frame size, and component variation. Specifications are subject to change without notice.
S1 | S2 | S3 | S4 | S5 | S6 | |
---|---|---|---|---|---|---|
Crank Length | 165mm | 165mm | 165mm | 165mm | 165mm | 165mm |
Handlebar Width | 800mm | 800mm | 800mm | 800mm | 800mm | 800mm |
Stem Length | 40mm | 40mm | 40mm | 40mm | 40mm | 40mm |
Saddle Width | 155mm | 155mm | 143mm | 143mm | 143mm | 143mm |
Seatpost Length | 100mm | 125mm | 150mm | 200mm | 225mm | 225mm |
Stack | 609mm | 617mm | 626mm | 635mm | 645mm | 654mm |
Reach | 405mm | 425mm | 445mm | 470mm | 495mm | 525mm |
Head-Tube Length | 110mm | 120mm | 130mm | 140mm | 95mm | 100mm |
Head-Tube Angle | 64.6° | 64.6° | 64.6° | 64.6° | 64.6° | 64.6° |
B-B Height | 343mm | 348mm | 348mm | 348mm | 348mm | 348mm |
B-B Drop | -34mm | -29mm | -29mm | -29mm | -29mm | -29mm |
Trail | 132mm | 132mm | 132mm | 132mm | 132mm | 132mm |
Fork Length, Full | 560mm | 570mm | 570mm | 570mm | 570mm | 570mm |
Fork Rake/Offset | 42mm | 42mm | 42mm | 42mm | 42mm | 42mm |
Front-Centre | 726mm | 752mm | 776mm | 806mm | 835mm | 869mm |
Chain-Stay Length | 433mm | 432mm | 432mm | 432mm | 432mm | 432mm |
Wheelbase | 1158mm | 1184mm | 1208mm | 1238mm | 1267mm | 1301mm |
Top Tube Length, Horizontal | 560mm | 582mm | 604mm | 631mm | 659mm | 691mm |
Bike Stand-Over Height | 727mm | 763mm | 766mm | 767mm | 773mm | 778mm |
Seat-Tube Length | 385mm | 385mm | 405mm | 425mm | 445mm | 465mm |
Seat-Tube Angle | 75.8° | 75.8° | 75.8° | 75.8° | 75.8° | 75.8° |
For safety warning please refer to the documentation in the Manual Downloads section of this page.
