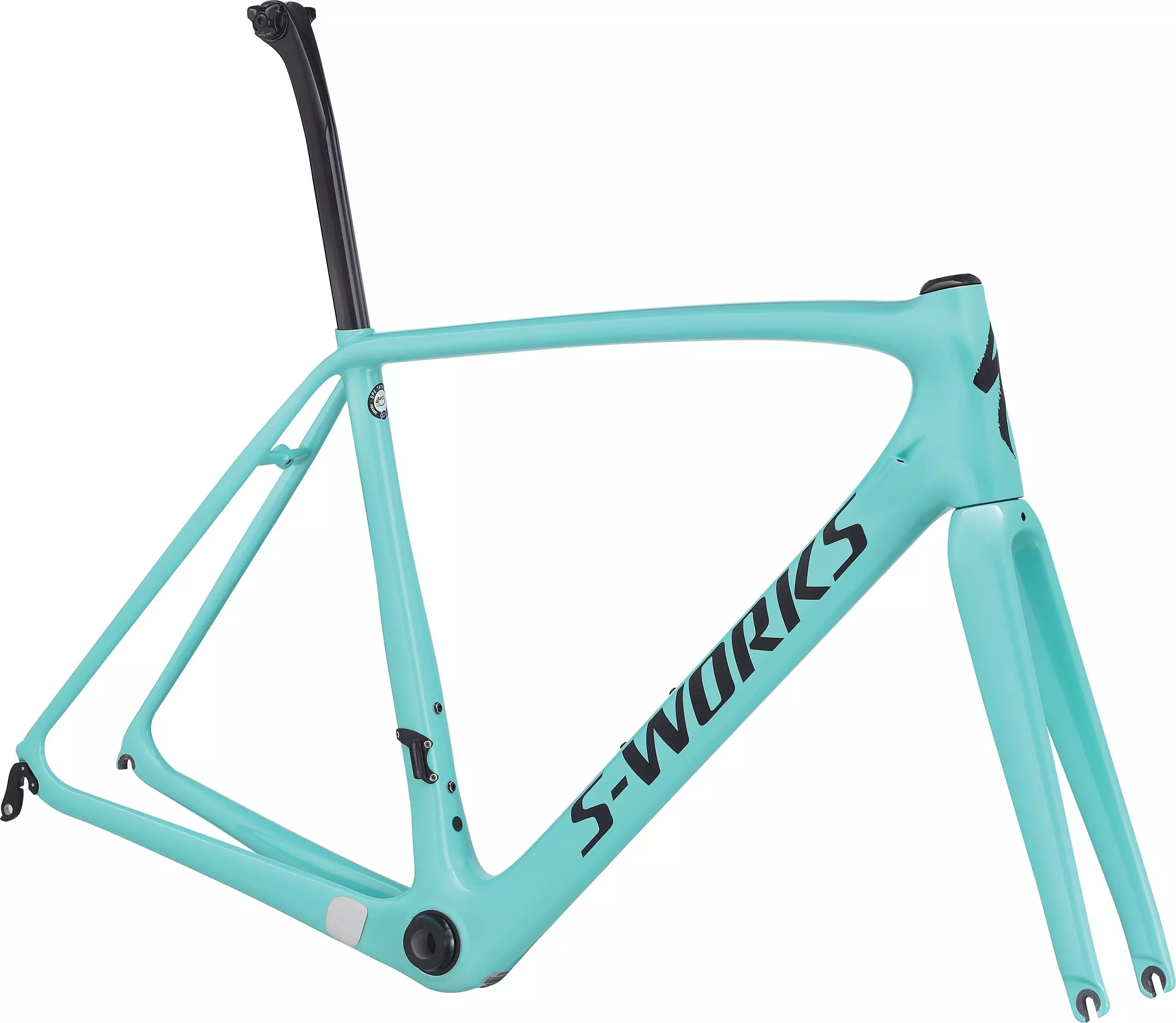

2017 S-Works Tarmac Frameset

0 Reviews

When only pure, absolute performance is demanded, the best riders in the world choose…

Colour:

LIGHT TURQUOISE/BLACK

What's my size?

Enter your height and we'll calculate your size.

Height:

For a more accurate result, include your shin length.

Select a Size

Product Details

Add Icon

When only pure, absolute performance is demanded, the best riders in the world choose the S-Works Tarmac. That's because it features an impeccable S-Works FACT 11r carbon fibre construction that's unbelievably light, stiff, and reactive. In other words, it's purpose-built to be a true all-'round race bike, which is no accident. In fact, it comes as a result of our Rider-First Engineered™ design that applies specificity to every tube size and carbon layup for every frame size. This creates the optimal balance of rigidity, weight, and responsiveness, so every frame, regardless of size, performs just as we intended. And if you need proof, just look at the Tarmac's trophy case, with wins in every Grand Tour and the last two World Championships. And with the S-Works Tarmac Frameset, you can start building up your dream bike exactly how you've always wanted it.

  • Apresentando o design Rider-First Engineered™ (projetado para cada ciclista) para descidas retalhadoras com a performance completa em qualquer tamanho de quadro. O Quadro S-Works é composto do nosso carbono FACT 11r da mais alta qualidade e é a escolha da vez de ciclistas como Alberto Contador, Vincenzo Nibali e Michal Kwiatkowski.

  • Garfo S-Works totalmente de carbono FACT com construção afunilada proporciona incrível rigidez dianteira e resposta de pilotagem instantânea para acelerações e descidas de alta velocidade.

  • Com sua fabricação em módulos, o canote S-Works feito em cabono FACT full oferece uma transferência de força impecável, ao mesmo tempo que proporciona uma ampla conformidade para longos dias no selim.

Technical Specifications

Add Icon

FRAMESET

FRAME

S-Works FACT 11r carbon, OSBB, full internal cable routing, internally integrated seat clamp, 130mm rear spacing

SUSPENSION

FORK

S-Works FACT carbon, full monocoque, size-specific taper

COCKPIT

SEATPOST

S-Works FACT carbon, 20mm offset, 27.2mm

SEAT BINDER

Integrated wedge for Tarmac

DRIVETRAIN

BOTTOM BRACKET

OSBB, CeramicSpeed bearings

* Weights based on production painted frames as pictured. Actual weights will vary based on colourway, frame size, and component variation. Specifications are subject to change without notice.

Geometry

Add Icon
495254565861
Seatpost Length350mm350mm350mm400mm400mm400mm
Seat-Tube Angle75.5°74°73.5°73.25°73°72.5°
Head-Tube Length100mm120mm140mm160mm190mm210mm
Head-Tube Angle72.25°73°73°73.5°73.5°74°
Chain-Stay Length405mm405mm405mm405mm407mm410mm
Front-Centre576mm576mm583mm591mm605mm612mm
B-B Drop71.5mm71.5mm69mm69mm67.5mm67.5mm
B-B Height270mm270mm272.5mm272.5mm274mm274mm
Bike Stand-Over Height730mm755mm775mm795mm826mm850mm
Fork Length (full)368mm368mm368mm368mm368mm368mm
Top-Tube Length (horizontal)518mm537mm548mm565mm582mm600mm
Seat-Tube Length431mm462mm481mm501mm522mm553mm
Stack504mm526mm543mm564mm591mm612mm
Reach386mm386mm387mm395mm402mm408mm
Trail62mm57mm57mm56mm56mm53mm
Fork Rake/Offset45mm45mm45mm43mm43mm43mm
Wheelbase970mm970mm978mm986mm1003mm1013mm
Geometry
