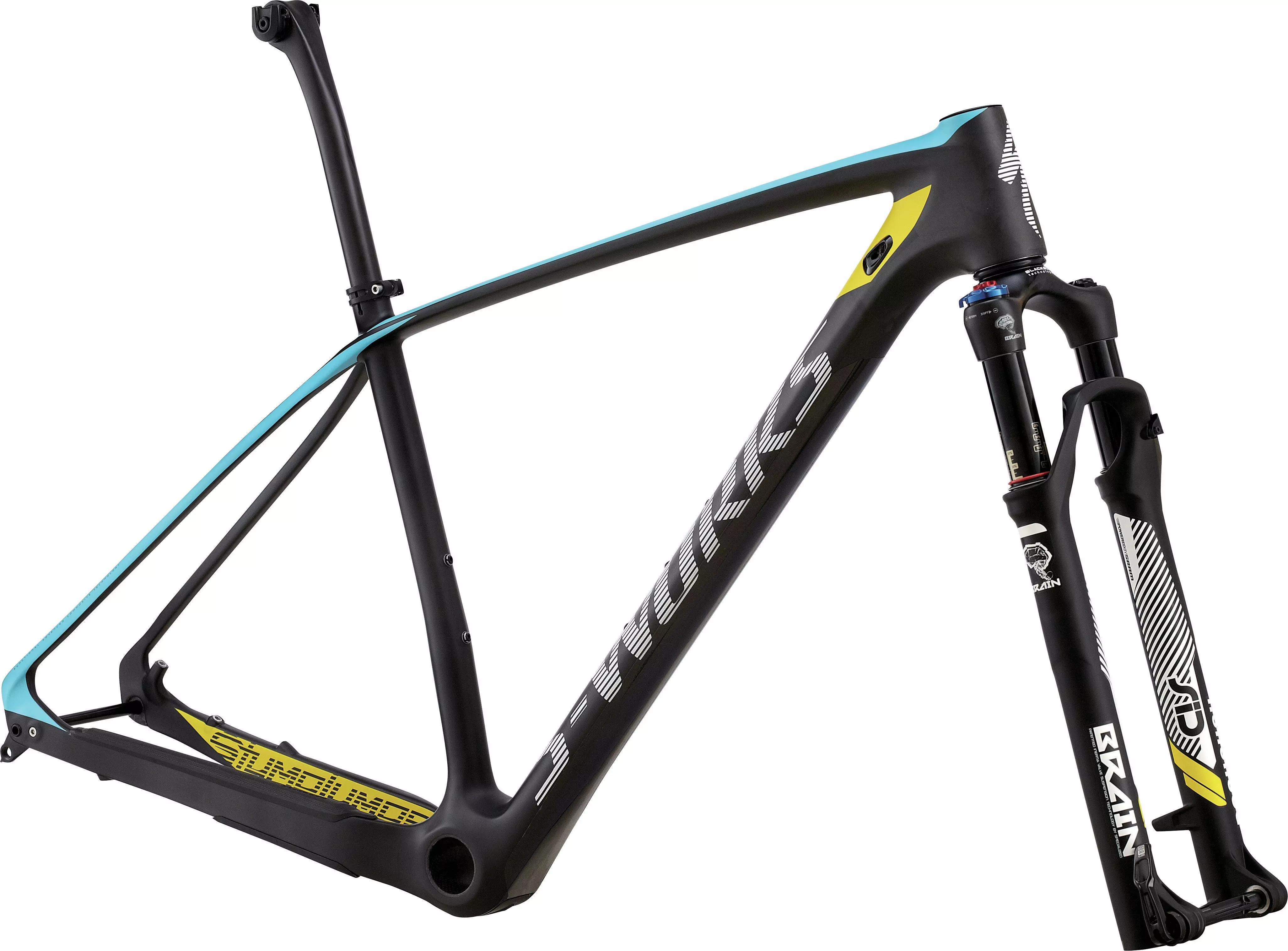

2015 S-Works Stumpjumper 29 Frameset
0 Reviews
This FACT carbon S-Works Stumpjumper 29 hardtail frame is ready for a race-winning…
Colour:
Satin Carbon/White/Light Blue/Bright Yellow
What's my size?
Select a Size
Unavailable
This item is not available for Find Nearby
Product Details
This FACT carbon S-Works Stumpjumper 29 hardtail frame is ready for a race-winning custom build.
FACT 11m carbon frame w/ 29er geometry, SWAT compatibility, and PF30 BB for elite XC performance
RockShox SID World Cup fork w/ Brain damping and 90mm travel for race-ready XC performance
RockShox SID World Cup fork w/ Brain damping and 90mm travel for race-ready XC performance
Technical Specifications
FRAMESET
FRAME
FACT 11m carbon, 29"" geometry, FACT IS construction, tapered headtube, carbon PF30 BB, full internal shift/brake routing, 142mm dropouts, PM 160 rear brake, replaceable alloy rear derailleur hanger
HEADSET
1-1/8"" and 1-1/2"" threadless, Campy style upper with 1-1/2"" lower, cartridge bearings
SEAT BINDER
Specialized 7050 alloy, single Ti bolt, 31.8mm
SUSPENSION
FORK
RockShox SID World Cup 29 Brain, Solo Air spring, tapered carbon steerer, top-mount BrainFade, rebound adjust, 15mm thru-axle, S: 80mm travel, Others: 90mm
COCKPIT
SEATPOST
S-Works FACT carbon, 20mm offset, 27.2mm
* Weights based on production painted frames as pictured. Actual weights will vary based on colourway, frame size, and component variation. Specifications are subject to change without notice.
Geometry
| S | M | L | XL | |
|---|---|---|---|---|
| Ground-Top | 902mm | 920mm | 935mm | 949mm |
| Top Tube Length (Horizontal) | 565mm | 593mm | 620mm | 643mm |
| Seat Tube Angle (Effective) | 73.5° | 73.5° | 73.5° | 73.5° |
| Head Tube Height | 90mm | 100mm | 115mm | 130mm |
| Top Tube Length (Actual) | 551mm | 574mm | 598mm | 622mm |
| Seat Tube Length - Centre to Top | 394mm | 434mm | 470mm | 505mm |
| Bottom Bracket Drop | 61mm | 61mm | 61mm | 61mm |
| Bottom Bracket Height | 310mm | 310mm | 310mm | 310mm |
| Wheel Base | 1047mm | 1078mm | 1105mm | 1131mm |
| Standover Height | 760mm | 799mm | 826mm | 849mm |
| B-B Height | 0mm | 0mm | 0mm | 0mm |
| Stack | 592mm | 610mm | 625mm | 639mm |
| Reach | 390mm | 414mm | 437mm | 458mm |
| Head Tube Angle | 71° | 71° | 71° | 71° |
| Chainstay Length | 430mm | 430mm | 430mm | 430mm |
| Crank Length | 170mm | 175mm | 175mm | 175mm |
| Handlebar Width | 700mm | 700mm | 700mm | 700mm |
| Stem Length | 75mm | 90mm | 105mm | 105mm |
