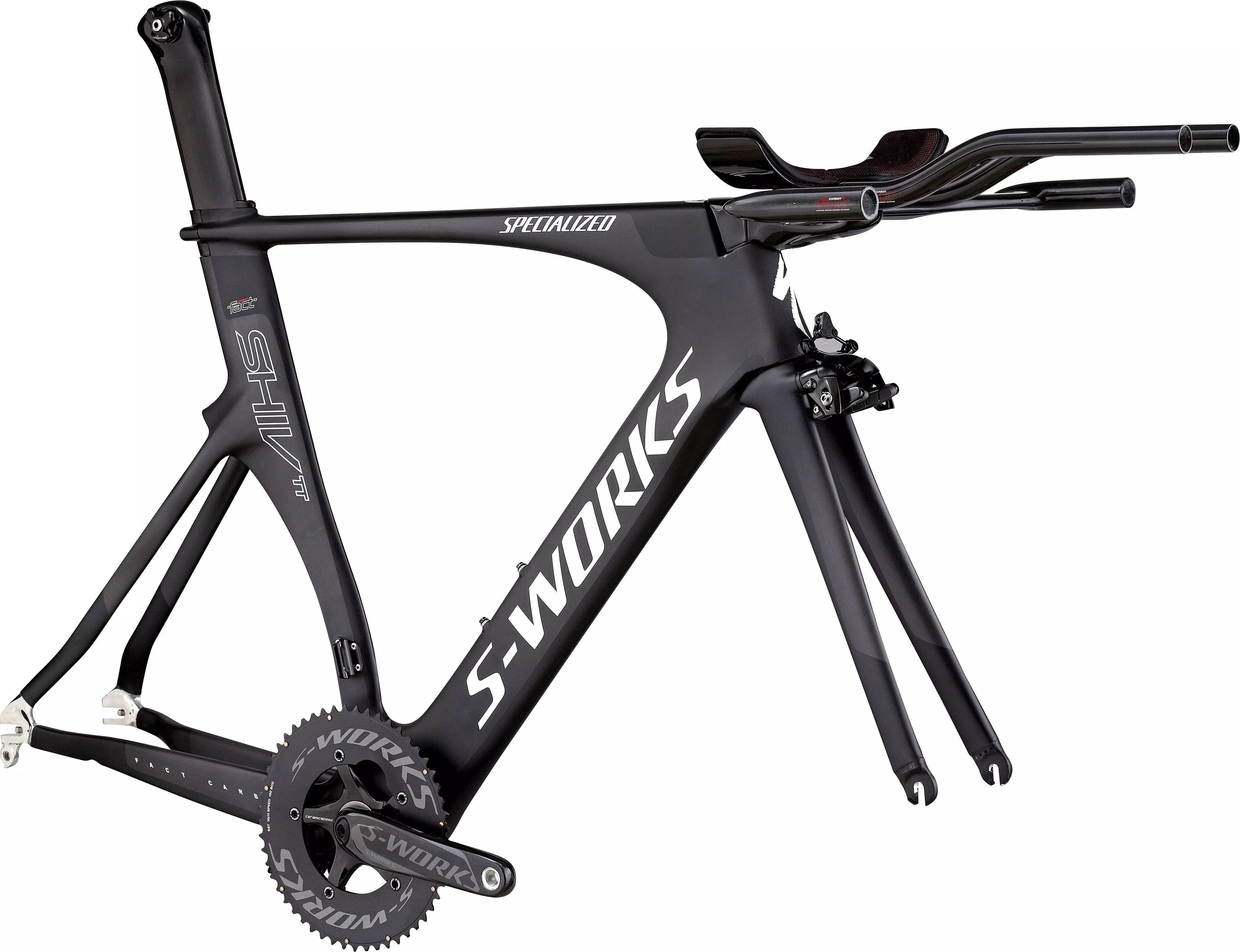

2015 S-Works Shiv TT Module

0 Reviews

Stiff, light, and incredibly aerodynamic, the Shiv TT has won World Championships…

Colour:

Satin/Gloss Carbon/White

What's my size?

Imperial

Metric

Enter your height and we'll calculate your size.

Height:

For a more accurate result, include your shin length.

Select a Size

Choose the colour and size you're looking for to search nearby store inventory.

Unavailable

This item is not available for Find Nearby

Product Details

Stiff, light, and incredibly aerodynamic, the Shiv TT has won World Championships in both Time Trial and Ironman Triathlon: it's the perfect choice for any race against that clock, and is completely UCI- and triathlon-legal

UCI-legal, S-Works FACT 11r carbon frameset w/ fully-integrated cockpit built for speed
UCI-legal, S-Works FACT 11r carbon frameset w/ fully-integrated cockpit built for speed
Integrated Tektro aerodynamic brakes minimise drag for aero excellence
UCI-legal, S-Works FACT 11r carbon frameset w/ fully-integrated cockpit built for speed
UCI-legal, S-Works FACT 11r carbon frameset w/ fully-integrated cockpit built for speed

Technical Specifications

FRAMESET

FRAME

S-Works FACT 11r carbon, OSBB

FORK

S-Works FACT carbon, full monocoque, UCI-legal

HEADSET

1"" upper, 1-1/8"" lower, stainless steel cartridge bearings

DRIVETRAIN

CRANKSET

S-Works FACT carbon, w/ TT chainrings

CHAINRINGS

53/39 TT

COCKPIT

HANDLEBARS

Specialized Carbon Aerobar, UCI

SEATPOST

Specialized Shiv Team, straight/forward offset, 400mm

BRAKES

FRONT BRAKE

Specialized Aero, centre pull

REAR BRAKE

Specialized Aero, side pull

* Weights based on production painted frames as pictured. Actual weights will vary based on colourway, frame size, and component variation. Specifications are subject to change without notice.

Geometry

	XS	S	M	L	XL
Seat-Tube Angle	74.5°	74.5°	75°	75.75°	76.25°
Head-Tube Length	90mm	100mm	100mm	100mm	100mm
Seat-Post Length	400mm	400mm	400mm	400mm	400mm
Head-Tube Angle	70.75°	72°	72°	72°	72°
Chain-Stay Length	390mm	390mm	390mm	390mm	390mm
Top-Tube Length, Horizontal	512mm	527mm	536mm	542mm	555mm
Front-Centre	575mm	577mm	592mm	607mm	629mm
Handle-Bar Width	400mm	400mm	400mm	400mm	400mm
Stand-Over Height	745mm	806mm	806mm	806mm	806mm
Seat-Tube Length, B-B Centre to Top	504mm	565mm	563mm	561mm	560mm
Fork Rake	47mm	43mm	43mm	43mm	43mm
B-B Drop	72mm	72mm	72mm	72mm	72mm
Stack	481mm	495mm	495mm	495mm	495mm
Reach	375mm	390mm	405mm	420mm	440mm
Trail	68mm	65mm	65mm	65mm	65mm
Wheelbase	954mm	946mm	961mm	976mm	996mm
Crank Length	170mm	170mm	172.5mm	172.5mm	175mm
Stem Length	75mm	75mm	75mm	75mm	75mm
