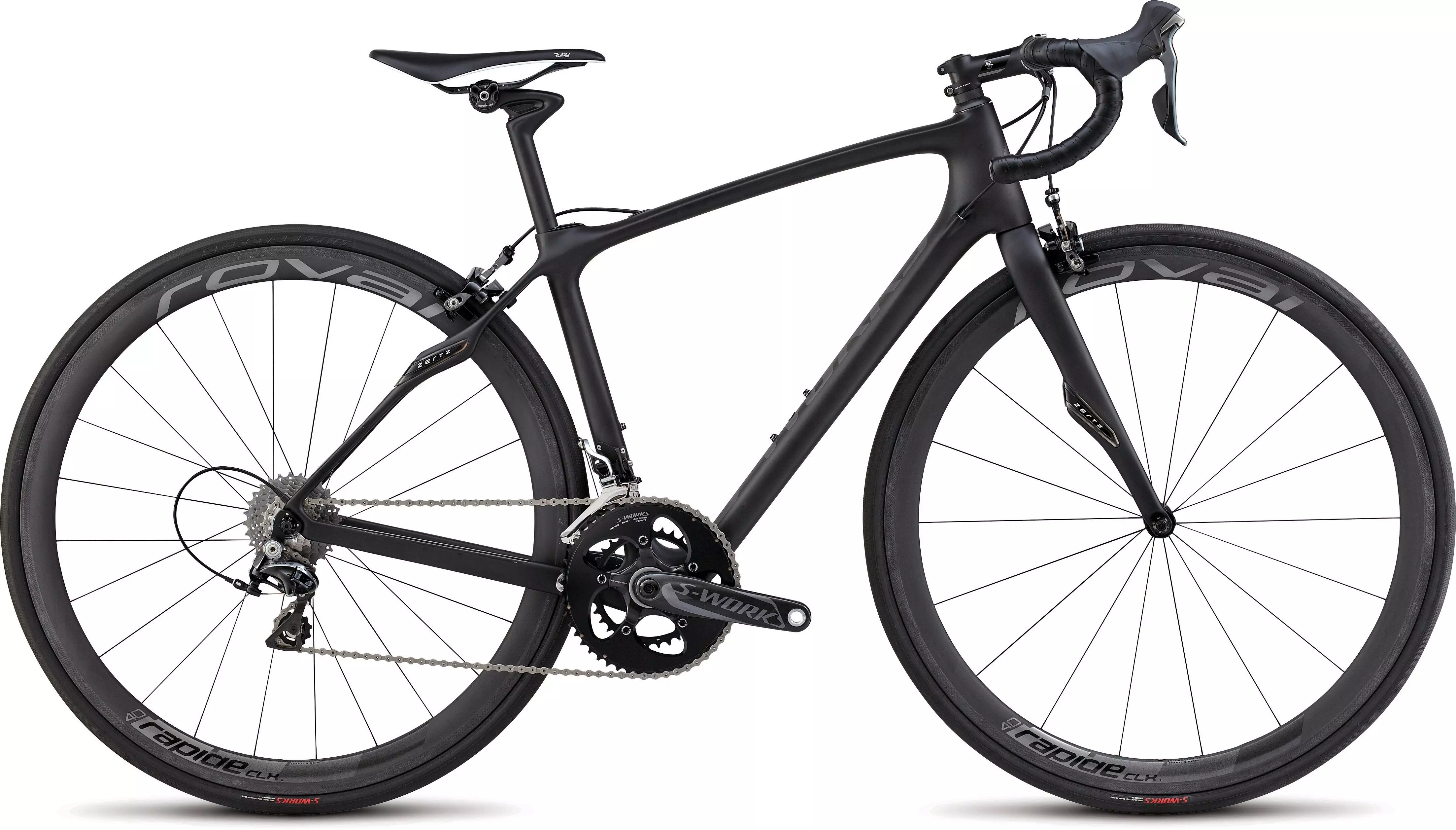

2015 S-Works Ruby

0 Reviews

The S-Works Ruby is a quick and efficient, FACT 11r carbon bike, with OSBB and Zertz…

Colour:

Satin Carbon/Charcoal

What's my size?

Imperial

Metric

Enter your height and we'll calculate your size.

Height:

For a more accurate result, include your shin length.

Select a Size

Choose the colour and size you're looking for to search nearby store inventory.

Unavailable

This item is not available for Find Nearby

Product Details

The S-Works Ruby is a quick and efficient, FACT 11r carbon bike, with OSBB and Zertz vibration dampers in the frame and fork, designed to cover long distances with maximum control, efficiency, and comfort. Top-of-the-line Dura-Ace compact drivetrain and Roval Rapide CLX 40 wheels make the Ruby ready for a gran fondo or local race.

Shimano Dura-Ace, 11-speed rear derailleur delivers light-action and precise shifting
S-Works FACT 11r carbon frame w/ Women's Endurance Geometry, Zertz, and OSBB
Body Geometry Women's Ruby Pro saddle for optimal power transfer and all-day comfort
Body Geometry Women's Ruby Pro saddle for optimal power transfer and all-day comfort
S-Works FACT 11r carbon frame w/ Women's Endurance Geometry, Zertz, and OSBB
Body Geometry Women's Ruby Pro saddle for optimal power transfer and all-day comfort
S-Works FACT 11r carbon frame w/ Women's Endurance Geometry, Zertz, and OSBB

Technical Specifications

FRAMESET

FRAME

S-Works FACT 11r carbon, FACT construction, Women's Endurance Geometry, women's layup, Zertz, carbon OSBB

FORK

S-Works FACT carbon w/ Zertz, full monocoque

HEADSET

1-1/8"" upper, 1-3/8” lower, hybrid cartridge lightweight bearings, 8mm carbon cone spacer, w/ 20mm of carbon spacers

SEAT BINDER

Specialized Ruby, alloy

WHEELS

FRONT WHEEL

Roval Rapide CLX 40, w/ CeramicSpeed ceramic bearings

REAR WHEEL

Roval Rapide CLX 40, w/ CeramicSpeed ceramic bearings

FRONT TIRE

S-Works Turbo, 220TPI, folding bead, BlackBelt protection, 700x26c

REAR TIRE

S-Works Turbo, 220TPI, folding bead, BlackBelt protection, 700x26c

INNER TUBES

Ultralight, presta valve

DRIVETRAIN

SHIFT LEVERS

Shimano Dura-Ace, 11-speed

FRONT DERAILLEUR

Shimano Dura-Ace, braze-on

REAR DERAILLEUR

Shimano Dura-Ace, 11-speed

CASSETTE

Shimano Dura-Ace, 11-speed, 11-28t

CRANKSET

S-Works FACT carbon, OSBB

CHAIN

Shimano Dura-Ace, 11-speed

COCKPIT

HANDLEBARS

Specialized Women's SL Carbon, shallow drop, 125mm drop, 75mm reach

STEM

S-Works SL, alloy, 4-bolt

TAPE

Specialized Classic, w/ gel

SADDLE

Body Geometry Women's Ruby Pro, carbon rails, 155mm

SEATPOST

Specialized CG-R, FACT carbon, single bolt, reflective, 27.2mm

BRAKES

FRONT BRAKE

Shimano Dura-Ace

REAR BRAKE

Shimano Dura-Ace

ACCESSORIES

PEDALS

Nylon flat test ride, loose-ball, w/ reflectors

* Weights based on production painted frames as pictured. Actual weights will vary based on colourway, frame size, and component variation. Specifications are subject to change without notice.

Geometry

	44	48	51	54	57
Seat-Tube Angle	74.5°	74.5°	74°	74°	73.5°
Head-Tube Length	120mm	130mm	145mm	165mm	190mm
Seat-Post Length	350mm	350mm	350mm	350mm	350mm
Head-Tube Angle	70.25°	71.25°	71.5°	72°	72°
Chain-Stay Length	412mm	415mm	415mm	415mm	417mm
Top-Tube Length, Horizontal	509mm	522mm	529mm	539mm	566mm
Front-Centre	577mm	584mm	587mm	591mm	614mm
Handle-Bar Width	360mm	380mm	400mm	400mm	420mm
Stand-Over Height	702mm	721mm	740mm	768mm	792mm
Seat-Tube Length, B-B Centre to Top	363mm	391.5mm	421.5mm	456.5mm	486.5mm
Fork Rake	51mm	51mm	51mm	49mm	49mm
B-B Drop	73mm	73mm	73mm	73mm	71.5mm
Stack	518mm	531mm	546mm	568mm	590mm
Reach	358mm	370mm	370mm	374mm	390mm
Trail	68mm	62mm	60mm	59mm	59mm
Wheelbase	977mm	988mm	991mm	995mm	1021mm
Crank Length	167.5mm	167.5mm	170mm	170mm	172.5mm
Stem Length	75mm	75mm	90mm	100mm	100mm
