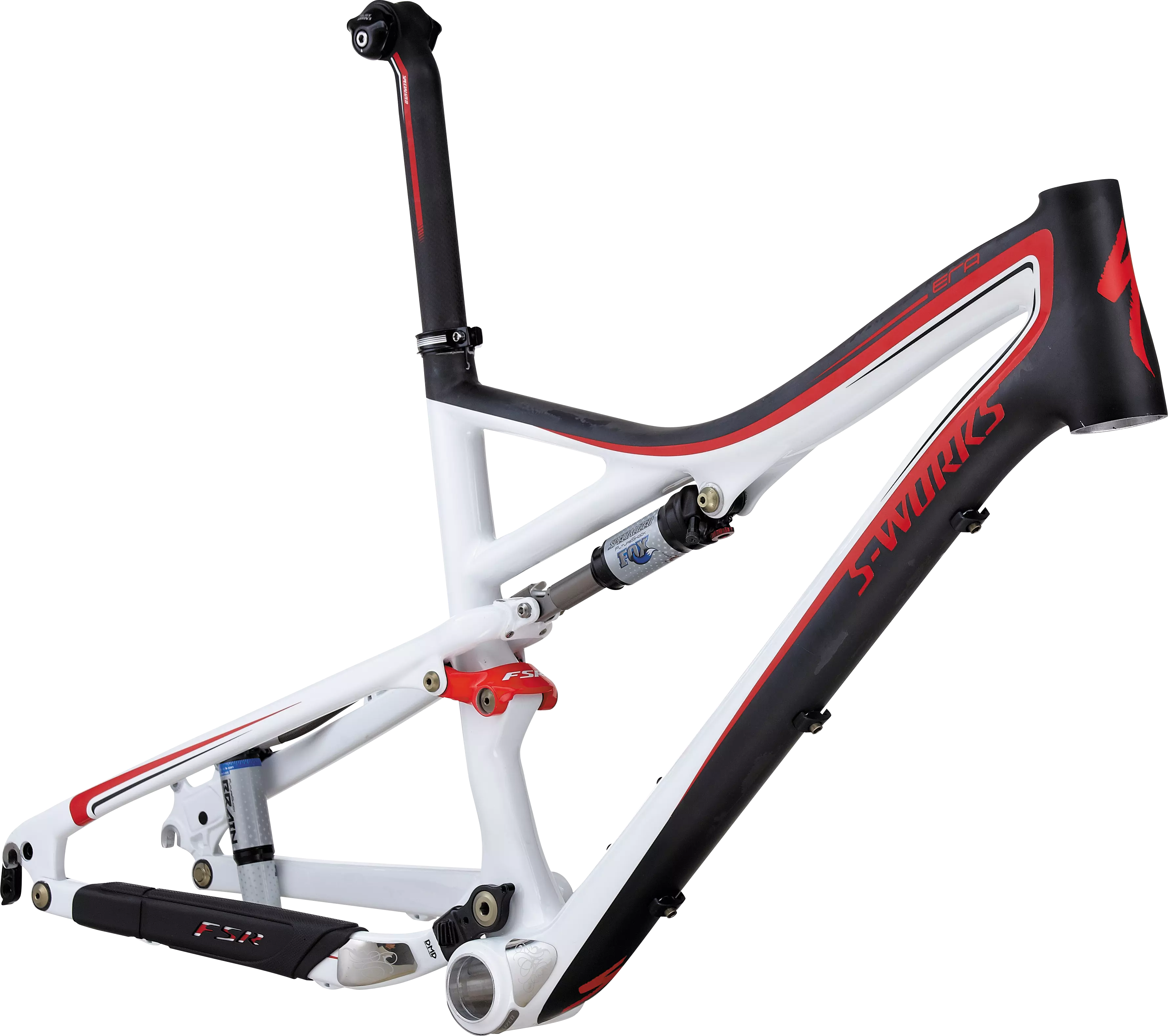

2012 S-Works Era Carbon Frame

0 Reviews

A premium, carbon fiber, 100mm-travel, women's full-suspension cross-country frame…

Colour:

Gloss/Satin Carbon/White/Flo Red

What's my size?

Enter your height and we'll calculate your size.

Height:

For a more accurate result, include your shin length.

Select a Size

Product Details

Add Icon

A premium, carbon fiber, 100mm-travel, women's full-suspension cross-country frame ready for a custom build.

  • FACT 10m full-carbon frame features women's performance geometry and layup, 100mm of travel, sealed cartridge bearing pivots, a tapered head tube, and, OSBB making this a super lightweight and efficient XC bike

  • Specialized and Fox put their heads together to develop the FlowControl Mini Brain shock with Brain Fade inertia valve, air spring, and adjustable rebound for racing and trail riding performance

  • S-Works carbon single-bolt 30.9mm seatpost takes this already featherweight package to its absolute minimum without sacrificing stiffness or strength

  • Single-bolt, 34.9mm alloy clamp seat binder with QR

Technical Specifications

Add Icon

FRAMESET

FRAME

FACT 10m carbon, women's FACT IS construction, women's performance geometry, tapered HT, OSBB, FACT carbon SS w/ carbon drive DO and CS, sealed cartridge bearing pivots, replaceable derailleur hanger, 100mm travel

HEADSET

1-1/8 and 1-1/2"" Threadless, Campy style upper with 1-1/2"" lower, cartridge bearings

SEAT BINDER

34.9mm clamp ID, 7050 hard anodized alloy collar, single bolt

SUSPENSION

REAR SHOCK

Fox/Specialized remote Mini-Brain, inertia valve, w/ Brain Fade adjust, 187x47mm

COCKPIT

SEATPOST

S-Works Carbon, single-bolt head, 30.9mm, 350mm

* Weights based on production painted frames as pictured. Actual weights will vary based on colourway, frame size, and component variation. Specifications are subject to change without notice.

Geometry

Add Icon
SML
Ground-Top879mm897mm906mm
Bottom Bracket Height - Low Setting331mm331mm331mm
Top Tube Length (Horizontal)540mm565mm595mm
Head Tube Height126mm143mm154mm
Head Tube Angle - Low Setting70°70°70°
Seat Tube Angle (Actual) - Low Setting74.2°74.2°74.2°
Top Tube Length (Actual)522mm545mm570mm
Seat Tube Length - Centre to Top394mm432mm470mm
Wheel Base1049mm1076mm1107mm
Standover Height704mm721mm729mm
Stack548mm566mm575mm
Reach386mm405mm433mm
Chainstay Length425mm425mm425mm
Crank Length170mm170mm175mm
Handlebar Width640mm640mm640mm
Stem Length75mm75mm90mm
Seatpost Length350mm350mm350mm
