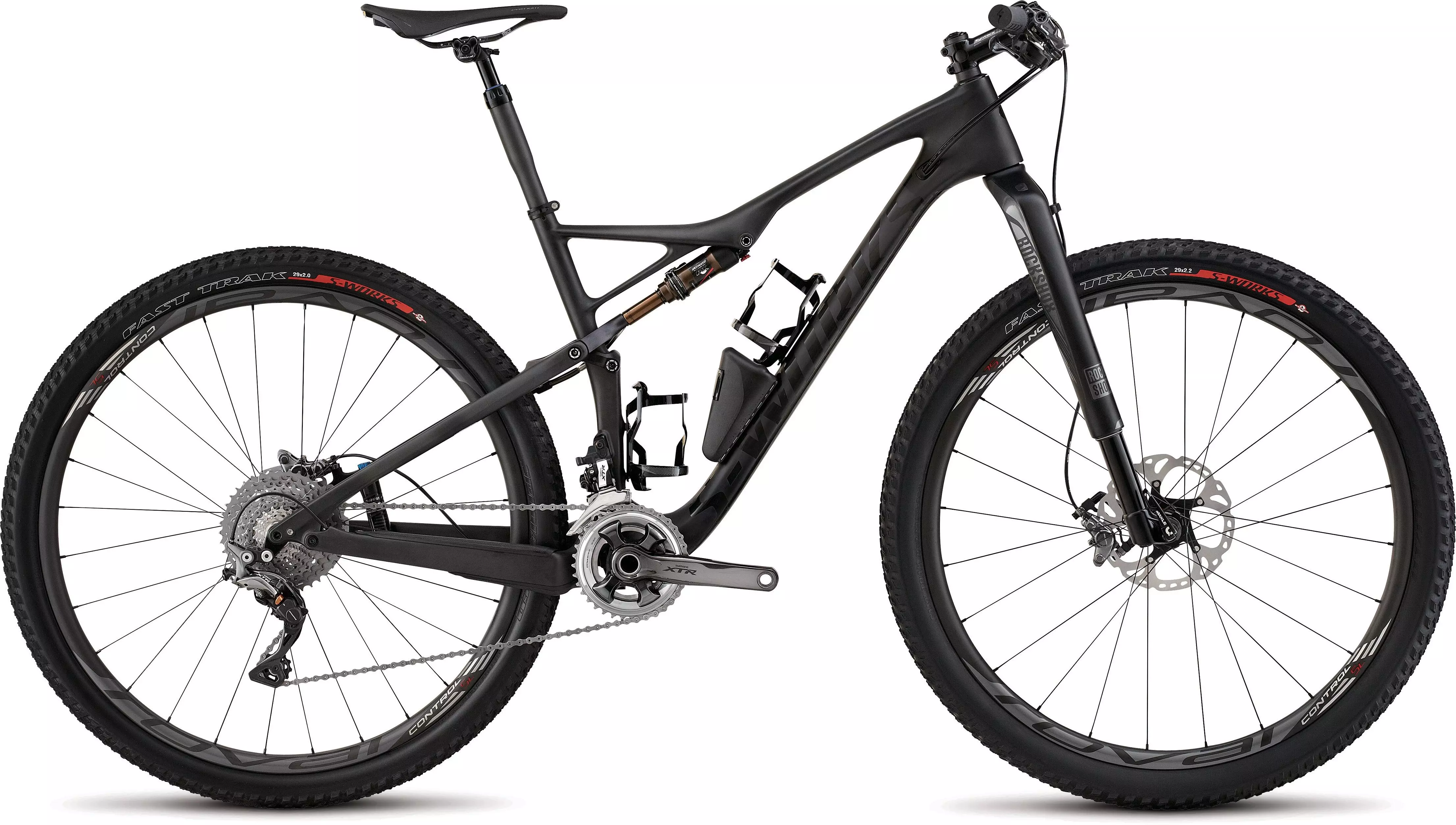

2015 S-Works Epic 29
0 Reviews
A multiple XC World Championship winner, the Epic was the first full-suspension XC…
Colour:
Satin/Gloss Carbon
What's my size?
Select a Size
Product Details
A multiple XC World Championship winner, the Epic was the first full-suspension XC bike to capture the coveted Rainbow Jersey and an Olympic Gold medal. One of two S-Works versions, this model is fully equipped with Shimano XTR components, and features the new two-position, height adjustable Command Post XCP seatpost with 35mm of travel.
Specialized/FOX Brain shock w/ AUTOSAG knows the difference between smooth and rough terrain
Command Post XCP dropper post with carbon lower is engineered for XC racing
Command Post XCP dropper post with carbon lower is engineered for XC racing
Shimano XTR 11-speed shifters for premium drivetrain performance
Shimano XTR, 11-speed crankset for optimal power transfer from rider to bike
Shimano XTR brake levers are lightweight and responsive
Roval Control SL 29 carbon wheelset w/ Zero Bead Hook and 142+ spacing for greater control
Shimano XTR 11-speed shifters for premium drivetrain performance
Shimano XTR 11-speed rear derailleur for lightweight, pinpoint shifts
Shimano XTR 11-speed shifters for premium drivetrain performance
Technical Specifications
FRAMESET
FRAME
S-Works FACT 11m carbon, 29"" geometry, FACT IS construction, tapered headtube, carbon PF30 BB, full internal cable routing, 142mm dropouts, sealed cartridge bearing pivots, replaceable derailleur hanger, SWAT EMT tool cradle, 100mm travel
SWAT
SWAT MTB XC Kit w/ bottle cages, EMT Tool, and Top Cap Chain Tool
SEAT BINDER
Specialized 7050 alloy, single Ti bolt, 31.8mm
SUSPENSION
REAR SHOCK
FOX/Specialized remote Mini-Brain w/ AUTOSAG, Kashima coating, inertia valve, BrainFade adjust, 205x53mm, 100mm travel
FORK
Custom RockShox RS-1 Brain, Solo Air spring, tapered carbon steerer, top-mount BrainFade, rebound adjust, 15mm thru-axle, 100mm travel
WHEELS
RIMS
Roval Control SL 29, carbon disc, 22mm internal width, 24h/28h
FRONT HUB
SRAM Predictive Steering/Torque Tube, 24h
REAR HUB
Roval Control SL 29 142+, DT Swiss Star Ratchet, 12mm thru-axle, 28h
SPOKES
DT Swiss Revolution
FRONT TIRE
S-Works Fast Trak Control, 120TPI, 2Bliss Ready, folding bead, 29x2.2""
REAR TIRE
S-Works Fast Trak Control, 120TPI, 2Bliss Ready, folding bead, 29x2.0""
DRIVETRAIN
FRONT DERAILLEUR
Shimano XTR, direct mount, down swing, dual-pull
REAR DERAILLEUR
Shimano XTR Shadow Plus, 11-speed, GS mid cage
SHIFT LEVERS
Shimano XTR, 11-speed
CASSETTE
Shimano XTR, 11-speed, 11-40
CHAIN
Shimano XTR, 11-speed
CRANKSET
Shimano XTR, Hollowtech, 11-speed, 36/26
BOTTOM BRACKET
Praxis, PF30, OS press-in bearings, sealed cartridge
COCKPIT
SEATPOST
Command Post XCP, carbon lower tube, 2-position height adjustable, internal routing, 35mm travel, 15mm offset, 27.2mm
STEM
Syntace F109, 6-degree rise, 31.8mm clamp
HANDLEBARS
Specialized flat, carbon, 8-degree backsweep, 31.8mm
GRIPS
Specialized Sip Grip, half-waffle, S/M: regular thickness, L/XL: XL thickness
SADDLE
Body Geometry Phenom Pro, carbon rails, 143mm
BRAKES
FRONT BRAKE
Shimano XTR, hydraulic disc, Ice Tech Ti-metal pad, 180mm Ice Tech rotor
REAR BRAKE
Shimano XTR, hydraulic disc, Ice Tech Ti-metal pad, 160mm Ice Tech rotor
BRAKE LEVERS
Shimano XTR, carbon lever, I-spec compatible
ACCESSORIES
PEDALS
Resin Test Ride Pedals with toe clips, CEN std.
* Weights based on production painted frames as pictured. Actual weights will vary based on colourway, frame size, and component variation. Specifications are subject to change without notice.
Geometry
| S | M | L | XL | |
|---|---|---|---|---|
| Seat Tube Length, Centre to Top | 400mm | 434mm | 470mm | 520mm |
| Top Tube Length, Actual | 529mm | 557mm | 583mm | 611mm |
| Bottom Bracket Drop | 40mm | 40mm | 40mm | 40mm |
| Bottom Bracket Height | 332mm | 332mm | 332mm | 332mm |
| Seat Tube Angle, Actual | 68.9° | 69.25° | 69.6° | 70° |
| Seat Tube Angle, Effective | 73.75° | 73.75° | 73.75° | 73.75° |
| Wheel Base | 1082mm | 1112mm | 1140mm | 1168mm |
| Standover Height | 770mm | 774mm | 780mm | 793mm |
| Stack | 587mm | 601mm | 615mm | 634mm |
| Reach | 393mm | 418mm | 441mm | 462mm |
| Head Tube Length | 90mm | 105mm | 120mm | 140mm |
| Head Tube Angle | 70.5° | 70.5° | 70.5° | 70.5° |
| Chainstay Length | 448mm | 448mm | 448mm | 448mm |
| Top Tube Length, Horizontal | 564mm | 593mm | 620mm | 647mm |
| Crank Length | 170mm | 175mm | 175mm | 175mm |
| Handlebar Width | 700mm | 700mm | 700mm | 700mm |
| Stem Length | 75mm | 90mm | 100mm | 110mm |
| Seatpost Length | 350mm | 400mm | 400mm | 400mm |
