The S-Works CruX Disc frameset is a 'cross beast, with race-optimised geometry, OSBB,…
Colour:
Gloss Monster/Charcoal/White

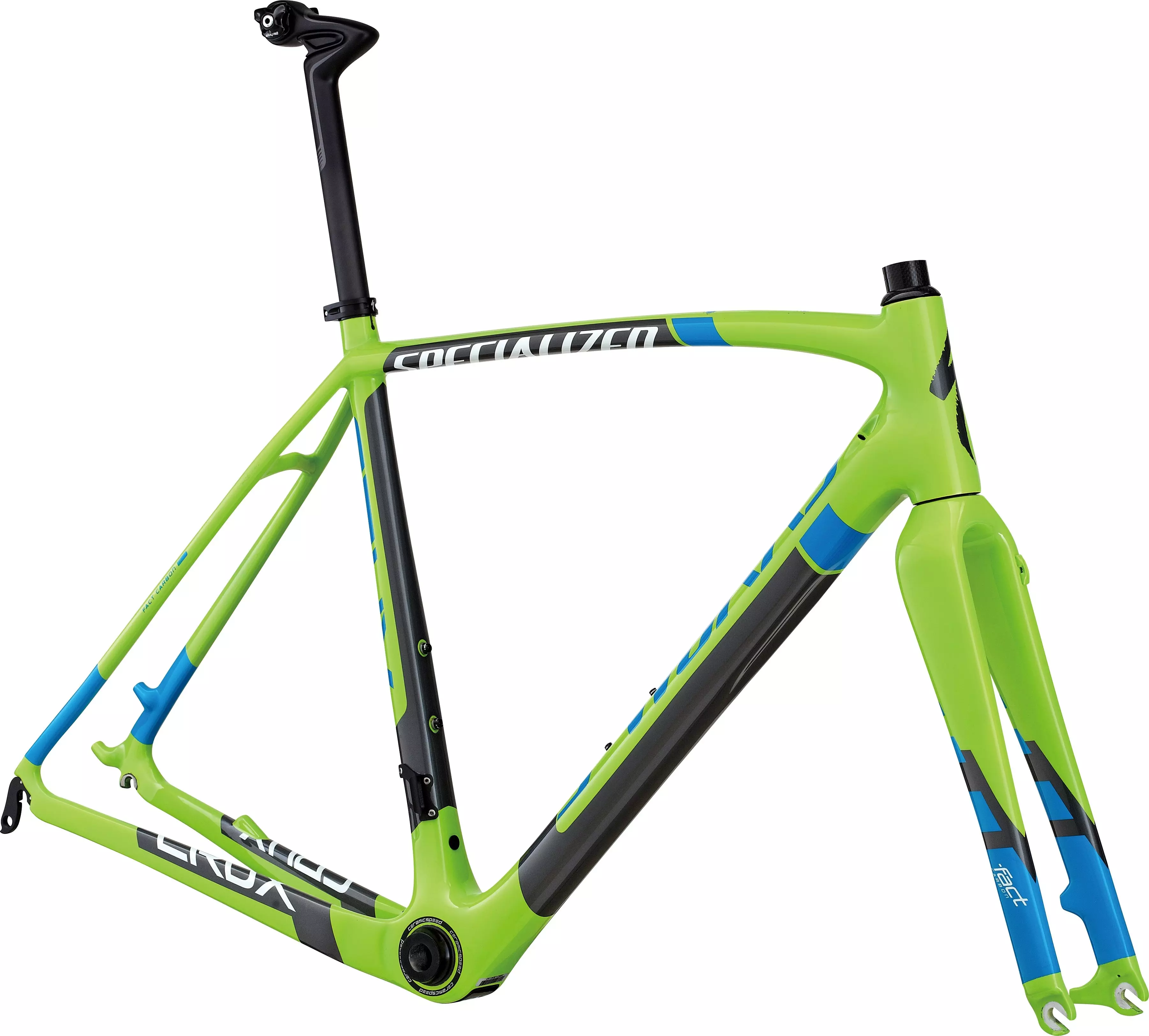

The S-Works CruX Disc frameset is a 'cross beast, with race-optimised geometry, OSBB, tapered headtube, internal cable routing, and an outstanding stiffness-to-weight ratio. Build it up with the spec of your choice. CeramicSpeed bottom bracket bearings, hybrid bearings and alloy carrier create the lightest and most durable headsets available and the Specialized CG-R seatpost rounds out the finest frameset available to the most demanding 'cross racers
S-Works FACT 11r carbon disc frame with 'cross-specific geometry and race features, such as tapered headtube, and OSBB for greater stiffness, acceleration, efficiency and handling on any race course
1-1/8" upper and 1-3/8" lower integrated hybrid cartridge bearings and alloy carrier for ultra lightweight and durability
Revolutionary FACT carbon CG-R seatpost with Zertz vibration damping delivers unsurpassed comfort, control, and efficiency without adding weight
1-1/8" upper and 1-3/8" lower integrated hybrid cartridge bearings and alloy carrier for ultra lightweight and durability
Revolutionary FACT carbon CG-R seatpost with Zertz vibration damping delivers unsurpassed comfort, control, and efficiency without adding weight
FRAME
S-Works FACT 11r carbon, disc-specific, 1-3/8"" lower bearing, OSBB
FORK
Specialized FACT carbon, disc-specific monocoque fork, carbon steerer and crown for 1-3/8"" lower bearing
HEADSET
1-1/8"" upper and 1-3/8"" lower hybrid cartridge lightweight bearings
SEAT BINDER
Forged alloy, Ti bolt, 32.6mm
BOTTOM BRACKET
OS integrated, CeramicSpeed ceramic sealed bearings
SEATPOST
S-Works FACT carbon CG-R, single bolt, 27.2mm
* Weights based on production painted frames as pictured. Actual weights will vary based on colourway, frame size, and component variation. Specifications are subject to change without notice.
460.0 | 490.0 | 520.0 | 540.0 | 560.0 | 580.0 | 610.0 | |
---|---|---|---|---|---|---|---|
Seat-Tube Angle | 75.5° | 75.5° | 74° | 73.5° | 73.25° | 73° | 72.5° |
Head-Tube Length | 100mm | 115mm | 125mm | 140mm | 155mm | 170mm | 190mm |
Seat-Post Length | 300mm | 300mm | 300mm | 350mm | 350mm | 350mm | 350mm |
Head-Tube Angle | 69.5° | 70.5° | 71.5° | 71.5° | 72° | 72.5° | 73° |
Chain-Stay Length | 425mm | 425mm | 425mm | 425mm | 425mm | 425mm | 425mm |
Top-Tube Length, Horizontal | 501mm | 513mm | 537mm | 549mm | 560mm | 570mm | 587mm |
Front-Centre | 593mm | 593mm | 595mm | 601mm | 606mm | 609mm | 615mm |
Handle-Bar Width | 400mm | 400mm | 420mm | 420mm | 420mm | 440mm | 440mm |
Stand-Over Height | 725mm | 754mm | 773mm | 790mm | 807mm | 825mm | 849mm |
Seat-Tube Length, B-B Centre to Top | 470mm | 490mm | 510mm | 530mm | 550mm | 570mm | 600mm |
Fork Rake | 51mm | 51mm | 51mm | 49mm | 49mm | 49mm | 49mm |
B-B Drop | 71mm | 71mm | 71mm | 69mm | 69mm | 67mm | 67mm |
Stack | 522mm | 541mm | 554mm | 567mm | 583mm | 597mm | 618mm |
Reach | 366mm | 369mm | 375mm | 378mm | 384mm | 387mm | 392mm |
Trail | 75mm | 69mm | 62mm | 64mm | 61mm | 58mm | 55mm |
Wheelbase | 1008mm | 1007mm | 1009mm | 1016mm | 1022mm | 1025mm | 1031mm |
Crank Length | 170mm | 170mm | 170mm | 172.5mm | 172.5mm | 175mm | 175mm |
Stem Length | 75mm | 75mm | 90mm | 100mm | 100mm | 110mm | 110mm |
For safety warning please refer to the documentation in the Manual Downloads section of this page.
