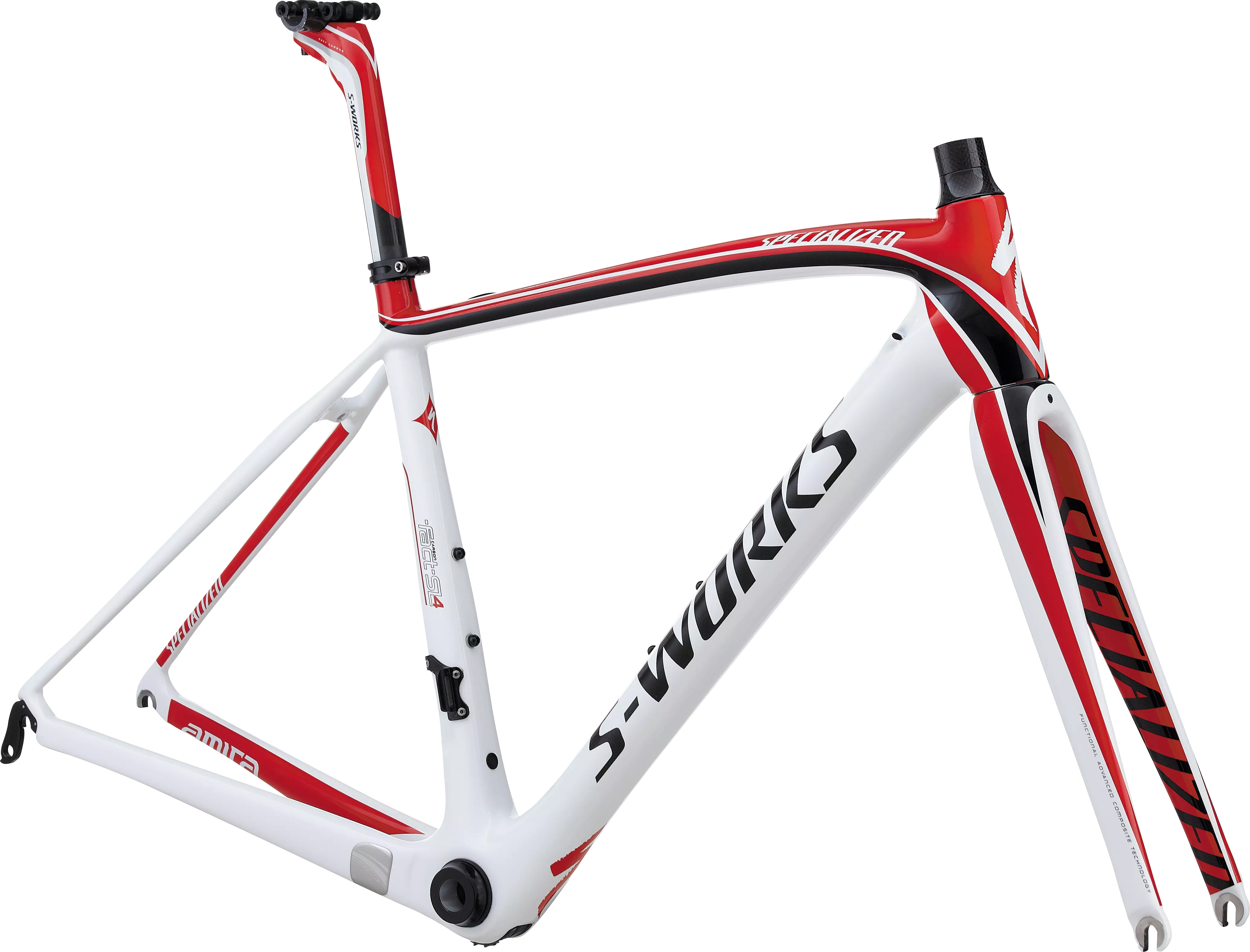

2012 S-Works Amira SL4 OSBB Frameset

0 Reviews

Ridden by the most successful women's cycling team in the world, HTC-Highroad, the…

Colour:

White/Flo Red/Carbon

What's my size?

Imperial

Metric

Enter your height and we'll calculate your size.

Height:

For a more accurate result, include your shin length.

Select a Size

Choose the colour and size you're looking for to search nearby store inventory.

Unavailable

This item is not available for Find Nearby

Product Details

Ridden by the most successful women's cycling team in the world, HTC-Highroad, the S-Works Amira SL4 is the lightest, stiffest, and fastest women's bike around, featuring an all-new FACT 11r carbon frame with women's-tuned geometry, uniquely shaped head tube, and internal cable routing.

S-Works Amira FACT IS 11r carbon frame uses women's performance geometry and carbon lay-up, with integrated, tapered head tube, to create a light, stiff and fast ride
S-Works FACT full-carbon monocoque fork with a tapered 1-1/8" to 1-3/8" headset for strength and precision steering
Press-in OSBB cups for a stiff interface, with ceramic bearings for the smoothest performance and lasting precision

Technical Specifications

FRAMESET

FRAME

S-Works FACT 11r carbon, FACT IS construction, women's tubesets, women's performance geometry, tapered 1-1/8"" to 1-3/8"" HT, OSBB

FORK

S-Works FACT carbon, full monocoque, 1-1/8"" to 1-3/8"" tapered steerer

HEADSET

1-1/8"" upper and 1-3/8"" lower Cr-Mo cartridge bearings, w/ 20mm carbon cone spacer and 20mm of carbon spacers

SEAT BINDER

Forged alloy,Ti bolt and nut, 32.6mm

DRIVETRAIN

BOTTOM BRACKET

Press-in OSBB cups w/ ceramic bearings

COCKPIT

SEATPOST

S-Works FACT carbon, 27.2mm

* Weights based on production painted frames as pictured. Actual weights will vary based on colourway, frame size, and component variation. Specifications are subject to change without notice.

Geometry

	440.0	480.0	510.0	540.0	560.0
Seat-Tube Angle	76°	75.75°	75.5°	74°	73.5°
Head-Tube Length	105mm	115mm	125mm	145mm	165mm
Seat-Post Length	300mm	300mm	300mm	300mm	350mm
Head-Tube Angle	70.5°	71.25°	72°	72°	72°
Chain-Stay Length	405mm	405mm	405mm	405mm	408mm
Top-Tube Length, Horizontal	498mm	506mm	518mm	537mm	548mm
Front-Centre	576mm	580mm	582mm	588mm	596mm
Handle-Bar Width	360mm	380mm	400mm	400mm	420mm
Stand-Over Height	692mm	718mm	735mm	758mm	777mm
Seat-Tube Length, B-B Centre to Top	390mm	420mm	460mm	490mm	510mm
Fork Rake	51mm	51mm	49mm	49mm	49mm
B-B Drop	73mm	73mm	73mm	73mm	71.5mm
Stack	503mm	515mm	528mm	547mm	564mm
Reach	365mm	371mm	378mm	378mm	380mm
Trail	66mm	62mm	59mm	59mm	59mm
Wheelbase	970mm	974mm	976mm	982mm	993mm
Crank Length	167.5mm	167.5mm	170mm	170mm	172.5mm
Stem Length	75mm	75mm	90mm	100mm	100mm
