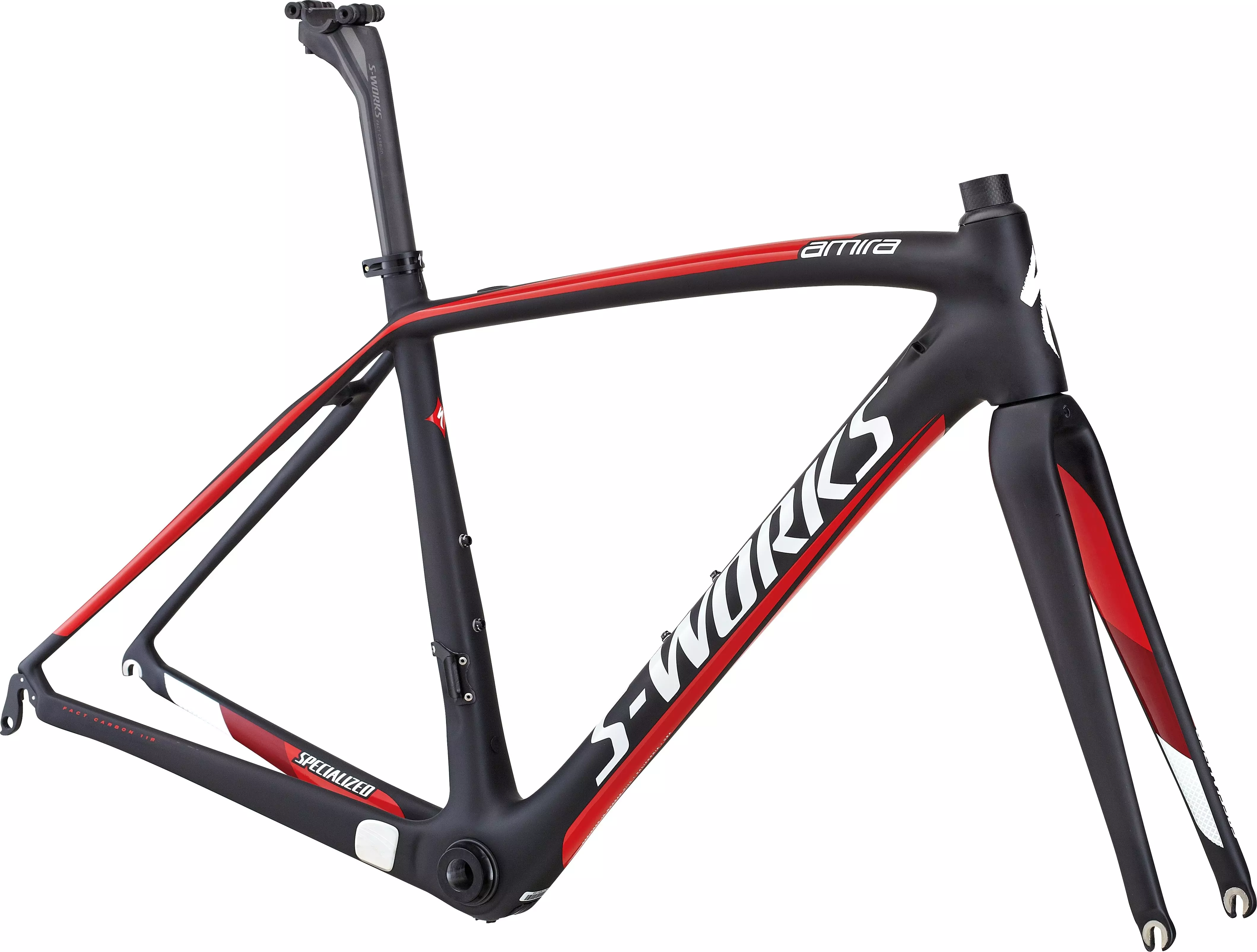

2014 S-Works Amira SL4 Frameset

0 Reviews

For women who live to race—whether it's a pro-level crit or a city-line sprint with…

Colour:

Satin Black/Gloss Red

What's my size?

Imperial

Metric

Enter your height and we'll calculate your size.

Height:

For a more accurate result, include your shin length.

Select a Size

Choose the colour and size you're looking for to search nearby store inventory.

Unavailable

This item is not available for Find Nearby

Product Details

For women who live to race—whether it's a pro-level crit or a city-line sprint with the local club—the S-Works Amira offers a light, stiff FACT 11r carbon frame with women's-tuned geometry for optimal fit and performance.

S-Works FACT 11r carbon frame uses Women's Performance Geometry and carbon layup, with OSBB, plus integrated, tapered headtube to create a light, stiff and fast ride
S-Works FACT carbon seatpost and cradle is super light and stiff for optimal power transfer, fully adjustable, and accommodates carbon rails
Pro-quality, long-lasting and lightweight CeramicSpeed bottom bracket with ceramic bearings for reduced friction
S-Works FACT carbon seatpost and cradle is super light and stiff for optimal power transfer, fully adjustable, and accommodates carbon rails

Technical Specifications

FRAMESET

FRAME

S-Works SL4 FACT 11r, FACT construction, Women's Performance Geometry and layup, tapered 1-1/8"" to 1-3/8"" headtube, carbon OSBB

FORK

S-Works Amira, FACT carbon full monocoque, 1-1/8"" to 1-3/8"" tapered steerer

HEADSET

1-1/8"" upper and 1-3/8"" lower hybrid cartridge lightweight bearings, 8mm carbon cone spacer, w/ 20mm of carbon spacers

SEAT BINDER

Forged bolt and nut, 32.6mm

DRIVETRAIN

BOTTOM BRACKET

OS integrated, CeramicSpeed, sealed ceramic bearings

COCKPIT

SEATPOST

S-Works SL, FACT carbon, 2-bolt, 27.2mm

* Weights based on production painted frames as pictured. Actual weights will vary based on colourway, frame size, and component variation. Specifications are subject to change without notice.

Geometry

	44.0	48.0	51.0	54.0	56.0
Seat-Tube Angle	76°	75.75°	75.5°	74°	73.5°
Head-Tube Length	105mm	115mm	125mm	145mm	165mm
Seat-Post Length	300mm	300mm	300mm	300mm	350mm
Head-Tube Angle	70.5°	71.25°	72°	72°	72°
Chain-Stay Length	405mm	405mm	405mm	405mm	408mm
Top-Tube Length, Horizontal	498mm	506mm	518mm	537mm	548mm
Front-Centre	576mm	579mm	582mm	588mm	595mm
Stand-Over Height	692mm	718mm	735mm	758mm	777mm
Seat-Tube Length, B-B Centre to Top	390mm	420mm	450mm	480mm	495mm
Fork Rake	51mm	51mm	49mm	49mm	49mm
B-B Drop	73mm	73mm	73mm	73mm	71.5mm
Trail	66mm	62mm	59mm	59mm	59mm
Wheelbase	969mm	973mm	976mm	982mm	993mm
