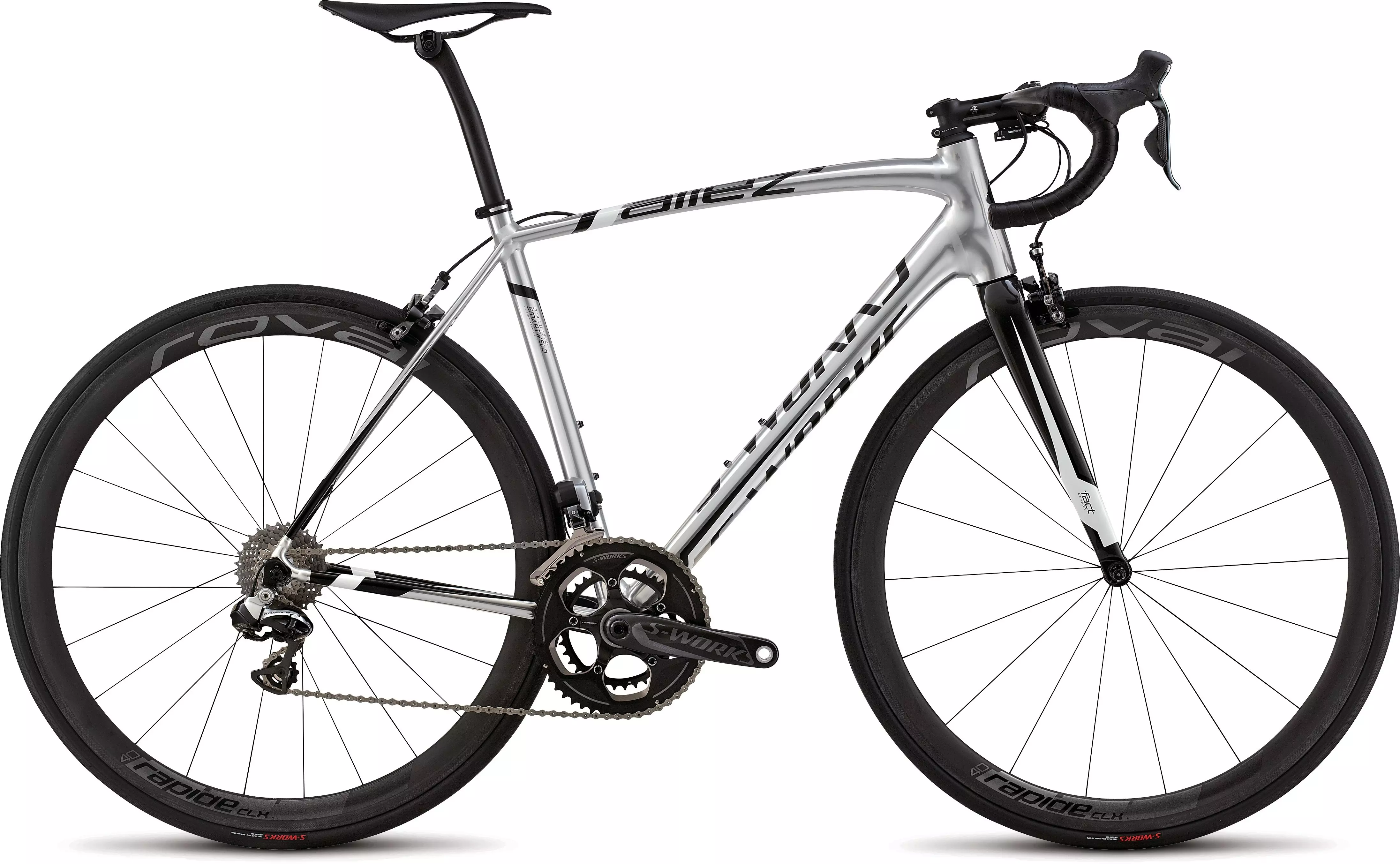

2015 S-Works Allez Di2

0 Reviews

The S-Works Allez frame features D'Aluisio Smartweld Technology, hydroformed tubesets,…

Colour:

Ano Silver/Black/White

What's my size?

Imperial

Metric

Enter your height and we'll calculate your size.

Height:

For a more accurate result, include your shin length.

Select a Size

Choose the colour and size you're looking for to search nearby store inventory.

Unavailable

This item is not available for Find Nearby

Product Details

The S-Works Allez frame features D'Aluisio Smartweld Technology, hydroformed tubesets, OSBB, and an S-Works carbon fork, making it the most technologically advanced alloy road frame available. At 1050g, the frame is paired with Roval Rapide CLX 40 wheels and a Shimano Dura-Ace Di2 drivetrain to create a bike capable of taking on any road race or crit out there, and turning you toughest weekend rides into your fastest weekend rides.

Shimano Dura-Ace Di2 11-speed rear derailleur for precise shifting no matter the conditions
S-Works E5 aluminium frame w/ D'Aluisio Smartweld Technology is light, fast, and race-ready
Body Geometry Toupé Pro saddle w/ FACT carbon rails is tuned for perfect fit and comfort
Body Geometry Toupé Pro saddle w/ FACT carbon rails is tuned for perfect fit and comfort
Body Geometry Toupé Pro saddle w/ FACT carbon rails is tuned for perfect fit and comfort
Lightweight Roval Rapide CLX 40 carbon wheels for quick accelerations in any condition
Body Geometry Toupé Pro saddle w/ FACT carbon rails is tuned for perfect fit and comfort

Technical Specifications

FRAMESET

FRAME

S-Works E5 Premium Aluminium w/ D'Aluisio Smartweld Technology, tapered headtube, OSBB, Di2 only

FORK

S-Works FACT carbon, full monocoque

HEADSET

1-1/8"" upper race, 1-3/8"" lower, hybrid cartridge lightweight bearings, 8mm carbon cone spacer, w/ 20mm of carbon spacers

SEAT BINDER

Alloy, 31.2mm

WHEELS

FRONT WHEEL

Roval Rapide CLX 40, w/ CeramicSpeed ceramic bearings

REAR WHEEL

Roval Rapide CLX 40, w/ CeramicSpeed ceramic bearings

FRONT TIRE

S-Works Turbo, 220TPI, folding bead, BlackBelt protection, 700x24c

REAR TIRE

S-Works Turbo, 220TPI, folding bead, BlackBelt protection, 700x24c

INNER TUBES

Standard, presta valve

DRIVETRAIN

SHIFT LEVERS

Shimano Dura-Ace Di2 STI, 11-speed

FRONT DERAILLEUR

Shimano Dura-Ace Di2, 11-speed, clamp-on

REAR DERAILLEUR

Shimano Dura-Ace Di2, 11-speed

CASSETTE

Shimano Dura-Ace, 11-speed, 11-28

CRANKSET

S-Works FACT carbon, OSBB, 52/36

CHAIN

Shimano Dura-Ace, 11-speed

COCKPIT

HANDLEBARS

S-Works Aerofly

STEM

S-Works SL, 6-degree rise, w/ Ti bolt

TAPE

Specialized Classic, w/ gel

SADDLE

Body Geometry Toupé Pro, carbon rails, 143mm

SEATPOST

S-Works FACT carbon, 20mm offset, 27.2mm, w/ internal battery

BRAKES

FRONT BRAKE

Shimano Dura-Ace

REAR BRAKE

Shimano Dura-Ace

ACCESSORIES

PEDALS

Nylon flat test ride, loose-ball, w/ reflectors

* Weights based on production painted frames as pictured. Actual weights will vary based on colourway, frame size, and component variation. Specifications are subject to change without notice.

Geometry

	49	52	54	56	58	61
Seat-Tube Angle	75.5°	74°	73.5°	73.25°	73°	72.5°
Head-Tube Length	120mm	120mm	145mm	170mm	205mm	230mm
Seat-Post Length	300mm	300mm	350mm	350mm	350mm	350mm
Head-Tube Angle	72.25°	73°	73°	73.5°	73.5°	74°
Chain-Stay Length	405mm	405mm	405mm	405mm	407mm	410mm
Top-Tube Length, Horizontal	518mm	537mm	548mm	565mm	582mm	600mm
Front-Centre	576mm	576mm	583mm	591mm	605mm	613mm
Handle-Bar Width	400mm	420mm	420mm	420mm	440mm	440mm
Stand-Over Height	741mm	777mm	798mm	816mm	836mm	854mm
Seat-Tube Length, B-B Centre to Top	460mm	480mm	500mm	520mm	540mm	580mm
Fork Rake	45mm	45mm	45mm	43mm	43mm	43mm
B-B Drop	71.5mm	71.5mm	69mm	69mm	67.5mm	67.5mm
Stack	523mm	523mm	547mm	574mm	606mm	631mm
Reach	380mm	385mm	387mm	395mm	402mm	408mm
Trail	62mm	57mm	57mm	56mm	56mm	53mm
Wheelbase	970mm	970mm	978mm	986mm	1003mm	1013mm
Crank Length	170mm	170mm	173mm	173mm	175mm	175mm
Stem Length	80mm	90mm	100mm	100mm	110mm	110mm
