2015 Rockhopper Expert EVO 29
0 Reviews
Trails were built to be ridden hard, and that's what the Rockhopper EVO does best.…
Colour:
Satin Black/Gloss Black/Red
What's my size?
Select a Size
Product Details

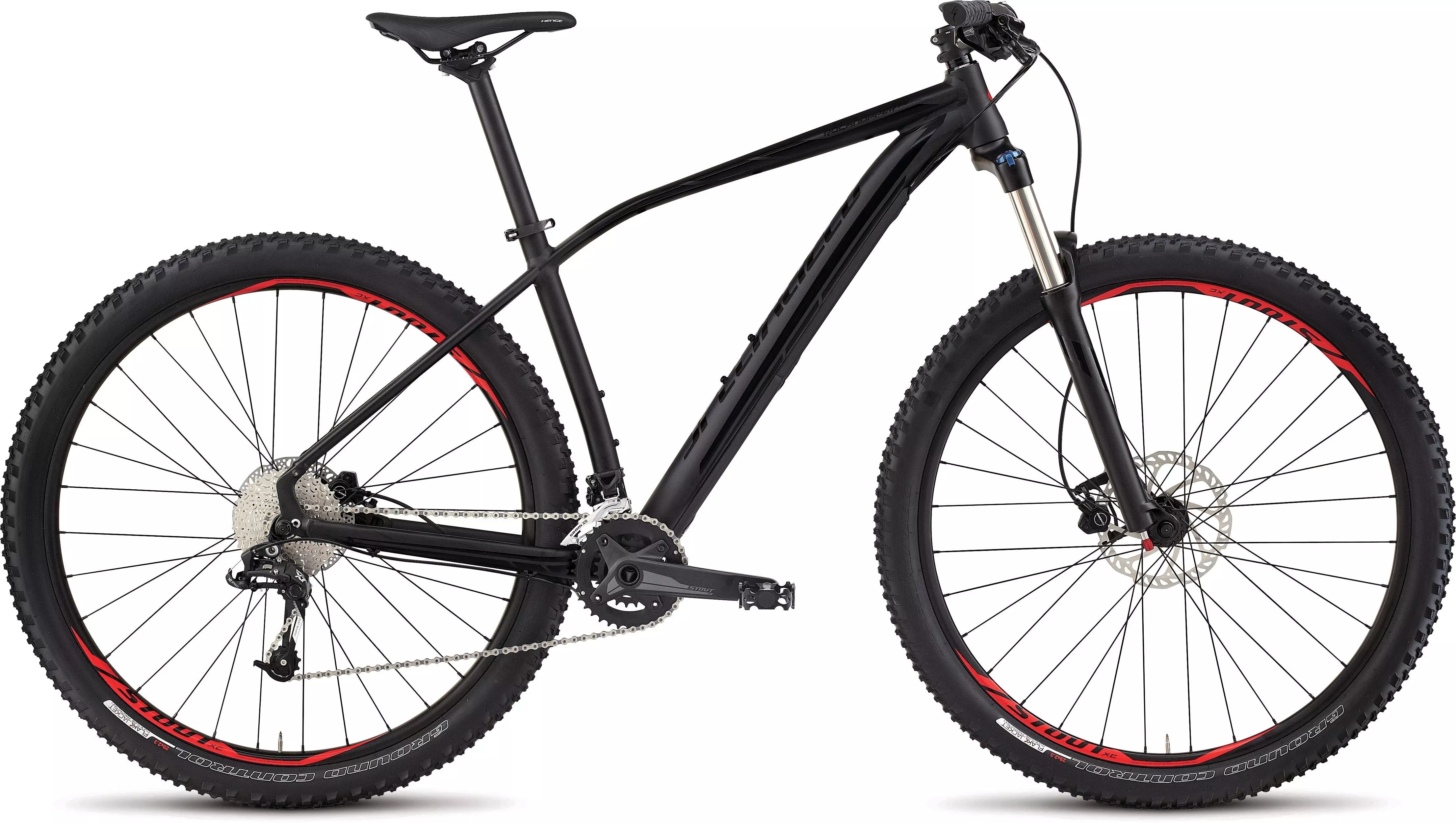

Trails were built to be ridden hard, and that's what the Rockhopper EVO does best. With a 120mm fork, 29-inch wheels, slightly more relaxed geometry, and Tektro Gemini disc brakes, the EVO will tame the toughest trails.
New A1 Premium Aluminium EVO 29 frame delivers a more aggressive trail performance
New A1 Premium Aluminium EVO 29 frame delivers a more aggressive trail performance
New A1 Premium Aluminium EVO 29 frame delivers a more aggressive trail performance
New A1 Premium Aluminium EVO 29 frame delivers a more aggressive trail performance
Tektro Gemini hydraulic disc brakes for consistent, all-weather stopping power
New A1 Premium Aluminium EVO 29 frame delivers a more aggressive trail performance
New A1 Premium Aluminium EVO 29 frame delivers a more aggressive trail performance
Technical Specifications
FRAMESET
FRAME
Specialized A1 SL Aluminium, EVO 29er geometry, fully butted tubesets, ORE downtube, tapered headtube, forged dropouts w/ disc mount, replaceable derailleur hanger
HEADSET
1-1/8"" upper, 1-1/2"" lower, Campy style, integrated sealed cartridge bearings
SEAT BINDER
Alloy, nylon/glass fiber washer, QR, 34.9mm
SUSPENSION
FORK
Custom SR Suntour XCR-AIR 29, w/ custom Multi-Circuit Damping, mag lowers, air spring, Hi-Ten 32mm stanchions, tapered alloy steerer, hydraulic lockout w/ rebound, preload adjust, disc mount, size-specific 100/120mm travel
WHEELS
REAR TIRE
Specialized Ground Control Sport, 60TPI, wire bead, 29x2.3""
INNER TUBES
Standard, presta valve
SPOKES
Stainless, 14g, black
RIMS
Specialized Stout XC, 29"" disc, alloy double-wall, pin joint, 26mm inner width, 28/32h
FRONT HUB
Specialized Hi Lo disc, alloy, RCC bearing system, QR, 32h
REAR HUB
Specialized Stout XC disc, alloy, RCC bearing system, QR, 32h
FRONT TIRE
Specialized Ground Control Sport, 60TPI, wire bead, 29x2.3""
DRIVETRAIN
FRONT DERAILLEUR
SRAM X5, 2x10, high mount
REAR DERAILLEUR
SRAM X7 Type 2, 10-speed, medium cage
SHIFT LEVERS
SRAM X5, 2x10, trigger
CASSETTE
Sunrace, 10-speed, 11-36t
CHAIN
KMC X10, 10-speed, w/ reusable MissingLink
CRANKSET
Specialized Stout XC, 2-piece 2x10, 24mm spindle, anti-corrosion hardware
BOTTOM BRACKET
24mm BSA for 2 pc. design, 73mm
COCKPIT
STEM
Specialized 3D forged alloy, 4-bolt, 6-degree rise, anti-corrosion hardware
HANDLEBARS
Specialized, low rise bar, double butted 6061 alloy, 9-degree backsweep, 5-degree upsweep, 15mm rise, 31.8mm
GRIPS
Specialized Body Geometry XCT, Kraton w/ gel, lock-on, closed end, 132mm
SADDLE
Body Geometry mountain, steel rails, 143mm
SEATPOST
Alloy, 2-bolt, micro-adjust, 12.5mm offset, 30.9mm, anti-corrosion hardware
BRAKES
FRONT BRAKE
Tektro Gemini, hydraulic disc, resin pads, i-Spec compatible, 180mm rotor
REAR BRAKE
Tektro Gemini, hydraulic disc, resin pads, I-spec compatible, 160mm rotor
BRAKE LEVERS
Tektro Gemini, hydraulic, reach adjust, I-spec compatible
ACCESSORIES
PEDALS
Alloy platform
* Weights based on production painted frames as pictured. Actual weights will vary based on colourway, frame size, and component variation. Specifications are subject to change without notice.
Geometry
| S | M | L | XL | XXL | |
|---|---|---|---|---|---|
| Head-Tube Length | 100mm | 95mm | 100mm | 120mm | 140mm |
| Seat-Post Length | 350mm | 350mm | 400mm | 400mm | 400mm |
| Head-Tube Angle | 70° | 70° | 70° | 70° | 70° |
| Chain-Stay Length | 442mm | 442mm | 442mm | 442mm | 442mm |
| Top-Tube Length, Horizontal | 590mm | 618mm | 638mm | 664mm | 684mm |
| Front-Centre | 655mm | 672mm | 691mm | 718mm | 739mm |
| Handle-Bar Width | 740mm | 740mm | 740mm | 740mm | 740mm |
| Seat-Tube Length, B-B Centre to Top | 395mm | 445mm | 460mm | 510mm | 560mm |
| B-B Drop | 63.5mm | 63.5mm | 63.5mm | 63.5mm | 63.5mm |
| B-B Height | 308.5mm | 308.5mm | 308.5mm | 308.5mm | 308.5mm |
| Seat-Tube Angle (Effective) | 73° | 72° | 72° | 72° | 72° |
| Seat-Tube Angle (Actual) | 74.25° | 73° | 73° | 73° | 73° |
| Bike Stand-Over Height | 759mm | 813mm | 824mm | 859mm | 890mm |
| Stack | 620mm | 634mm | 639mm | 658mm | 676mm |
| Reach | 400mm | 412mm | 430mm | 450mm | 464mm |
| Trail | 86mm | 86mm | 86mm | 86mm | 86mm |
| Wheelbase | 1089mm | 1106mm | 1126mm | 1153mm | 1173mm |
| Crank Length | 170mm | 175mm | 175mm | 175mm | 175mm |
| Stem Length | 60mm | 60mm | 70mm | 70mm | 80mm |
Manual Downloads
For safety warning please refer to the documentation in the Manual Downloads section of this page.
