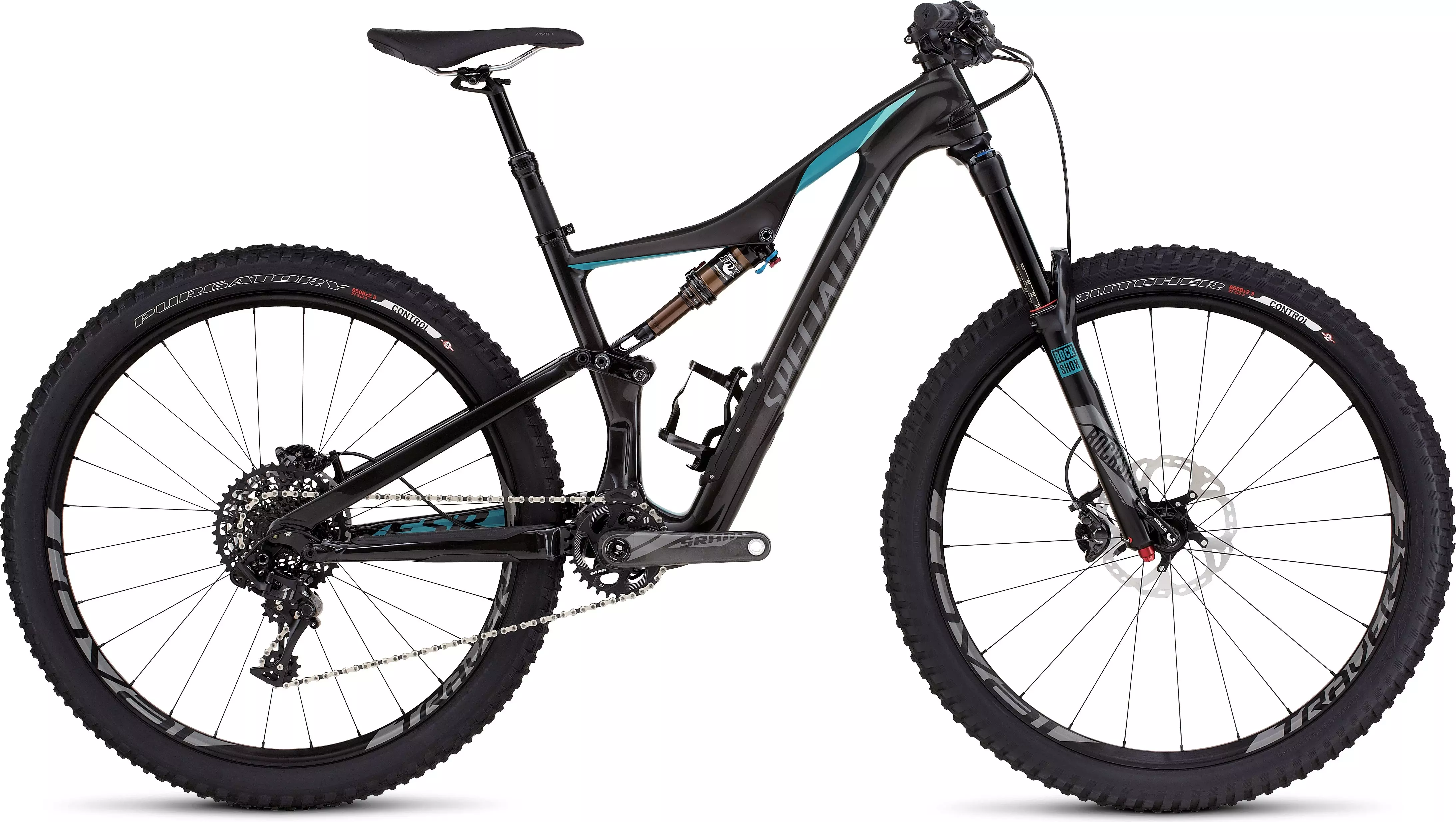

Rhyme FSR Expert Carbon 650b

2016 Rhyme FSR Expert Carbon 650b

The all-new Rhyme FSR Expert Carbon 650b is built to support women who go hard on the trail and need a no-holds-barred bike to do it on. To do so, it features our proprietary shock tune for women, Women's Rx Tune, that's tailored to give women the best suspension performance possible. Of course, there's also SRAM's workhorse one-by groupset, X1, and Shimano's dependable XT hydraulic disc brakes to round out a build that places an equal focus on durability and efficiency. At the frame, you'll find our FACT 9m carbon fibre that creates a lightweight, strong, and stiff construction. The carbon moulding process also allowed us to revolutionize how you carry your trail essentials with the all-new SWAT Door found at the down tube. This compartment will fit a tube, a tool, and pump without rattling or compromising the structural integrity of the frame. Factor in our nimble 650b Trail Geometry, size-specific components, and our pressure-relieving Body Geometry Myth saddle, and you truly do get a bike that refuses to compromise.

Technical Specifications

FRAMESET

FRAME

FACT 9m carbon, Trail 650b Geometry, FACT IS construction, M5 alloy rear end, SWAT Door integration, fully enclosed internal cable routing, 142mm dropouts, sealed cartridge bearing pivots, replaceable derailleur hanger, front derailleur compatible w/ Taco Blade, 150mm travel

HEADSET

Hella Flush, 1-1/8"" and 1-1/2"" threadless, Campy style upper w/ 1-1/2"" lower, cartridge bearings

SEAT BINDER

Specialized, 7050 alloy, single bolt, 34.9mm

SUSPENSION

REAR SHOCK

Custom FOX FLOAT Factory CTD, AUTOSAG, Women's Rx Trail Tune, Boost Valve, Kashima coating, 197x47.6mm

FORK

RockShox Pike RC 27.5, Solo Air, compression and rebound adjust, tapered steerer, 15x110mm Maxle Stealth thru-axle, 46mm offset, 150mm travel

WHEELS

RIMS

Roval Traverse 650b, alloy, disc, 29mm inner width, 24/28h

FRONT HUB

Roval Traverse, 15/20mm thru-axle, 24h

REAR HUB

Roval Traverse 142+, SRAM XX1 driver body, 12mm thru-axle, 28h

SPOKES

DT Swiss Revolution

FRONT TIRE

Specialized Butcher Control, 60TPI, 2Bliss Ready, folding bead, 650bx2.3""

REAR TIRE

Specialized Purgatory Control, 60TPI, 2Bliss Ready, folding bead, 650bx2.3""

INNER TUBES

Standard, Presta valve

DRIVETRAIN

REAR DERAILLEUR

SRAM X1, 11-speed, alloy cage

SHIFT LEVERS

SRAM X1, 11-speed, trigger

CASSETTE

SRAM XG-1180, 11-speed, 10-42t

CHAIN

SRAM PC-X1, 11-speed

CRANKSET

Custom SRAM S-2200, carbon, PF30 spindle, 30T, 94mm BCD spider

BOTTOM BRACKET

SRAM PF30, OS press-in bearings

COCKPIT

STEM

Specialized Trail, 3D forged alloy, 4-bolt, 6-degree rise

HANDLEBARS

Specialized, 7050 alloy, 8-backsweep, 6-upsweep, 10mm rise, 720mm, 31.8mm

GRIPS

Specialized Sip Grip, lock-on, half-waffle, regular thickness

SADDLE

Body Geometry Women's Myth Comp, hollow Cr-Mo rails, 155mm

SEATPOST

Command Post IRcc, 10-12 position micro-height adjustable, alien head design, bottom mount cable routing, remote SRL lever, 30.9mm, XS: 75mm, S/M: 100mm, L: 125mm travel

BRAKES

FRONT BRAKE

Shimano Deore XT, Ice-Tech metallic pads

REAR BRAKE

Shimano Deore XT, Ice-Tech metallic pads

BRAKE LEVERS

Shimano XT, Servo Wave, I-spec II compatible, tool-free reach adjust

ACCESSORIES

PEDALS

Resin Test Ride Pedals with toe clips, CEN std.

* Weights based on production painted frames as pictured. Actual weights will vary based on colourway, frame size, and component variation. Specifications are subject to change without notice.
