2015 P.3 Frame
Part No.: 71915-7022
0 Reviews
If you rely upon equipment to push limits, throw new tricks, and advance skills,…
Colour:
Gloss Black Chrome/Chrome
Size:
22.5" TT
Product Details

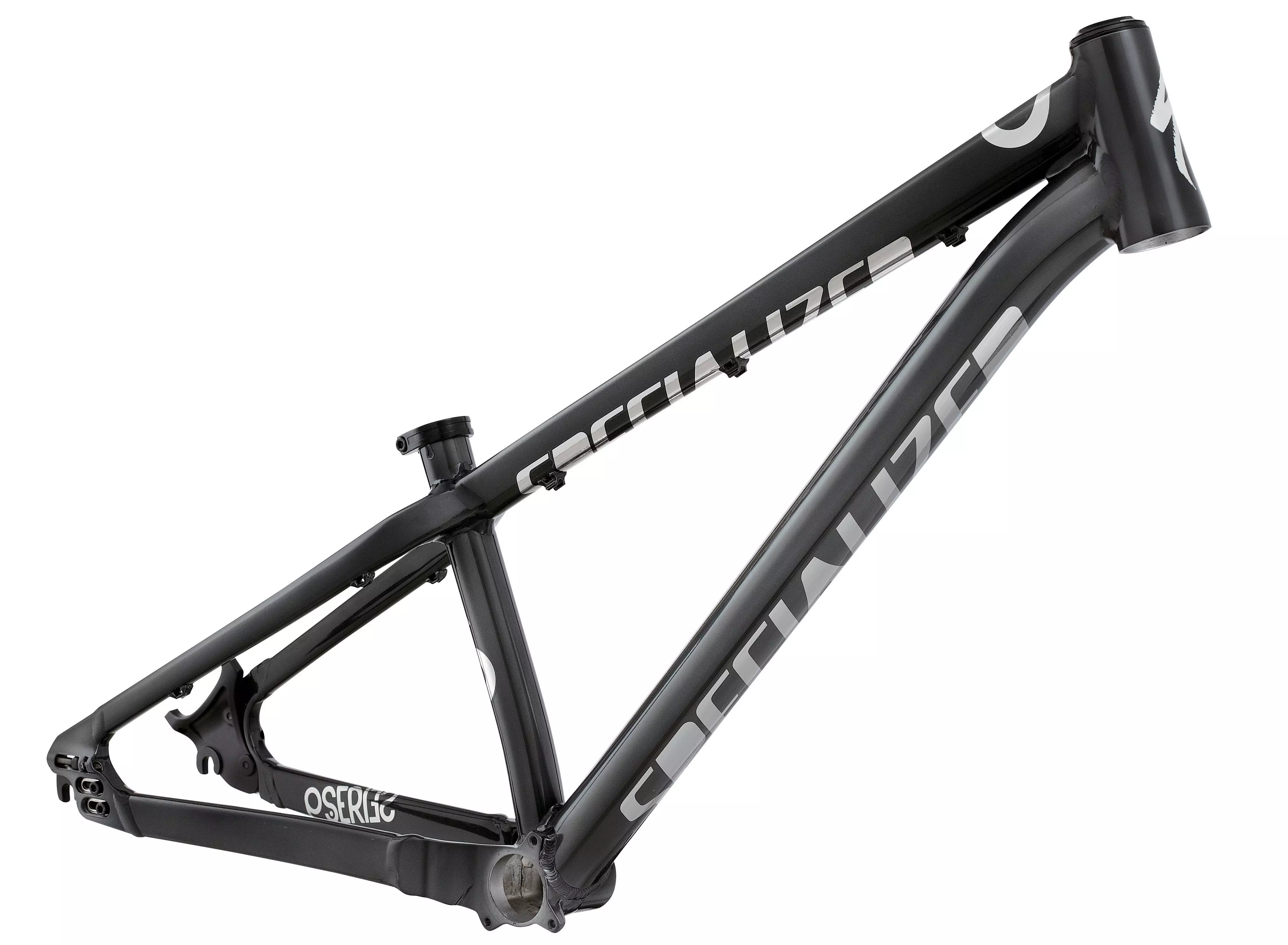

If you rely upon equipment to push limits, throw new tricks, and advance skills, you probably tend to be rather particular about your parts. Start with the P.3 frame, and build it just the way you want.
0Technical Specifications
FRAMESET
FRAME
Specialized A1 Premium Aluminium, fully-butted tubing, tapered head tube, BB30 forged BB shell, integrated ISCG 05 tabs, forged horizontal dropouts, integrated chain tensioners
HEADSET
FSA Orbit, 1-1/8"" upper, 1-1/2"" lower integrated, Campy style, full cartridge bearings, 5.3mm cone spacer, includes 1-1/8"" reducer crown race
SEAT BINDER
Alloy, single bolt, 34.9mm
* Weights based on production painted frames as pictured. Actual weights will vary based on colourway, frame size, and component variation. Specifications are subject to change without notice.
Geometry
| 1.0 | |
|---|---|
| Top Tube Length (Horizontal) | 633.1mm |
| Top Tube Length (Actual) | 612.5mm |
| Seat Tube Length, Centre to Top | 312mm |
| Bottom Bracket Drop | 16mm |
| Bottom Bracket Height | 325.5mm |
| Wheel Base | 1065.5mm |
| Stack | 567mm |
| Reach | 423mm |
| Head Tube Length | 122mm |
| Head Tube Angle | 69.5° |
| Chainstay Length | 385mm |
| Seat Tube Angle | 70° |
