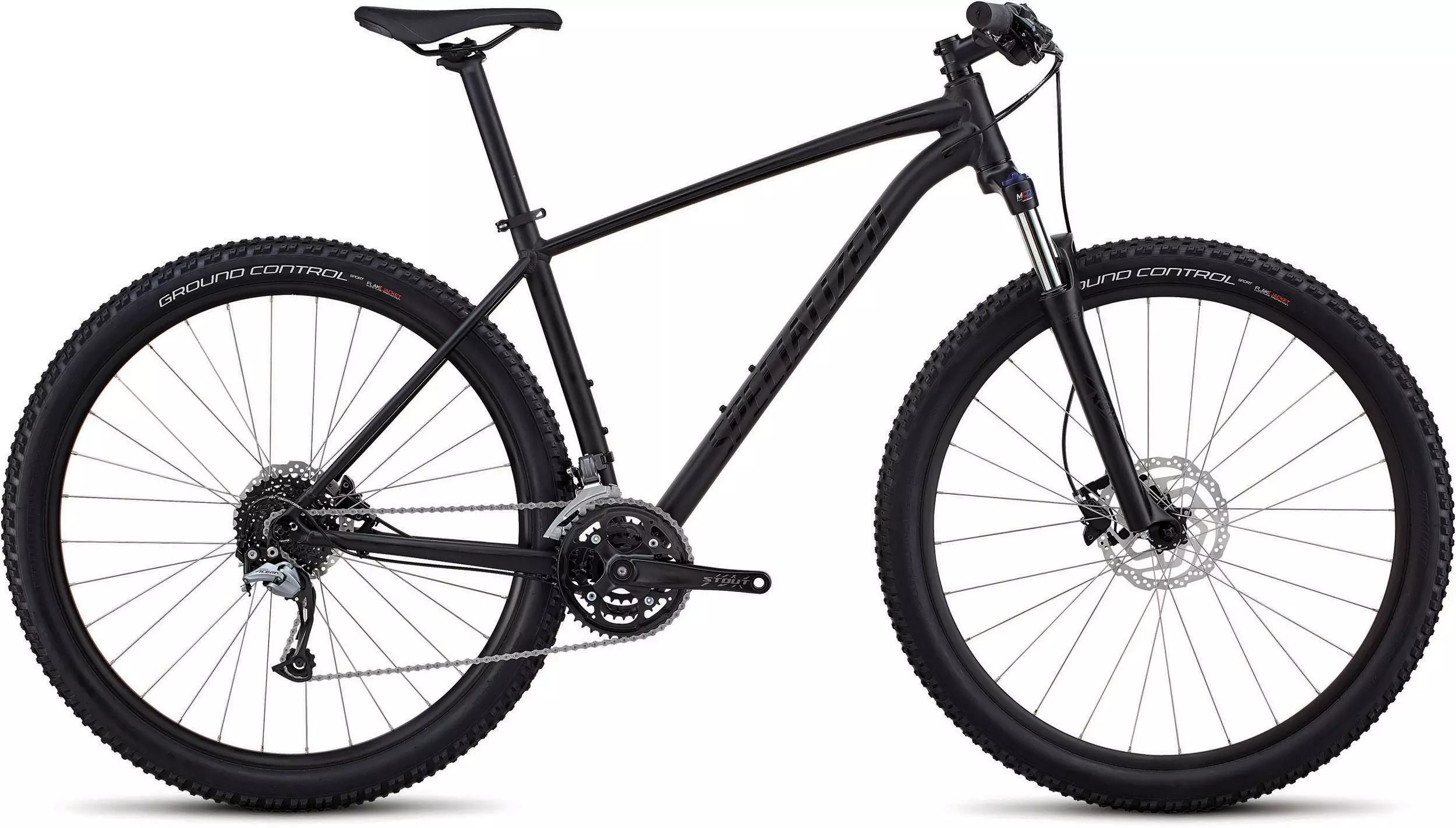

Whether you've been riding trails for decades or you're just starting your XC journey, the Rockhopper Comp is here to take your rides to the next level.
It starts with our new A1 Aluminium frame that has optimised tube shapes which save weight while dramatically improving aesthetics. To go along with these clean new lines, the new Rockhopper also has internal cable routing to further clean up the frame. Lastly, our Sport XC 29 geometry adjusts the reach, angles, and standover height to make for an improved fit across the size range. This is sure to keep you ripping and confident while heading both up and down the trail.
This Rockhopper comes with a no-nonsense spec featuring a full Shimano drivetrain, dependable Shimano hydraulic disc brakes, grippy Ground Control tyres that add traction over any trail, and an SR Suntour XCM 29 fork with our custom Multi-Circuit damping that eliminates the "pogo" feel commonly associated with coil forks.
- The frame is constructed from lightweight A1 Aluminium in order to provide a compliant, durable platform to support our acclaimed XC Sport 29 Geometry. Combined, you get a bike that's more than efficient on climbs and descends with equal aplomb.
- The SR Suntour XCM fork puts out 80/90/100mm (size-specific) of plush and reactive travel, provided by coil-sprung suspension that's custom-tuned for lighter riders.
- A Shimano Acera rear derailleur controls the rear shifting with durable aplomb. It shifts along a wide gear range, 11-34t, so you can ride confidently knowing that you'll always have the right gear for the hill at hand.
Manual Downloads
Technical Specifications
DRIVETRAIN
| CHAIN | KMC X9EPT, 9-speed, anti-corrosion coating w/ reusable Missing Link™ |
| BOTTOM BRACKET | Square taper, 73mm, internal bearings |
| CRANKSET | Stout, forged alloy, 3x9 |
| FRONT DERAILLEUR | Shimano Altus FD-M371, 34.9mm clamp, down-swing |
| SHIFT LEVERS | Shimano Acera 3x9 |
| CASSETTE | Sunrace, 9-speed, 11-34t |
| CHAINRINGS | 44/32/22T |
| REAR DERAILLEUR | Shimano Acera, 9-speed |
SUSPENSION
| FORK | SR Suntour XCM w/ MCD 29, coil spring, custom Multi-Circuit damping, QR, 80/90/100mm travel (size-specific), 46mm offset |
WHEELS
| FRONT HUB | Shimano Center Lock, disc, 100x9mm QR, 32h |
| REAR HUB | Shimano Center Lock, disc, 135x9mm QR, 32h |
| INNER TUBES | Presta, 40mm valve |
| SPOKES | Stainless, 14g |
| RIMS | Stout XC 25 29, alloy, disc only, double-wall, 25mm internal width, 32h |
| FRONT TIRE | Ground Control Sport, Flak Jacket flat protection, wire bead, 29x2.3" |
| REAR TIRE | Ground Control Sport, Flak Jacket flat protection, wire bead, 29x2.1" |
COCKPIT
| SADDLE | Henge Sport, steel rails, 143mm |
| SEATPOST | Alloy, 12mm offset, 2-bolt clamp, 30.9mm |
| STEM | Stout 3D-forged alloy, 31.8mm, 6-degree rise |
| HANDLEBARS | Stout double-butted alloy, 10mm rise, 10-degree backsweep, 4-degree upsweep, 700mm width, 31.8mm |
| GRIPS | Specialized MTB Grip, lock-on |
BRAKES
| FRONT BRAKE | Shimano BR-M315, hydraulic disc, resin pads, 180/160mm rotor |
| REAR BRAKE | Shimano BR-M315, hydraulic disc, resin pads, 160mm rotor |
ACCESSORIES
| PEDALS | Specialized Dirt |
FRAMESET
| SEAT BINDER | Alloy, QR clamp, 34.9mm |
| FRAME | A1 alloy, Sport XC 29 Geometry, zero-stack head tube, internal cable routing, 135x9mm forged dropouts, chainstay-mounted disc brake, replaceable alloy derailleur hanger |
* Specifications are subject to change without notice
Geometry
Rockhopper - Geometry
| XS | S | M | L | XL | |
|---|---|---|---|---|---|
| Crank Length | 165MM | 170MM | 175MM | 175MM | 175MM |
| Stem Length | 60MM | 70MM | 90MM | 100MM | 110MM |
| Seatpost Length | 350MM | 350MM | 400MM | 400MM | 400MM |
| Saddle Width | 143mm | 143mm | 143mm | 143mm | 143mm |
| Handlebar Width | 700MM | 700MM | 700MM | 700MM | 700MM |
| Reach | 380mm | 395mm | 418mm | 441mm | 462mm |
| Top Tube Length, Horizontal | 549mm | 568mm | 595mm | 623mm | 649mm |
| Stack | 586mm | 595mm | 605mm | 619mm | 633mm |
| Wheelbase | 1060mm | 1078mm | 1104mm | 1133mm | 1159mm |
| Chainstay Length | 435mm | 435mm | 435mm | 435mm | 435mm |
| Front Centre | 631mm | 650mm | 676mm | 704mm | 730mm |
| BB Drop | 57.5mm | 57.5mm | 57.5mm | 57.5mm | 57.5mm |
| BB Height | 312.5mm | 312.5mm | 312.5mm | 312.5mm | 312.5mm |
| Seat Tube Angle | 73.6° | 73.7° | 73.8° | 73.9° | 74° |
| Head Tube Angle | 69.8° | 69.8° | 69.8° | 69.8° | 69.8° |
| Seat Tube Length | 370mm | 400mm | 430mm | 470mm | 520mm |
| Head Tube Length | 110mm | 125mm | 95mm | 95mm | 95mm |
| Bike Standover Height | 715mm | 750mm | 775mm | 814mm | 845mm |
| Fork Rake/Offset | 51mm | 51mm | 51mm | 51mm | 51mm |
| Fork Length, Full | 486mm | 496mm | 506mm | 506mm | 506mm |
| Trail | 82mm | 82mm | 82mm | 82mm | 82mm |
