Hotrock XTR

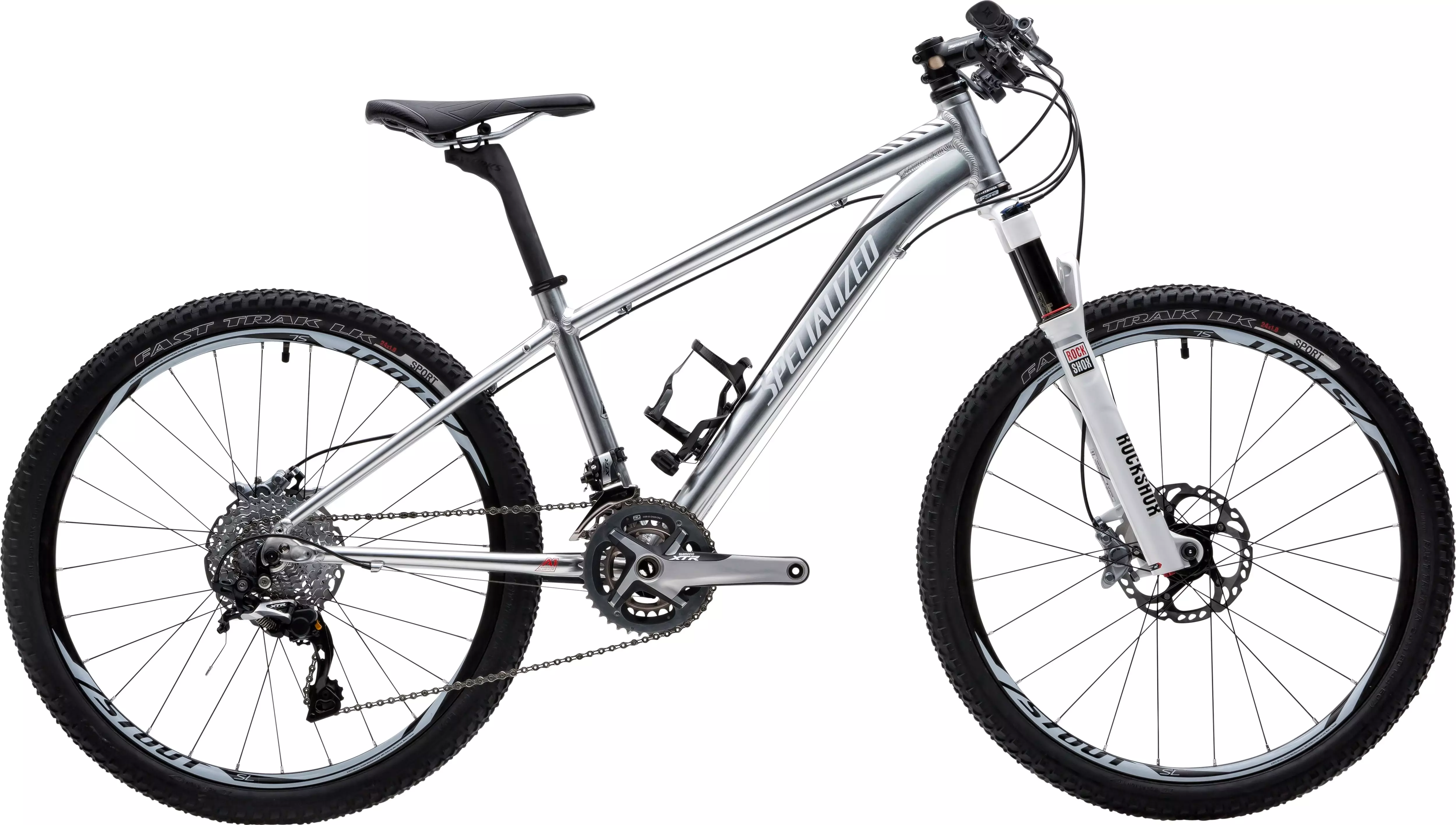

2014 Hotrock XTR

Experienced riders appreciate premium XC performance, however youth mountain biking has exploded in recent years, and the Hotrock XTR was developed to give kids the S-Works-level performance their parents trust. This 24-inch- wheeled, race-ready machine features our fully butted Premium A1 aluminium frame, along with a treatment of Shimano XTR brakes and drivetrain, plus the smooth operating and easy to tune, air-sprung RockShox SID RL fork. Hitting the trails with mum and dad is great for developing fitness and bike handling skills, and the Hotrock XTR is the perfect bike for young rippers to take their riding to the highest level, or even the podium.

Technical Specifications

FRAMESET

FRAME

Specialized A1 Premium Aluminum, double-butted and formed downtube/toptube, externally relieved headtube, forged dropouts w/ replaceable hanger, disc mount

FORK

RockShox SID RL, air spring, 1pc magnesium lower, 32mm alloy stanchion and 1-1/8"" alloy steer, hydraulic damping w/ Pushloc remote LO, rebound, preload and compression, 80mm travel

HEADSET

FSA Orbit Ahead style, sealed cartridge bearings

SEAT BINDER

Extruded alloy, single bolt, 31.8mm

WHEELS

FRONT TIRE

Specialized Fast Trak Sport, 24x1.8"", wire bead, 60TPI

REAR TIRE

Specialized Fast Trak Sport, 24x1.8"", wire bead, 60TPI

INNER TUBES

Standard Schrader valve

RIMS

Disc 24"", double wall, 23mm, sleeve joint, 24 / 28 hole

FRONT HUB

Disc, alloy, High Low flange, sealed bearings, alloy axle, QR, 24h

REAR HUB

Disc, alloy, High Low flange, sealed bearings, alloy cassette body, QR, 28h

SPOKES

Stainless, butted, 2.0-1.8-2.0

DRIVETRAIN

FRONT DERAILLEUR

XTR, 2x10, 34.9 clamp

REAR DERAILLEUR

Shimano XTR Shadow Plus, 10-speed, GS Cage

SHIFT LEVERS

Shimano XTR, 10-speed Rapidfire, SL type

CASSETTE

Shimano XT, 10-speed, 11-36

CHAIN

KMC X-10 SL

CRANKSET

Shimano XTR, Hollowtech 2, 2x10, 165mm length

CHAINRINGS

Shimano 38A/26A

BOTTOM BRACKET

Shimano XTR, external cup

COCKPIT

STEM

Syntace F109, 6-degree rise, 31.8mm clamp

HANDLEBARS

Mini riser bar, carbon, 640mm wide, 31.8mm

GRIPS

Specialized Body Geometry XC Contour, Kraton w/ gel, 120mm w/ alloy clamp

SADDLE

Body Geometry Kid's, 7mm hollow Cr-Mo rails, thin light weight foam

SEATPOST

Specialized carbon, 27.2mm

BRAKES

FRONT BRAKE

Shimano XTR BR-M987 hydraulic disc, 160mm rotor

REAR BRAKE

Shimano XTR BR-M987 hydraulic disc, 160mm rotor

BRAKE LEVERS

Shimano XTR, hydraulic lever

* Weights based on production painted frames as pictured. Actual weights will vary based on colourway, frame size, and component variation. Specifications are subject to change without notice.

Geometry

	11.5	13.5
Ground-Top	769mm	787mm
Bottom Bracket Height - Low Setting	264mm	271mm
Top Tube Length (Horizontal)	490mm	530mm
Head Tube Height	90mm	110mm
Head Tube Angle - Low Setting	70°	70°
Seat Tube Angle (Actual) - Low Setting	73°	73°
Top Tube Length (Actual)	484mm	513mm
Seat Tube Length - Centre to Top	305mm	342mm
Wheel Base	960mm	1005mm
Standover Height	608mm	648mm
Stack	505mm	516mm
Reach	335mm	372mm
Chainstay Length	420mm	420mm
