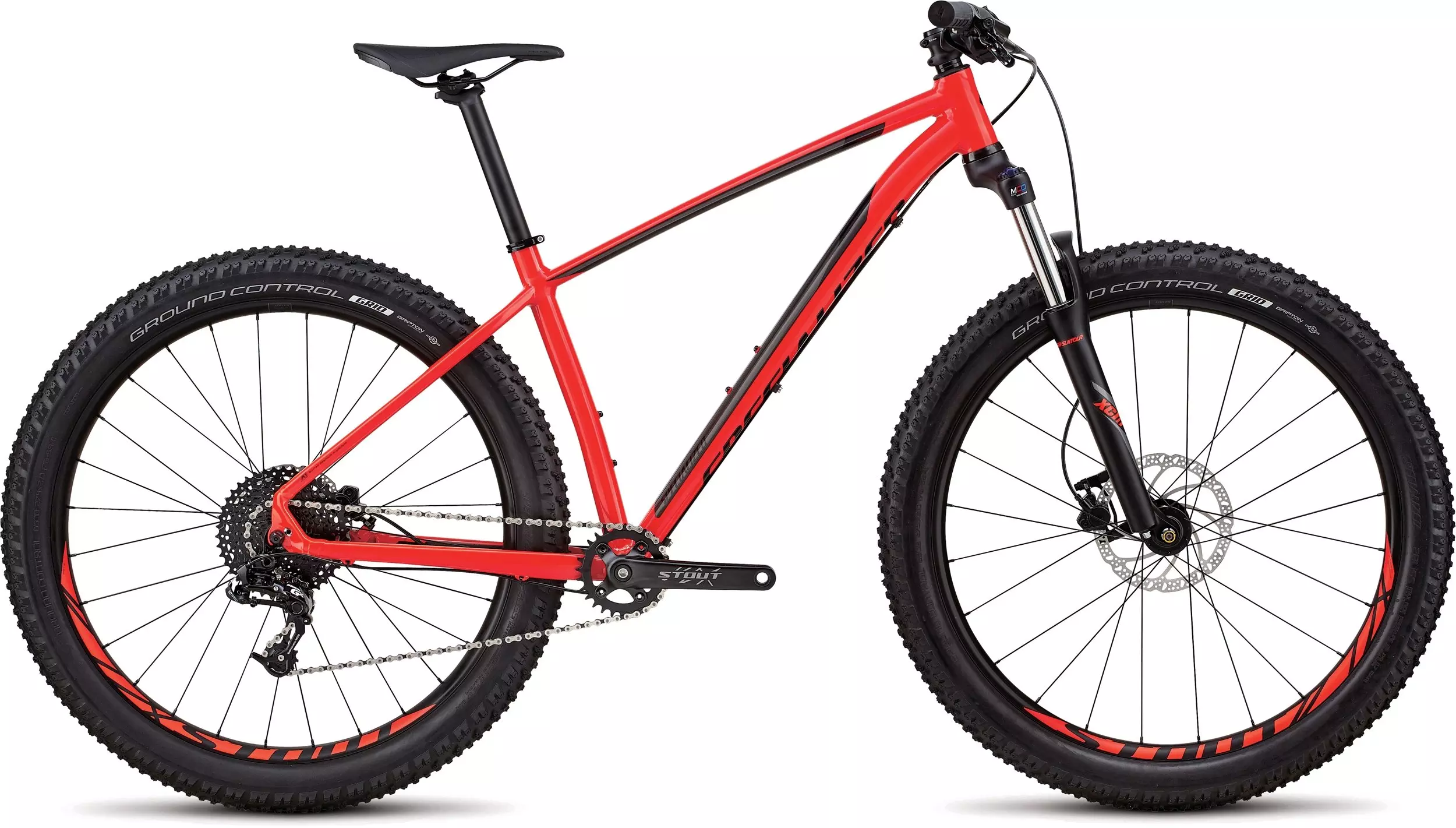

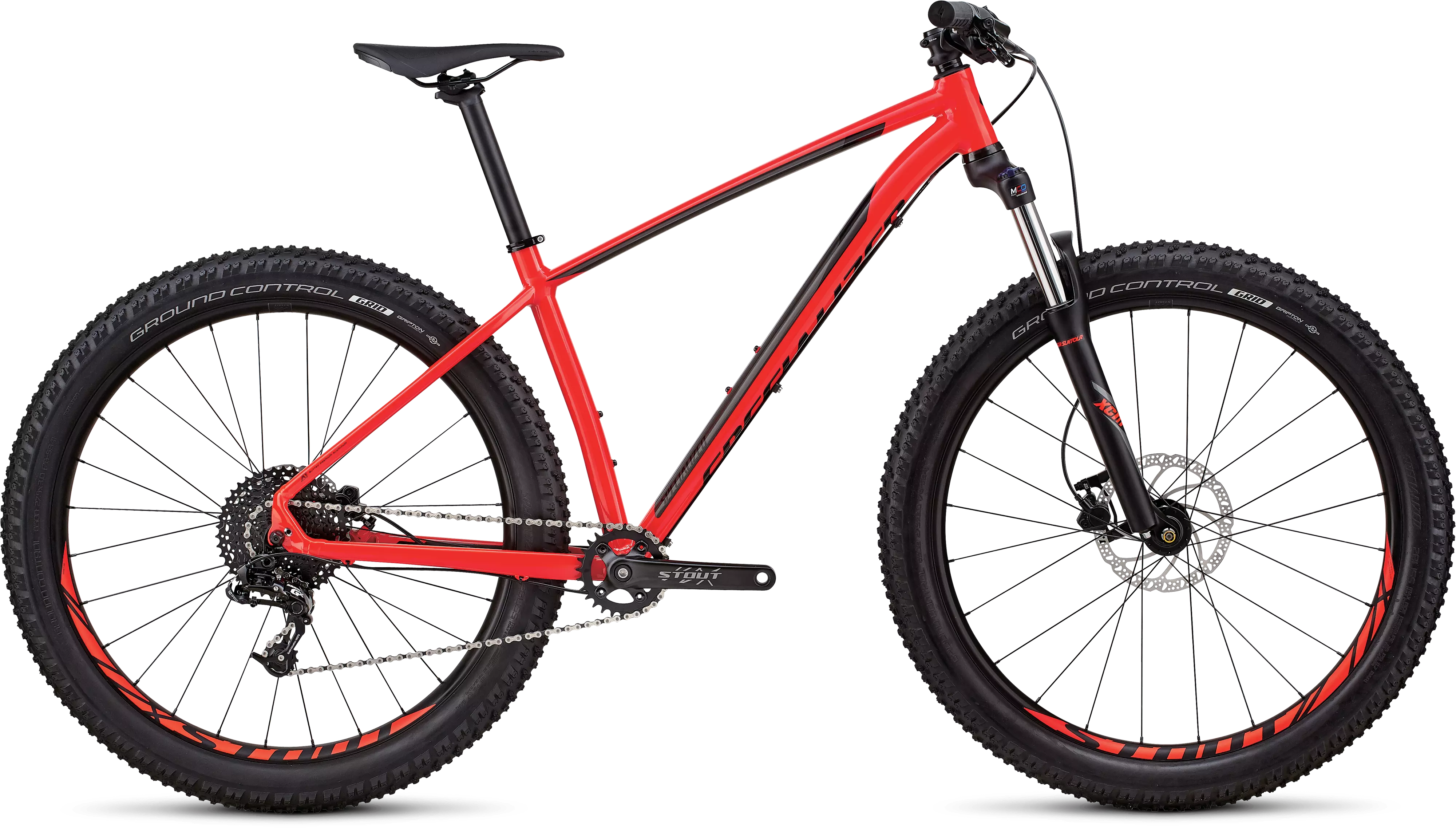

2018 Fuse 6Fattie/29

If you show us a trail rider that says they couldn't use more traction, we'll show the trail rider that's never ridden our Fuse. We like to call it the ultimate trail hardtail, and with our 6Fattie Wheel/Tyre System, this becomes more than just talk. Its 650bx3.0" tyres put out more traction, more flotation, and better handling without sacrificing anything to efficiency on climbs. This system also allows you the opportunity to toggle between 29-inch wheels (not included) and 6Fattie wheels, allowing the ultimate in configuration options for the trail at hand. And to solidify itself as a proper trail machine, this iteration of the Fuse places a focus on blending durability with performance. To do so, we spec'd it with strong alloy rims, a bulletproof one-by drivetrain with plenty of hammering and climbing ability, and a SR Suntour fork with 80mm of travel. It has everything you need to ride harder and go faster, and nothing that you don't.

Technical Specifications

Add Icon

FRAMESET

FRAME

A1 Premium Aluminum w/ smooth welding, Zero Stack 44 head tube, forged post mount 160mm disc, 141mm QR dropout, alloy replaceable derailleur hanger

SEAT BINDER

Alloy, 31.8mm

SUSPENSION

FORK

SR Suntour XCM32, 6Fattie, 1-/18" steerer, 47mm offset, 32mm stanchion, post mount disc, 160mm brake, 15mm thru-axle, 80/100mm of travel

WHEELS

RIMS

Stout 38 27.5, 19mm rim depth, 38mm internal width, 24/28h

FRONT HUB

Stout 110, alloy, sealed cartridge bearings, 15x110mm thru-axle, 24h

REAR HUB

Stout 141, alloy, sealed cartridge bearings, 6-bolt disc, 10-speed freehub, quick-release, 10x141mm spacing, 28h

SPOKES

Stainless, 14g

FRONT TIRE

Ground Control, GRID casing, Gripton compound, 2Bliss Ready, 27.5 x 3.0"

REAR TIRE

Ground Control, GRID casing, Gripton compound, 2Bliss Ready, 27.5 x 3.0"

INNER TUBES

Standard, Presta valve

DRIVETRAIN

REAR DERAILLEUR

SRAM GX, Type 2.1, long cage, 10-speed

SHIFT LEVERS

SRAM X5, trigger, 10-speed

CASSETTE

Sunrace, 10-speed, 11-42t

CHAIN

KMC X10, 10-speed w/ Missing Link™

CRANKSET

Stout, 76mm BCD spider

BOTTOM BRACKET

Square taper, 73mm, internal bearings

COCKPIT

STEM

Specialized, 3D forged alloy, 4-bolt, 7-degree rise

HANDLEBARS

Stout Pro Riser, double-butted alloy, 9-degree backsweep, 5-degree upsweep, 15mm rise, 700mm width, 31.8mm

GRIPS

Specialized Sip Grip, half-waffle, S/M: regular thickness, L/XL: XL thickness

SADDLE

Body Geometry Henge Comp, hollow Cr-Mo rails, 143mm

SEATPOST

Alloy, 12mm offset, 2-bolt clamp, 30.9mm

BRAKES

REAR BRAKE

Tektro Auriga, hydraulic disc, organic pads, 160mm rotor

FRONT BRAKE

Tektro Auriga, hydraulic disc, organic pads, 160mm rotor

ACCESSORIES

PEDALS

Specialized Dirt Pedals

* Weights based on production painted frames as pictured. Actual weights will vary based on colourway, frame size, and component variation. Specifications are subject to change without notice.

Geometry

Add Icon
XSSMLXL
Crank Length170MM170MM175MM175MM175MM
Handlebar Width700MM700MM700MM700MM700MM
Stem Length50MM50MM60MM60MM70MM
Saddle Width143mm143mm143mm143mm143mm
Seatpost Length350MM350MM400MM400MM400MM
BB Height, 29x2.3"317mm317mm317mm317mm317mm
Stack603mm622mm622mm636mm650mm
Reach380mm395mm415mm435mm455mm
Head Tube Length100mm100mm100mm115mm130mm
Head Tube Angle68.5°68.5°68.5°68.5°68.5°
BB Drop520mm520mm520mm520mm520mm
Trail93mm93mm93mm93mm93mm
Fork Length, Full500mm520mm520mm520mm520mm
Fork Rake/Offset46mm46mm46mm46mm46mm
Front Centre649mm671mm691mm716mm742mm
Chainstay Length435mm435mm435mm435mm435mm
Wheelbase1078mm1101mm1121mm1146mm1172mm
Top Tube Length, Horizontal553mm585mm605mm629mm654mm
Bike Standover Height715mm755mm785mm808mm841mm
Seat Tube Length330mm373mm432mm460mm510mm
Seat Tube Angle73°73°73°73°74°
