2012 Era Comp
0 Reviews
With four inches of front and rear travel, plus Specialized Brain technology suspension,…
Colour:
Gloss White/Black/Electric Blue
What's my size?
Select a Size
Product Details

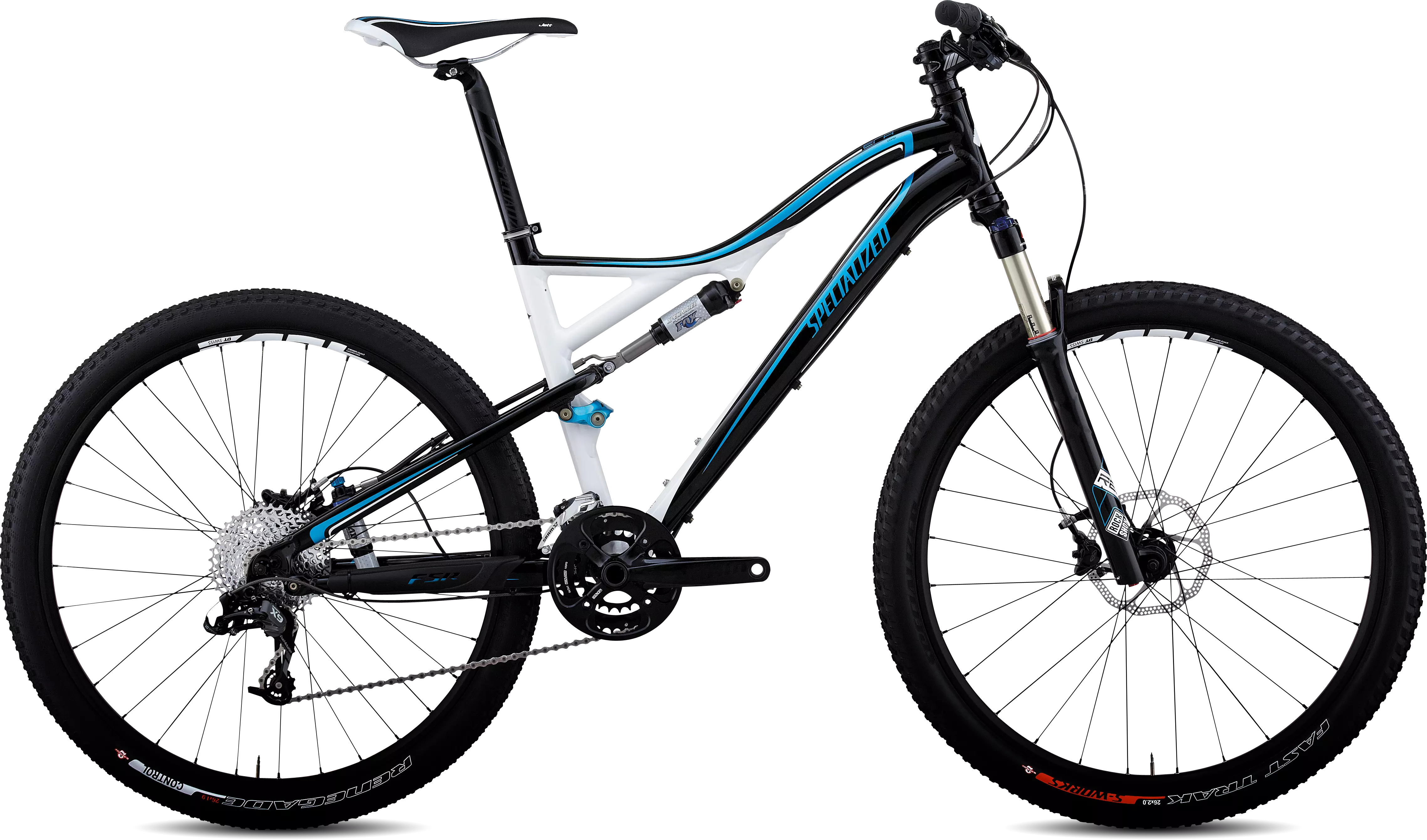

With four inches of front and rear travel, plus Specialized Brain technology suspension, the Era Comp is a versatile and efficient cross-country ride.
M5 alloy frame with 100mm of travel, women's performance geometry and tubesets creates a lightweight chassis for a premium ride quality and maximum performance, features replaceable derailleur hanger and is w/o canti bosses for 2012
Specialized and Fox put their heads together to develop the FlowControl Mini Brain shock with Brain Fade inertia valve, air spring, and adjustable rebound for racing and trail riding performance
RockShox Reba RL fork has 100mm of travel, lockout and rebound adjust for efficient and supple trail performance
Avid Elixir 7 SL hydraulic disc brakes with alloy backed semi-metallic pads and tool-less reach adjust for superb control and modulation
SRAM X9 long cage, 10-speed rear derailleur is super-tough and light, and delivers pinpoint shifts
Custom carbon SRAM 10-speed, XC Trail double-ring setup with PF30 spindle makes for an efficient and stiff crankset
Custom DT Swiss X420SL 24mm-wide rims are sleeved and eyeleted for a sturdy and lightweight package
S-Works Fast Trak 2.0" front and Renegade Control 2.0" rear 2Bliss ready, dual-compound tires deliver exceptional speed and traction, while minimizing rotating weight
Specialized Body Geometry women's Jett Comp saddle with hollow Cr-Mo rails for lightweight comfort and performance
Technical Specifications
FRAMESET
FRAME
Era FSR M5 alloy frame, women's performance geometry and tubesets, W/O canti bosses, replaceable derailleur hanger, 100mm travel
HEADSET
1-1/8"" Threadless, 10mm insertion cups, sealed cartridge bearings
SEAT BINDER
34.9mm clamp ID, 7050 hard anodized alloy collar, single bolt
SUSPENSION
REAR SHOCK
Fox/Specialized remote Mini-Brain, inertia valve, w/ Brain Fade adjust, 185x43mm
FORK
RockShox Reba RL, tapered alloy steerer, LO and reb adj. standard drop-outs, 100mm travel
WHEELS
RIMS
Custom DT Swiss X420SL, 24mm w/ eyelets, 28/32h
FRONT HUB
Specialized Hi Lo disc, laser-etched logo, OS 28 end caps, sealed cartridge bearing, RWS, 28h
REAR HUB
Specialized Hi Lo disc, laser-etched logo, double-sealed cartridge bearing, QR, 32h
SPOKES
DT Swiss Industry 2.0, (14g) stainless
FRONT TIRE
S-Works Fast Trak, 120 TPI, 2Bliss ready aramid bead, dual-compound, 26x2.0""
REAR TIRE
Specialized Renegade Control, 60 TPI, 2Bliss ready aramid bead, dual compound, 26x1.9""
DRIVETRAIN
FRONT DERAILLEUR
SRAM X7, 10-speed, S3 direct mount for DMD, top-pull
REAR DERAILLEUR
SRAM X9, 10-speed, mid cage
SHIFT LEVERS
SRAM X7, 10-speed, aluminum trigger
CASSETTE
SRAM PG-1030, 10-speed, 11-36t
CHAIN
KMC X-10, 10-speed, w/ reusable Missing Link, nickel plates
CRANKSET
Custom SRAM S-1250, 7050 alloy arms, 10-speed XC double, GXP spindle, S: 165mm, M: 170mm, L: 175mm
BOTTOM BRACKET
SRAM GXP, outboard bearing, sealed cartridge
COCKPIT
SEATPOST
2014 butted alloy, single bolt setback, 30.9mm, S/M: 350mm, Others: 400mm
STEM
Specialized XC, 3D forged alloy, 4-bolt, 31.8mm clamp, adjustable rise
HANDLEBARS
Specialized XC rise, 2014 butted alloy, 660mm wide, 8º back sweep, 31.8mm
GRIPS
Specialized XC lock-on
SADDLE
Specialized Women's Body Geometry Jett Comp, hollow Cr-Mo rails, 143mm
BRAKES
FRONT BRAKE
Custom Avid Elixir 7 SL, hydraulic disc, alloy backed semi-metallic pad, 160mm rotor
REAR BRAKE
Custom Avid Elixir 7 SL, hydraulic disc, alloy backed semi-metallic pad, 160mm rotor
BRAKE LEVERS
Custom Avid Elixir 7 SL hydraulic, tool-less reach adj.
ACCESSORIES
PEDALS
Resin Test Ride Pedals with toe clips, CEN std.
* Weights based on production painted frames as pictured. Actual weights will vary based on colourway, frame size, and component variation. Specifications are subject to change without notice.
Geometry
| S | M | L | |
|---|---|---|---|
| Ground-Top | 879mm | 897mm | 906mm |
| Bottom Bracket Height - Low Setting | 331mm | 331mm | 331mm |
| Top Tube Length (Horizontal) | 540mm | 565mm | 595mm |
| Head Tube Height | 100mm | 120mm | 130mm |
| Head Tube Angle - Low Setting | 70° | 70° | 70° |
| Seat Tube Angle (Actual) - Low Setting | 74.2° | 74.2° | 74.2° |
| Top Tube Length (Actual) | 523mm | 546mm | 576mm |
| Seat Tube Length - Centre to Top | 406mm | 432mm | 470mm |
| Wheel Base | 1048mm | 1074mm | 1104mm |
| Standover Height | 719mm | 722mm | 727mm |
| Stack | 548mm | 566mm | 575mm |
| Reach | 386mm | 405mm | 433mm |
| Chainstay Length | 425mm | 425mm | 425mm |
| Crank Length | 170mm | 170mm | 175mm |
| Handlebar Width | 640mm | 640mm | 640mm |
| Stem Length | 75mm | 75mm | 90mm |
| Seatpost Length | 350mm | 350mm | 350mm |
Manual Downloads
For safety warning please refer to the documentation in the Manual Downloads section of this page.
