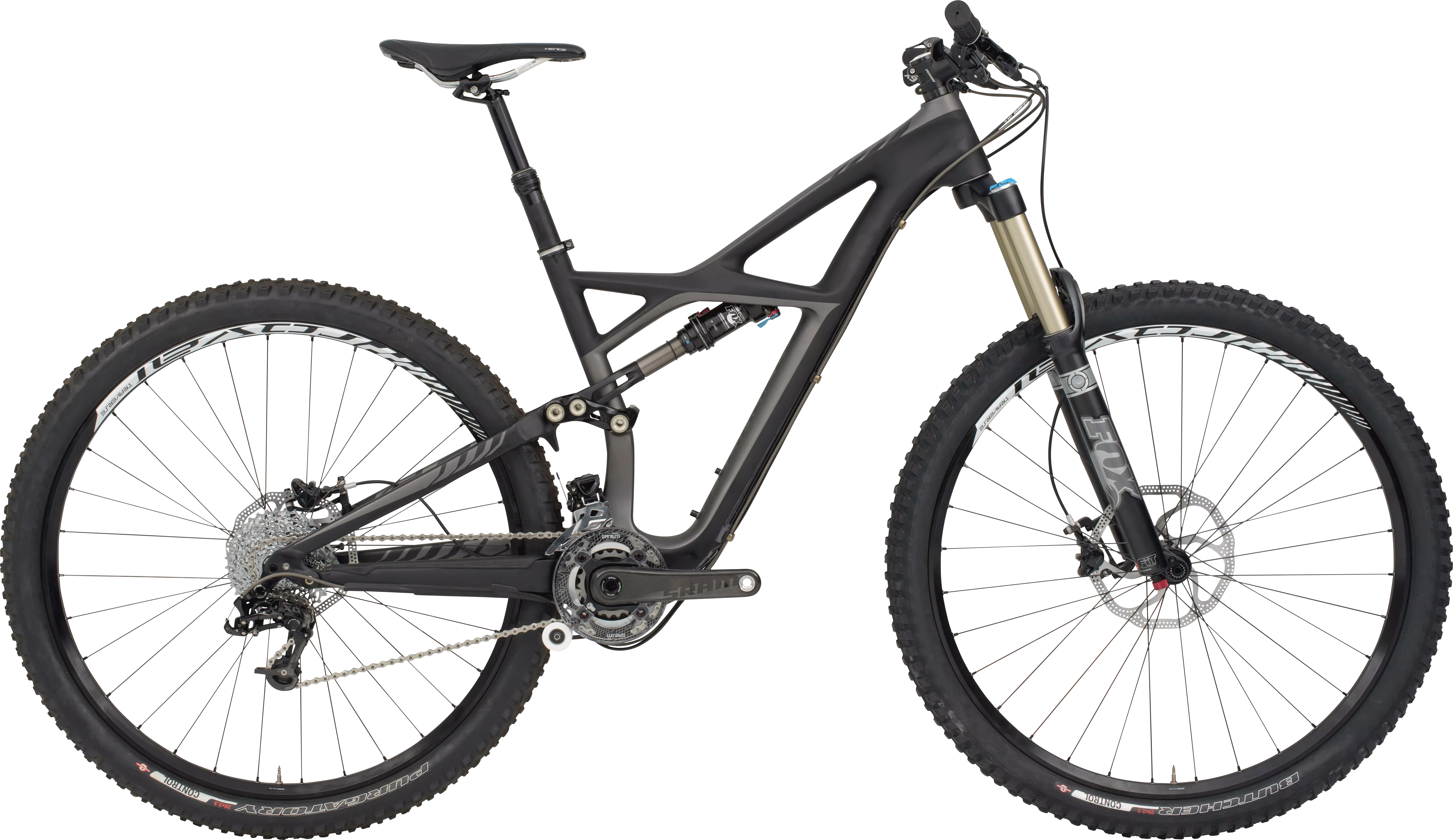

2014 Enduro Expert Carbon 29 SE
0 Reviews
The Enduro Expert Carbon 29 SE features a FACT IS-X 10m carbon front triangle,…
Colour:
Satin Carbon/Multi Decals
What's my size?
Select a Size
Product Details
The Enduro Expert Carbon 29 SE features a FACT IS-X 10m carbon front triangle, 160mm of travel, Fox RP23 Adaptive Logic shock with Boost Valve, and custom Avid X0 World Cup hydraulic disc brakes. Get some!
The ground-breaking FACT IS-X 11m carbon FSR 29 frame and M5 alloy rear triangle offers 155mnm of rear wheel travel, 142+ dropouts for robust and lightweight All-Mountain performance
Custom FOX Float CTD Performance with proprietary Specialized AUTOSAG technology features 3 compression settings and rebound adjustment
The all-new 750mm wide alloy handlebars control the new 160mm-travel RockShox Pike RCT3 fork, featuring a great blend of stiffness, light weight, tuning options, and a 15mm thru-axle for precise handling
Roval Traverse 29 All-Mountain wheelset with DT Swiss internals and spokes, 15mm thru-axle, and a 142+ rear hub spacing for durable, lightweight, and tubeless-ready performance
Super-light, custom SRAM carbon S-2200 11-speed All-Mountain double crankset with PF30 spindle, XX1-style chainring matched up with the new X01 shifting makes a quiet and reliable single-ring setup
The all-new, hidden Specialized Command Post IR uses a remote lever to adjust the saddle height on-the-fly to maximize climbing and descending performance
2Bliss ready Specialized Butcher Control 2.3" dual-compound front tire for premium control on challenging trail conditions
Technical Specifications
FRAMESET
FRAME
FACT IS-X 11m carbon front triangle, 29"" geometry, FACT IS construction, M5 rear triangle, tapered headtube, PF30 BB, ISCG '05 mounts, internal Command Post IR routing, 142+ dropouts, full cartridge bearing pivots, replaceable derailleur hanger, 155mm travel
SWAT
Bottle cage w/ SWAT Technology compatible (not included)
HEADSET
1-1/8 and 1-1/2"" threadless, Campy style upper with 1-1/2"" lower, cartridge bearings
SEAT BINDER
Command Post 34.9mm clamp, 7050 hard anodized alloy collar, single bolt
SUSPENSION
FORK
FOX 34 TALAS CTD Performance 29, air spring, tapered steerer, Climb, Trail, Descend settings and reb adj., 15mm thru-axle, 150/120mm
REAR SHOCK
Custom FOX Float CTD Performance w/ AUTOSAG, Climb, Trail, Descend settings w/ Trail and reb adj., 216x64mm
WHEELS
RIMS
Roval Traverse 29, alloy disc, 28mm wide, 32h
FRONT HUB
Roval Traverse SL 29, 15mm thru-axle end caps, 32h
REAR HUB
Roval Traverse 29 142+, 12mm thru-axle, 32h
SPOKES
DT Swiss Super Comp, 2.0/1.65/1.8 stainless
FRONT TIRE
Specialized Butcher Control, 2Bliss Ready, 29x2.3"", folding aramid bead, dual-compound, 60TPI
REAR TIRE
Specialized Purgatory Control, 2Bliss Ready, 29x2.3"", foldable aramid bead, dual-compound, 60 TPI
INNER TUBES
Ultralight presta valve
DRIVETRAIN
FRONT DERAILLEUR
SRAM, 10-speed, mid direct mount for Taco Blade, bottom pull
REAR DERAILLEUR
SRAM X0 Type 2, 10-speed, mid cage
SHIFT LEVERS
SRAM X9, 10-speed, trigger, w/ MatchMaker clamp
CASSETTE
SRAM PG-1050, 10-speed, 11-36
CHAIN
KMC X10, nickel plate, reusable Missing Link
CRANKSET
Custom SRAM carbon S-2200, 10-speed AM double, PF30 spindle, removable spider, Gamut bash guard, 175mm
CHAINRINGS
33/22
BOTTOM BRACKET
SRAM PF30, OS press-in bearings, sealed cartridge
COCKPIT
STEM
Specialized Trail, 6061 alloy, 4-bolt, 6-degree rise, 31.8mm clamp
HANDLEBARS
Specialized XC Mini-Riser, 7050 butted alloy, 720mm wide, 10mm rise, 10-degree backsweep, 6-degree upsweep, 31.8mm
GRIPS
Specialized Sip Grip, light lock-on, half-waffle aramid-infused, S/M: regular, Others: XL thickness
SADDLE
Body Geometry Henge Comp, hollow Cr-Mo rails, 143mm
SEATPOST
Specialized Command Post IR, 3-position, internally routed adjustable height w/ air spring, remote operated, single bolt head, 30.9mm, S:100mm, Others: 125mm travel
BRAKES
FRONT BRAKE
Custom Avid Elixir 7 SL, alloy-backed semi-metallic pads, HS-1 rotor, 200mm rotor
REAR BRAKE
Custom Avid Elixir 7 SL, alloy-backed semi-metallic pads, HS-1 rotor, 180mm rotor
BRAKE LEVERS
Custom Avid Elixir 7 R SL, hydraulic disc, tool-less reach adj.
* Weights based on production painted frames as pictured. Actual weights will vary based on colourway, frame size, and component variation. Specifications are subject to change without notice.
Geometry
| M | L | XL | |
|---|---|---|---|
| Top Tube Length (Horizontal) | 594mm | 617mm | 640mm |
| Seat Tube Angle (Effective) | 75° | 75° | 75° |
| Head Tube Height | 114mm | 124mm | 139mm |
| Top Tube Length (Actual) | 557mm | 577mm | 602mm |
| Seat Tube Angle (Actual) | 69° | 69° | 69° |
| Seat Tube Length - Centre to Top | 445mm | 470mm | 520mm |
| Bottom Bracket Height | 351mm | 351mm | 351mm |
| Wheel Base | 1159mm | 1183mm | 1209mm |
| Standover Height | 777mm | 783mm | 789mm |
| Stack | 632mm | 641mm | 655mm |
| Reach | 425mm | 445mm | 465mm |
| Head Tube Angle | 67.5° | 67.5° | 67.5° |
| Chainstay Length | 430mm | 430mm | 430mm |
| Crank Length | 175mm | 175mm | 175mm |
| Handlebar Width | 720mm | 720mm | 720mm |
| Stem Length | 60mm | 75mm | 90mm |
| Seatpost Length | 425mm | 425mm | 425mm |
Manual Downloads
For safety warning please refer to the documentation in the Manual Downloads section of this page.
