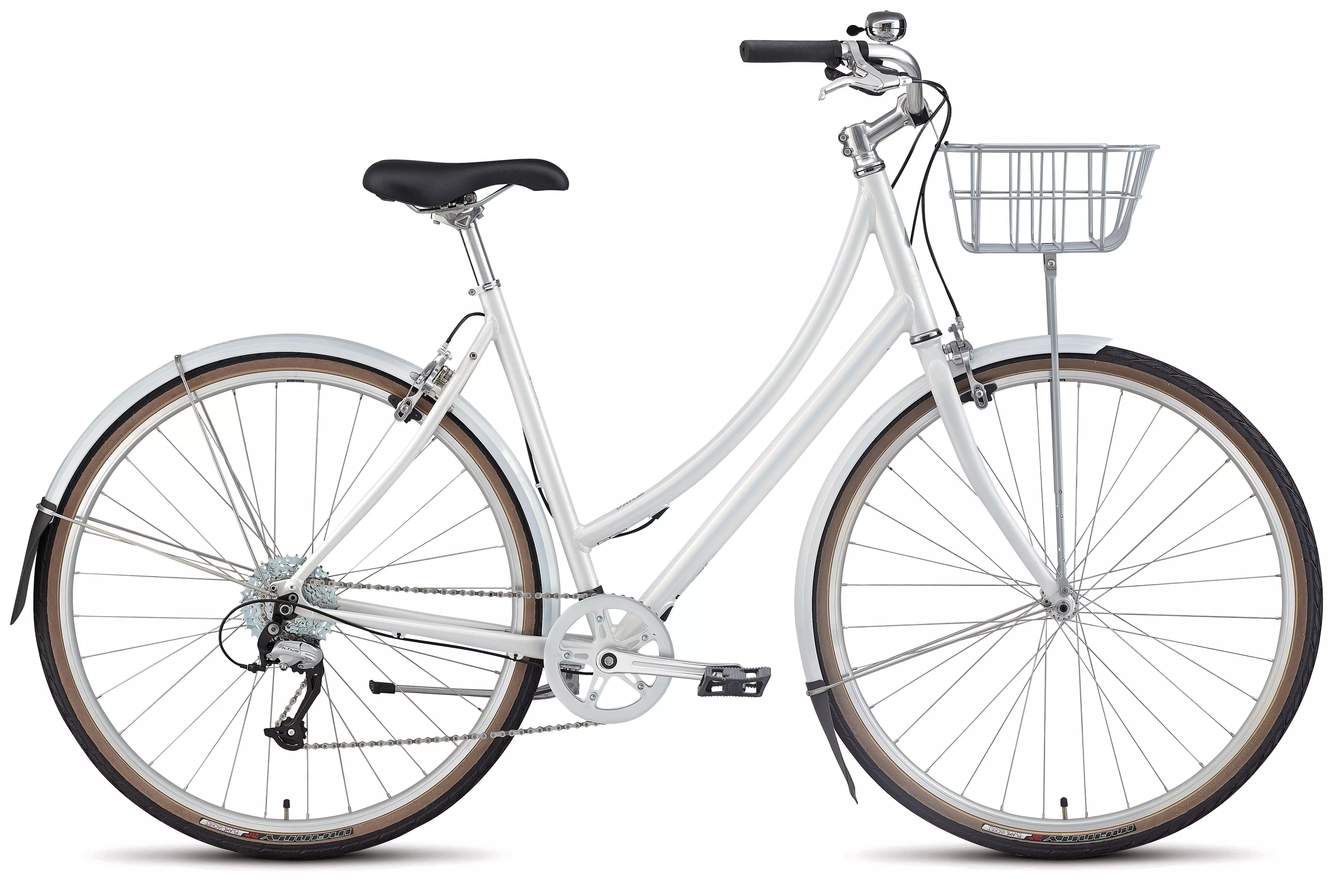

2015 Daily Sport Step Through
0 Reviews
8-speeds and integrated fenders make the Daily Sport Step Through highly practical…
Colour:
Gloss Pearl White
What's my size?
Select a Size
Product Details
8-speeds and integrated fenders make the Daily Sport Step Through highly practical for a diverse range of urban uses in varying landscapes and weather conditions. Low-standover, step-through frame improves convenience and confidence.
A1 Premium Aluminium classic city frame is stylish and lightweight w/ fender/rack mounts
Specialized Infinity 700x38c tyres w/ Flak Jacket puncture protection and reflective strip
Zeppelin-style steel fenders keep you dry and clean from road debris
Zeppelin-style steel fenders keep you dry and clean from road debris
Classic women's saddle is comfortable and durable
Specialized Body Geometry Contour grips provide plenty of comfort
A1 Premium Aluminium classic city frame is stylish and lightweight w/ fender/rack mounts
Technical Specifications
FRAMESET
FRAME
Specialized A1 Premium Aluminum Step Through, w/ fender/rack braze-ons, integrated kickstand mount
FORK
Steel, classic design, w/ accessory mounting eyelets
HEADSET
1-1/8"" Ahead, loose ball, cold-forged Cr-Mo cups
COCKPIT
HANDLEBARS
Priest City, riser bar, alloy, 61-degree backsweep, 75mm rise, 25.4mm
STEM
Ahead, forged alloy, 2-bolt, 15-degree rise
TAPE
Specialized Body Geometry Contour, Kraton, lock-on
SADDLE
Classic Women's, steel rails, 190mm
SEATPOST
Alloy, 2-bolt, micro-adjust, 12.5mm offset, 27.2mm, anti-corrosion hardware
SEAT BINDER
Alloy, 31.8mm
WHEELS
RIMS
700c, alloy double-wall, CNC sidewalls, pin joint, 24mm, 32h
FRONT HUB
Double-sealed, QR, 32h
REAR HUB
Double-sealed, QR, 32h
SPOKES
Stainless, 14g
FRONT TIRE
Specialized Infinity, 30TPI, wire bead, Flak Jacket protection,700x38c
REAR TIRE
Specialized Infinity, 30TPI, wire bead, Flak Jacket protection, 700x38c
INNER TUBES
Standard, Schrader valve
DRIVETRAIN
SHIFT LEVERS
Shimano SL-M310, 8-speed, w/ optical display
REAR DERAILLEUR
Shimano Altus, 9-speed, direct mount, SGS
CASSETTE
Sunrace, 8-speed, 11-34t
CRANKSET
Forged alloy, press-on spider, w/ chainguard
CHAINRINGS
42T
BOTTOM BRACKET
Square taper, cartridge bearings, 68mm
CHAIN
KMC Z7, silent shift, 1/2""x3/32"", reusable Missing Link
BRAKES
FRONT BRAKE
Tektro, caliper, dual pivot, tooled reach adjust
REAR BRAKE
Tektro, caliper, dual pivot, tooled reach adjust
BRAKE LEVERS
Die-cast alloy, linear pull
ACCESSORIES
PEDALS
Comfort, composite body w/ rubber top, sealed loose ball bearings
* Weights based on production painted frames as pictured. Actual weights will vary based on colourway, frame size, and component variation. Specifications are subject to change without notice.
Geometry
| S | M | L | |
|---|---|---|---|
| Top Tube Length (Horizontal) | 560mm | 575mm | 600mm |
| Rake | 60mm | 60mm | 51mm |
| Seat Tube Length, Centre to Top | 0mm | 530mm | 570mm |
| Bottom Bracket Drop | 70mm | 70mm | 70mm |
| Wheel Base | 1059mm | 1056mm | 1054mm |
| Standover Height | 528mm | 526mm | 526mm |
| Stack | 635mm | 649mm | 668mm |
| Reach | 354mm | 358mm | 377mm |
| Head Tube Length | 215mm | 225mm | 235mm |
| Head Tube Angle | 70° | 71° | 72.5° |
| Trail | 62mm | 56mm | 56mm |
| Front Centre | 627mm | 625mm | 622mm |
| Chainstay Length | 441mm | 441mm | 441mm |
| Seat Tube Angle | 72° | 71.5° | 71.5° |
| Crank Length | 170mm | 170mm | 175mm |
| Handlebar Width | 620mm | 620mm | 620mm |
| Stem Length | 90mm | 90mm | 105mm |
| Seatpost Length | 350mm | 350mm | 350mm |
