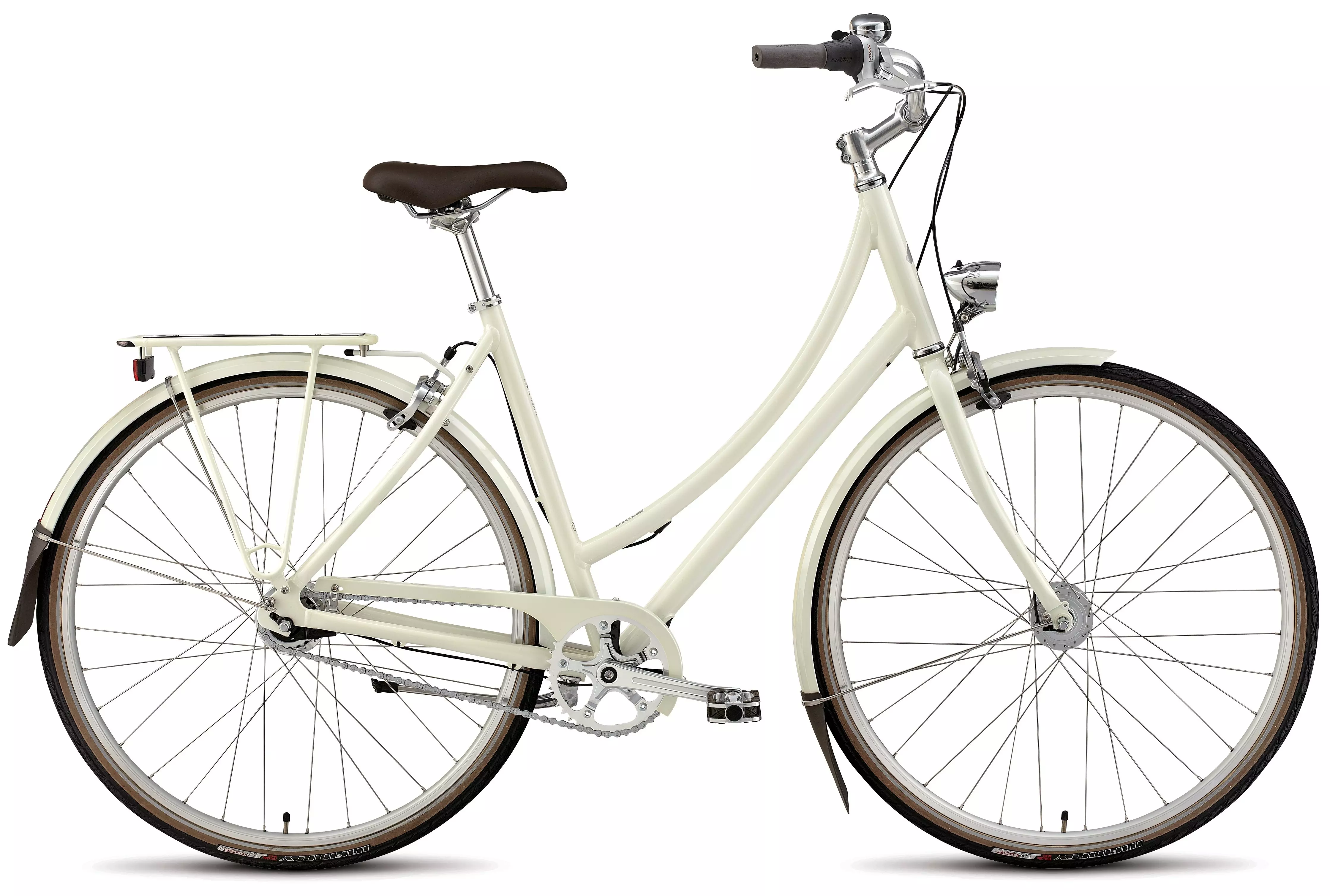

2015 Daily Elite Step Through
0 Reviews
Trouble-free Shimano Nexus 7-speed internal hub, integrated lights, rack, and fenders,…
Colour:
Gloss Cream Pearl
What's my size?
Select a Size
Product Details
Trouble-free Shimano Nexus 7-speed internal hub, integrated lights, rack, and fenders, plus reflective tyres give the Daily Elite Step Through everything you need for your daily rides in any weather, night or day. Low-standover, step-through frame improves convenience and confidence.
Zeppelin-style steel fenders keep you dry and clean from road debris
Specialized Infinity 700x38c tyres w/ Flak Jacket puncture protection and reflective strip
Shimano Nexus, 7-speed internal hub for maintenance free, accurate shifting
A1 Premium Aluminium classic city frame is stylish and lightweight w/ fender/rack mounts
Specialized Body Geometry Contour, lock-on grips for comfort and safety
Classic women's saddle is comfortable and durable
A1 Premium Aluminium classic city frame is stylish and lightweight w/ fender/rack mounts
Technical Specifications
FRAMESET
FRAME
Specialized A1 Premium Aluminium, Step Through, w/ fender/rack braze-ons, integrated kickstand mount
FORK
Steel, classic design, w/ accessory mounting eyelets
HEADSET
1-1/8"" Ahead, loose ball, cold-forged Cr-Mo cups
SEAT BINDER
Alloy, 31.8mm
WHEELS
REAR TIRE
Specialized Infinity, 30TPI, Flak Jacket protection, reflective, 700x38c
RIMS
700c, alloy double-wall, CNC sidewalls, pin joint, 24mm inner width, 32h
SPOKES
Stainless, 14g
INNER TUBES
Standard, Schrader valve
FRONT HUB
Shimano dynamo, 32h
REAR HUB
Shimano Nexus, 7-speed internal, for Roller Brake, 32h
FRONT TIRE
Specialized Infinity, 30TPI, Flak Jacket protection, reflective, 700x38c
DRIVETRAIN
SHIFT LEVERS
Shimano Nexus Revo-Shift, 7-speed
CASSETTE
Shimano Nexus, 19T
CHAIN
KMC Z510X, single speed, 1/2""x1/8"", anti-rust finish, w/ 3 pc. connector
CRANKSET
Forged alloy
CHAINRINGS
42T, forged alloy
BOTTOM BRACKET
Square taper, cartridge bearings, 68mm
COCKPIT
HANDLEBARS
Priest City, riser bar, alloy, 61-degree backsweep, 75mm rise, 25.4mm
STEM
Ahead, forged alloy, 2-bolt, 15-degree rise
TAPE
Specialized Body Geometry Contour, lock-on
SADDLE
Classic Women's, steel rails, 190mm
SEATPOST
Alloy, 2-bolt, micro-adjust, 12.5mm offset, 27.2mm, anti-corrosion hardware
BRAKES
BRAKE LEVERS
Die-cast alloy, caliper pull
FRONT BRAKE
Alloy caliper, 1 pc. pads
REAR BRAKE
Alloy caliper, 1 pc. pads
ACCESSORIES
PEDALS
Alloy, 1 pc. body, loose ball, w/ reflectors
* Weights based on production painted frames as pictured. Actual weights will vary based on colourway, frame size, and component variation. Specifications are subject to change without notice.
Geometry
| S | M | L | |
|---|---|---|---|
| Top Tube Length (Horizontal) | 560mm | 575mm | 600mm |
| Rake | 60mm | 60mm | 51mm |
| Seat Tube Length, Centre to Top | 0mm | 530mm | 570mm |
| Bottom Bracket Drop | 70mm | 70mm | 70mm |
| Wheel Base | 1059mm | 1056mm | 1054mm |
| Standover Height | 528mm | 526mm | 526mm |
| Stack | 635mm | 649mm | 668mm |
| Reach | 354mm | 358mm | 377mm |
| Head Tube Length | 215mm | 225mm | 235mm |
| Head Tube Angle | 70° | 71° | 72.5° |
| Trail | 62mm | 56mm | 56mm |
| Front Centre | 627mm | 625mm | 622mm |
| Chainstay Length | 441mm | 441mm | 441mm |
| Seat Tube Angle | 72° | 71.5° | 71.5° |
| Crank Length | 170mm | 170mm | 175mm |
| Handlebar Width | 620mm | 620mm | 620mm |
| Stem Length | 90mm | 90mm | 105mm |
| Seatpost Length | 350mm | 350mm | 350mm |
Manual Downloads
For safety warning please refer to the documentation in the Manual Downloads section of this page.
