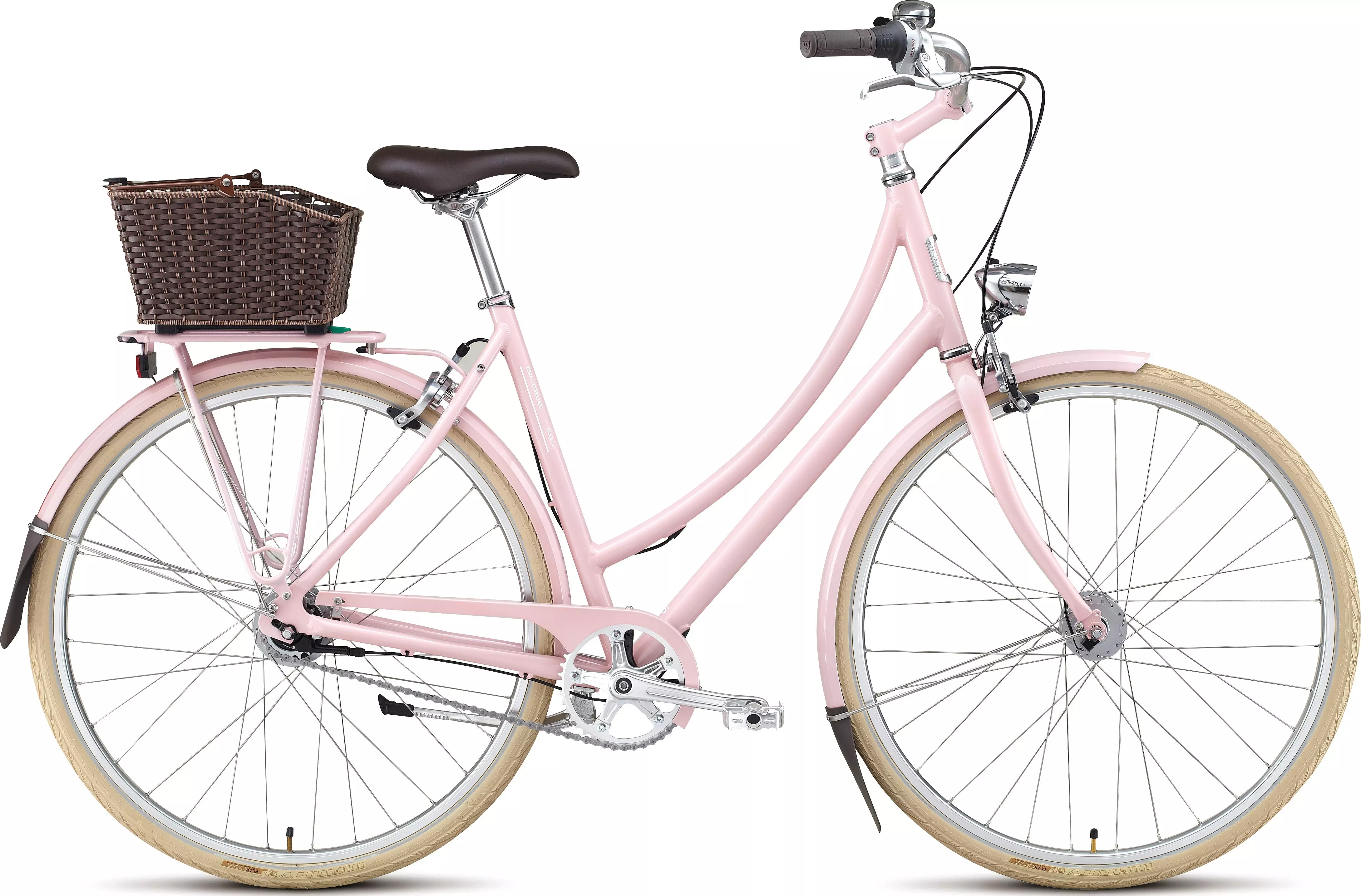

2014 Daily Deluxe 4 Step Through
0 Reviews
Trouble-free Shimano Nexus 8-speed internal hub, integrated lights, rack, and fenders,…
Colour:
Gloss Pink Pearl / Dark Brown
What's my size?
Select a Size
Product Details
Trouble-free Shimano Nexus 8-speed internal hub, integrated lights, rack, and fenders, plus reflective tyres give the Daily Deluxe 4 everything you need for your daily rides in any weather, night or day. Low-standover, step-through frame improves convenience and confidence.
Long-wearing, Specialized Infinity 700x38c tyres feature a deep, recessed tread with Flak Jacket puncture protection, and handle water and debris with ease
Simple and durable steel fork with curved legs to smooth out the road, plus accessory mounting eyelets
Long-wearing, Specialized Infinity 700x38c tyres feature a deep, recessed tread with Flak Jacket puncture protection, and handle water and debris with ease
100% StVZO compliant
Stylish Globe rear rack with integrated dynamo taillight and full Racktime compatibility
A1 Premium Aluminium classic city frame with fender/rack braze-ons and kickstand mount for versatility, style, and light weight
Ride safely, day or night, with an integrated front dynamo for LED headlight and taillight hidden in the rack
A1 Premium Aluminium classic city frame with fender/rack braze-ons and kickstand mount for versatility, style, and light weight
Technical Specifications
FRAMESET
FRAME
Globe A1 Premium Aluminum step through, w/ fender/rack braze-ons, integrated kickstand mount
FORK
Globe steel, curved blade, classic design, Globe accessory mounting eyelets
HEADSET
1-1/8"" Ahead, loose ball, cold-forged Cr-Mo cups
SEAT BINDER
Globe, forged alloy, stainless bolt, 29.8mm
WHEELS
RIMS
Alloy double-wall, CNC machined sidewalls, 32h
FRONT HUB
Shimano DH-2N35QR dynamo, QR, 32h
REAR HUB
Shimano Nexus, 8-speed internal, 32h
SPOKES
Stainless, 14g
FRONT TIRE
Specialized Infinity, 30TPI, Flak Jacket protection, reflective, 700x38c
REAR TIRE
Specialized Infinity, 30TPI, Flak Jacket protection, reflective, 700x38c
INNER TUBES
Standard Schrader valve
DRIVETRAIN
SHIFT LEVERS
Shimano Nexus, 8-speed, Revo-shift
CASSETTE
Shimano, 19T
CRANKSET
Forged alloy
CHAINRINGS
42T
BOTTOM BRACKET
Square taper, cartridge bearings, 68mm shell
CHAIN
KMC Z510XEPT, shiny anti-rust
COCKPIT
HANDLEBARS
City riser bar, alloy, 75mm rise, 61-degree backsweep, 25.4mm
STEM
Ahead, 2-bolt clamp, 15-degree rise, 25.4mm
TAPE
Globe City, Kraton, closed end
SADDLE
Globe Daily, steel rails, 190mm
SEATPOST
Alloy, 2-bolt, micro-adjust, 12.5mm offset, 27.2mm
BRAKES
FRONT BRAKE
Classic strong caliper, w/ corrosion resistant hardware, 1 pc. pad
REAR BRAKE
Cold-forged classic caliper
BRAKE LEVERS
Forged alloy, classic caliper pull, w/ rubber grip
ACCESSORIES
PEDALS
Alloy, 1 pc. body, loose ball, w/ reflectors
* Weights based on production painted frames as pictured. Actual weights will vary based on colourway, frame size, and component variation. Specifications are subject to change without notice.
Geometry
| SM | MD | LG | |
|---|---|---|---|
| Seat-Tube Angle | 72° | 71.5° | 71.5° |
| Head-Tube Length | 215mm | 225mm | 235mm |
| Seat-Post Length | 300mm | 300mm | 350mm |
| Head-Tube Angle | 70° | 71° | 72.5° |
| Chain-Stay Length | 441mm | 441mm | 441mm |
| Top-Tube Length, Horizontal | 560mm | 575mm | 600mm |
| Front-Centre | 627mm | 625mm | 622mm |
| Handle-Bar Width | 580mm | 580mm | 580mm |
| Stand-Over Height | 525mm | 514mm | 514mm |
| Seat-Tube Length, B-B Centre to Top | 480mm | 530mm | 570mm |
| Fork Rake | 60mm | 60mm | 51mm |
| B-B Drop | 70mm | 70mm | 70mm |
| Trail | 62mm | 56mm | 56mm |
| Wheelbase | 1059mm | 1056mm | 1054mm |
| Crank Length | 170mm | 170mm | 170mm |
| Stem Length | 75mm | 75mm | 90mm |
Manual Downloads
For safety warning please refer to the documentation in the Manual Downloads section of this page.
