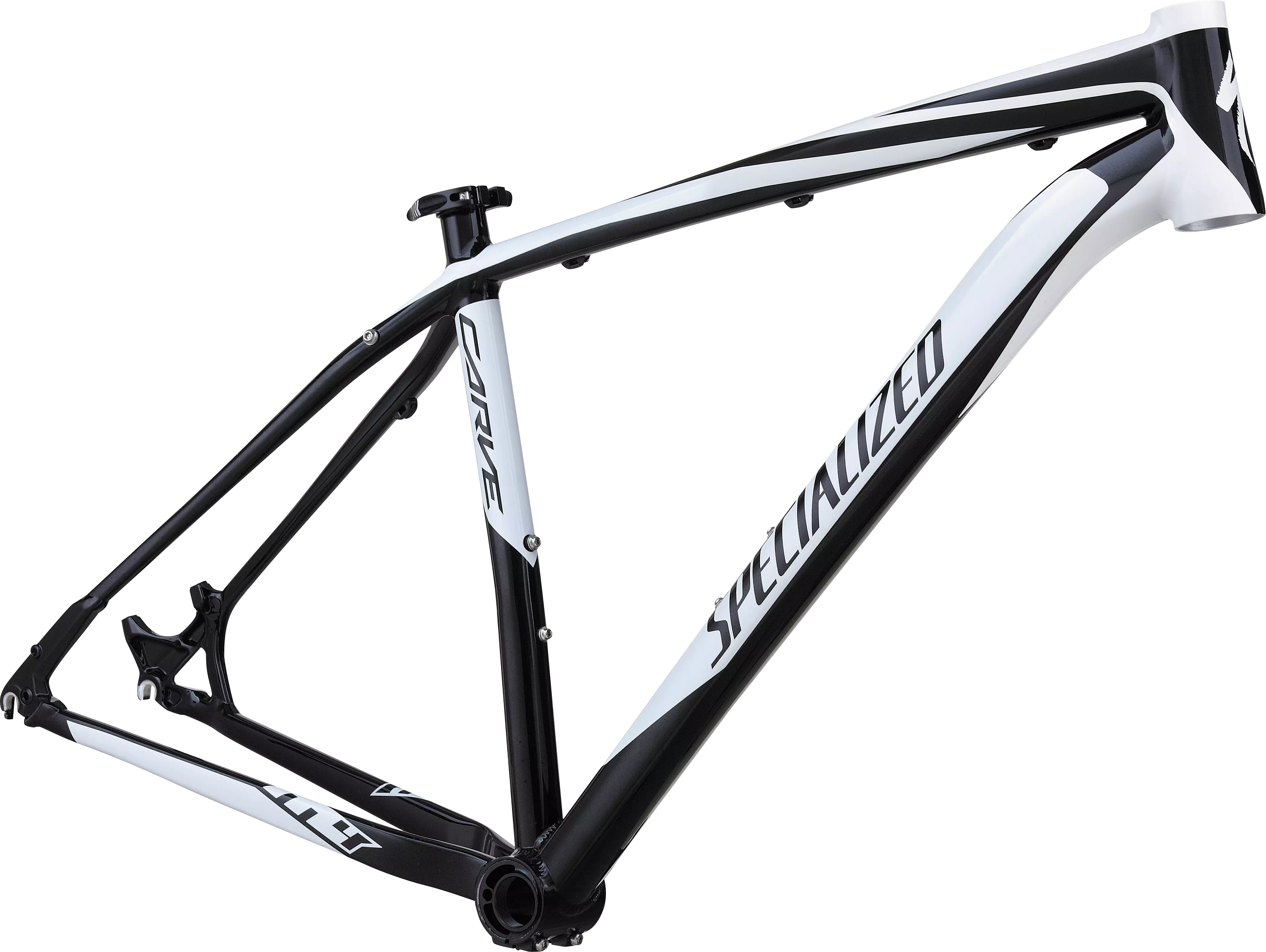

2012 Carve Pro 29 Singlespeed Frame
0 Reviews
Singlespeed riders will rejoice over the Carve Pro 29 SS frame. With an eccentric…
Colour:
Wht/Blk/Wht
What's my size?
Select a Size
Unavailable
This item is not available for Find Nearby
Product Details
Singlespeed riders will rejoice over the Carve Pro 29 SS frame. With an eccentric BB and 29" XC geometry, the singlespeed-specific Carve Pro SS frame is the ideal platform to build a simplistic, but capable, cross-country trail bike.
Fully butted, smooth-welded M4SL alloy frame is superlight, stiff, and efficient, with 29er XC geometry, integrated, tapered head tube for front-end stiffness, plus bridge-less seatstays for compliance over bumps
Frameset includes a solid, fully-integrated cartridge bearing headset and forged seat collar
Technical Specifications
FRAMESET
FRAME
Specialized M4SL fully manipulated alloy singlespeed-specific frame with eccentric BB, 29"" XC geometry, fully butted w/ smooth welding, tapered head/seat tube, forged post mount 160mm dropouts w/ replaceable derailleur hanger, disc only
HEADSET
Integrated 1-1/8"" upper and 1-1/2"" lower threadless, Campy-style, full cartridge bearings
SEAT BINDER
31.8mm, forged alloy, extruded QR lever
* Weights based on production painted frames as pictured. Actual weights will vary based on colourway, frame size, and component variation. Specifications are subject to change without notice.
Geometry
| 15.5 | 17.5 | 19.0 | 21.0 | 23.0 | |
|---|---|---|---|---|---|
| Top Tube Length (Horizontal) | 576mm | 603mm | 625mm | 650mm | 670mm |
| Seat Tube Angle (Effective) | 74° | 73° | 73° | 73° | 73° |
| Top Tube Length (Actual) | 562mm | 574mm | 594mm | 620mm | 645mm |
| Seat Tube Angle (Actual) | 71° | 71° | 71° | 71° | 71° |
| Seat Tube Length, Centre to Top | 394mm | 445mm | 483mm | 533mm | 584mm |
| Bottom Bracket Drop | 63.5mm | 63.5mm | 63.5mm | 63.5mm | 63.5mm |
| Bottom Bracket Height | 308mm | 308mm | 308mm | 308mm | 308mm |
| Wheel Base | 1070mm | 1085mm | 1108mm | 1133mm | 1154mm |
| Standover Height | 760mm | 796mm | 825mm | 859mm | 896mm |
| Stack | 615mm | 625mm | 639mm | 653mm | 672mm |
| Reach | 400mm | 412mm | 430mm | 450mm | 464mm |
| Head Tube Length | 110mm | 120mm | 135mm | 150mm | 170mm |
| Head Tube Angle | 71.5° | 71.5° | 71.5° | 71.5° | 71.5° |
| Chainstay Length | 442mm | 442mm | 442mm | 442mm | 442mm |
| Crank Length | 170mm | 175mm | 175mm | 175mm | 175mm |
| Handlebar Width | 680mm | 700mm | 700mm | 700mm | 700mm |
| Stem Length | 75mm | 75mm | 90mm | 90mm | 105mm |
| Seatpost Length | 350mm | 350mm | 400mm | 400mm | 400mm |
Manual Downloads
For safety warning please refer to the documentation in the Manual Downloads section of this page.
