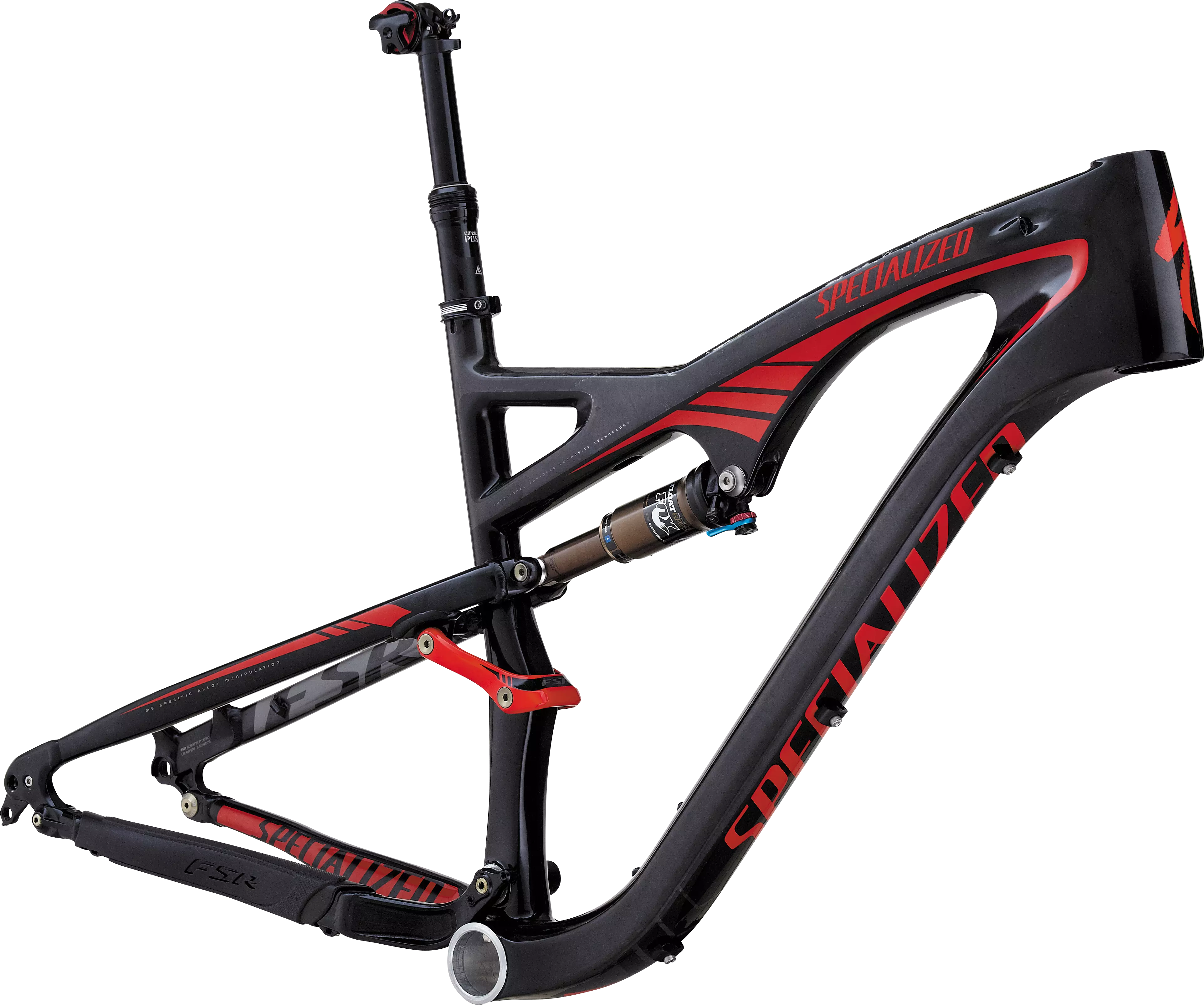

2012 Camber Carbon 29 Frame
0 Reviews
Build you own 29er trail bike weapon with this 110mm-travel Camber Carbon 29 frame,…
Colour:
Gloss/Satin Black Tint/Carbon/Red
What's my size?
Select a Size
Product Details
Build you own 29er trail bike weapon with this 110mm-travel Camber Carbon 29 frame, featuring a custom Fox RP23 Adaptive Logic shock with Kashima coating and Boost Valve.
FACT 9m carbon frame and M5 alloy rear triangle with dedicated 29er geometry create a lightweight and responsive trail weapon with 110mm of travel and Command Post cable routing
Fox RP23 Adaptive Logic shock with buttery-smooth Kashima coating features 3 open-position compression settings, ProPedal, and rebound adjustment
All-new Specialized Command Post BlackLite uses a remote lever to adjust the saddle height on-the-fly to maximize climbing and descending performance
Technical Specifications
FRAMESET
FRAME
FACT 9m front triangle, M5 rear triangle, 29"" geometry, tapered HT, internal Command Post routing, 142mm dropouts, sealed cartridge bearing pivots, disc only, replaceable derailleur hanger, bolt-on cable guides, 110mm travel
HEADSET
1-1/8 and 1-1/2"" Threadless, Campy style upper with 1-1/2"" lower, cartridge bearings
SEAT BINDER
34.9mm clamp ID, 7050 hard anodized alloy collar, single bolt
SUSPENSION
REAR SHOCK
Custom Fox RP23 Adaptive Logic with Kashima coating and Boost Valve, rebound adj., separate climbing setting and custom 3-position open comp adj., 200x49mm
COCKPIT
SEATPOST
Specialized Command Post BlackLite, 3 position, adjustable height w/air spring, remote operated, single bolt head 30.9mm, S:100mm travel, Others: 125mm
* Weights based on production painted frames as pictured. Actual weights will vary based on colourway, frame size, and component variation. Specifications are subject to change without notice.
Geometry
| S | M | L | XL | XXL | |
|---|---|---|---|---|---|
| Ground-Top | 912mm | 931mm | 950mm | 969mm | 988mm |
| Bottom Bracket Height - Low Setting | 336mm | 336mm | 336mm | 336mm | 336mm |
| Top Tube Length (Horizontal) | 560mm | 590mm | 617mm | 645mm | 665mm |
| Head Tube Height | 90mm | 110mm | 130mm | 150mm | 170mm |
| Head Tube Angle - Low Setting | 70° | 70° | 70° | 70° | 70° |
| Seat Tube Angle (Actual) - Low Setting | 71° | 71° | 71° | 71° | 71° |
| Seat Tube Angle (Effective) - Low Setting | 74° | 74° | 74° | 74° | 74° |
| Top Tube Length (Actual) | 532mm | 561mm | 587mm | 611mm | 631mm |
| Seat Tube Length - Centre to Top | 394mm | 445mm | 483mm | 533mm | 584mm |
| Wheel Base | 1087mm | 1118mm | 1147mm | 1176mm | 1198mm |
| Standover Height | 768mm | 772mm | 784mm | 801mm | 805mm |
| Stack | 582mm | 601mm | 620mm | 639mm | 658mm |
| Reach | 393mm | 418mm | 439mm | 462mm | 476mm |
| Chainstay Length | 447mm | 447mm | 447mm | 447mm | 447mm |
| Crank Length | 170mm | 175mm | 175mm | 175mm | 175mm |
| Handlebar Width | 680mm | 680mm | 680mm | 680mm | 680mm |
| Stem Length | 90mm | 90mm | 105mm | 105mm | 105mm |
| Seatpost Length | 350mm | 350mm | 400mm | 400mm | 400mm |
Manual Downloads
For safety warning please refer to the documentation in the Manual Downloads section of this page.
