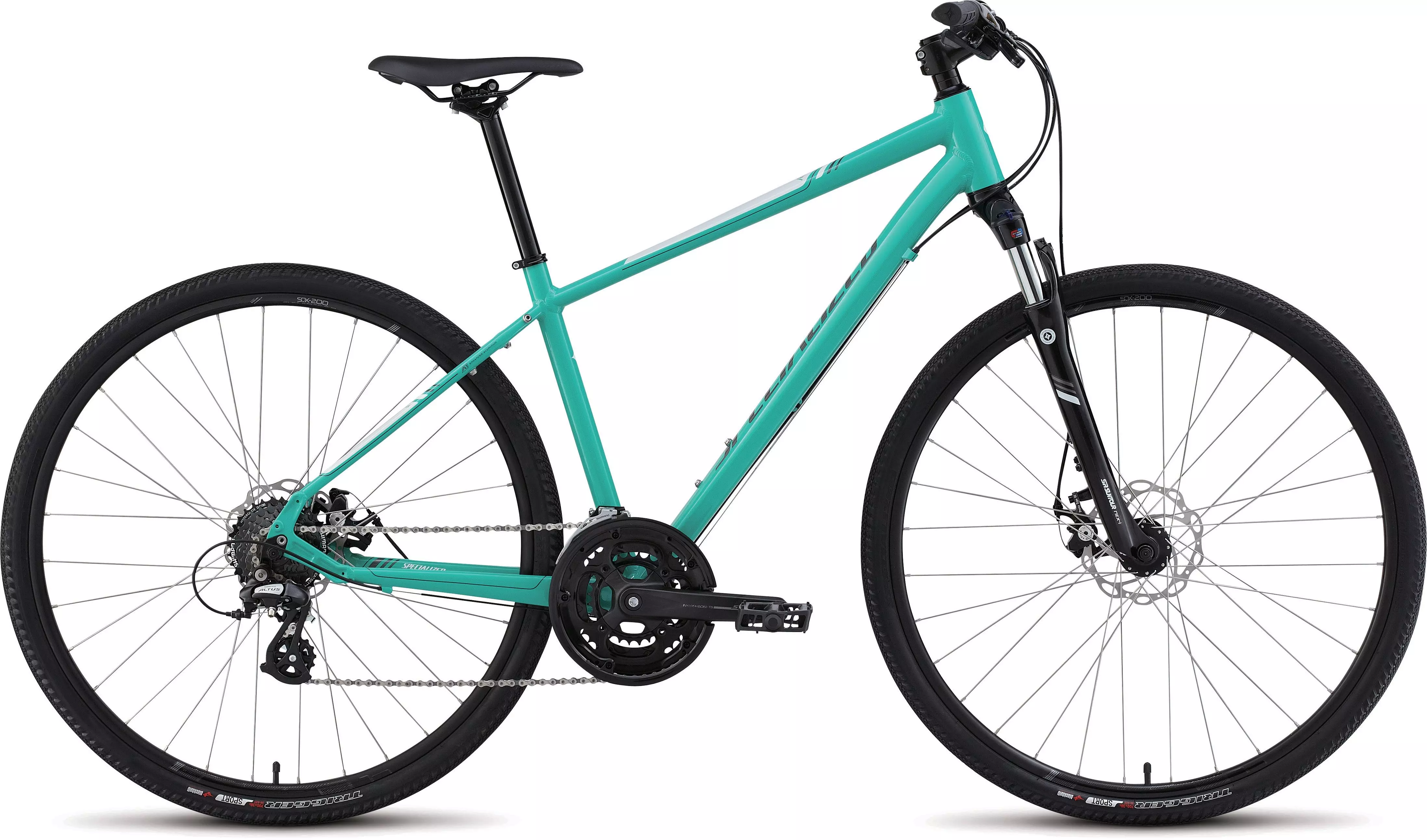

2015 Ariel Disc
5
1 Reviews
With elements of both a road bike and mountain bike, the Ariel is for the female…
Colour:
Gloss Emerald/Charcoal/White
What's my size?
Select a Size
Product Details
With elements of both a road bike and mountain bike, the Ariel is for the female rider looking to zip through the weekday commute and head out for weekend adventure. The Ariel Disc features an A1 Premium Aluminium frame with Women's Fitness Geometry, Tektro Aries mechanical disc brakes, and 63mm-travel SR Suntour fork for a plush ride.
Body Geometry Women's Riva Sport Plus saddle features generous padding for all-day comfort
Shimano Altus, 8-speed rear derailleur for clean and accurate shifting
Versatile, A1 Premium Aluminium frame w/ Women's Fitness Geometry and rack/fender mounts
Specialized Trigger Sport, 700x38c tyres provide confident traction on all surfaces
Versatile, A1 Premium Aluminium frame w/ Women's Fitness Geometry and rack/fender mounts
Custom SR Suntour NEX 63mm-travel fork w/ exclusive Multi-Circuit Damping and hydraulic lockout
Versatile, A1 Premium Aluminium frame w/ Women's Fitness Geometry and rack/fender mounts
Technical Specifications
FRAMESET
FRAME
Specialized A1 Premium Aluminium, Women's Fitness Geometry, women's double-butted tubesets, w/ fender/rack braze-ons, forged dropouts, kickstand mount
HEADSET
Ahead, semi-integrated, loose ball, 8mm cone spacer
SEAT BINDER
Alloy, 31.8mm
SUSPENSION
FORK
Custom SR Suntour NEX, w/ custom Multi-Circuit Damping, alloy lowers, custom coil spring weights, Hi-Ten 28mm stanchions, 1-1/8"" steerer, hydraulic lockout w/ preload adjust, disc mount, 63mm travel
WHEELS
RIMS
700c disc, alloy double-wall, pin joint, 32h
FRONT HUB
Specialized Hi Lo disc, alloy double-sealed, ground race, QR, 32h
REAR HUB
Specialized Hi Lo disc, alloy, double-sealed, loose ball bearings, QR, 32h
SPOKES
Stainless, 14g
FRONT TIRE
Specialized Trigger Sport, 60TPI, wire bead, BlackBelt protection, 700x38c
REAR TIRE
Specialized Trigger Sport, 60TPI, wire bead, BlackBelt protection, 700x38c
INNER TUBES
Standard, Schrader valve
DRIVETRAIN
FRONT DERAILLEUR
Shimano FD-M191, top swing, dual-pull
REAR DERAILLEUR
Shimano Altus, 8-speed
SHIFT LEVERS
Shimano Acera, 8-speed
CASSETTE
Shimano, 8-speed, 12-32
CHAIN
KMC X8, 8-speed w/reusable MissingLink
CRANKSET
Stout, forged alloy
CHAINRINGS
48/38/28
BOTTOM BRACKET
Square taper, cartridge bearings
COCKPIT
STEM
Specialized, forged alloy, 4-bolt, 10-degree rise
HANDLEBARS
Specialized riser, alloy, 8-degree backsweep, 4-degree upsweep, 25mm rise, 25.4mm
GRIPS
Specialized Body Geometry XCT Women's, lock-on, closed end
SADDLE
Body Geometry Women's Riva Sport Plus, steel rails, 155mm
SEATPOST
Alloy, 2-bolt, micro-adjust, 12.5mm offset, 27.2mm, anti-corrosion hardware
BRAKES
FRONT BRAKE
Tektro Aries, mechanical disc, organic pads, 160mm rotor
REAR BRAKE
Tektro Aries, mechanical disc, organic pads, 160mm rotor
BRAKE LEVERS
Tektro SPL-01, die-cast alloy, trigger shifter
ACCESSORIES
PEDALS
Composite platform, w/ reflectors, 9/16""
* Weights based on production painted frames as pictured. Actual weights will vary based on colourway, frame size, and component variation. Specifications are subject to change without notice.
Geometry
| XS | S | M | L | XL | |
|---|---|---|---|---|---|
| Seat-Tube Angle | 73° | 73° | 73° | 73° | 73° |
| Head-Tube Length | 85mm | 105mm | 120mm | 135mm | 160mm |
| Seat-Post Length | 350mm | 350mm | 350mm | 350mm | 350mm |
| Head-Tube Angle | 70° | 70° | 70° | 70° | 70° |
| Chain-Stay Length | 445mm | 445mm | 445mm | 445mm | 445mm |
| Top-Tube Length, Horizontal | 560mm | 572mm | 585mm | 600mm | 615mm |
| Front-Centre | 616mm | 629mm | 643mm | 658mm | 675mm |
| Handle-Bar Width | 660mm | 680mm | 680mm | 680mm | 680mm |
| Stand-Over Height | 699mm | 738mm | 771mm | 804mm | 849mm |
| Seat-Tube Length, B-B Centre to Top | 345mm | 395mm | 440mm | 485mm | 550mm |
| Fork Rake | 38mm | 38mm | 38mm | 38mm | 38mm |
| B-B Drop | 60mm | 60mm | 60mm | 60mm | 60mm |
| Trail | 91mm | 91mm | 91mm | 91mm | 91mm |
| Wheelbase | 1054mm | 1067mm | 1081mm | 1097mm | 1113mm |
| Crank Length | 170mm | 175mm | 175mm | 175mm | 175mm |
| Stem Length | 60mm | 70mm | 70mm | 90mm | 90mm |
Manual Downloads
For safety warning please refer to the documentation in the Manual Downloads section of this page.
