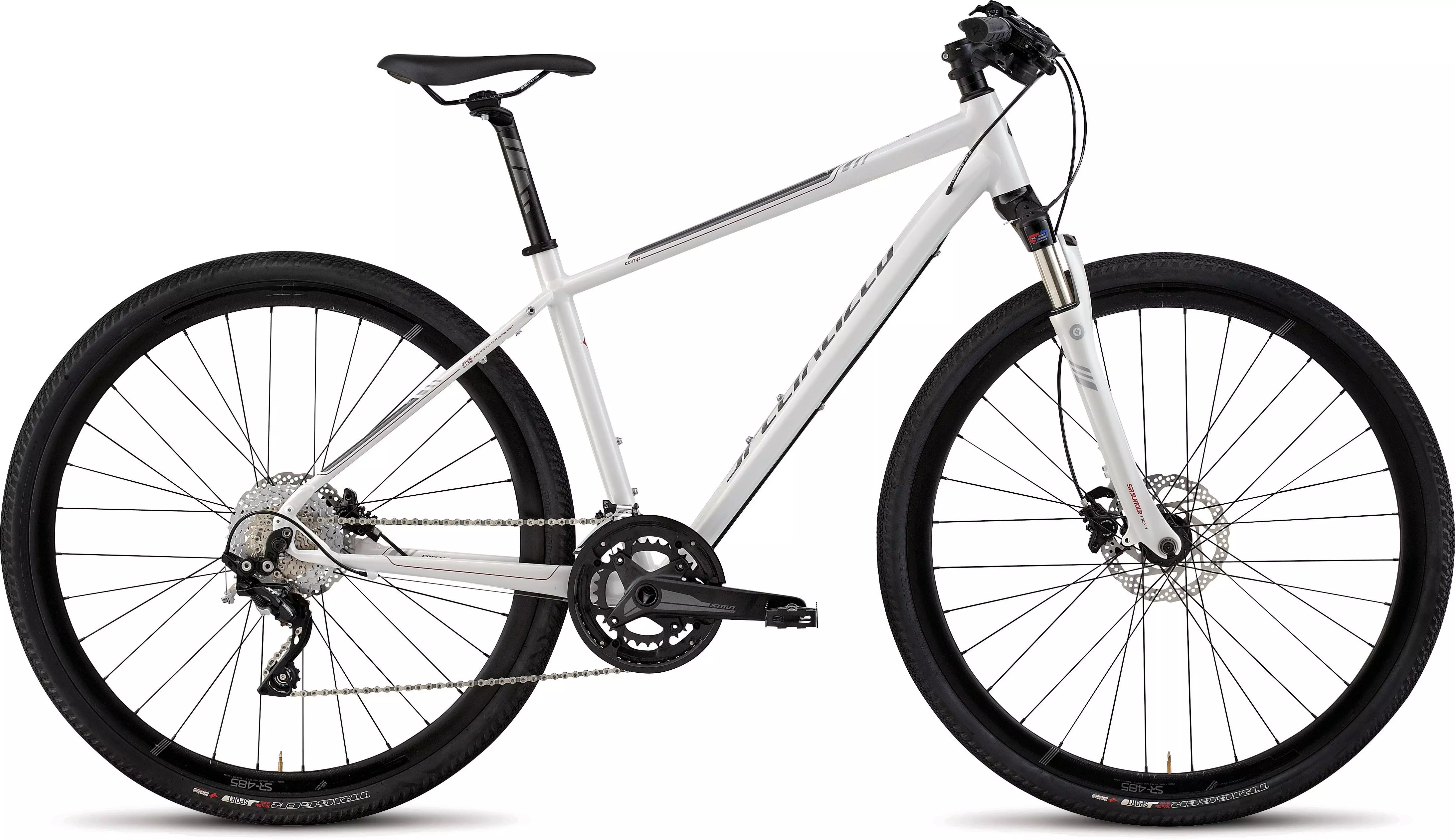

2015 Ariel Comp Disc
0 Reviews
With elements of both a road bike and mountain bike, the Ariel is for the female…
Colour:
Gloss Pearl White/Charcoal/Flo Red
What's my size?
Select a Size
Product Details
With elements of both a road bike and mountain bike, the Ariel is for the female rider looking to zip through the weekday commute and head out for weekend adventure. The Ariel Comp Disc features an M4 Premium Aluminium frame with Women's Fitness Geometry, Shimano hydraulic disc brakes, and 50mm-travel SR Suntour fork for a plush ride.
Lightweight, M4 Aluminium smooth-welded frame w/ Women's Fitness Geometry
Body Geometry Women's Riva Comp saddle features generous padding for all-day comfort
Shimano XT, 10-speed rear derailleur provides confident, crisp shifting
Lightweight, M4 Aluminium smooth-welded frame w/ Women's Fitness Geometry
Body Geometry Women's Riva Comp saddle features generous padding for all-day comfort
Body Geometry Women's Riva Comp saddle features generous padding for all-day comfort
Body Geometry Women's Riva Comp saddle features generous padding for all-day comfort
Technical Specifications
FRAMESET
FRAME
Specialized M4 Aluminium, Women's Fitness Geometry, women's double-butted tubesets w/ smooth welds, fender/rack braze-ons, forged dropouts, kickstand mount
HEADSET
Ahead, cartridge bearings, alloy top cap, 8mm cone spacer
SEAT BINDER
Alloy, 31.8mm
SUSPENSION
FORK
Custom SR Suntour NCX, w/ custom Multi-Circuit Damping, custom coil/MCU spring weights, integrated remote hydraulic lockout lever, mag lowers, Cr-Mo stanchions, 50mm travel
WHEELS
RIMS
700c disc, alloy, sleeve joint, 32h
FRONT HUB
Specialized Hi Lo disc, alloy, RCC bearing system, QR, 32h
REAR HUB
Specialized Hi Lo disc, alloy, RCC bearing system, QR, 32h
SPOKES
Stainless, 14g, black
FRONT TIRE
Specialized Trigger Sport, 60TPI, wire bead, BlackBelt protection, 700x38c
REAR TIRE
Specialized Trigger Sport, 60TPI, wire bead, BlackBelt protection, 700x38c
INNER TUBES
Standard, Schrader valve
DRIVETRAIN
FRONT DERAILLEUR
Shimano SLX, top swing, dual-pull
REAR DERAILLEUR
Shimano XT Shadow, 10-speed, SGS cage
SHIFT LEVERS
Shimano SLX, 10-speed, trigger
CASSETTE
Shimano SLX, 10-speed, 11-36
CHAIN
KMC X10, 10-speed w/reusable MissingLink
CRANKSET
Specialized Stout SL, 2 pc., 10-speed, w/ chainguard
CHAINRINGS
44/32
COCKPIT
STEM
Specialized 3D forged alloy, 4-bolt, 6-degree rise, anti-corrosion hardware
HANDLEBARS
Specialized flat, 6061 double butted alloy, 9-degree backsweep, 31.8mm
GRIPS
Specialized Body Geometry XCT Women's, lock-on, closed end
SADDLE
Body Geometry Women's Riva Comp, hollow Cr-Mo rails, 155mm
SEATPOST
Specialized alloy, 2-bolt, 15mm offset, 27.2mm
BRAKES
FRONT BRAKE
Shimano BR-M446, hydraulic disc, dual piston
REAR BRAKE
Shimano BR-M446, hydraulic disc, dual piston
BRAKE LEVERS
Shimano BL-M445, hydraulic
ACCESSORIES
PEDALS
Light alloy, loose ball, w/ reflectors
* Weights based on production painted frames as pictured. Actual weights will vary based on colourway, frame size, and component variation. Specifications are subject to change without notice.
Geometry
| XS | S | M | L | XL | |
|---|---|---|---|---|---|
| Seat-Tube Angle | 73° | 73° | 73° | 73° | 73° |
| Head-Tube Length | 85mm | 105mm | 120mm | 135mm | 160mm |
| Seat-Post Length | 350mm | 350mm | 350mm | 350mm | 350mm |
| Head-Tube Angle | 70° | 70° | 70° | 70° | 70° |
| Chain-Stay Length | 445mm | 445mm | 445mm | 445mm | 445mm |
| Top-Tube Length, Horizontal | 560mm | 572mm | 585mm | 600mm | 615mm |
| Front-Centre | 614mm | 627mm | 641mm | 657mm | 673mm |
| Handle-Bar Width | 660mm | 680mm | 680mm | 680mm | 680mm |
| Stand-Over Height | 691mm | 729mm | 762mm | 794mm | 840mm |
| Seat-Tube Length, B-B Centre to Top | 345mm | 395mm | 440mm | 485mm | 550mm |
| Fork Rake | 38mm | 38mm | 38mm | 38mm | 38mm |
| B-B Drop | 60mm | 60mm | 60mm | 60mm | 60mm |
| Trail | 91mm | 91mm | 91mm | 91mm | 91mm |
| Wheelbase | 1052mm | 1065mm | 1079mm | 1095mm | 1111mm |
| Crank Length | 170mm | 175mm | 175mm | 175mm | 175mm |
| Stem Length | 60mm | 70mm | 70mm | 90mm | 90mm |
