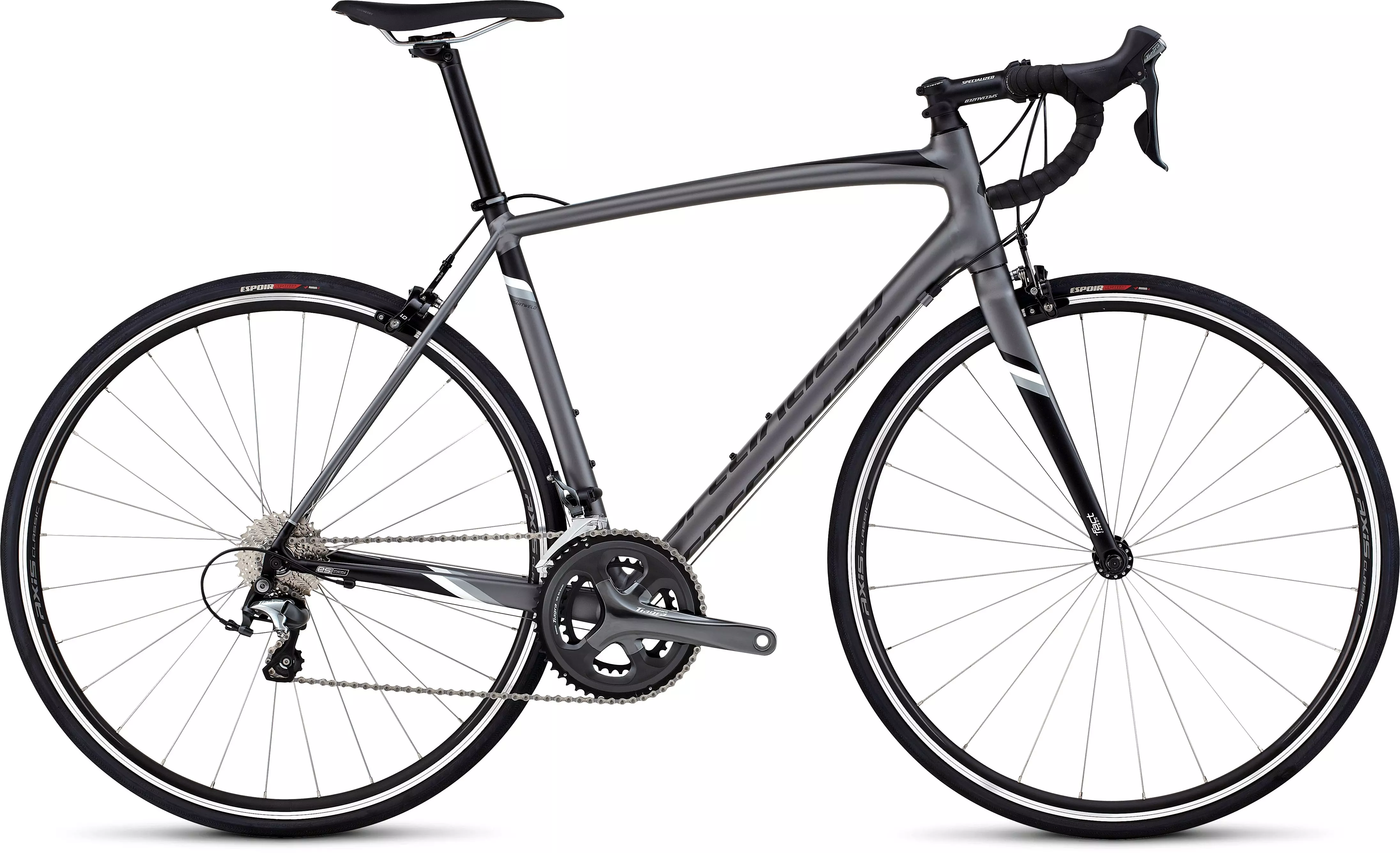

2016 Allez DSW Elite

The Allez DSW Elite is a race-ready road bike that's itching to get to the finish…

Colour:

Satin Charcoal/Black/Silver/White

What's my size?

Imperial

Metric

Enter your height and we'll calculate your size.

Height:

For a more accurate result, include your shin length.

Select a Size

Choose the colour and size you're looking for to search nearby store inventory.

Unavailable

This item is not available for Find Nearby

Product Details

The Allez DSW Elite is a race-ready road bike that's itching to get to the finish line. With its newly revised Shimano Tiagra drivetrain, coupled with the revolutionary E5 Premium Aluminium frame featuring D'Aluisio Smartweld Technology, it's a bike that's just begging to be put through the paces.

E5 Premium Aluminum frame with D'Aluisio Smartweld Technology refocuses weld locations, allowing for more material to be placed where it's needed for increased stiffness and compliance.
Specialized FACT carbon fiber fork with alloy crown and steerer provides all the stiffness and ride benefits of carbon in a more accessible package.
Specialized FACT carbon fibre fork with alloy crown and steerer provides all the stiffness and ride benefits of carbon in a more accessible package.

Technical Specifications

FRAMESET

FRAME

New Specialized E5 Premium Aluminium w/ D'Aluisio Smartweld Technology, 1-1/8" lower bearing, threaded BB

HEADSET

1-1/8"", integrated sealed Cr-Mo cartridge bearings, 20mm alloy cone spacer, w/ 20mm spacers

SUSPENSION

FORK

FACT carbon fibre

COCKPIT

HANDLEBARS

Specialized Shallow Drop, alloy, 125mm drop, 70mm short-reach

STEM

Specialized 3D forged alloy, 4-bolt, 6-degree rise

TAPE

Specialized S-Wrap

SADDLE

Body Geometry Toupé Sport, steel rails, 143mm

SEATPOST

Specialized Sport, alloy, 2-bolt, 27.2mm

SEAT BINDER

Specialized, alloy, 2-bolt, 27.2mm

WHEELS

FRONT WHEEL

AXIS Classic

REAR WHEEL

AXIS Classic

FRONT TYRE

Espoir Sport, 700x25mm, 60TPI, wire bead, double BlackBelt protection

REAR TYRE

Espoir Sport, 700x25mm, 60TPI, wire bead, double BlackBelt protection

INNER TUBES

Standard, Presta valve

DRIVETRAIN

SHIFT LEVERS

Shimano Tiagra STI, 10-speed

FRONT DERAILLEUR

Shimano Tiagra, clamp-on

REAR DERAILLEUR

Shimano Tiagra 4700, 10-speed

CASSETTE

Shimano Tiagra, 10-speed, 12-28t

CRANKSET

Shimano Tiagra, compact, 50/34T

CHAIN

KMC X10, 10-speed, w/ reusable MissingLink

BRAKES

FRONT BRAKE

AXIS 1.0

REAR BRAKE

AXIS 1.0

ACCESSORIES

PEDALS

Nylon, loose ball bearings, w/ reflectors

* Weights based on production painted frames as pictured. Actual weights will vary based on colourway, frame size, and component variation. Specifications are subject to change without notice.
