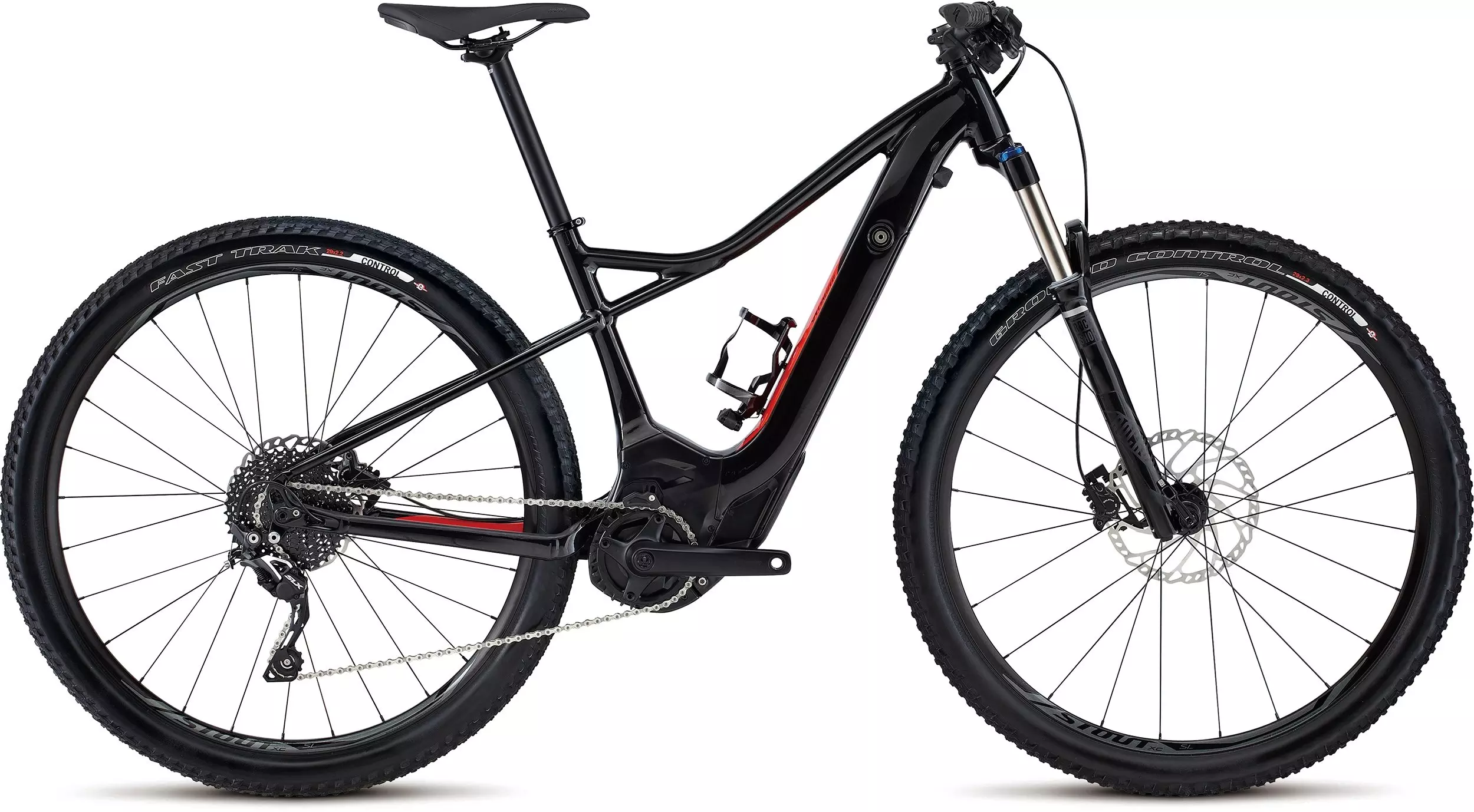

Women's Turbo Levo Hardtail 29
FRAME
Specialized M5 Premium Aluminum, Women's Trail HT Geometry, integrated down tube battery, enclosed internal cable and Command Post IR routing, 148mm spacing
SEAT BINDER
Alloy, 31.8mm
FORK
RockShox Recon Silver RL 29/27.5+, 15x110mm Maxle Lite thru-axle, Solo Air spring, adjustable rebound and lockout, 110/120mm of travel (size specific)
REAR HUB
Specialized disc, alloy, sealed cartridge bearings, 12x148mm thru-axle, 28h
FRONT HUB
Specialized disc, alloy, sealed cartridge bearings, 110x15mm thru-axle, 24h
RIMS
Specialized 29, alloy disc, 23mm inner width, 24/28h
REAR TIRE
Fast Trak, Control casing, 29x2.2"", 60TPI, Aramid folding bead, 2Bliss Ready
FRONT TIRE
Ground Control, Control casing, 29x2.3"", 60TPI, Aramid folding bead, 2Bliss Ready
SPOKES
Stainless, 14g, black
INNER TUBES
29x1.75/2.4"", 40mm Presta valve
REAR SHOCK
Integrated in motor
CASSETTE
Sunrace, 10-speed, 11-40t
SHIFT LEVERS
Shimano Deore, RapidFire Plus, 10-speed
REAR DERAILLEUR
Shimano SLX, Shadow Plus, SGS cage, 10-speed
CHAINRINGS
32T
CRANKSET
Custom alloy crankarms
CHAIN
SRAM PC1031, 11-speed w/PowerLink
STEM
Specialized, 3D-forged alloy, 4-bolt, 6-degree rise, 31.8mm clamp
SADDLE
Women's Body Geometry Myth Sport, steel rails, 155mm
SEATPOST
Alloy, 2-bolt clamp, 12.5mm offset, 30.9mm, anti-corrosion hardware
GRIPS
Specialized Body Geometry XCT Women's, lock-on
HANDLEBARS
Specialized, 6061 alloy, 6-degree upsweep, 8-degree backsweep, 27mm rise, 720mm width
CHARGER
Custom charger, 42V4A w/Rosenberger plug
BATTERY
Custom LEVO battery, 460Wh, 40x3.2Ah, ANT+/Bluetooth connectivity, IP 67
MOTOR
Custom & exclusive for Specialized, Trail tuned, 250 W
WIRING HARNESS
Custom harness w/ Rosenberger plug
UI/REMOTE
Integrated Trail display, 10-LED battery display, Mission Control iOS/Android App
REAR BRAKE
Shimano Deore BL-M506, hydraulic disc, resin pad, 180mm rotor
FRONT BRAKE
Shimano Deore BL-M506, hydraulic disc, resin pad, 200mm rotor
PEDALS
Alloy platform
* Weights based on production painted frames as pictured. Actual weights will vary based on colorway, frame size, and component variation. Specifications are subject to change without notice.
S | M | L | |
---|---|---|---|
Crank Length | 165mm | 165mm | 170mm |
Handlebar Width | 720mm | 720mm | 720mm |
Stem Length | 45mm | 60mm | 60mm |
Saddle Width | 155mm | 155mm | 155mm |
Seatpost Length | 350mm | 350mm | 400mm |
Seat Tube Length, Center to Top | 390mm | 425mm | 450mm |
Bottom Bracket Drop | 55mm | 55mm | 55mm |
Bottom Bracket Height | 308mm | 308mm | 308mm |
Seat Tube Angle, Effective | 74° | 73° | 73° |
Wheel Base | 1121mm | 1144mm | 1177mm |
Standover Height | 688mm | 710mm | 723mm |
Fork Length (full) | 510mm | 530mm | 530mm |
Stack | 598mm | 616mm | 635mm |
Reach | 385mm | 400mm | 425mm |
Head Tube Length | 100mm | 100mm | 120mm |
Head Tube Angle | 67° | 67° | 67° |
Chainstay Length | 450mm | 450mm | 450mm |
Top Tube Length, Horizontal | 568mm | 588mm | 619mm |
