Turbo X CE
R54,999.00
Part No.:

Turbo X CE

R54,999.00
Part No.:  115934
load-spinner
Turbo X CE
Overview
Technical Specifications
Geometry

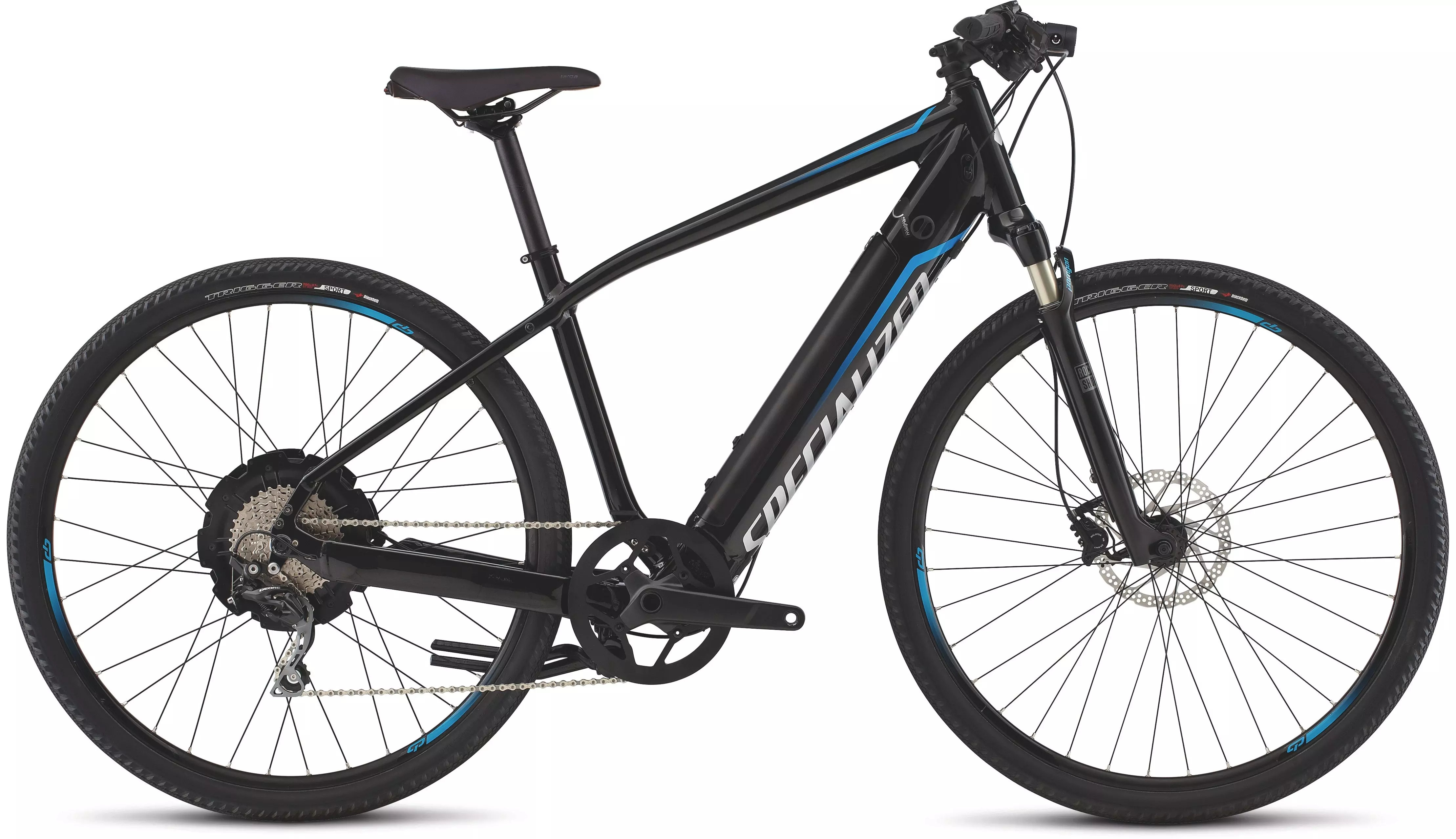

With its elegant design and smooth, powerful electric assist motor capable of an easy cruising speed of 28mph, the Turbo X is one of the most versatile e-bikes around. Coupled with its high-capacity battery and RockShox suspension fork to help smooth out the ride, the Turbo X will take you places you never dreamed—and damn fast too.
  • The Turbo Clean Cockpit puts all the controls at your thumb tips, with an illuminated display and regenerative braking options to help keep your battery charged up in a pinch.
  • The custom Turbo S Specialized motor is the most powerful version available and capable of smooth and rapid accelerations in any conditions.
  • The Turbo integrated down tube battery has a self-locking key release to prevent theft as well as handy LED power indicators to give you charge levels at a glance.
  • The RockShox Paragon suspension fork has 50mm of travel to smooth out any bumps, potholes, or other road debris that gets in the way.
  • Its tough and elegant alloy frame with Performance Geometry makes riding at speed feel just as safe and natural as a non electric assist bike.

Technical Specifications

DRIVETRAIN
CHAIN KMC X10, 10-speed, w/ reusable MissingLink
BOTTOM BRACKET FSA MegaExo, outer-style
CRANKSET Chainway 2 pc. w/ 3mm alloy bashguard
SHIFT LEVERS Shimano Deore, 10-speed
CASSETTE Shimano, 10-speed, 11-36t
CHAINRINGS 48T
REAR DERAILLEUR Shimano Deore Shadow, 10-speed
E-Bike
BATTERY Turbo Integrated down tube battery, self-locking key release, on-board or off-bike charge capable, LED power indicators, start-up diagnostic feature, magnetic connectors, 562Wh capacity, w/ ANT and Bluetooth
USER INTERFACE/REMOTE Turbo Clean Cockpit, integrated thumb control, illuminated display
WIRING Wiring harness
CHARGER Custom Specialized, 42V4A, w/ Rosenberger plug
MOTOR Turbo S Specialized Motor, 250Watt, X12 axle
COCKPIT
SADDLE Body Geometry Targa Sport, 155mm, w/ rear light integration
SEATPOST Alloy, 2-bolt, micro-adjust, 12.5mm offset, 30.9mm
STEM Specialized, 3D forged alloy, 4-bolt, 7-degree rise
HANDLEBARS Specialized, flat bar, double-butted 6061 alloy, 9-degree backsweep, 31.8mm
GRIPS Specialized Body Geometry XCT, dual compound, lock-on
WHEELS
FRONT HUB Specialized, Hi Lo disc, alloy, RCC bearing system, QR, 36h
SPOKES Stainless, 2.3/2.0/2.0mm
RIMS 700c disc, alloy double-wall, pin joint, w/ eyelets, 36h
FRONT TYRE Specialized Trigger Sport, 60TPI, wire bead, BlackBelt protection, 700x47mm
REAR TYRE Specialized Trigger Sport, 60TPI, wire bead, BlackBelt protection, 700x47mm
BRAKES
FRONT BRAKE Shimano Deore BR-M506, resin pads, 180mm rotor
REAR BRAKE Shimano Deore BR-M506, resin pads, 180mm rotor
ACCESSORIES
PEDALS Platform, SC bearing/bushing system, 9/16"
FRAMESET
HEADSET 1-1/8" upper/lower, threadless, Campy style, cartridge bearings
SEAT BINDER Alloy, 31.8mm
FORK RockShox Paragon, 50mm travel
FRAME Turbo alloy, smooth welds, suspension optimized geometry, fully-integrated down tube battery, internal cable routing, 700c, X12 thru-axle dropout, full fender/rack mounts

Geometry

Geometry Chart

Turbo - Geometry

  SM MD LG XL
Stem Length 80mm 80mm 90mm 100mm
Crank Length 170mm 175mm 175mm 175mm
Handle-Bar Width 580mm 580mm 580mm 580mm
Wheelbase 1079mm 1097mm 1111mm 1131mm
Seat-Tube Length, B-B Center to Top 420mm 460mm 500mm 540mm
Head-Tube Length 155mm 165mm 175mm 185mm
Top-Tube Length, Horizontal 584mm 602mm 615mm 635mm
Front-Center 633mm 652mm 665mm 685mm
Head-Tube Angle 70° 70° 70° 70°
Fork Rake 46mm 46mm 46mm 46mm
Trail 77mm 77mm 77mm 77mm
Stand-Over Height 746mm 783mm 814mm 847mm
Chain-Stay Length 455mm 455mm 455mm 455mm
Seat-Tube Angle 72° 72° 72° 72°
B-B Drop 70mm 70mm 70mm 70mm
Seat-Post Length 350mm 350mm 350mm 350mm
