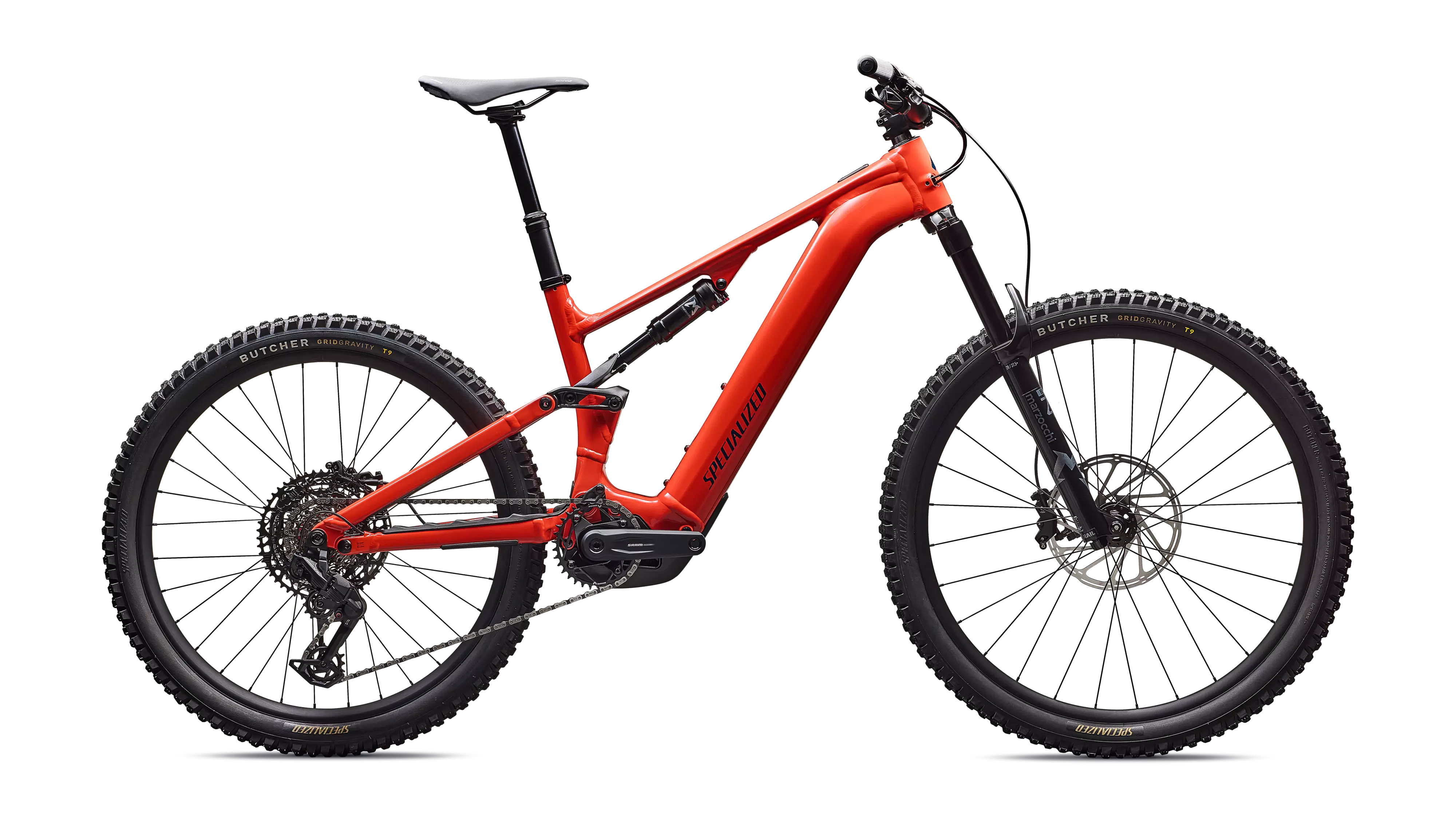

Turbo Levo 4 Alloy
101Nm Torque, 666W Power, 840Wh Battery
MSRP: R 120,000.00
0 Reviews
Turbo Levo 4: SuperNatural E-MTB Power, Ride, and Range
Color:
Gloss Deep Orange
What's my size?
Select a Size
Turbo Levo 4, Where Super Meets Natural
SuperNatural Power, Ride, and Range
Turbo Levo 4, Where Super Meets Natural
SuperNatural Power, Ride, and Range
The Specialized Science Club Introduces the Levo 4, an electric mountain bike so advanced it transforms you into a cycling cyborg. Together you're SuperNatural, fortified with super power, traction, control, and range to conquer any off-road terrain. Levo 4, Where Super Meets Natural.
At a Glance
Use
Full Power E-MTB Trail
E-System
Specialized 3.1 Motor w/ 666 Watts & 101Nm, 840Wh Battery, up to 5.33 hour range
Frame
Premium M5 Alloy, Geo Adj & SWAT Storage
Suspension
Front: 160mm Marzocchi Bomber Z1
Rear: 150mm Marzocchi Bomber Inline (shock subject to upgrade)
Drivetrain
SRAM 70 Eagle T-Type Mechanical
Wheels
Specialized Alloy Rims / Bear Pawls hubs
Technical Specifications
E-Bike
Motor
All New Specialized 3.1 Motor, 101Nm torque, 666Nm power
Battery
840Wh battery
UI/Remote
All New MasterMind T3 Display System, 2.2" high resolution color screen, fully customizeable with Specialized app
Charger
Specialized 4amp charger
Frameset
Frame
All new Levo 4 M5 Alloy frame, 150mm travel,, adjustable chainstay, adjustable head tube angle, adjustable bottom bracket, internal SWAT storage 148mm spacing, 29" front wheel/27.5" rear wheel, fork travel up to 180mm
Seat Binder
Alloy, 38.6mm
Suspension
Rear Shock
*Marzocchi Bomber Inline, EVOL LV air sleeve, rebound adjust, 210x55mm
Fork
Marzocchi Bomber Z1, 29", S2-S6: 160mm, S1: 150mm, sweep adjust compression
Brakes
Front Brake
SRAM DB8 Stealth, 4-piston caliper, hydraulic disc, 220mm Centerline rotor
Rear Brake
SRAM DB8 Stealth, 4-piston caliper, hydraulic disc, 200mm Centerline rotor
Drivetrain
Shift Levers
SRAM 70 trigger, 12-speed, single click
Rear Derailleur
SRAM Eagle 70 T-Type
Cassette
XS-1270, 12-speed, 10-52t
Chain
SRAM Eagle 70 T-Type Flattop Chain
Crankset
SRAM S1000 Crankset, ISIS Interface, Integrated Guard, 55mm Chainline, 155mm
Chainrings
SRAM 34t T-Type chainring, 104 BCD, steel
Wheels & Tires
Rims
Specialized 29/27.5, hookless alloy, 30mm inner width, tubeless ready
Front Hub
Alloy, sealed cartridge bearings, 15x110mm thru-axle, 28h
Rear Hub
Alloy, sealed cartridge bearings, 12x148mm thru-axle, 32h
Spokes
DT Swiss Industry
Front Tire
Butcher, GRID GRAVITY casing, GRIPTON® T9 compound, TLR, 29x2.4"
Rear Tire
Butcher, GRID GRAVITY casing, GRIPTON® T9 compound, TLR, 27.5x2.4"
Inner Tubes
Standard, Presta valve
Cockpit
Stem
Alloy Trail Stem, 35mm bar bore
Handlebars
Specialized, 6061 alloy, 6-degree upsweep, 8-degree backsweep, 30mm rise, S1-S2: 780mm width, S3-S6 800mm width
Grips
Specialized Trail Grips
Saddle
Body Geometry Bridge Saddle, steel rails
SeatPost
TranzX dropper, 34.9mm, S1: 100mm, S2: 125mm, S3: 150mm. S4-S5: 170mm, S6: 200mm
Accessories
SWAT
SWAT internal downtube storage
Product Details
Product ID
221347
Compliance Certification
As applicable, certified to UL 2849 (e-system) and/or UL 2271 (battery) by UL Solutions and/or SGS.
For information on lithium-ion battery standards and regulations in New York City, visit: www.nyc.gov/fdny/batteries
Weight
Weight
26.08 kg (57 lb, 7.8 oz)
Weight Size
S4
* Weights based on production painted frames as pictured. Actual weights will vary based on colorway, frame size, and component variation. Specifications are subject to change without notice.
Geometry
| S1 | S2 | S3 | S4 | S5 | S6 | |
|---|---|---|---|---|---|---|
| Crank Length | 155mm | 155mm | 155mm | 155mm | 155mm | 155mm |
| Handlebar Width | 780mm | 780mm | 800mm | 800mm | 800mm | 800mm |
| Stem Length | 40mm | 40mm | 40mm | 40mm | 40mm | 40mm |
| Saddle Width | 155mm | 155mm | 143mm | 143mm | 143mm | 143mm |
| Seatpost Length | 100mm | 125mm | 150mm | 170mm | 200mm | 200mm |
| Stack | 609mm | 618mm | 626mm | 638mm | 652mm | 667mm |
| Reach | 407mm | 435mm | 455mm | 480mm | 505mm | 535mm |
| Headtube Length | 94mm | 95mm | 103mm | 117mm | 132mm | 149mm |
| Headtube Angle | 64° | 64.5° | 64.5° | 64.5° | 64.5° | 64.5° |
| BB Height | 355mm | 350mm | 350mm | 350mm | 350mm | 350mm |
| BB Drop | 24.13mm | 29.5mm | 29.5mm | 29.5mm | 29.5mm | 29.5mm |
| Trail | 132mm | 132mm | 137mm | 132mm | 132mm | 132mm |
| Fork Length (full) | 567mm | 577mm | 577mm | 577mm | 577mm | 577mm |
| Fork Rake/Offset | 44mm | 44mm | 44mm | 44mm | 44mm | 44mm |
| Front Center | 744mm | 765mm | 789mm | 820mm | 851mm | 888mm |
| Chainstay Length | 435mm | 435mm | 435mm | 435mm | 435mm | 435mm |
| Wheelbase | 1179mm | 1200mm | 1223mm | 1254mm | 1286mm | 1323mm |
| Top-tube Length (horizontal) | 556mm | 578mm | 599mm | 627mm | 655mm | 689mm |
| Bike Standover Height | 753mm | 753mm | 754mm | 753mm | 758mm | 761mm |
| Seat Tube Length | 379mm | 390mm | 405mm | 425mm | 445mm | 465mm |
| Seat Tube Angle | 76° | 77° | 77° | 77° | 77° | 77° |
| Saddle Height for Effective ST Angle | 645mm | 690mm | 735mm | 780mm | 825mm | 870mm |
| Max Seatpost Insertion | 264mm | 274mm | 289mm | 313mm | 337mm | 357mm |
| Min Seatpost Insertion | 80mm | 80mm | 80mm | 80mm | 80mm | 80mm |
