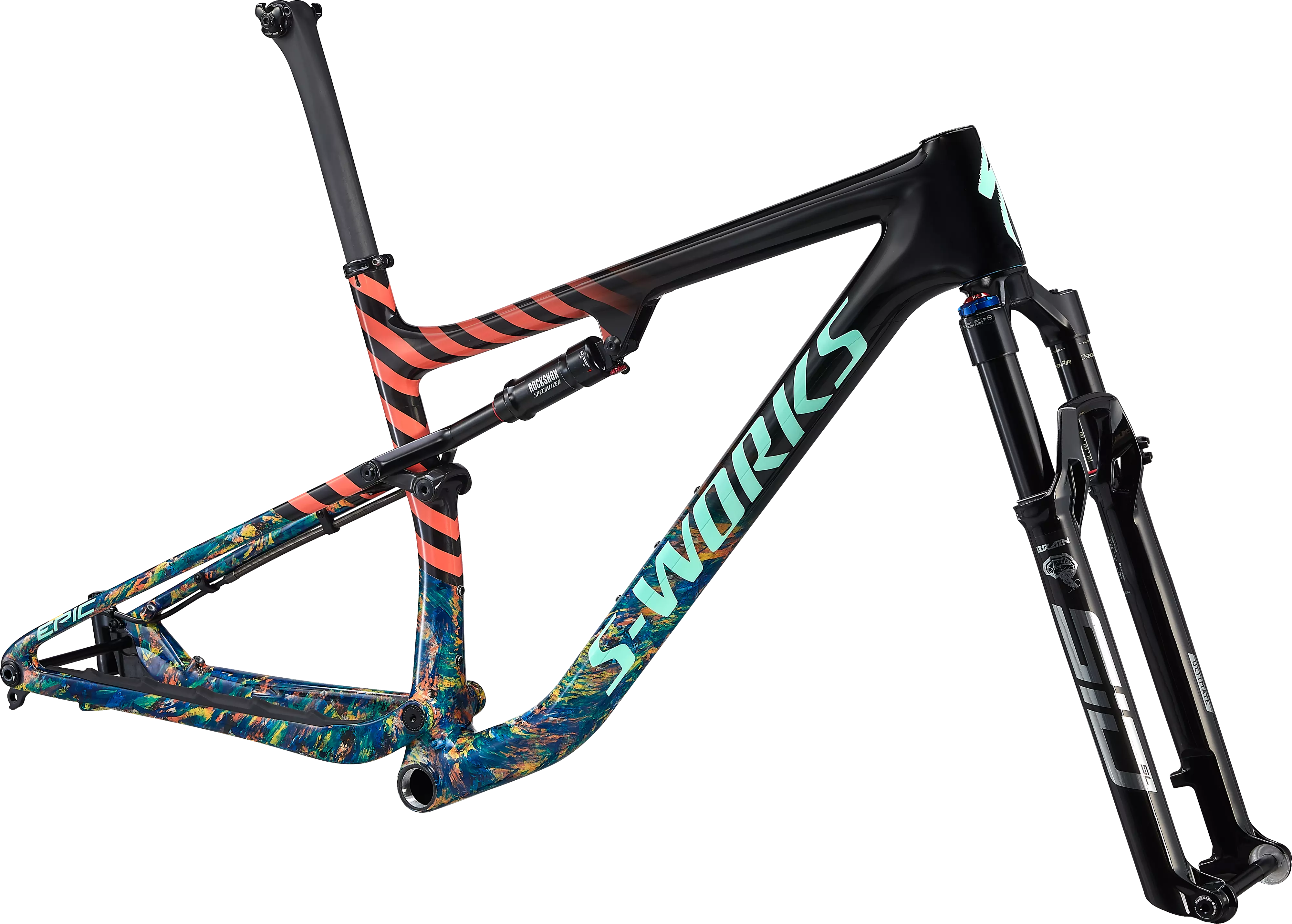

S-Works Epic Frameset

S-Works Epic Frameset

Don't worry, we get it...your training buddies all think you're a bit 'particular'. You may or may not have stockpiled your favorite grips just in case they ever get replaced by a new model. Perhaps your trailside toolbox would make a quality control engineer blush. Whatever the case, you won't find any judgement here.

Instead, the endlessly engineered S-Works Epic frameset is here for you to let your discerning tastes run wild. We sweated every last detail when designing the S-Works frame, from an endlessly refined layup schedule that re-examined every last ply of FACT 12m carbon to optimize weight savings and ride dynamics to the weight-shedding carbon shock link, all so that you focus on the rest, knowing that you're starting with the most capable canvas in the world.

A Smarter BRAIN

True to form, the latest Epic continues the tradition, taking advantage of the most efficient Brain suspension we've ever created to ensure it's always on a first-name-basis with fast.

Re-engineered hand-in-hand with the new Epic, the latest BRAIN design resets the expectation for efficiency, employing a new race-tuned pedaling platform to ensure every watt possible is translated into forward motion, while handily soaking up momentum-killing chatter and big hits alike—all more smoothly than ever.

Frame-Changer

Re-engineered hand-in-hand with the new Epic, the latest BRAIN design resets the expectation for efficiency, employing a new race-tuned pedaling platform to ensure every watt possible is translated into forward motion, while handily soaking up momentum-killing chatter and big hits alike—all more smoothly than ever.

Perfectly matched to the frame's BRAIN system, the S-Works Epic frameset's Position-Sensitive BRAIN fork benefits from RockShox's latest SID Ulitmate SL chassis for next-level steering stiffness that still manages to keep the gram count to a minimum.

Technical Specifications

Add Icon

Suspension

Rear Shock

RockShox-Specialized BRAIN, Rx XC Tune, 5 Position Platform Adjust, Rebound Adjust, Integrated Extension, 265x52.5mm

Fork

RockShox SID SL ULTIMATE BRAIN, Top-Adjust Brain damper, Debon Air, 15x110mm, 44mm offset, 100mm Travel

Cockpit

SeatPost

S-Works FACT carbon, 10mm offset, 30.9mm

Frameset

Frame

S-Works FACT 12m Carbon, Progressive XC Race Geometry, Rider-First Engineered™, threaded BB, 12x148mm rear spacing, internal cable routing, 100mm of travel

Seat Binder

Specialized Alloy, 34.9mm, Titanium bolt

* Weights based on production painted frames as pictured. Actual weights will vary based on colorway, frame size, and component variation. Specifications are subject to change without notice.

Geometry

Add Icon
XSSMLXL
Seatpost Length350mm350mm400mm400mm400mm
Stack596mm586mm591mm605mm623mm
Reach390mm415mm445mm470mm495mm
Head Tube Length95mm95mm100mm115mm135mm
Head Tube Angle67.5°67.5°67.5°67.5°67.5°
BB Height314mm324mm324mm324mm324mm
BB Drop58mm48mm48mm48mm48mm
Trail106mm106mm106mm106mm106mm
Fork Length, Full505mm505mm505mm505mm505mm
Fork Rake/Offset44mm44mm44mm44mm44mm
Front Center663mm687mm719mm750mm782mm
Chainstay Length433mm433mm433mm433mm433mm
Wheelbase1090mm1116mm1148mm1179mm1211mm
Bike Standover Height740mm763mm766mm776mm788mm
Seat Tube Length375mm400mm430mm470mm520mm
Seat Tube Angle76.5°75.8°75.5°75.5°75.5°
Top Tube Length, Horizontal533mm563mm598mm626mm656mm
Geometry
