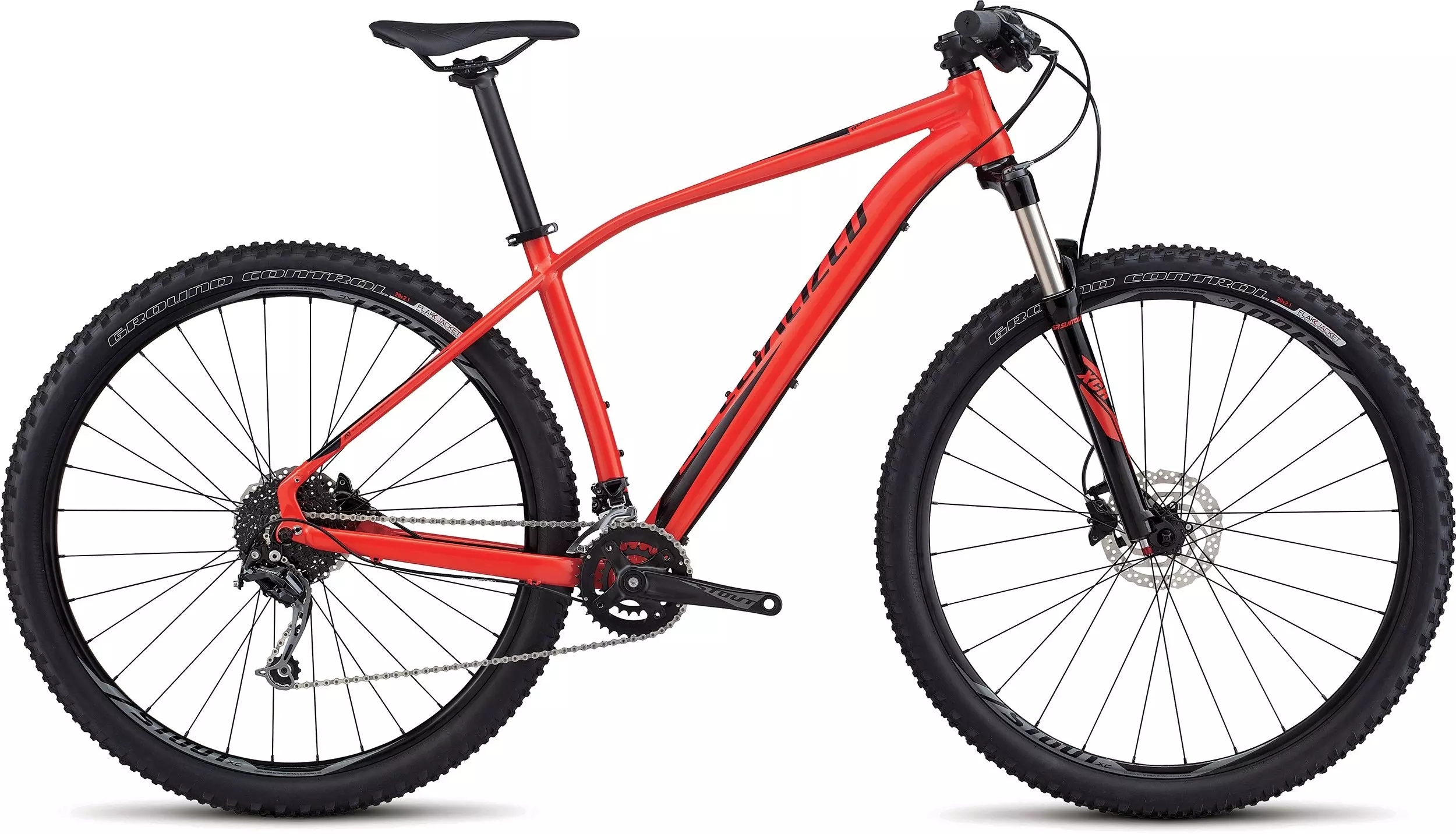

ROCKHOPPER COMP 29
FRAME
Specialized A1 SL Aluminum, Trail 29 geometry, fully-butted tube sets, ORE down tube, tapered head tube, forged dropouts, disc mount, replaceable derailleur hanger
SEAT BINDER
Alloy, QR clamp, 34.9mm
FORK
SR Suntour XCR-Air, rebound adjustment w/remote lockout, 80/100mm of travel (size specific)
FRONT HUB
Shimano HB-RM35, Center Lock disc, 9x100mm, 28h
REAR HUB
Shimano FH-RM35, Center Lock disc, 10x135mm, 32h
RIMS
Stout XC 29, alloy disc, double-wall, pinned joint, 21mm inner width, 28/32h
SPOKES
Stainless, 14g, black
REAR TIRE
Ground Control Sport, 29x2.1"", 60TPI, wire bead, Flak Jacket protection
FRONT TIRE
Ground Control Sport, 29x2.1"", 60TPI, wire bead, Flak Jacket protection
INNER TUBES
29x1.75/2.4"", 60mm Presta valve
REAR DERAILLEUR
Shimano Deore, Shadow design, SGS cage, 9-speed
FRONT DERAILLEUR
SRAM X5, high-clamp 34.9mm, 2x10
CHAIN
KMC X10, 10-speed w/reusable MissingLink
CASSETTE
Sunrace, 9-speed, 11-36t
SHIFT LEVERS
Shimano Acera, RapidFire Plus, 9-speed
CHAINRINGS
36/22T
CRANKSET
Stout, forged alloy construction, 2x9, anti-corrosion hardware
BOTTOM BRACKET
Square taper, 73mm, internal bearings
HANDLEBARS
Stout, alloy, 8-degree backsweep, 6-degree upsweep, 10mm rise, 720mm width, 31.8mm
STEM
Stout, 3D-forged alloy, 31.8mm clamp, 6-degree rise
SEATPOST
Alloy, 12mm offset, 2-bolt clamp, 30.9mm
SADDLE
Body Geometry Henge Sport, steel rails, 143mm
GRIPS
Specialized MTB lock-on
PEDALS
Specialized Dirt
REAR BRAKE
Shimano BR-M315, hydraulic disc, resin pads, 160mm rotor
FRONT BRAKE
Shimano BR-M315, hydraulic disc, resin pads
* Weights based on production painted frames as pictured. Actual weights will vary based on colorway, frame size, and component variation. Specifications are subject to change without notice.
S | M | L | XL | XXL | |
---|---|---|---|---|---|
Crank Length | 170mm | 175mm | 175mm | 175mm | 175mm |
Handlebar Width | 720mm | 720mm | 720mm | 720mm | 720mm |
Stem Length | 60mm | 70mm | 70mm | 80mm | 90mm |
Saddle Width | 143mm | 143mm | 143mm | 143mm | 143mm |
Seatpost Length | 350mm | 350mm | 400mm | 400mm | 400mm |
Seat-Tube Angle | 73° | 72° | 72° | 72° | 72° |
Head-Tube Length | 110mm | 100mm | 115mm | 130mm | 150mm |
Head-Tube Angle | 71° | 71° | 71° | 71° | 71° |
Chain-Stay Length | 442mm | 442mm | 442mm | 442mm | 442mm |
Front-Center | 642mm | 657mm | 680mm | 704mm | 725mm |
B-B Drop | 64mm | 64mm | 64mm | 64mm | 64mm |
B-B Height | 310mm | 310mm | 310mm | 310mm | 310mm |
Bike Stand-Over Height | 763.6mm | 810.4mm | 828.7mm | 860mm | 894.1mm |
Fork Length (full) | 485mm | 505mm | 505mm | 505mm | 505mm |
Top-Tube Length (horizontal) | 588mm | 615mm | 637mm | 662mm | 682mm |
Seat-Tube Length | 395mm | 445mm | 460mm | 510mm | 560mm |
Stack | 615mm | 624mm | 639mm | 653mm | 672mm |
Reach | 400mm | 412mm | 430mm | 450mm | 464mm |
Trail | 80mm | 80mm | 80mm | 80mm | 80mm |
Fork Rake/Offset | 46mm | 46mm | 46mm | 46mm | 46mm |
Wheelbase | 1076mm | 1091mm | 1114mm | 1139mm | 1159mm |
