Jett Sport 29
R9,410.00
Part No.:

Jett Sport 29

R9,410.00
Part No.:  115381
load-spinner

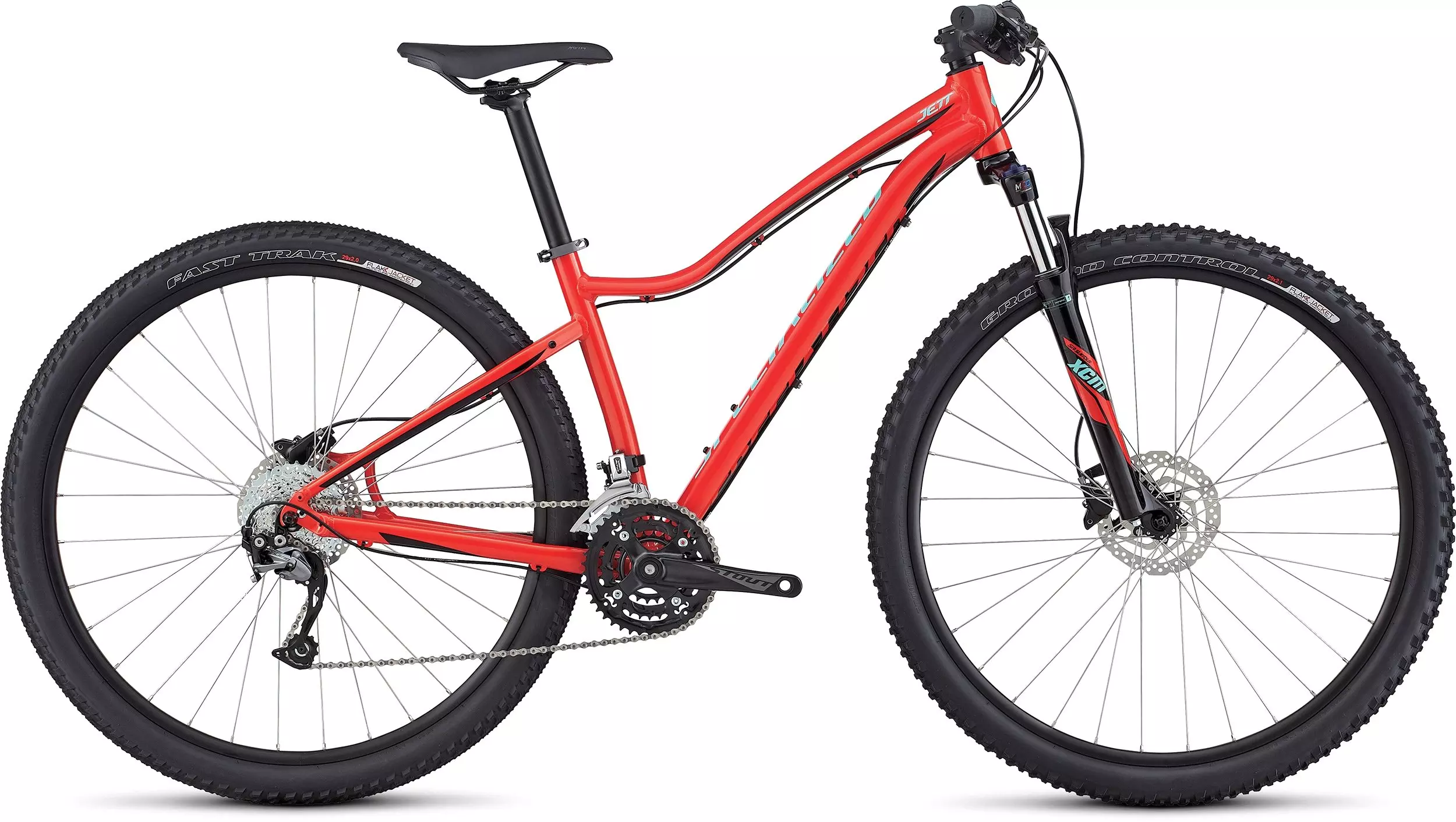

Jett Sport 29
Overview
Technical Specifications
Geometry
The Jett Sport 29 features a lightweight aluminium frame and a durable component package that ensures you can get out there and ride all the cross country terrain in your area with a newfound confidence. Its frame is snappy, quick, and graceful over rugged terrain, and it's been dressed in a host of women's-specific components, like our Body Geometry Myth Comp saddle. Together, the combination will help you reach and surpass your trail goals, but more importantly, it's going to give you your ticket to an awesome time.
  • The rugged A1 Premium aluminium frame is sturdy and reliable for all your Cross Country exploits. It's also designed with our Women’s XC 29er Geometry, so you'll get an ultra-low standover, an incredible fit, and more confidence and control while riding.
  • The SR Suntour XCM fork puts out 80/100mm (size-specific) of plush and reactive travel, provided by air-sprung air-sprung suspension that's custom-tuned for lighter riders.
  • A Shimano Alivio rear derailleur controls the rear shifting with durable aplomb. It shifts along a wide gear range, 11-34t, so you can ride confidently knowing that you'll always have the right gear for the hill at hand.

Technical Specifications

DRIVETRAIN
CHAIN KMC X8, 8-speed w/reusable MissingLink
BOTTOM BRACKET Square taper, 73mm, internal bearings
CRANKSET Stout, forged alloy construction, 8-speed
FRONT DERAILLEUR Shimano Altus, 34.9mm clamp, down-swing, 7/8-speed
SHIFT LEVERS Shimano Altus, 8-speed
CASSETTE Sunrace, 8-speed, 11-34t
CHAINRINGS 44/32/22T
REAR DERAILLEUR Shimano Alivio, Shadow design, SGS cage, 9-speed
WHEELS
FRONT HUB Shimano Center Lock, disc, 9x100mm QR, 32h
REAR HUB Shimano Center Lock, disc, 10x135mm QR, 32h
INNER TUBES Schraeder valve tubes
SPOKES Stainless, 14g
RIMS Stout 29, alloy disc, double-wall, pinned joint, 20mm inner width, 32h
FRONT TYRE Ground Control Sport, 29x2.1", 60TPI, wire bead, Flak Jacket protection
REAR TYRE Fast Trak Sport, 29x2.0", 30TPI, wire bead, Flak Jacket protection
COCKPIT
SADDLE Women's Body Geometry Myth Sport, steel rails, 155mm
SEATPOST Alloy, 12mm offset, 2-bolt clamp, 30.9mm
STEM Stout, 3D-forged alloy, 31.8mm clamp, 6-degree rise
HANDLEBARS Stout, alloy, 8-degree backsweep, 6-degree upsweep, 10mm rise, 680mm width, 31.8mm
GRIPS Specialized MTB lock-on
Suspension
FORK SR Suntour XCM, coil spring, hydraulic lock-out w/Multi-Circuit Damping, 80/100mm of travel (size specific)
BRAKES
FRONT BRAKE Shimano BL-M315, hydraulic disc, resin pads, 160mm rotor
REAR BRAKE Shimano BR-M315, hydraulic disc, resin pads, 160mm rotor
ACCESSORIES
PEDALS Specialized Dirt
FRAMESET
SEAT BINDER Alloy, QR clamp, 31.8mm
FRAME Specialized A1 Premium Aluminum, Women's XC 29 Geometry, forged post-mount 160mm dropouts, replaceable derailleur hanger, kickstand mount

Geometry

Geometry Chart

Jett - Geometry

S M L
  S M L
Crank Length 165mm 170mm 175mm
Stem Length 60mm 70mm 70mm
Saddle Width 155mm 155mm 155mm
Handlebar Width 680mm 680mm 680mm
Seat Post Length 350mm 350mm 400mm
Reach 378mm 392mm 414mm
Stack 612mm 623mm 633mm
Wheelbase 1071mm 1084mm 1109mm
Bike Stand-Over Height 684mm 725mm 754mm
Head-Tube Length 100mm 110mm 120mm
Front-Center 629mm 642mm 667mm
Fork Rake/Offset 46mm 46mm 46mm
Head-Tube Angle 70° 70.5° 70.5°
Trail 86mm 83mm 83mm
B-B Height 308mm 308mm 308mm
Chain-Stay Length 450mm 450mm 450mm
Fork Length (full) 495mm 495mm 495mm
Seat-Tube Angle 73.5° 73.5° 73.5°
B-B Drop 64.5mm 64.5mm 64.5mm
Seat-Tube Length 361mm 417mm 468mm
Top-Tube Length (horizontal) 559mm 577mm 601mm
