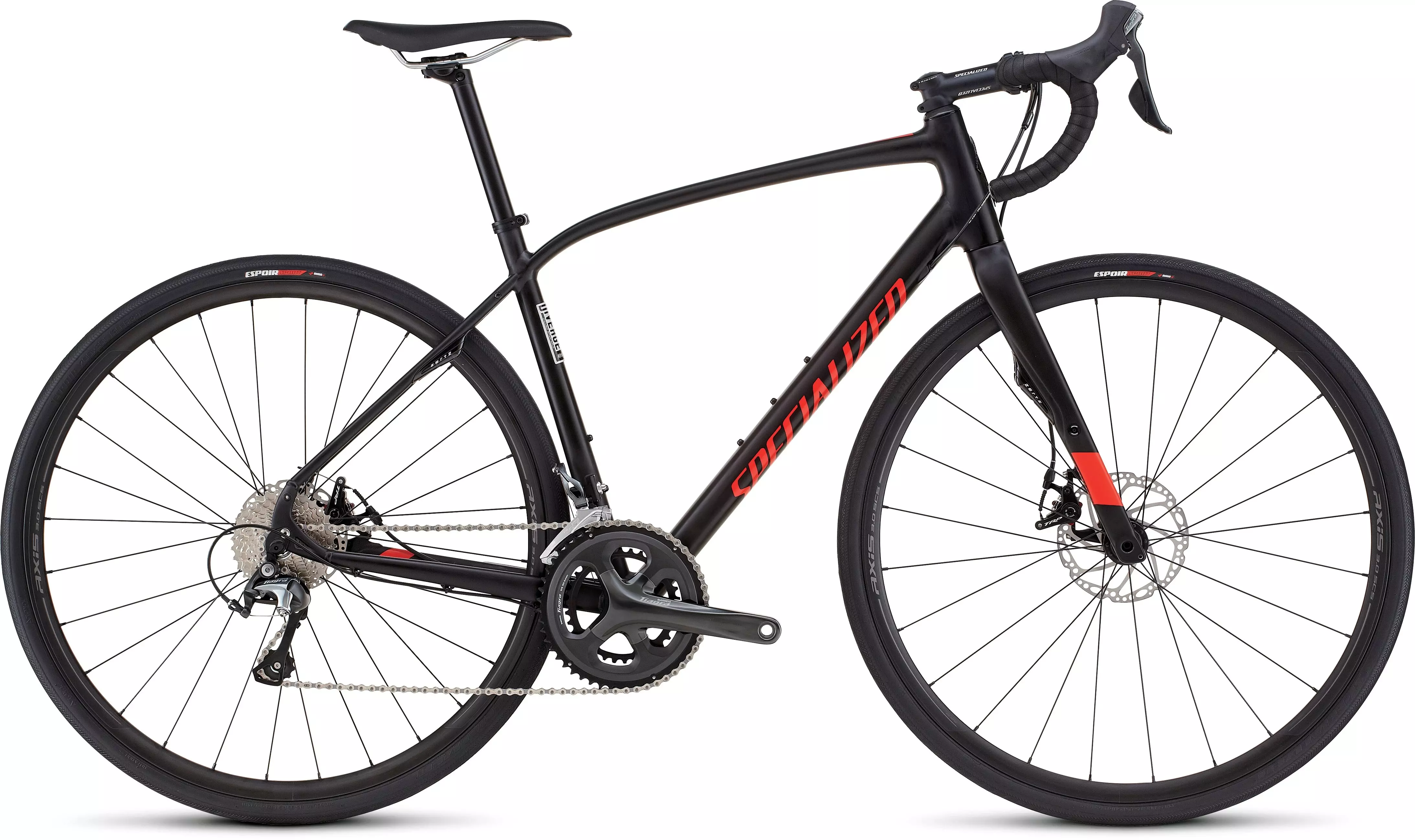

2016 DIVERGE ELITE SMARTWELD
The Diverge Elite Smartweld has everything you need to start going farther than you…
Color:
Ano/Rkt Red
What's my size?
Select a Size
Unavailable
This item is not eligible for pickup in store
Unavailable
This item is not available for Find Nearby
Product Details
The Diverge Elite Smartweld has everything you need to start going farther than you ever thought possible. With its D'Aluisio Smartweld Technology E5 Premium Aluminium frame that increases stiffness while also improving compliance, no road surface is off-limits. Additionally, its confident and stable handling in varying conditions, along with the reliability of the Shimano Tiagra build, make the Diverge Elite DSW perfectly suited to take your explorations to the next level.
All of the performance and compliance of our carbon Diverge in an E5 Premium Aluminium frame option. It features D'Aluisio Smartweld Technology that increases stiffness, while the FACT carbon fork provides excellent steering response over varying terrain.
All of the performance and compliance of our carbon Diverge in an E5 Premium Aluminium frame option. It features D'Aluisio Smartweld Technology that increases stiffness, while the FACT carbon fork provides excellent steering response over varying terrain.
All of the performance and compliance of our carbon Diverge in an E5 Premium Aluminium frame option. It features D'Aluisio Smartweld Technology that increases stiffness, while the FACT carbon fork provides excellent steering response over varying terrain.
Technical Specifications
FRAMESET
FRAME
Specialized E5 Premium Aluminium w/ D'Aluisio Smartweld technology, tapered head tube, OSBB
COCKPIT
TAPE
Specialized Roubaix, w/ 2.5mm gel pads
SADDLE
Body Geometry Toupé Sport, steel rails, 143mm
SEATPOST
Specialized Sport, alloy, 2-bolt, 27.2mm
HANDLEBARS
Specialized, shallow drop, alloy, 125mm drop, 70mm short-reach
STEM
Specialized 3D forged alloy, 4-bolt, 6-degree rise
HEADSET
1-1/8", integrated sealed Cr-Mo cartridge bearings, 20mm alloy cone spacer, w/ 20mm spacers
SEAT BINDER
Alloy, 31.8mm
SUSPENSION
FORK
Specialized FACT carbon w/ Zertz, tapered
WHEELS
FRONT TYRE
Specialized Espoir Sport, 60TPI, wire bead, double BlackBelt protection, 700x28mm
REAR TYRE
Specialized Espoir Sport, 60TPI, wire bead, double BlackBelt protection, 700x28mm
FRONT WHEEL
AXIS 3.0 Disc SCS
REAR WHEEL
AXIS 3.0 Disc SCS
INNER TUBES
Standard, Presta valve
DRIVETRAIN
SHIFT LEVERS
Shimano Tiagra STI, 10-speed
FRONT DERAILLEUR
Shimano Tiagra, 10-speed, braze-on
REAR DERAILLEUR
Shimano Tiagra, 10-speed, long cage
CASSETTE
Shimano Tiagra, 10-speed, 11-32t
CRANKSET
Shimano Tiagra, compact, 50/34T
CHAIN
KMC X10, 10-speed, w/ reusable MissingLink
ACCESSORIES
PEDALS
Nylon, loose ball bearings, w/ reflectors
BRAKES
FRONT BRAKE
Tektro Spyre, mechanical disc, dual pivot, 160mm rotor
REAR BRAKE
Tektro Spyre, mechanical disc, dual pivot, 140mm rotor
* Weights based on production painted frames as pictured. Actual weights will vary based on colorway, frame size, and component variation. Specifications are subject to change without notice.
Geometry
Manual Downloads
For safety warning please refer to the documentation in the Manual Downloads section of this page.
