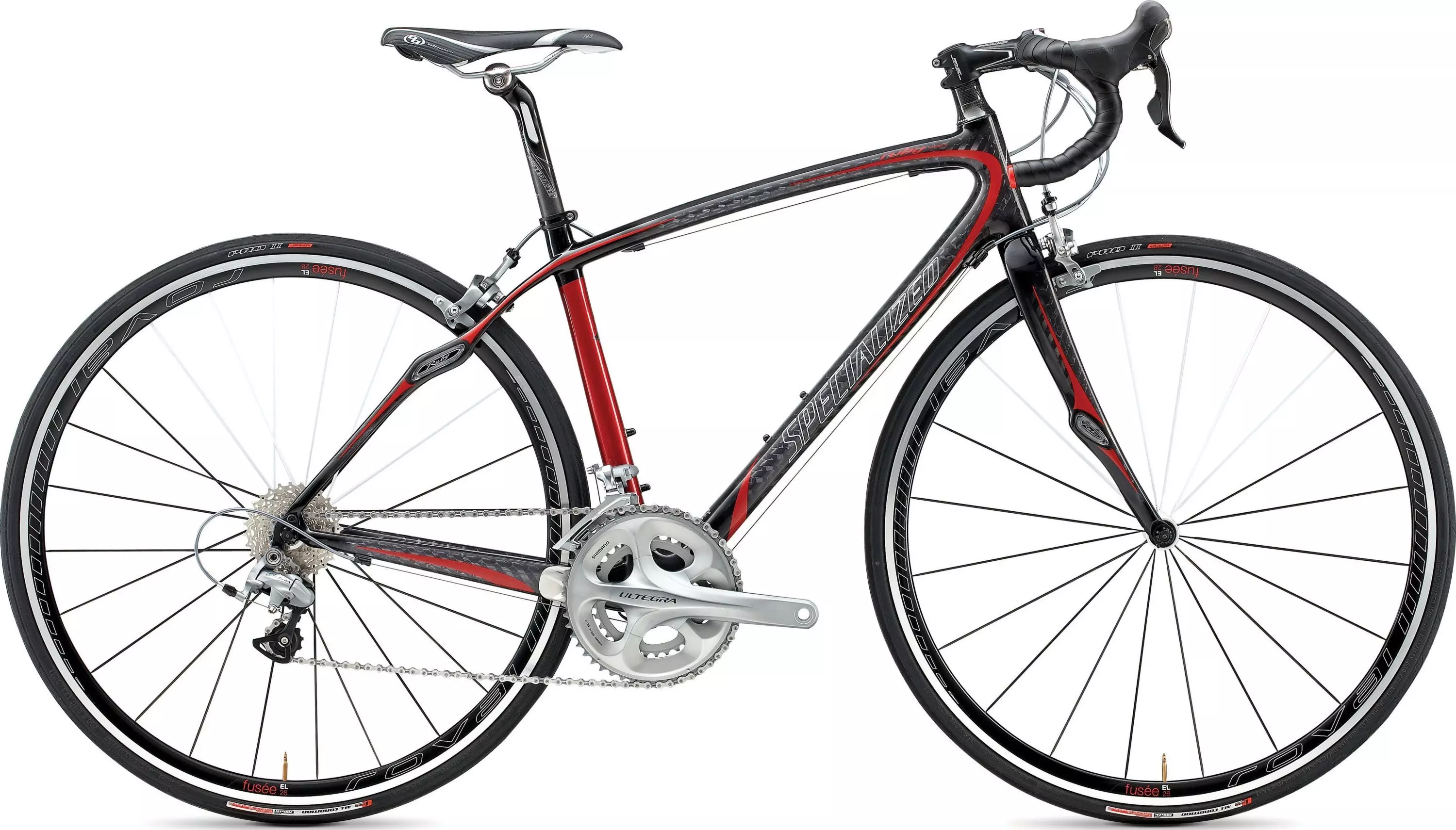

2010 Ruby Expert Compact

0 Bewertungen

The re-designed Ruby® works hard to make the long road feel short. With true Endurance…

Farbe:

Carbon/Red

Was ist meine Größe?

Imperial

Metrisch

Größe eingeben

Höhe:

Für ein genaueres Ergebnis gib bitte die Länge deines Schienbeins an.

Wähle eine Größe

Wähle eine Farbe und eine Größe und suche einen Händler mit einem verfügbaren Bike.

Nicht verfügbar

Dieser Artikel ist in deiner Nähe nicht verfügbar

Produktdetails

The re-designed Ruby® works hard to make the long road feel short. With true Endurance Road geometry, a women's optimized FACT carbon frame and complete synergy of compliance and stiffness, you couldn't ask for a more comfortable, stable or better performing vehicle for all your journeys on the road.

FACT full carbon monocoque fork with vibration-damping Zertz inserts is ultralight and durable
New Shimano Ultegra compact crankset for top-of-the-line quality, durability and shifting performance
Roval Fusee El wheelset is light, stiff and durable enough for even the longest and most taxing rides
Specialized Pro ergonomic handlebar with women's-specific drop for a proportional and comfortable ride
Body Geometry Jett saddle with hollow Cr-Mo rails is lightweight and moderately padded, with an ergonomic cutout for pressure relief
Advanced FACT IS 9r carbon frame with Zertz inserts features women's-specific, endurance-focused geometry and tubing for a lightweight, compliant and proportional ride

Technische Spezifikationen

FRAMESET

FRAME

Specialized Ruby FACT 9r carbon, FACT IS construction, compact women's design w/ Zertz inserts

FORK

Ruby full carbon monocoque, w/ Zertz inserts

HEADSET

Campy style stainless, 1 1/8"" w/ 20mm cone spacer and 20mm of flat spacers

SEAT BINDER

Forged alloy, 32.6mm

WHEELS

FRONT TIRE

Specialized All Condition Pro II, 700x23c, aramid bead, 120TPI, w/ Flak Jacket protection

REAR TIRE

Specialized All Condition Pro II, 700x23c, aramid bead, 120TPI, w/ Flak Jacket protection

INNER TUBES

Standard presta valve

FRONT WHEEL

Roval Fusee EL

REAR WHEEL

Roval Fusee EL

DRIVETRAIN

FRONT DERAILLEUR

Shimano Ultegra

REAR DERAILLEUR

Shimano Ultegra

SHIFT LEVERS

Shimano Ultegra STI, flight deck compatible

CASSETTE

Shimano Ultegra, 10-speed, 11-28t

CHAIN

Shimano Ultegra

CRANKSET

Shimano Ultegra

CHAINRINGS

50 x 34T

BOTTOM BRACKET

With Crankset

COCKPIT

STEM

Specialized Pro-Set, 3D forged 7050 aluminum, 4-position adjustable, 4-bolt 31.8mm clamp

HANDLEBARS

Specialized Pro women's ergo 2014 alloy

TAPE

Specialized Pro Gel with neoprene pads

SADDLE

Body Geometry women's Jett w/ Hollow Cr-Mo rails

SEATPOST

Specialized FACT carbon w/ Zertz insert, 27.2mm

BRAKES

FRONT BRAKE

Shimano Ultegra

REAR BRAKE

Shimano Ultegra

BRAKE LEVERS

Shimano Ultegra STI, flight deck compatible

ACCESSORIES

PEDALS

Silver cage/black body, w/ black toe clips and strap

*Gewichte basieren auf der Produktion lackierter Rahmen, wie abgebildet. Tatsächliche Gewichte variieren je nach Farbgebung, Rahmengröße und Komponentenvariation. Spezifikationen können ohne Vorankündigung geändert werden.

Geometrie

	44	48	51	54	57
Sitzrohrwinkel	75.75°	75.75°	75.5°	74°	73.5°
Steuerrohrlänge	120mm	130mm	140mm	165mm	190mm
Seat-Post Length	300mm	300mm	350mm	350mm	350mm
Steuerrohrwinkel	70.25°	71.25°	71.5°	72°	72°
Kettenstreben-Länge	412mm	415mm	415mm	415mm	417mm
Oberrohrlänge horizontal	498mm	506mm	515mm	532mm	556mm
Mitte Tretlager - Mitte V.-Achse	575mm	579mm	585mm	583mm	604mm
Lenkwinkel	380mm	380mm	400mm	400mm	420mm
Überstandshöhe	692mm	714mm	740mm	765mm	792mm
Sitzrohrlänge	385mm	415mm	445mm	480mm	510mm
Gabelversatz	51mm	51mm	51mm	49mm	49mm
Tretlagerabsenkung	73mm	73mm	73mm	73mm	71.5mm
Nachlauf	68mm	62mm	60mm	59mm	59mm
Radstand	976mm	983mm	989mm	987mm	1010mm
Kurbellänge	165mm	165mm	170mm	170mm	172.5mm
Vorbaulänge	75mm	75mm	90mm	100mm	100mm
