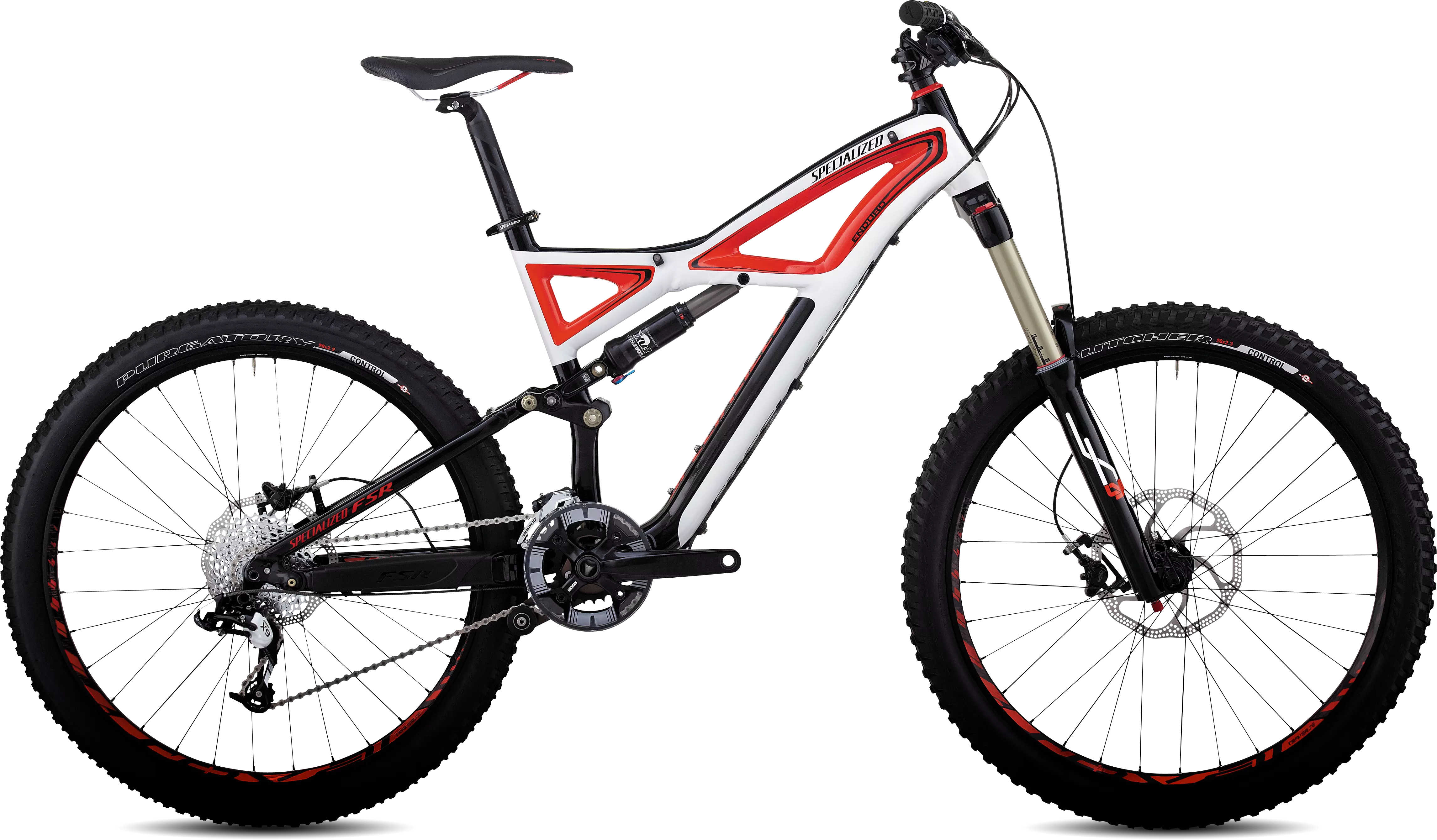

2012 Enduro Comp
0 Bewertungen
Farbe:
Gloss White/Black/Red
Was ist meine Größe?
Wähle eine Größe
Versand nach -----
Nicht verfügbar
Dieser Artikel ist in deiner Nähe nicht verfügbar
Produktdetails
Höher klettern, schneller abfahren – mit dem Enduro Comp und seinem M5 Aluminiumrahmen, 160 mm FSR-Federweg, speziell abgestimmtem Fox RP2-Federbein mit ProPedal-Funktion und RockShox Lyrik R Solo Air-Federgabel.
Fully manipulated M5 alloy FSR frame with ORE tubing is the centerpiece of this incredibly versatile 160mm-travel design with sealed cartridge bearing pivots, 142mm-wide dropouts, ISCG mount, and replaceable derailleur hanger
Custom Fox RP2 rear shock features external ProPedal and rebound damping control in a high-performance and efficient design
RockShox Lyrik R Solo Air, 20mm Maxle thru-axle fork with 160mm of travel, tapered steerer tube, external rebound adjust for a versatile, stiff and lightweight all-mountain fork
2Bliss ready Specialized Butcher Control 2.3" dual-compound front tire for premium cornering, Purgatory Control 2.2" rear tire for lightweight grip in intermediate conditions
Custom SRAM S-1250 AM double crankset with GXP spindle and Gamut shiftguide for high-performance chain retention
Avid Elixir 7 SL hydraulic disc brakes with alloy backed semi-metallic pads and tool-less reach adjust for superb control and modulation
The 720mm-wide Specialized All-Mountain low-rise handlebar is built to control rough trail riding
Roval 26 all-mountain rims mated to Specialized Hi Lo hubs, 20mm thru-axle, and a 142+ rear hub spacing for durable, lightweight, and affordable package
Technische Spezifikationen
FRAMESET
FRAME
M5 alloy, fully manipulated frame w/ ORE TT/ DT, tapered and forged HT, ISCG mount, 142mm dropouts, sealed cartridge bearing pivots, replaceable derailleur hanger, 160mm travel
HEADSET
1-1/8 and 1-1/2"" Threadless, Campy style upper with 1-1/2"" lower, cartridge bearings
SEAT BINDER
34.9mm clamp ID, 7050 hard anodized alloy collar w/ QR, black
SUSPENSION
REAR SHOCK
Custom Fox RP2, ProPedal and rebound adj., 8.5 x 2.125"", Enduro eyelet extension
FORK
RockShox Lyrik R Solo Air, tapered alloy steerer, rebound adj., 20mm Maxle SL thru-axle, 160 mm travel
WHEELS
RIMS
Roval 26, 28mm w/ eyelets, 32h
FRONT HUB
Specialized Hi Lo disc, laser-etched logo, sealed cartridge bearing, 20mm thru-axle, 32h
REAR HUB
Specialized Hi Lo 142+ disc, laser-etched logo, double-sealed cartridge bearing, 12mm thru-axle, 32h
SPOKES
DT Swiss Industry stainless 2.0, (14g)
FRONT TIRE
Specialized Butcher Control, 60 TPI, 2Bliss Ready, aramid bead, dual-compound, 26x2.3""
REAR TIRE
Specialized Purgatory Control, 60 TPI, 2Bliss Ready aramid bead, dual compound, 26x2.2""
INNER TUBES
Ultralight presta valve
DRIVETRAIN
FRONT DERAILLEUR
SRAM X7, 10-speed, S1 direct mount for DMD
REAR DERAILLEUR
SRAM X9, 10-speed, mid cage
SHIFT LEVERS
SRAM X7, 10-speed, aluminum trigger, w/MatchMaker clamp
CASSETTE
SRAM 10-speed, 11-36t
CHAIN
KMC X-10, 10-speed, w/ reusable Missing Link, nickel plates
CRANKSET
Custom SRAM S-1250, 10-speed AM double, GXP spindle, with shift guide, S: 170mm, others: 175mm
CHAINRINGS
36/24, w/ chainguide
BOTTOM BRACKET
SRAM GXP, outboard bearing
COCKPIT
SEATPOST
2014 butted alloy, single bolt setback, 30.9mm, S/M: 350mm, others: 400mm
STEM
Specialized XC, 3D forged alloy, 4-bolt, 31.8mm clamp, adjustable rise, S: 60 M: 60, L: 75 and XL: 90
HANDLEBARS
Specialized All-Mountain low-rise bar, 7050 alloy, 720mm wide, 8º backsweep, 6º upsweep, 31.8mm
GRIPS
Specialized lock-on, S/M: Grappler, Others: Grappler XL
SADDLE
Henge Comp, hollow Cr-Mo rails, 143mm width
BRAKES
FRONT BRAKE
Custom Avid Elixir 7 SL, hydraulic disc, alloy backed semi-metallic pad, HS-1 rotor, 200mm rotor
REAR BRAKE
Custom Avid Elixir 7 SL, hydraulic disc, alloy backed semi-metallic pad, HS-1 rotor, 180mm rotor
BRAKE LEVERS
Custom Avid Elixir 7 SL hydraulic, tool-less reach adj., w/MatchMaker clamp
ACCESSORIES
PEDALS
Resin Test Ride Pedals with toe clips, CEN std.
*Gewichte basieren auf der Produktion lackierter Rahmen, wie abgebildet. Tatsächliche Gewichte variieren je nach Farbgebung, Rahmengröße und Komponentenvariation. Spezifikationen können ohne Vorankündigung geändert werden.
Geometrie
| S | M | L | XL | |
|---|---|---|---|---|
| Mitte Tretlager - Mitte Vorderachse | 927mm | 937mm | 955mm | 973mm |
| Tretlagerhöhe 650x2.8" | 350mm | 350mm | 350mm | 350mm |
| Oberrohrlänge (horizontal) | 560mm | 590mm | 620mm | 645mm |
| Steuerrohrhöhe | 120mm | 130mm | 150mm | 170mm |
| Vorlauf | 66.5° | 66.5° | 66.5° | 66.5° |
| Radstand | 70.5° | 70.5° | 70.5° | 70.5° |
| Seat Tube Angle (Effective) - Low Setting | 75° | 75° | 75° | 75° |
| Oberrohrlänge tatsächlich | 532mm | 562mm | 589mm | 615mm |
| Seat Tube Length - Center to Top | 420mm | 444mm | 467mm | 520mm |
| Radstand | 1120mm | 1151mm | 1185mm | 1213mm |
| Überstandshöhe | 756mm | 761mm | 773mm | 801mm |
| Stack | 577mm | 587mm | 605mm | 623mm |
| Reach | 404mm | 431mm | 457mm | 477mm |
| Kettenstreben-Länge | 419mm | 419mm | 419mm | 419mm |
| Kurbellänge | 170mm | 175mm | 175mm | 175mm |
| Lenkerbreite | 720mm | 720mm | 720mm | 720mm |
| Vorbaulänge | 60mm | 60mm | 75mm | 90mm |
| Länge Sattelstütze | 380mm | 380mm | 380mm | 380mm |
