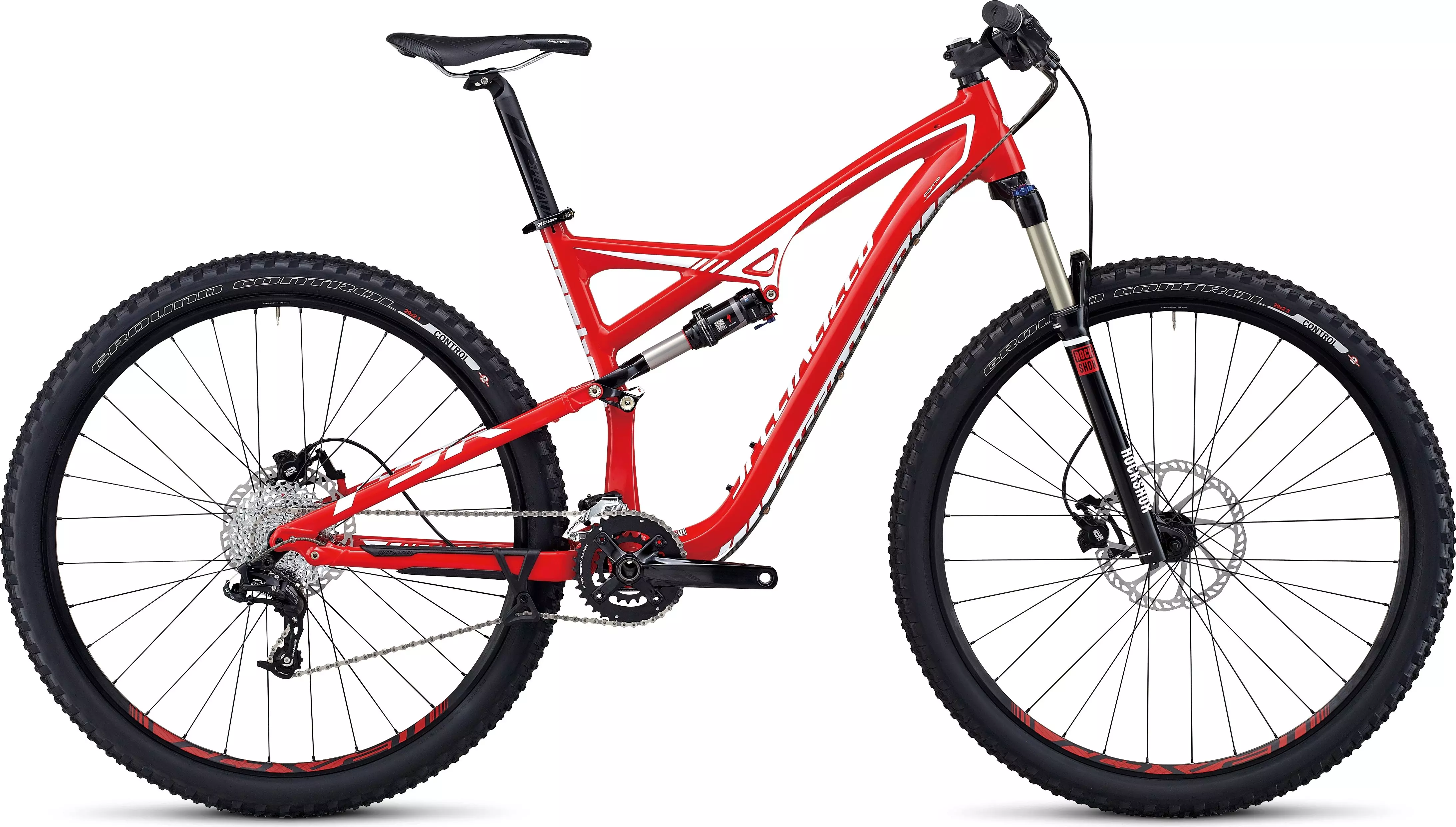

2014 Camber Comp 29
0 Bewertungen
Mit 110 mm Federweg, einem M5 Alluminiumrahmen, SRAM S-1250 und der 10-fach XC Trail…
Farbe:
Gloss Red/White
Was ist meine Größe?
Wähle eine Größe
Produktdetails
Mit 110 mm Federweg, einem M5 Alluminiumrahmen, SRAM S-1250 und der 10-fach XC Trail Double Kurbelgarnitur ist das Camber FSR Comp eine ultra-leistungsstarke Trail-Maschine.
Custom SRAM 10-speed Trail double-ring shifts fast while the PF30 spindle makes for an efficient and stiff crankset
RockShox 30 Gold Taper 29 fork has 110mm of travel, Solo Air spring, and a tapered steerer tube makes for lightweight and efficient trail suspension
Roval 29 rims mated to Specialized Hi Lo hubs, with 15mm endcaps, a 142mm rear hub spacing, and 12mm thru-axle increase wheel stiffness for more confident riding
M5 alloy FSR frame with 29er-specific geometry has 110mm of travel, 142+ dropouts, an all-new concentric sealed-cartridge bearing shock link and features internal cable routing for the Command Post BlackLite to create a lightweight and responsive trail weapon
RockShox Monarch RL air shock with Specialized's proprietary AUTOSAG smooths the trail and is simple and accurate to set up
New Tektro Gemini hydraulic brakes offer reliable stopping power in all conditions, while the Specialized Ground Control tires maintain traction and roll fast
Technische Spezifikationen
FRAMESET
FRAME
M5 hydroformed tubing, 29"" geometry, tapered headtube, internal Command Post BlackLite routing, 142mm dropouts, sealed cartridge bearing pivots, replaceable derailleur hanger, bolt-on cable guides, 110mm travel
SWAT
Bottle cage w/ SWAT Technology compatible (not included)
HEADSET
1-1/8 and 1-1/2"" threadless, Campy style upper with 1-1/2"" lower, cartridge bearings
SEAT BINDER
7050 hard anodized alloy collar, QR, 34.9mm
SUSPENSION
REAR SHOCK
Custom Monarch RL w/ AUTOSAG, air spring, lockout and reb adj., 197x48mm
FORK
RockShox 30 Gold Taper 29, Solo Air spring, tapered alloy steerer, rebound adj., 9mm QR, 110mm travel
WHEELS
RIMS
Roval 29, alloy disc, 26mm wide, 32h
FRONT HUB
Specialized Hi Lo disc, sealed cartridge bearings, 15mm thru-axle, 32h
REAR HUB
Specialized Hi Lo disc, 4x-sealed cartridge bearings, 12mm thru-axle, 142mm spacing, 32h
SPOKES
DT Industry Stainless, 3X front/rear 2.0
FRONT TIRE
Specialized Ground Control, 2Bliss Ready, 29x2.3"", foldable aramid bead, 60TPI
REAR TIRE
Specialized Ground Control, 2Bliss Ready, 29x2.1"", foldable aramid bead, 60 TPI
DRIVETRAIN
FRONT DERAILLEUR
SRAM X5, 10-speed, S3 direct mount for DMD, bottom pull
REAR DERAILLEUR
SRAM X5, 10-speed, mid cage
SHIFT LEVERS
SRAM X5, 10-speed, trigger
CASSETTE
SRAM PG-1030, 10-speed, 11-36
CHAIN
SRAM PC 1031, 10-speed, PowerLink
CRANKSET
Custom SRAM S-1250, 10-speed Trail double, GXP spindle, S: 170mm, Others: 175mm
CHAINRINGS
36/22, w/ alloy guard
BOTTOM BRACKET
Threaded BB, sealed bearings
COCKPIT
SADDLE
Body Geometry Henge Comp, hollow Cr-Mo rails, 143mm
SEATPOST
Specialized 2014 butted alloy, single bolt setback, 30.9mm, S/M: 350mm, Others: 400mm
STEM
Specialized Trail, 6061 alloy, 4-bolt, 8-degree rise, 6-degree rise, 31.8mm clamp
HANDLEBARS
Specialized XC Mini-Riser, 6000 butted alloy, 720mm wide, 10mm rise, 8-degree backsweep, 6-degree upsweep, 31.8mm
GRIPS
Specialized Sip Grip, light lock-on, half-waffle aramid-infused, S/M: regular, Others: XL thickness
BRAKES
FRONT BRAKE
Tektro Gemini, hydraulic disc, TR-8 rotor, S/M: 180mm, L/XL: 200mm rotor
REAR BRAKE
Tektro Gemini, hydraulic disc, TR-8 rotor, S/M: 160mm, L/XL: 180mm rotor
BRAKE LEVERS
Tektro Gemini
*Gewichte basieren auf der Produktion lackierter Rahmen, wie abgebildet. Tatsächliche Gewichte variieren je nach Farbgebung, Rahmengröße und Komponentenvariation. Spezifikationen können ohne Vorankündigung geändert werden.
Geometrie
| S | M | L | XL | |
|---|---|---|---|---|
| Tretlagerhöhe 650x2.8" | 335mm | 335mm | 335mm | 335mm |
| Oberrohrlänge (horizontal) | 555mm | 587mm | 612mm | 642mm |
| Steuerrohrhöhe | 90mm | 100mm | 125mm | 150mm |
| Vorlauf | 70° | 70° | 70° | 70° |
| Radstand | 70° | 70° | 70° | 70° |
| Seat Tube Angle (Effective) - Low Setting | 75° | 74.8° | 74.5° | 74.2° |
| Oberrohrlänge tatsächlich | 535mm | 562mm | 589mm | 621mm |
| Seat Tube Length - Center to Top | 394mm | 430mm | 468mm | 523mm |
| Radstand | 1100mm | 1131mm | 1156mm | 1186mm |
| Überstandshöhe | 745mm | 755mm | 758mm | 762mm |
| Stack | 591mm | 600mm | 624mm | 647mm |
| Reach | 400mm | 428mm | 445mm | 466mm |
| Kettenstreben-Länge | 450mm | 450mm | 450mm | 450mm |
| Kurbellänge | 170mm | 175mm | 175mm | 175mm |
| Lenkerbreite | 720mm | 720mm | 720mm | 720mm |
| Vorbaulänge | 60mm | 75mm | 90mm | 100mm |
| Länge Sattelstütze | 350mm | 350mm | 400mm | 400mm |
