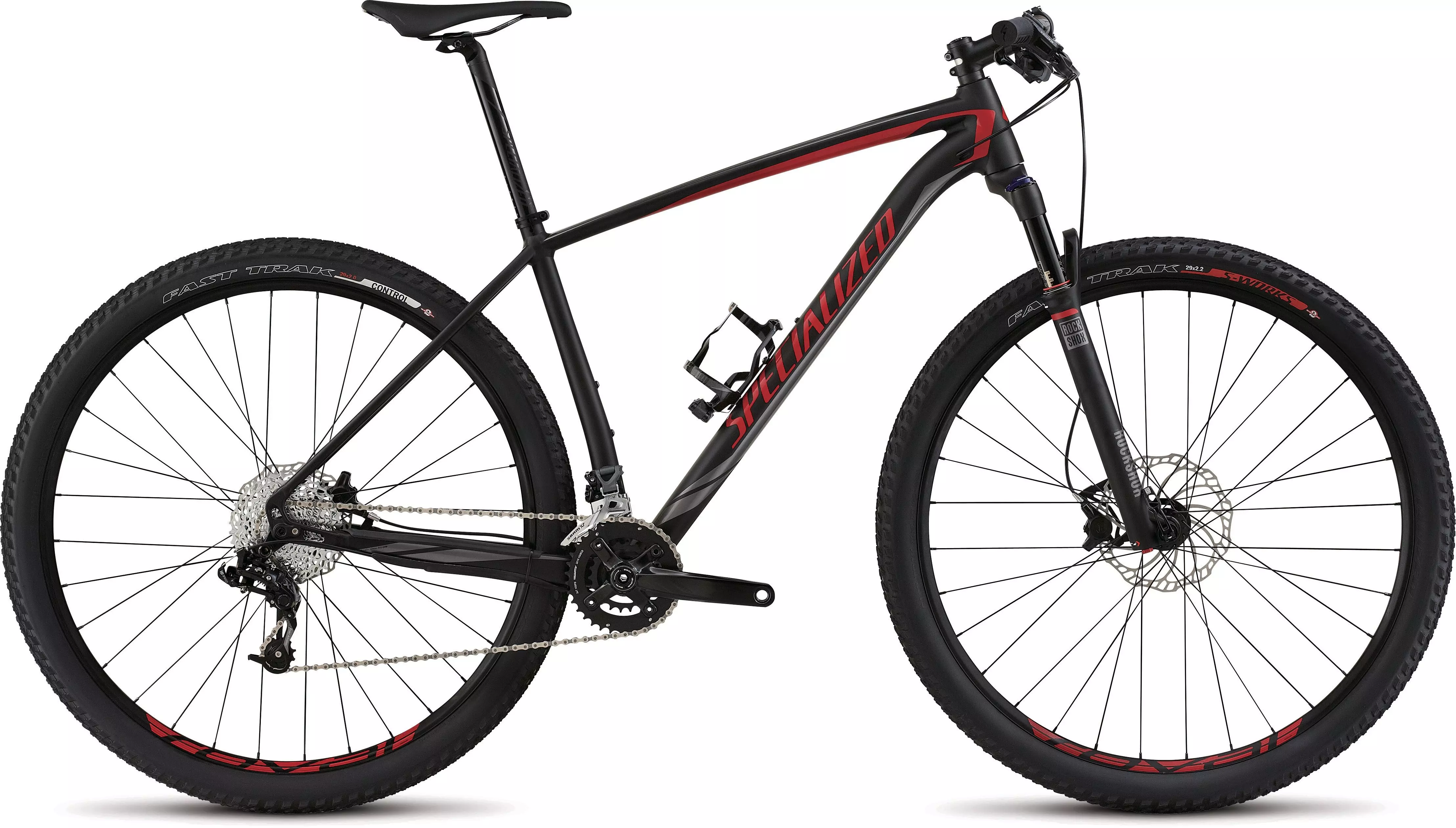

2015 Stumpjumper Comp 29
0 Bewertungen
Das Stumpjumper HT Comp 29 mit renntauglichem Rahmen aus M5 Aluminium bietet mit…
Farbe:
Satin Black/Red/Charcoal
Was ist meine Größe?
Wähle eine Grösse
Nicht verfügbar
Dieser Artikel ist in deiner Nähe nicht verfügbar
Produktdetails
Das Stumpjumper HT Comp 29 mit renntauglichem Rahmen aus M5 Aluminium bietet mit der RockShox Reba Federgabel und custom 2x10 Antrieb Pro-Level Performance zu einem fairen Preis.
SRAM X9 Type 2, 10-speed, mid-cage rear derailleur for lightweight, pinpoint shifts
Custom SRAM PF30 crankset for stiff, yet lightweight pedaling performance
Magura MTS hydraulic disc brakes w/ Storm SL rotors for total control and performance
New Roval 29 rims w/ Hi Lo hubs, 142+ rear hub spacing and 12mm axle for confident control
RockShox Reba RL 90mm-travel fork w/ 15mm thru-axle provides XC traction and control
New M5 alloy frame w/ 29er geometry and PF30 BB for a responsive and race-ready design
2Bliss Ready S-Works/Control Fast Trak tire combo for high-traction and fast-rolling speed
Technische Spezifikationen
FRAMESET
FRAME
M5 alloy, 29” geometry, tapered headtube, PF30 BB, internal shift/brake routing, 142mm dropouts, PM 160 rear brake, replaceable alloy rear derailleur hanger
SWAT
Bottle cage w/ SWAT Technology
HEADSET
1-1/8"" and 1-1/2"" threadless, Campy style upper with 1-1/2"" lower, cartridge bearings
SEAT BINDER
Alloy, 32.6mm
SUSPENSION
FORK
RockShox Reba RL 29, Solo Air spring, tapered alloy steerer, w/ lockout, compression, rebound adjust, 15mm thru-axle, S: 80mm travel, Others: 90mm
WHEELS
RIMS
Roval 29, alloy, 21mm inner width, 32h
FRONT HUB
Specialized Hi Lo disc, sealed cartridge bearings, 15mm thru-axle, 32h
REAR HUB
Specialized Hi Lo disc, 4 sealed cartridge bearings, 12mm thru-axle, 32h
SPOKES
DT Swiss Industry, stainless
FRONT TIRE
S-Works Fast Trak Control, 120TPI, 2Bliss Ready, folding bead, 29x2.2""
REAR TIRE
Specialized Fast Trak Control, 60TPI, 2Bliss Ready, folding bead, 29x2.0""
DRIVETRAIN
FRONT DERAILLEUR
SRAM X7, 10-speed, top pull
REAR DERAILLEUR
SRAM X9 Type 2, 10-speed, mid cage
SHIFT LEVERS
SRAM X7, 10-speed, w/ MatchMaker clamp
CASSETTE
SRAM PG 1030, 10-speed, 11-36
CHAIN
SRAM PC 1031, 10-speed, w/ PowerLink, nickel finish
CRANKSET
Custom SRAM S-1250, 7050 alloy arms, 10-speed XC double, PF30 spindle, 36/22, 104/64mm BCD spider
BOTTOM BRACKET
SRAM, PF30, OS press-in bearings, sealed cartridge
COCKPIT
SEATPOST
Specialized alloy, single bolt, 27.2mm
STEM
Specialized, forged alloy, 6-degree rise
HANDLEBARS
Specialized flat, 8-degree backsweep, 31.8mm
GRIPS
Specialized Sip Grip, light lock-on, half-waffle, S/M: regular thickness, Others: XL
SADDLE
Body Geometry Phenom Comp, hollow Cr-Mo rails, 143mm
BRAKES
FRONT BRAKE
Magura MTS, hydraulic disc, Hi Friction pad, alloy master cylinder, alloy caliper, Storm SL rotor, S/M: 180mm rotor, Others: 160mm
REAR BRAKE
Magura MTS, hydraulic disc, Hi Friction pad, alloy master cylinder, alloy caliper, 160mm Storm SL rotor
BRAKE LEVERS
Magura MTS, alloy lever
ACCESSORIES
PEDALS
Resin test ride, w/ toe clips, CEN std.
*Gewichte basieren auf der Produktion lackierter Rahmen, wie abgebildet. Tatsächliche Gewichte variieren je nach Farbgebung, Rahmengrösse und Komponentenvariation. Spezifikationen können ohne Vorankündigung geändert werden.
Geometrie
| S | M | L | XL | |
|---|---|---|---|---|
| Mitte Tretlager - Mitte Vorderachse | 902mm | 920mm | 935mm | 949mm |
| Oberrohrlänge (horizontal) | 565mm | 593mm | 620mm | 643mm |
| Radstand | 73.5° | 73.5° | 73.5° | 73.5° |
| Steuerrohrhöhe | 90mm | 100mm | 115mm | 130mm |
| Oberrohrlänge tatsächlich | 551mm | 574mm | 598mm | 622mm |
| Seat Tube Length - Center to Top | 394mm | 434mm | 470mm | 505mm |
| Tretlager-Absenkung | 61mm | 61mm | 61mm | 61mm |
| Tretlagerhöhe | 310mm | 310mm | 310mm | 310mm |
| Radstand | 1047mm | 1078mm | 1105mm | 1131mm |
| Überstandshöhe | 760mm | 799mm | 826mm | 849mm |
| Tretlagerhöhe | 0mm | 0mm | 0mm | 0mm |
| Stack | 592mm | 610mm | 625mm | 639mm |
| Reach | 390mm | 414mm | 437mm | 458mm |
| Steuerrohrwinkel | 71° | 71° | 71° | 71° |
| Kettenstreben-Länge | 430mm | 430mm | 430mm | 430mm |
| Kurbellänge | 170mm | 175mm | 175mm | 175mm |
| Lenkerbreite | 700mm | 700mm | 700mm | 700mm |
| Vorbaulänge | 75mm | 90mm | 105mm | 105mm |
Anleitungen herunterladen
Weitere Sicherheitshinweise finden sich in den entsprechenden Handbüchern im Downloadbereich auf dieser Seite.
